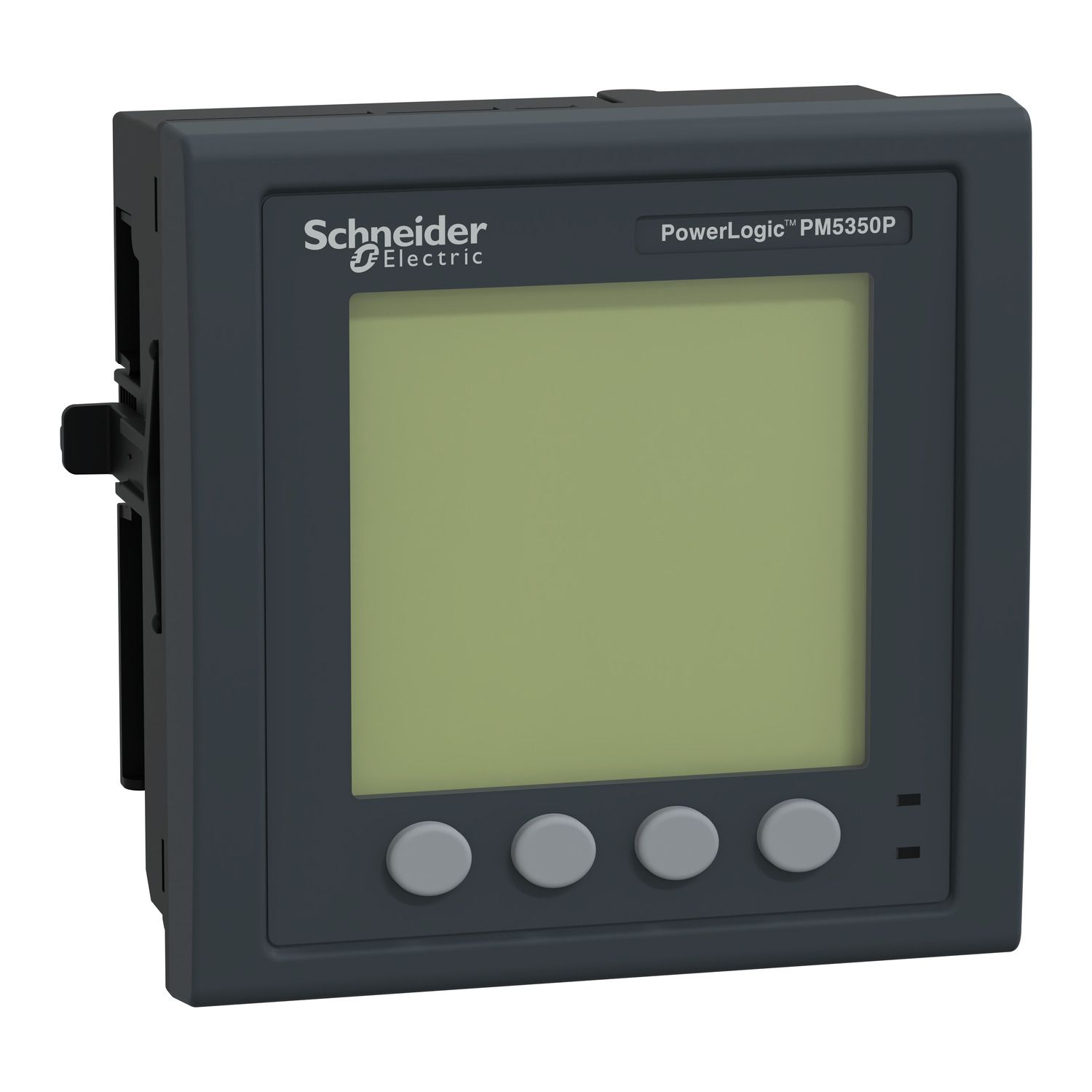

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 31th Harmonic. Include a non-volatile memory for several parameters and alarms. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 85 to 265 VAC and 100 to 300 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20V AC to 480V AC, CAT III or 20V AC to 690V AC, CAT II at 45 Hz to 65 Hz. The range of measurement voltage between Phase and Neutral is 20V AC to 277V AC, CAT III or 20V AC to 400V AC, CAT II at 45 Hz to 65 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has four digital inputs and dual relay outputs. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.24 inches (57 millimetres), height 3.78 inches (96 millimetres) and product weight 8.8 onces (250 g).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM5350P |
| Range | PowerLogic |
| Market segment | industry network management: billing: sub feeder, healthcare multi-site network management: billing: sub feeder, data center multi-site network management: billing: sub feeder, buildings multi-site network management: billing: sub feeder, buildings large building network management: billing: sub feeder, buildings medium building network management: billing: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry multi-site cost management: cost allocation: sub feeder, industry large building cost management: cost allocation: main incomer, healthcare medium building cost management: cost allocation: sub feeder, healthcare medium building cost management: cost allocation: main incomer, data center small building cost management: cost allocation: sub feeder, data center medium building cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry multi-site cost management: billing: sub feeder, industry large building cost management: billing: main incomer, healthcare small building cost management: billing: sub feeder, healthcare large building cost management: billing: main incomer, data center medium building cost management: billing: sub feeder, data center medium building cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer |
| Product name | PowerLogic PM5350 |
| Product or component type | power meter |
| Complementary | |
| Device application | power monitoring, multi-tariff |
| Display type | LCD screen with white backlighting |
| Web services | upgrade drive firmware |
| Display colour | monochrome |
| Measurement accuracy | reactive energy +/- 2 %, reactive power +/- 2 %, apparent power +/- 0.5 %, active power +/- 0.5 %, apparent energy +/- 0.5 %, active energy +/- 0.5 %, power factor +/- 0.005, frequency 0.05 %, voltage 0.3 %, current 0.3 % |
| Mounting mode | flush-mounted |
| [Us] rated supply voltage | 100...300 V DC, 85...265 V AC 45...65 Hz |
| Discrete input type | discrete input: 18.5...36 V DC 2 Hz (impedance 110 kOhm) |
| Information displayed | tariff (4) |
| Power consumption in W | 5 W at 230 V AC, 4 W at 120 V AC, 5 W at 300 V DC, 4 W at 125 V DC |
| Depth | 57 mm total: , 13 mm outside: , 44 mm embedded: |
| Frequency measurement range | 45-70 Hz |
| Communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2-wire, insulation 2500 V, JBUS |
| Type of measurement | individual harmonics up to the 31st, reactive power, active power, apparent power, phase angle, energy, power factor, frequency, voltage, current |
| Height | 96 mm |
| Power quality analysis | up to the 31st harmonic, total harmonic distortion, total demand distortion |
| Communication port support | terminal block: RS485 |
| Accuracy class | class 5 individual harmonics up to the 15th conforming to IEC 61557-12, class 5 harmonic distorsion (I THD & U THD) conforming to IEC 61557-12, class 0.5 power conforming to IEC 61557-12, class 2 reactive energy conforming to IEC 61557-12, class 2 reactive energy conforming to IEC 62053-23, class 0.5 active energy conforming to IEC 61557-12, class 0.5S active energy conforming to IEC 62053-22 |
| Realtime clock | built-in battery (3 years), drift: +/- 0.5 s/day |
| Width | 96 mm |
| Analogue input type | current 0.05...9 A (impedance <= 0.3 mOhm) |
| [In] rated current | 5 A, 1 A |
| Data recording | alarms, min/max of instantaneous values |
| Poles description | 1P + N, 3P, 3P + N |
| Measurement current | 5-5 A, 1-1 A |
| Type of installation | indoor installation |
| Net weight | 0.25 kg |
| Number of inputs | 4 digital |
| Product certifications | UL conforming to UL 61010-1, cULus conforming to CSA C22.2 No 61010-1, CE conforming to IEC 61010-1 |
| Display resolution | 128 x 128 pixels |
| Power consumption in VA | 11.9 VA at 265 V AC, 9 VA at 230 V AC, 7 VA at 120 V AC |
| Maximum switching current | <LineBreak/>relay outputs 2 A at 250 V AC inductive load, cos phi = 0.4 |
| Number of outputs | 1 pulse, 2 relay |
| Standards | IEC 62053-22, IEC 62052-11, IEC 61557-12, IEC 61010-1 |
| Sampling rate | 64 samples/cycle |
| Measurement voltage | 20-277 V AC 45...70 Hz phase to neutral, 35-480 V AC 45...70 Hz phase to phase |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| Measurement category | category II 690 V conforming to IEC 61010-1, category III 300 V conforming to CSA C22.2 No 61010-1, category III 300 V conforming to UL 61010-1, category III 480 V conforming to IEC 61010-1 |
| IP degree of protection | IP51 front face: conforming to IEC 60529, IP30 back: conforming to IEC 60529 |
| Relative humidity | 5-95 % at 50-50 °C non-condensing |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| Electrical insulation class | class II, double insulation |
| Electromagnetic compatibility | radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, limits for harmonic current emissions class A conforming to IEC 61000-3-2, conducted and radiated emissions class A conforming to EN 55011, immunity to voltage dips conforming to IEC 61000-4-11, immunity to magnetic fields conforming to IEC 61000-4-8, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, electrostatic discharge conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 |
| Ambient air temperature for operation | -25-20 °C at with derating, -20-70 °C at for display module, -25-70 °C |
| Operating altitude | 0...3000 m |
| Overvoltage category | III |
