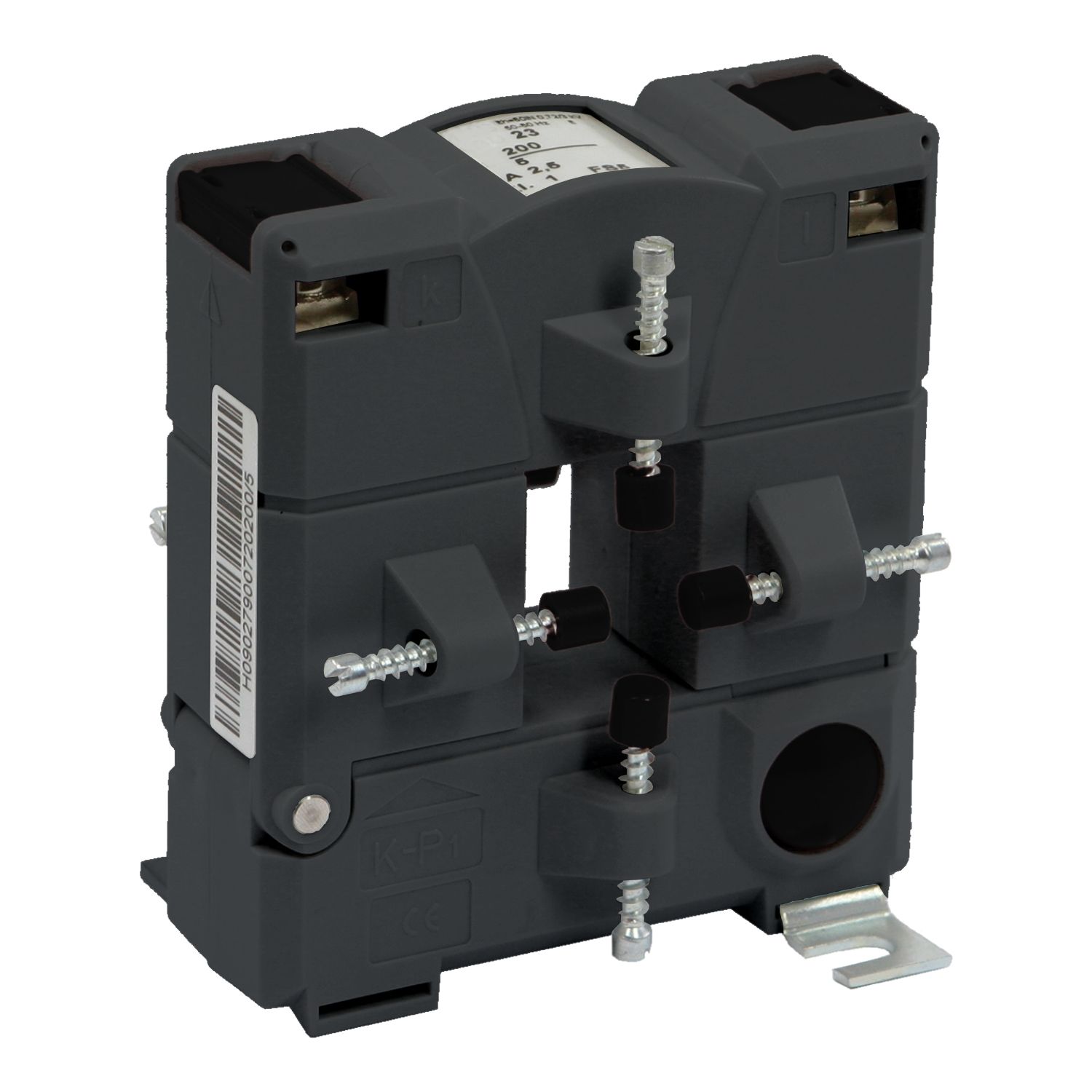

PowerLogic Split Core Current Transformer - Type GD, for bar - 0600A / 5A

Manufacturer: Schneider Electric

SKU: METSECT5GD060

GTIN: 3606489607890

Catalog

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $330.55 inc GST

Price: $238.82 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, standard for busbar, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 55 mm x 85 mm opening. Compatible with a single output for bar: 50 mm x 80 mm. Burden and accuracy class as follows: class 0.5 maximum power: 2.5 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 0.5 at 2.5 VA
[In] rated current	600 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Secondary current	5 A
Complementary
Current transformer type	split core, standard for busbar
Height	85 mm inner: , 158.15 mm outside:
Width	55 mm inner: , 125 mm outside:
Current transformer ratio	600/5
Permissible current	36000 A during 1 s
Mounting mode	by screws
Electrical insulation class	class E
Opening of bars	50 x 80
Depth	58 mm
[Ith] conventional free air thermal current	600 A
[Ui] rated insulation voltage	3 kV
Mounting support	fastened onto a surface with screws, DIN rail
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V 50 Hz
Environment
Ambient air temperature for storage	-25-70 °C
Standards	DIN EN 61869-2, DIN EN 61869-1, DIN 42600-2, VDE 0414
Ambient air temperature for operation	-5-40 °C
