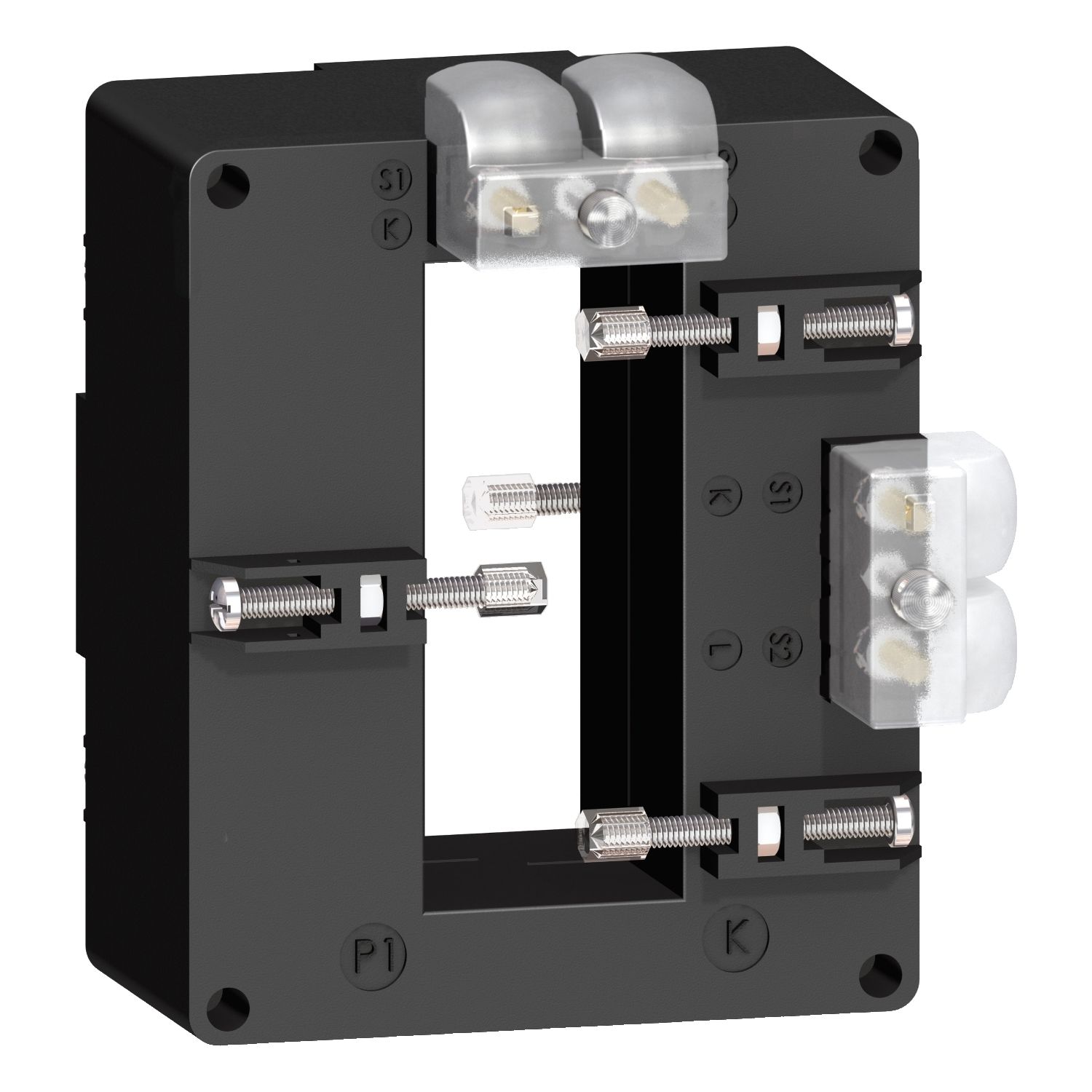

This current transformer, tropicalised for busbar, has a line rated current of 1250 A and a secondary current rating of 5 A. This current transformer do have a 35 mm x 84 mm opening. Compatible with a single output for bar: 84 mm x 34 mm. Burden and accuracy class as follows: class 0.5 maximum power: 12 VA, class 1 maximum power: 15 VA.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accuracy class | class 1 at 15 VA, class 0.5 at 12 VA |
| [In] rated current | 1250 A |
| Range | PowerLogic |
| Product name | CT |
| Product or component type | current transformer |
| Range of product | PowerLogic CT |
| Secondary current | 5 A |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Current transformer type | tropicalised for busbar |
| Compatibility code | DD |
| Height | 84 mm inner: , 116 mm outside: |
| Width | 35 mm inner: , 96 mm outside: |
| Current transformer ratio | 1250/5 |
| Mounting mode | insulated locking screw |
| Dynamic withstand current | 2.5 Ith |
| Electrical insulation class | class B |
| Opening of bars | 84 x 34 |
| Sealing | with |
| Depth | 78.4 mm total: , 40 mm frame: |
| Net weight | 0.626 kg |
| [Ith] conventional free air thermal current | 60 kA |
| [Ui] rated insulation voltage | 3 kV |
| Mounting support | busbar |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Environment | |
| Relative humidity | 0-95 % |
| IP degree of protection | IP20 |
| Standards | IEC 61869-2, VDE 0414 |
| Ambient air temperature for operation | -25-50 °C |
| Product certifications | CE, EAC |
