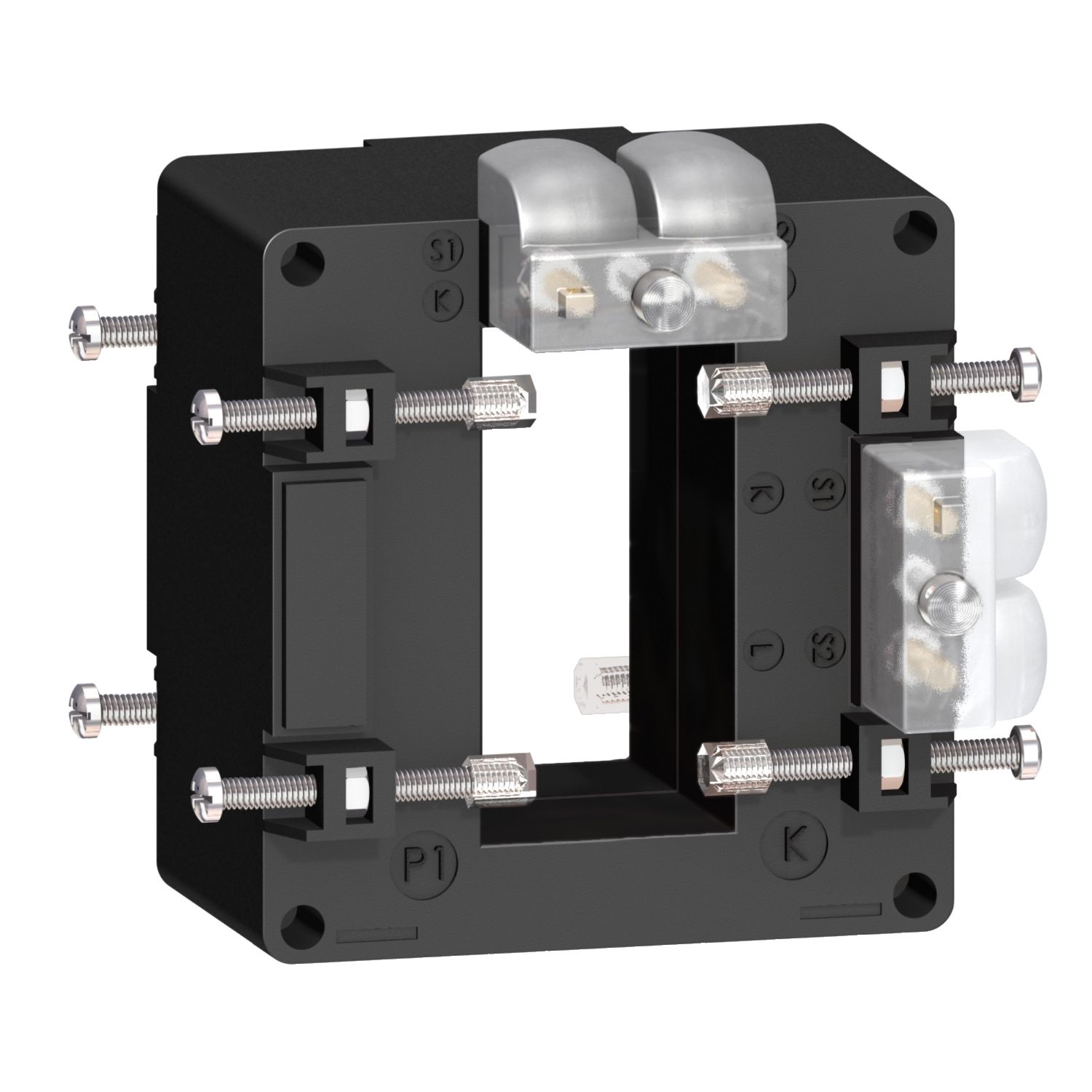

current transformer tropicalised 800 5 double output for bars 32x65

Manufacturer: Schneider Electric

SKU: METSECT5DA080

GTIN: 3303431123667

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $134.42 inc GST

Price: $97.12 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, tropicalised for busbar, has a line rated current of 800 A and a secondary current rating of 5 A. This current transformer do have a 65 mm x 32 mm opening. Compatible with a single output for bar: 65 mm x 32 mm. Burden and accuracy class as follows: class 0.5 maximum power: 12 VA, class 1 maximum power: 15 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 15 VA, class 0.5 at 12 VA
[In] rated current	800 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar
Compatibility code	DA
Height	32 mm inner: , 94 mm outside:
Width	65 mm inner: , 90 mm outside:
Current transformer ratio	800/5
Mounting mode	insulated locking screw
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	65 x 32
Sealing	with
Depth	87 mm total: , 40 mm frame:
Net weight	0.576 kg
[Ith] conventional free air thermal current	48 kA
[Ui] rated insulation voltage	3 kV
Mounting support	busbar
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	VDE 0414, IEC 61869-2
Ambient air temperature for operation	-25-60 °C
Product certifications	CE, EAC
