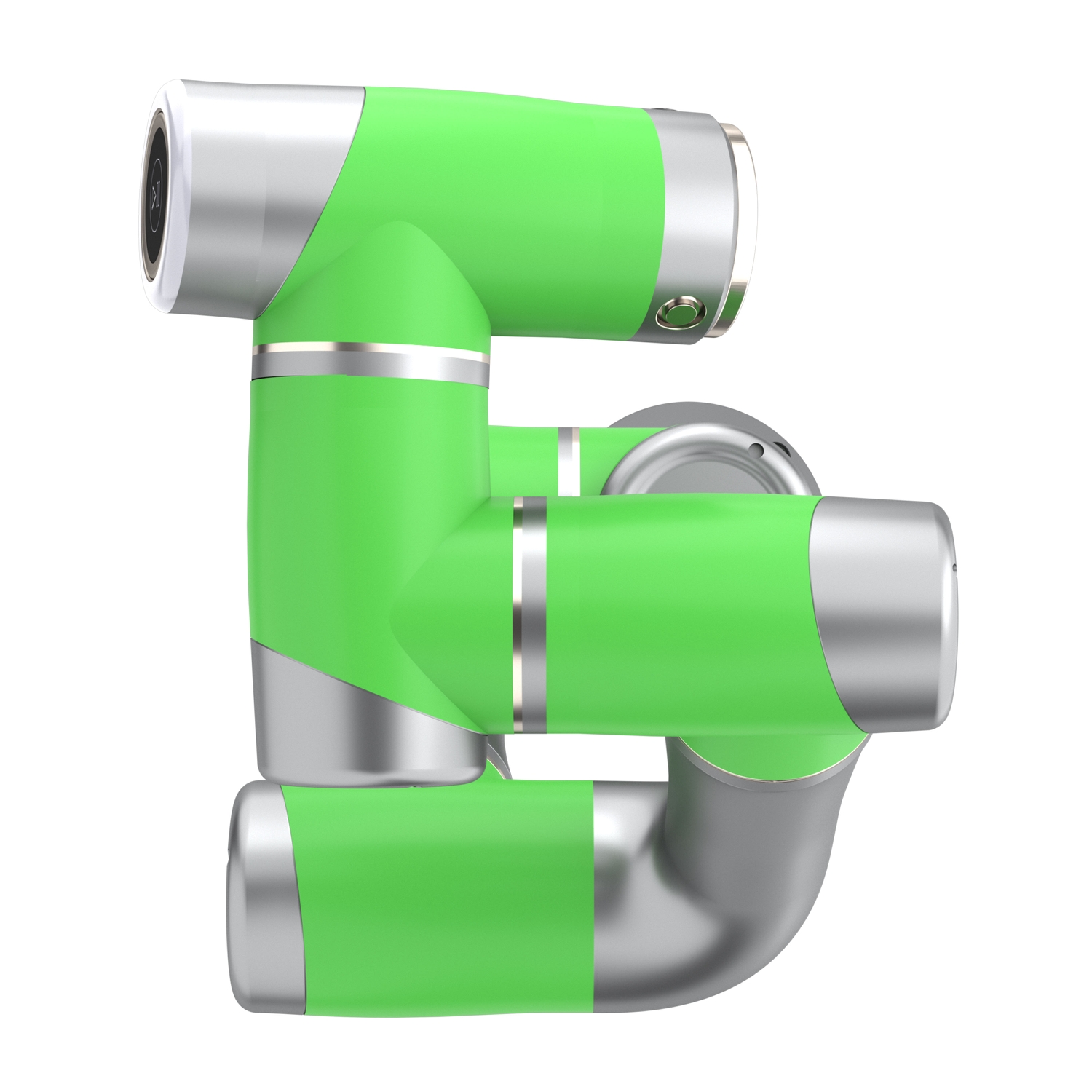

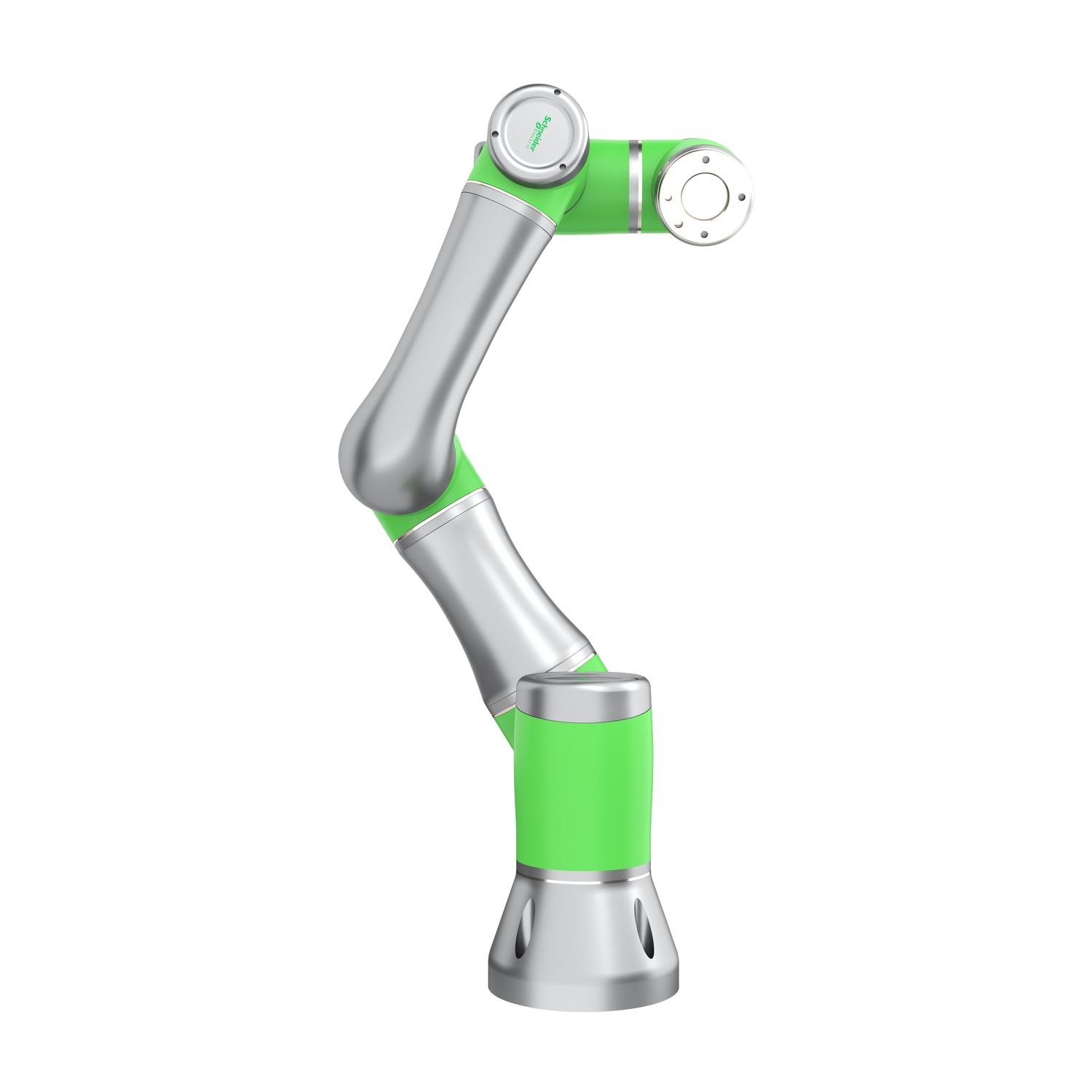

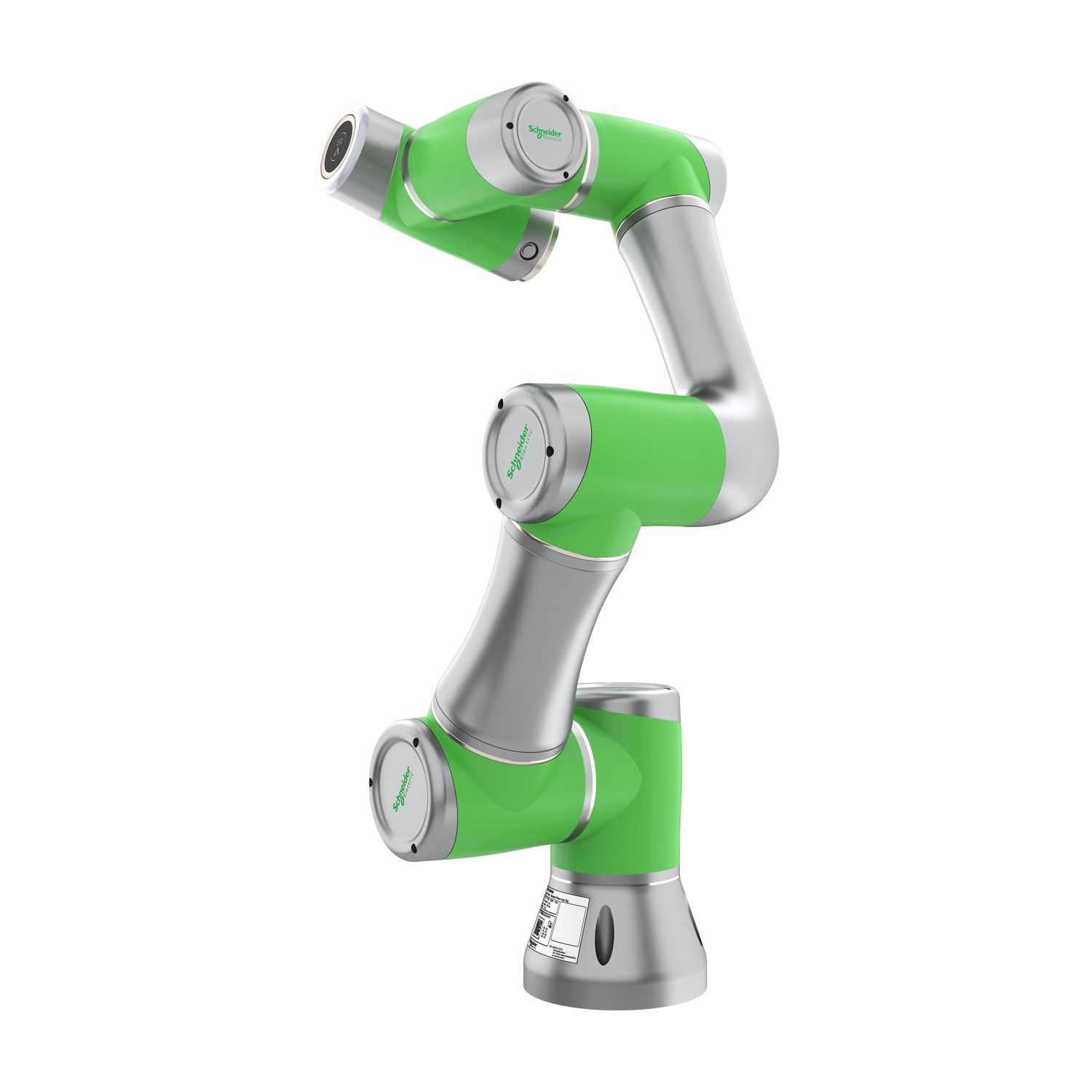

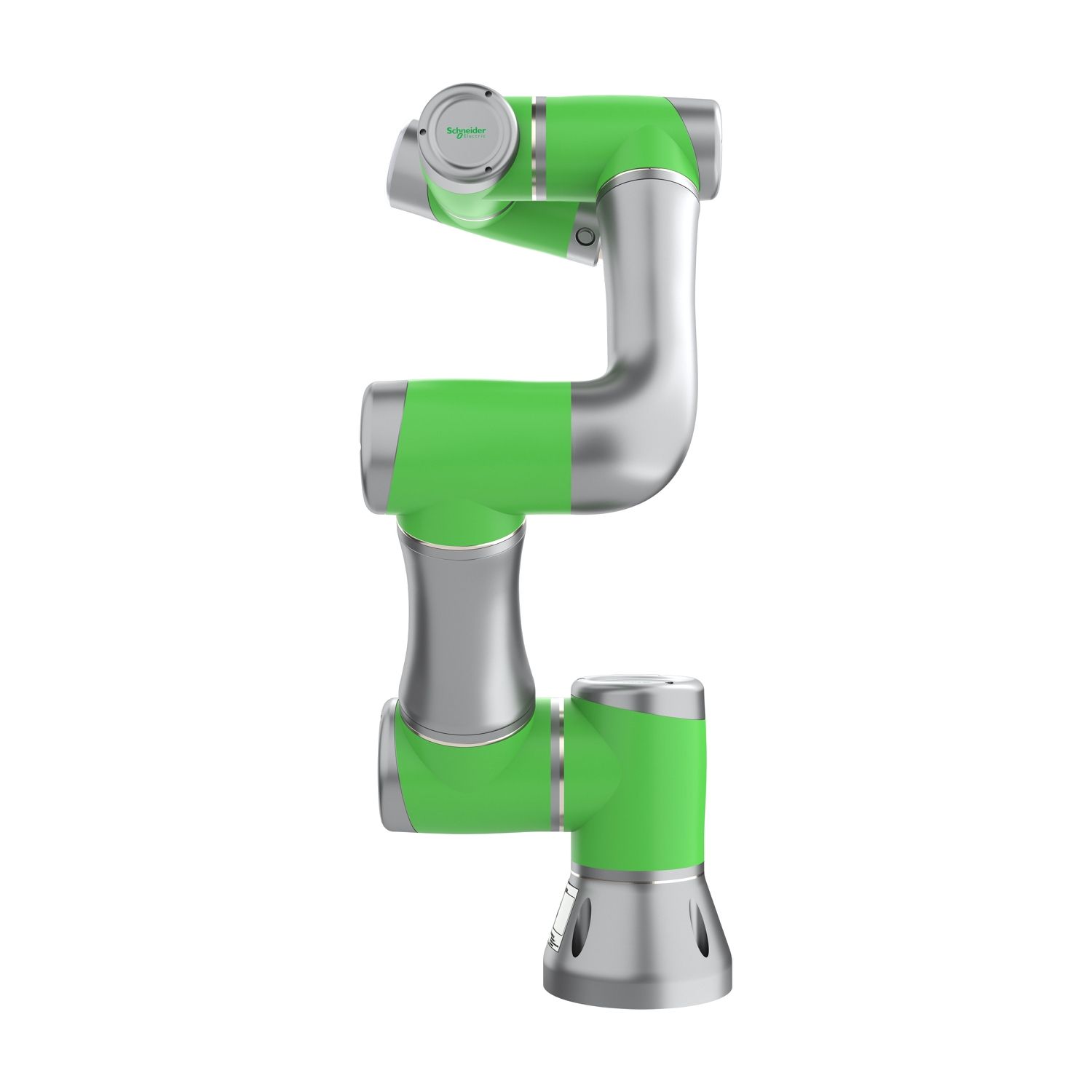

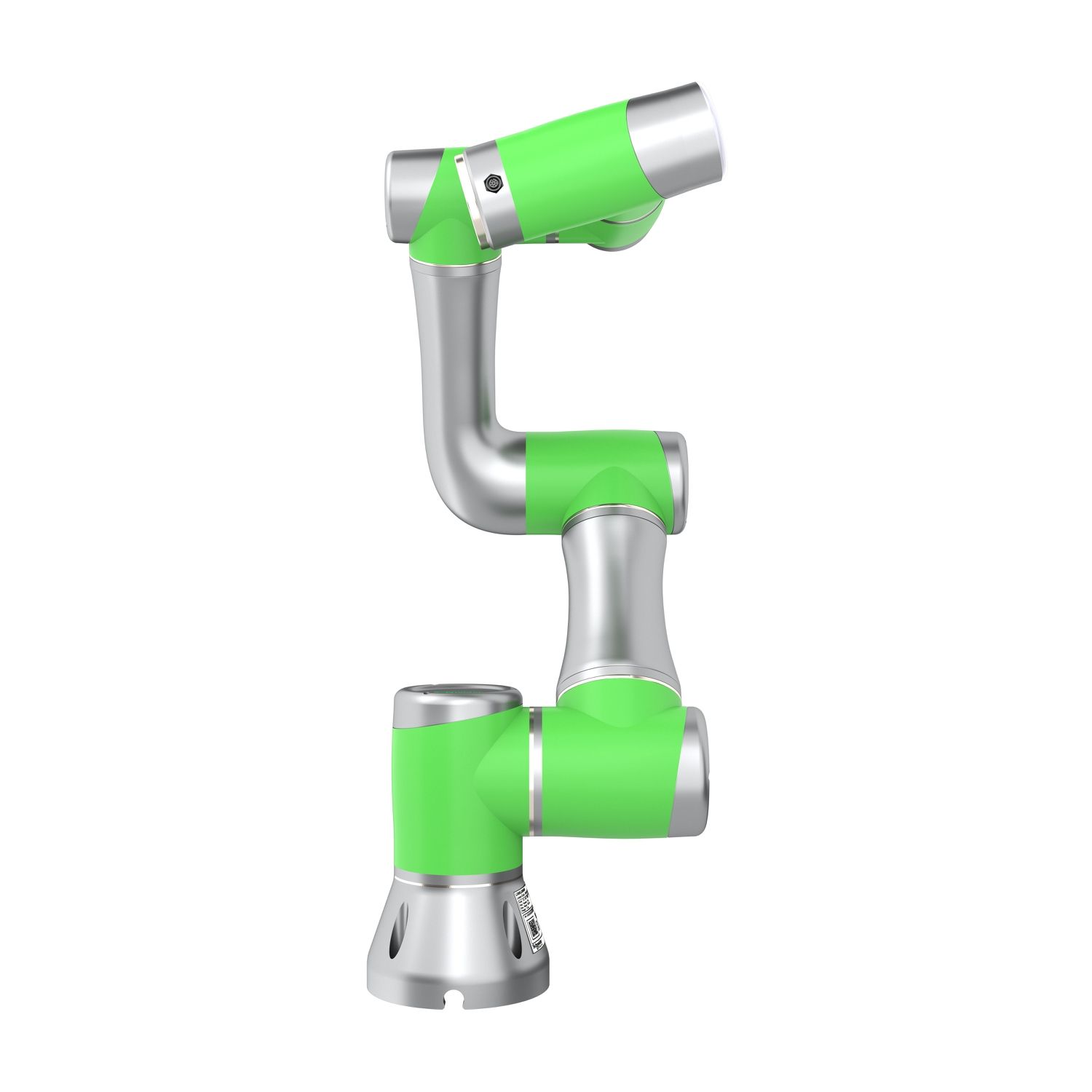

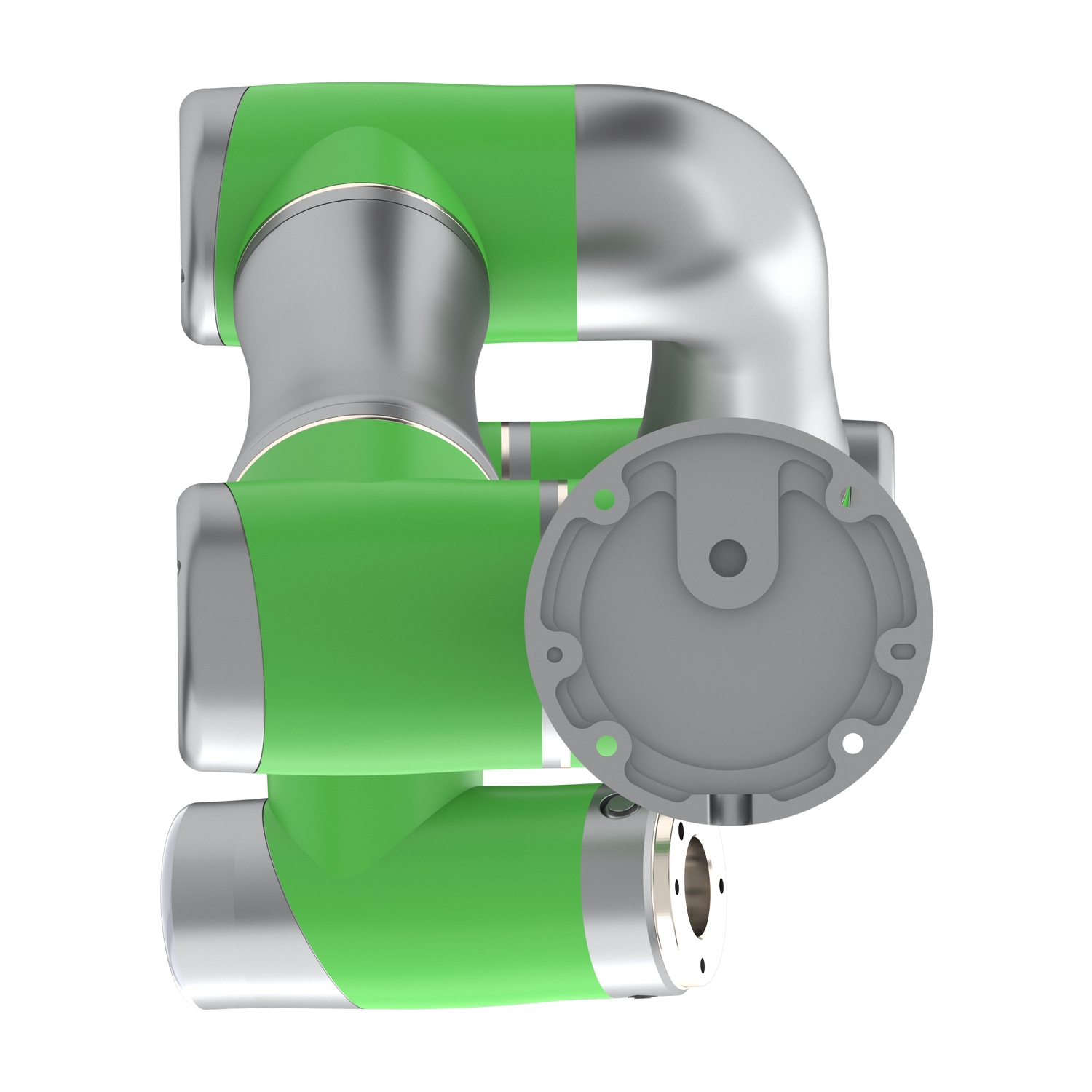

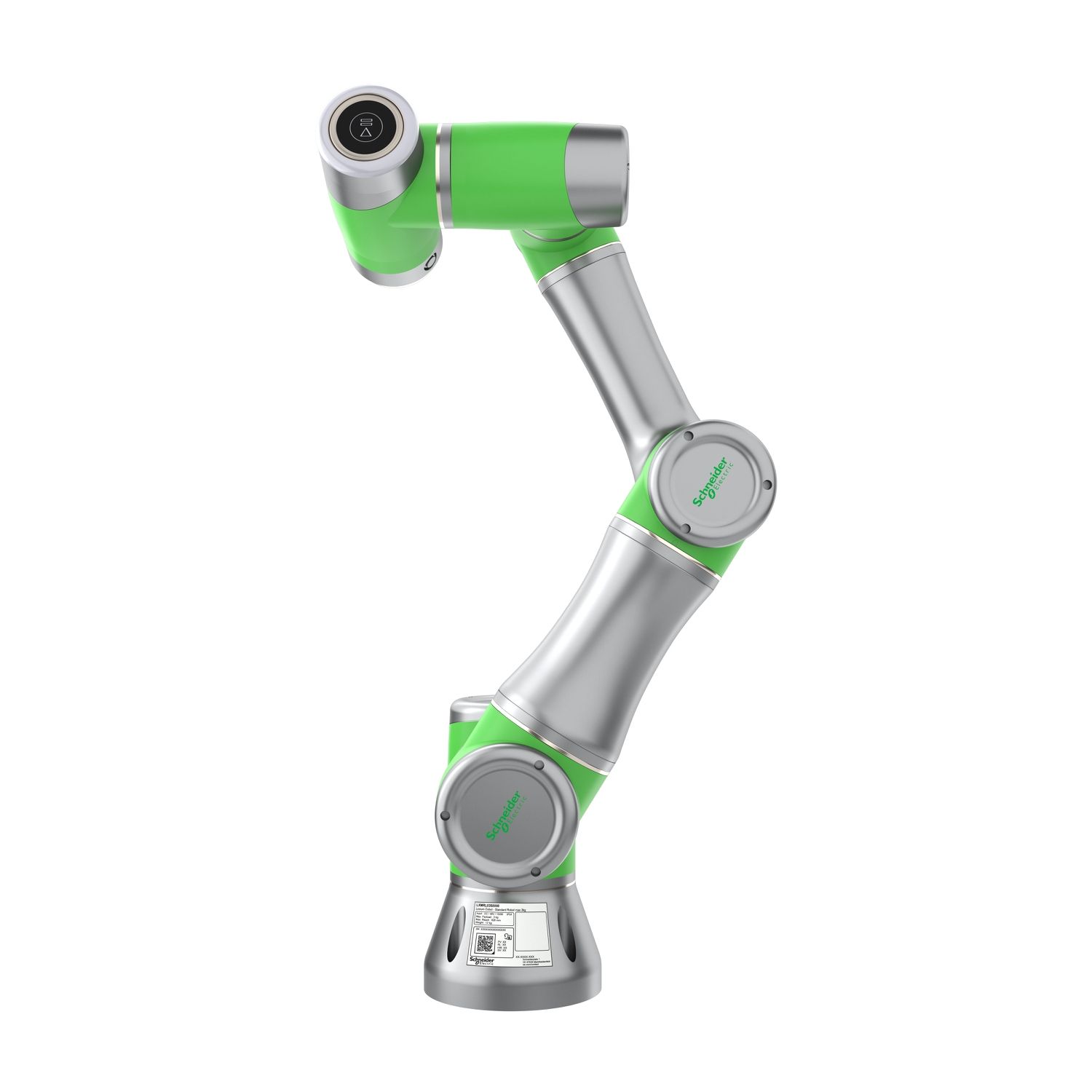

collaborative robot, Lexium Cobot, maximum payload 3kg
Manufacturer: Schneider Electric
SKU: LXMRL03S0000
GTIN: 3606485859477
Old price: $42,816.40 inc GST
$61,655.62 inc GST
Supported cards
Supported cards
Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation. Lexium collaborative robot has 6 degrees of freedom allowing to perform movements similar to human gesture, relieving him of painful and repetitive operations. This collaborative robot can support a load of 3kg with a operation radius of 626mm. Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines. Its action speed is 1.5meter/second, its position accuracy is plus or minus 0.02mm, and its operating temperature varies from 0 to 50degreeCentigrade. it embeds 2 logic inputs, 2 logic outputs, 1 analog output, and a built-in torque feedback detection to protect the worker from collisions. It has IP54 rating. It is made of aluminum, and weighs 12kg. The collaborative robot can be used in fast and safe repetitive applications of gluing, machine setting, palletizing, pick and place, welding, gluing. It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE. This robot is monitored by a controller cabinet, and can be associated to a force sensor base, a force sensor flange, and a camera 2D. It can be mounted in any positions, such as ground, wall, and ceiling mounting. Collaborative robots are working companions of humans, reducing the drudgery of their work. Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots.

Products specifications

Attribute name Attribute value
Main
Number of axis 6
Connectivity to devices android app, ipad ios app
Range of product Lexium Cobot
Maximum load 3 kg
Technology type graphical drag & drop
Product or component type collaborative robot
Accuracy +/- 0.02 mm
Operating finger radius 626 mm
Complementary
Digital input number 2
Marking TÜV, KC, CE
Cable length 6 m
Rated voltage 24 V
Mounting position any position
Angular speed 220°/s joint 6 +/- 360°, 220°/s joint 5 +/- 360°, 220°/s joint 4 -85, +265°, 180°/s joint 3 +/- 175°, 180°/s joint 2 -85, +265°, 180°/s joint 1 +/- 360°
Analogue input number 1
Net weight 12 kg
Material aluminium
Power consumption in W 150 W
Digital output number 2
Diameter 129 mm
Screw type M8
Environmental
IP degree of protection IP54
Ambient air temperature for operation 0-50 °C
