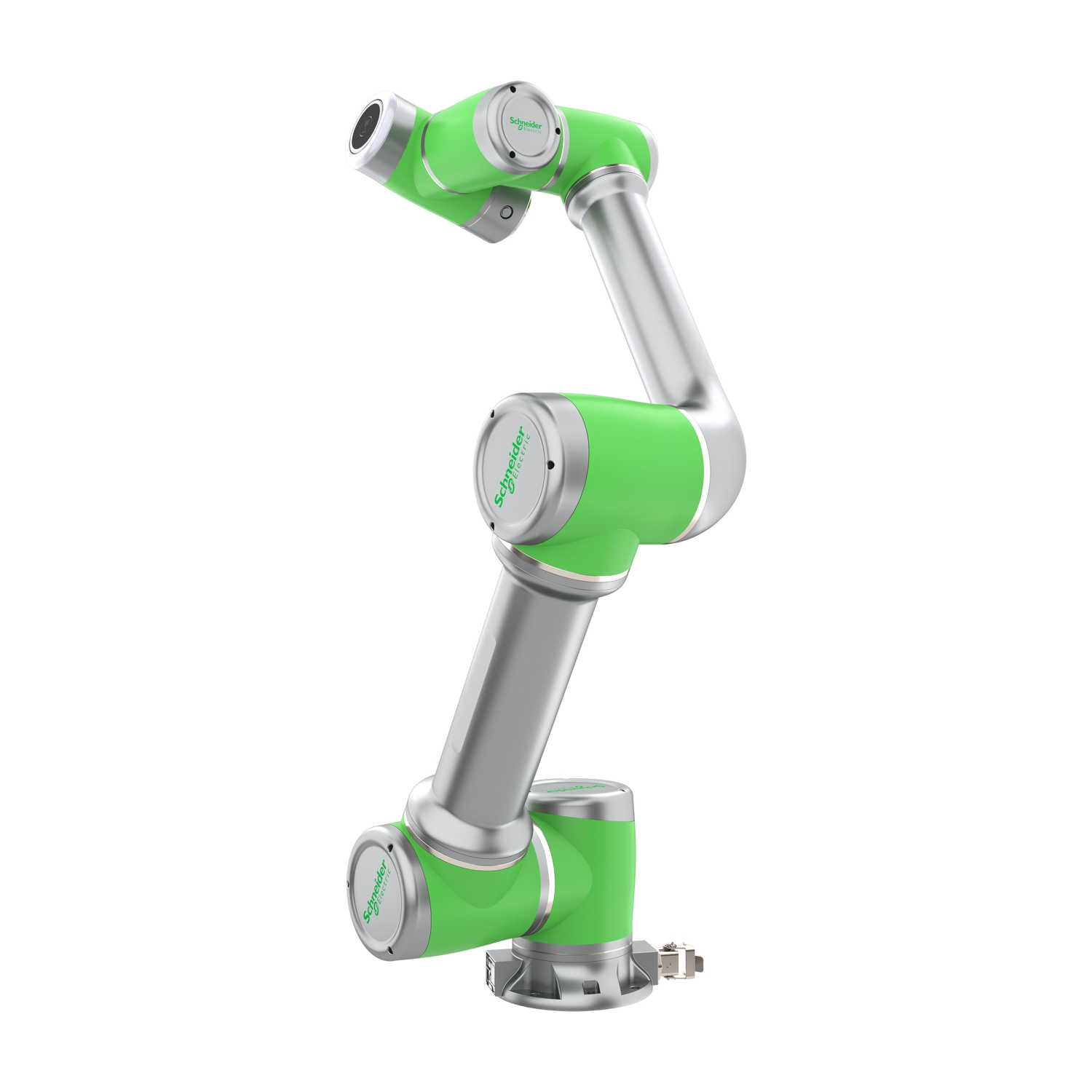

collaborative robot, Lexium Cobot, maximum payload 5kg
Manufacturer: Schneider Electric
SKU: LXMRL05S0000
GTIN: 3606485859484
Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation. Lexium collaborative robot has 6 degrees of freedom allowing to perform movements similar to human gesture, relieving him of painful and repetitive operations. This collaborative robot can support a load of 5kg with a operation radius of 954mm. Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines. Its action speed is 3meter/second, its position accuracy is plus or minus 0.02mm, and its operating temperature varies from 0 to 50degreeCentigrade. it embeds 2 logic inputs, 2 logic outputs, 1 analog output, and a built-in torque feedback detection to protect the worker from collisions. It has IP54 rating. It is made of aluminum, and weighs 23kg. The collaborative robot can be used in fast and safe repetitive applications of gluing, machine setting, palletizing, pick and place, welding, gluing. It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE. This robot is monitored by a controller cabinet, and can be associated to a force sensor base, a force sensor flange, and a camera 2D. It can be mounted in any positions, such as ground, wall, and ceiling mounting. Collaborative robots are working companions of humans, reducing the drudgery of their work. Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots.
Availability: Out of stock
Old price: $48,772.90 inc GST
$70,232.98 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Operating finger radius 954 mm
Accuracy +/- 0.02 mm
Product or component type collaborative robot
Technology type graphical drag & drop
Maximum load 5 kg
Range of product Lexium Cobot
Connectivity to devices ipad ios app, android app
Number of axis 6
Complementary
Screw type M8
Diameter 158 mm
Digital output number 2
Power consumption in W 350 W
Material aluminium
Net weight 23 kg
Analogue input number 2
Angular speed 180°/s joint 1 +/- 360°, 180°/s joint 2 -85, +265°, 180°/s joint 3 +/- 175°, 180°/s joint 4 -85, +265°, 180°/s joint 5 +/- 360°, 180°/s joint 6 +/- 360°
Permanent permissible load 0-3 kg 0-626 mm, 0-5 kg 0-626 mm, 0-3 kg 0-819 mm, 0-5 kg 0-819 mm, 0-3 kg 0-954 mm, 0-5 kg 0-954 mm
Mounting position any position
Rated voltage 24 V
Maximum speed of the tool end 3 m/s
Cable length 6 m
Marking CE, KC, TÜV
Digital input number 2
Environmental
Ambient air temperature for operation 0-50 °C
IP degree of protection IP54
Contractual warranty
Warranty 18
