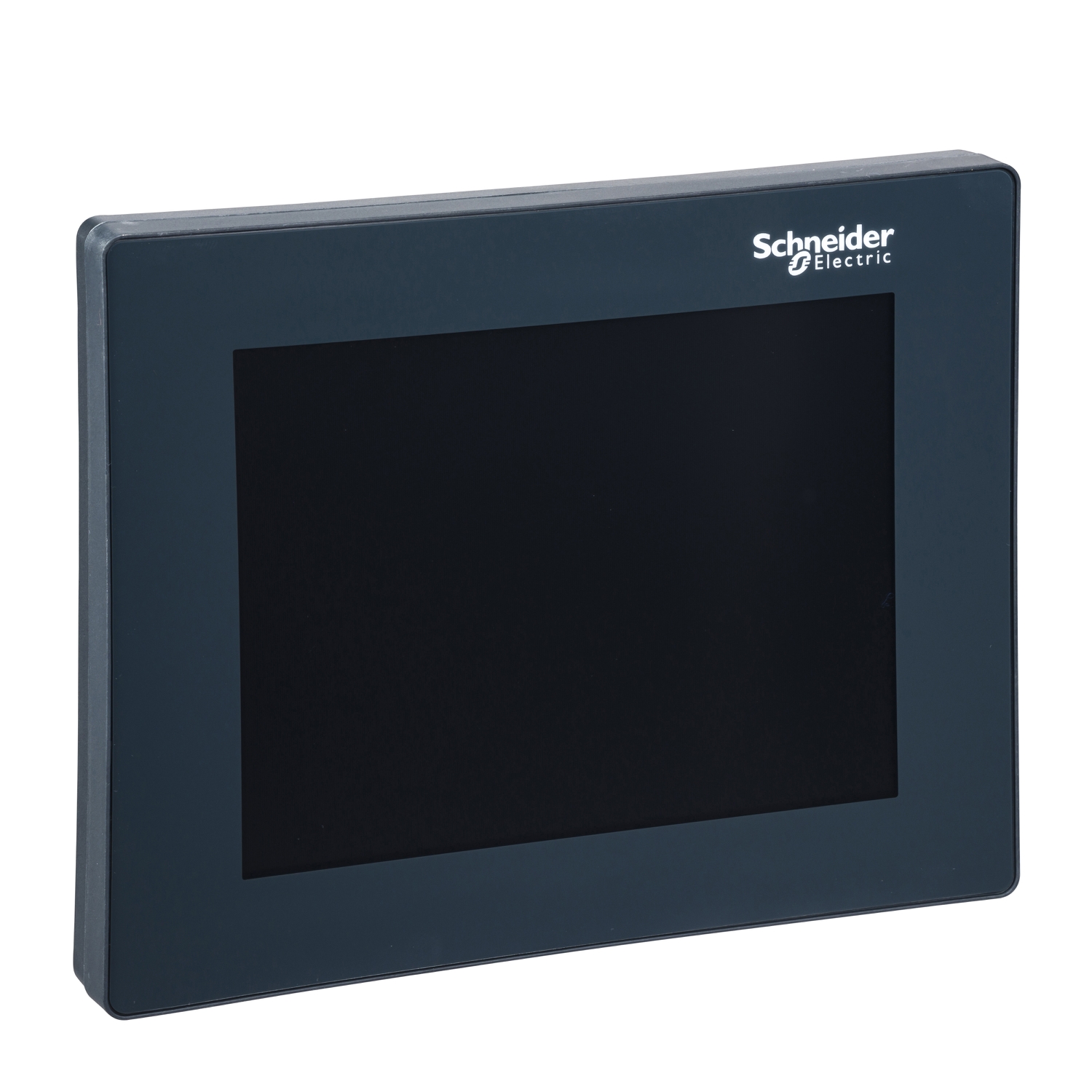

This FDM128 is an intelligent Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact, PowerPact and PowerTag Link devices. It collects data from up to 8 devices over Ethernet, for a possibility of up to 160 PowerTag connected. FDM128 displays the measurements, alarms, and operating assistance data. It has a color TFT LCD touch screen, with a high resolution (320 pixels x 240 pixels). The FDM128 is equipped with a 24VDC terminal block and one RJ45 socket for Ethernet connection. It is easily installed in a switchboard through a standard 22mm door hole, and its dimensions are 129mm x 96mm x 56,5mm. The operating temperature range is between -10°C to 55°C, and the protection degree is IP65 on the front face. The FDM128 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM128 firmware can be updated using EcoStruxure Power Commission software.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | FDM128 |
| Range | Enerlin'X |
| Accessory / separate part category | display and signalling accessory |
| Range of product | ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250 |
| Function of module | display alarm, metering, view network, remote control |
| Product name | Enerlin'X FDM |
| Product or component type | display module |
| Range compatibility | Acti 9 Acti9 Smartlink smart communication module, PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact L, PowerPact PowerPact J, PowerPact PowerPact H, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, Compact NSX, MasterPact NT, MasterPact NW, MasterPact MTZ |
| Complementary | |
| Display type | active matrix colour TFT LCD with LED backlight |
| Compatibility code | FDM128 |
| Mounting mode | flush mounting |
| Control type | remote control |
| Height | 129 mm |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Depth | 56.5 mm |
| Width | 163 mm |
| View angle horizontal x vertical | 70 x 80° |
| Accessory / separate part category | spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600 |
| Display resolution | 320 x 240 pixels QVGA |
| Power consumption in W | 6.8 W |
| Mounting support | surface mount with kit |
| Standards | UL, CSA, CE |
| Environment | |
| IP degree of protection | IP65 front face: , IP54 |
| Ambient air temperature for operation | -10-55 °C |
