Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)

    Previous Product
Next Product

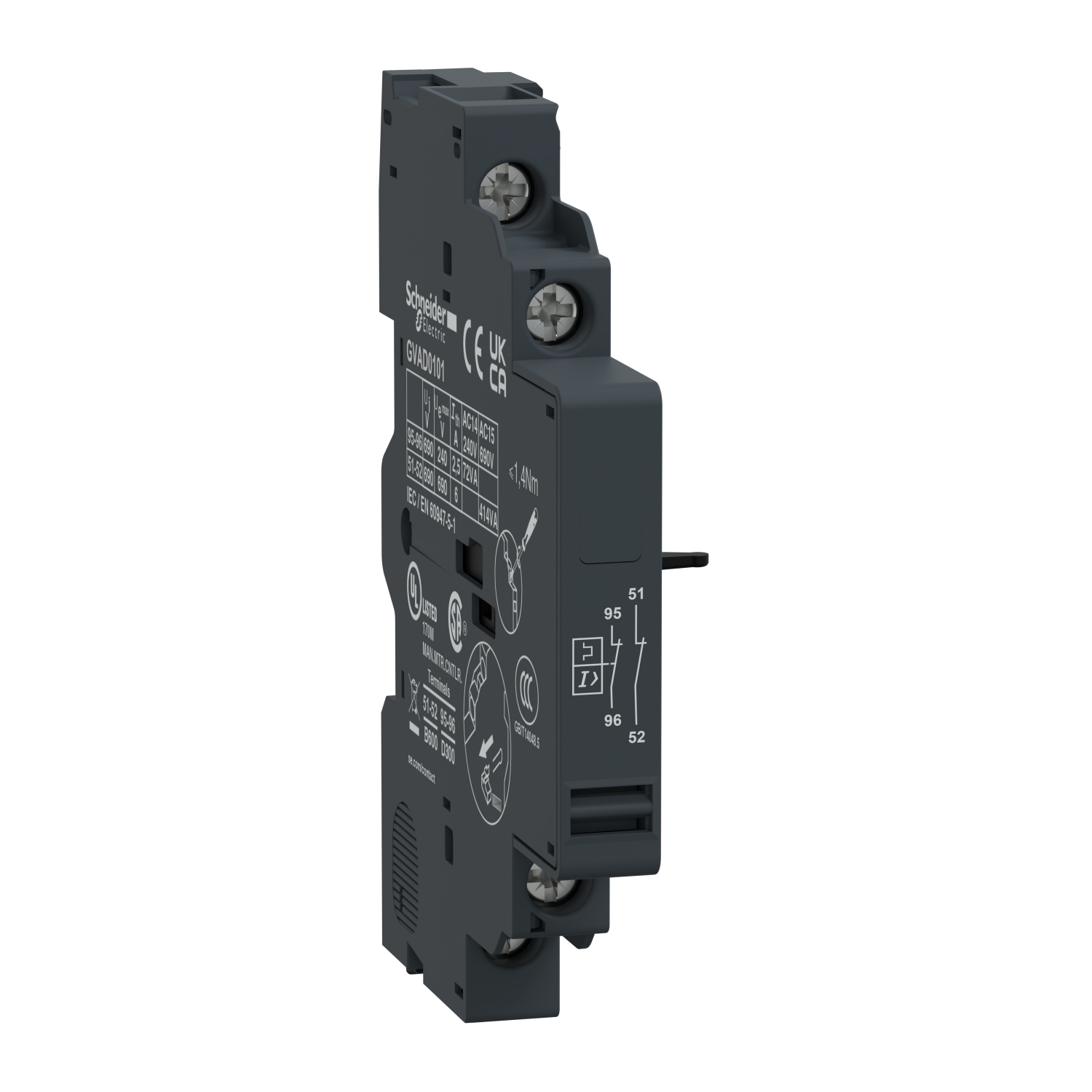

Picture of Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)
Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)
Manufacturer: Schneider Electric
SKU: GVAD0101
GTIN: 3389110343526
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Old price: $159.94 inc GST
$63.48 inc GST
Supported cards
Supported cards
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Products specifications

Attribute name Attribute value
Main
Device short name GVAD
Auxiliary contacts operation fault signal 1 NC
Product compatibility GV3P, GV2ME, GV2L, GV2RT, GV2LE, GV2P, GV3L
Pole contact composition 2 NC
Mounting location left side
Range TeSys Deca, TeSys
Product or component type auxiliary contact block
Range of product TeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W 9 W at 60 V DC-13 - electrical durability: 1000 cycles, 24 W at 24 V DC-13 - electrical durability: 1000 cycles, 15 W at 48 V DC-13 - electrical durability: 1000 cycles, 240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth 66 mm
Width 9.3 mm
Colour dark grey
Compatibility code GVAD
Mechanical durability 100000 cycles
Rated operational power in VA 72 VA at 110-127 V AC-14 - electrical durability: 1000 cycles, 48 VA at 48-48 V AC-14 - electrical durability: 1000 cycles, 36 VA at 24-24 V AC-14 - electrical durability: 1000 cycles, 850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles, 720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles, 650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles, 500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles, 500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles, 414 VA at 690-690 V AC-15 - electrical durability: 100000 cycles, 300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
Tightening torque 1.4 N.m - on screw clamp terminals
Minimum switching voltage 17 V
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 690 V conforming to IEC 60947-1
Net weight 0.055 kg
Protection type gG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage 24...240 V DC, 48...690 V AC
[Ith] conventional free air thermal current 2.5 A for fault signalling, 6 A
Height 89 mm
Minimum switching current 5 mA
Environment
Environmental characteristic normal environment
Product certifications UKCA
Only registered users can write reviews
Related products
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.1 to 0.16A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.1 to 0.16A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.1 to 0.16A, thermal magnetic, screw clamp terminals, button control

GV2ME01
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.1 to 0.16A, thermal magnetic, screw clamp terminals, button control
$228.25 inc GST $90.59 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.16 to 0.25A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.16 to 0.25A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.16 to 0.25A, thermal magnetic, screw clamp terminals, button control

GV2ME02
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.16 to 0.25A, thermal magnetic, screw clamp terminals, button control
$228.25 inc GST $90.59 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, button control

GV2ME03
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, button control
$228.25 inc GST $90.59 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control

GV2ME04
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control
$228.25 inc GST $90.59 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4A, magnetic, rotary handle, screw clamp terminals

GV2L03
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.4A, magnetic, rotary handle, screw clamp terminals
$257.40 inc GST $102.16 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, screw clamp terminals, button control

GV2ME05
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST $98.01 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63A, magnetic, rotary handle, screw clamp terminals

GV2L04
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 0.63A, magnetic, rotary handle, screw clamp terminals
$271.70 inc GST $107.84 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control

GV2ME06
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST $98.01 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control

GV2ME07
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST $98.01 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6A, magnetic, rotary handle, screw clamp terminals

GV2L06
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1.6A, magnetic, rotary handle, screw clamp terminals
$290.40 inc GST $115.26 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 10A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 10A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 10A, magnetic, rotary handle, screw clamp terminals

GV2L14
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 10A, magnetic, rotary handle, screw clamp terminals
$347.05 inc GST $137.74 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, button control

GV2ME20
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, button control
$296.89 inc GST $117.84 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 14A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 14A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 14A, magnetic, rotary handle, screw clamp terminals

GV2L16
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 14A, magnetic, rotary handle, screw clamp terminals
$353.65 inc GST $140.36 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 17 to 23A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 17 to 23A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 17 to 23A, thermal magnetic, screw clamp terminals, button control

GV2ME21
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 17 to 23A, thermal magnetic, screw clamp terminals, button control
$333.85 inc GST $132.51 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 18A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 18A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 18A, magnetic, rotary handle, screw clamp terminals

GV2L20
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 18A, magnetic, rotary handle, screw clamp terminals
$353.65 inc GST $140.36 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1A, magnetic, rotary handle, screw clamp terminals

GV2L05
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 1A, magnetic, rotary handle, screw clamp terminals
$290.40 inc GST $115.26 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control

GV2ME08
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST $98.01 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5A, magnetic, rotary handle, screw clamp terminals

GV2L07
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 2.5A, magnetic, rotary handle, screw clamp terminals
$290.40 inc GST $115.26 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 20 to 25A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 20 to 25A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 20 to 25A, thermal magnetic, screw clamp terminals, button control

GV2ME22
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 20 to 25A, thermal magnetic, screw clamp terminals, button control
$382.25 inc GST $151.72 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 25A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 25A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 25A, magnetic, rotary handle, screw clamp terminals

GV2L22
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 25A, magnetic, rotary handle, screw clamp terminals
$443.30 inc GST $175.95 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 32A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 32A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 32A, magnetic, rotary handle, screw clamp terminals

GV2L32
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 32A, magnetic, rotary handle, screw clamp terminals
$687.50 inc GST $272.87 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control

GV2ME10
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control
$246.95 inc GST $98.01 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4A, magnetic, rotary handle, screw clamp terminals

GV2L08
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 4A, magnetic, rotary handle, screw clamp terminals
$290.40 inc GST $115.26 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control

GV2ME14
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control
$281.05 inc GST $111.55 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6.3A, magnetic, rotary handle, screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6.3A, magnetic, rotary handle, screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6.3A, magnetic, rotary handle, screw clamp terminals

GV2L10
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 6.3A, magnetic, rotary handle, screw clamp terminals
$315.70 inc GST $125.30 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control Picture of Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

GV2ME16
Motor circuit breaker, TeSys GV2, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control
$296.89 inc GST $117.84 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.4A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.4A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.4A,magnetic,toggle control,screw clamp terminals

GV2LE03
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.4A,magnetic,toggle control,screw clamp terminals
$194.92 inc GST $77.36 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.63A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.63A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.63A,magnetic,toggle control,screw clamp terminals

GV2LE04
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,0.63A,magnetic,toggle control,screw clamp terminals
$206.36 inc GST $81.90 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1.6A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1.6A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1.6A,magnetic,toggle control,screw clamp terminals

GV2LE06
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1.6A,magnetic,toggle control,screw clamp terminals
$219.89 inc GST $87.27 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,10A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,10A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,10A,magnetic,toggle control,screw clamp terminals

GV2LE14
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,10A,magnetic,toggle control,screw clamp terminals
$263.45 inc GST $104.56 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,14A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,14A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,14A,magnetic,toggle control,screw clamp terminals

GV2LE16
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,14A,magnetic,toggle control,screw clamp terminals
$268.95 inc GST $106.75 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,18A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,18A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,18A,magnetic,toggle control,screw clamp terminals

GV2LE20
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,18A,magnetic,toggle control,screw clamp terminals
$268.95 inc GST $106.75 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1A,magnetic,toggle control,screw clamp terminals

GV2LE05
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,1A,magnetic,toggle control,screw clamp terminals
$219.89 inc GST $87.27 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,2.5A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,2.5A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,2.5A,magnetic,toggle control,screw clamp terminals

GV2LE07
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,2.5A,magnetic,toggle control,screw clamp terminals
$219.89 inc GST $87.27 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,25A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,25A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,25A,magnetic,toggle control,screw clamp terminals

GV2LE22
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,25A,magnetic,toggle control,screw clamp terminals
$336.05 inc GST $133.38 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,32A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,32A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,32A,magnetic,toggle control,screw clamp terminals

GV2LE32
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,32A,magnetic,toggle control,screw clamp terminals
$520.85 inc GST $206.73 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,4A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,4A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,4A,magnetic,toggle control,screw clamp terminals

GV2LE08
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,4A,magnetic,toggle control,screw clamp terminals
$219.89 inc GST $87.27 inc GST
Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,6.3A,magnetic,toggle control,screw clamp terminals Picture of Motor circuit breaker, TeSys GV2, TeSys Deca,3P,6.3A,magnetic,toggle control,screw clamp terminals

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,6.3A,magnetic,toggle control,screw clamp terminals

GV2LE10
Motor circuit breaker, TeSys GV2, TeSys Deca,3P,6.3A,magnetic,toggle control,screw clamp terminals
$239.80 inc GST $95.18 inc GST
Picture of Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals Picture of Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals

Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals

GV3P73
Motor circuit breaker,TeSys Deca frame 3,3P,62-73A,thermal magnetic,EverLink terminals
$960.30 inc GST $381.14 inc GST

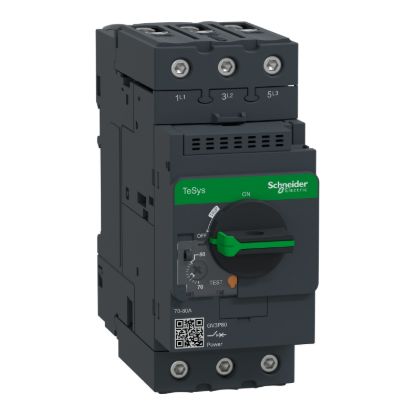

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,70-80A,thermal magnetic,EverLink terminals Picture of Motor circuit breaker,TeSys Deca frame 3,3P,70-80A,thermal magnetic,EverLink terminals

Motor circuit breaker,TeSys Deca frame 3,3P,70-80A,thermal magnetic,EverLink terminals

GV3P80
Motor circuit breaker,TeSys Deca frame 3,3P,70-80A,thermal magnetic,EverLink terminals
$1,139.60 inc GST $452.31 inc GST

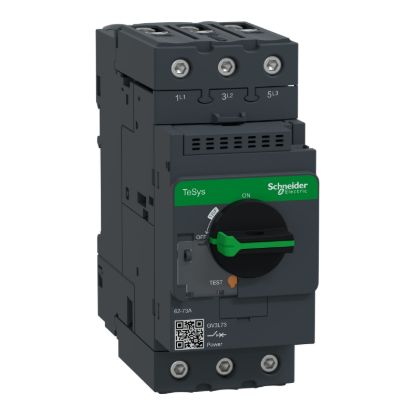

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals Picture of Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals

Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals

GV3L73
Motor circuit breaker,TeSys Deca frame 3,3P,73A,magnetic,rotary handle,EverLink terminals
$854.70 inc GST $339.23 inc GST

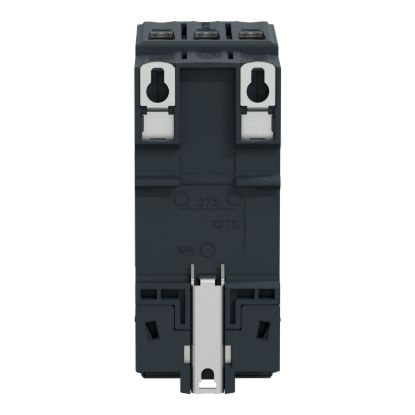

Picture of Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals Picture of Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals

Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals

GV3L80
Motor circuit breaker,TeSys Deca frame 3,3P,80A,magnetic,rotary handle,EverLink terminals
$1,006.50 inc GST $399.48 inc GST

Add-on contact block,TeSys Deca Frame 2/3,1NC(fault)+1NC,side,for GV2/GV3(except GV3ME)

Old price: $159.94 inc GST
$63.48 inc GST
Picture of Support 24/7

Support 24/7

Supporting electricians, OEMs, and switchboard builders with fast, accurate support.
Picture of Easy Returns

Easy Returns

One return policy for all products, we replace faulty ordered products.
Picture of Fast Shipping

Fast Shipping

Generally our delivery times are within 1-3 days from your order!
Picture of Free Delivery

Free Delivery

Order over $499 and free shipping is unlocked on us.
Contact Us

Email :
sales@switchboardinabox.com.au

design@switchboardinabox.com.au

accounts@switchboardinabox.com.au

Phone : 1300 724 622
ABN: 39 620 718 336
Powered by nopCommerce
Supported cards
Copyright © 2026 Switchboard in a Box. All rights reserved.
