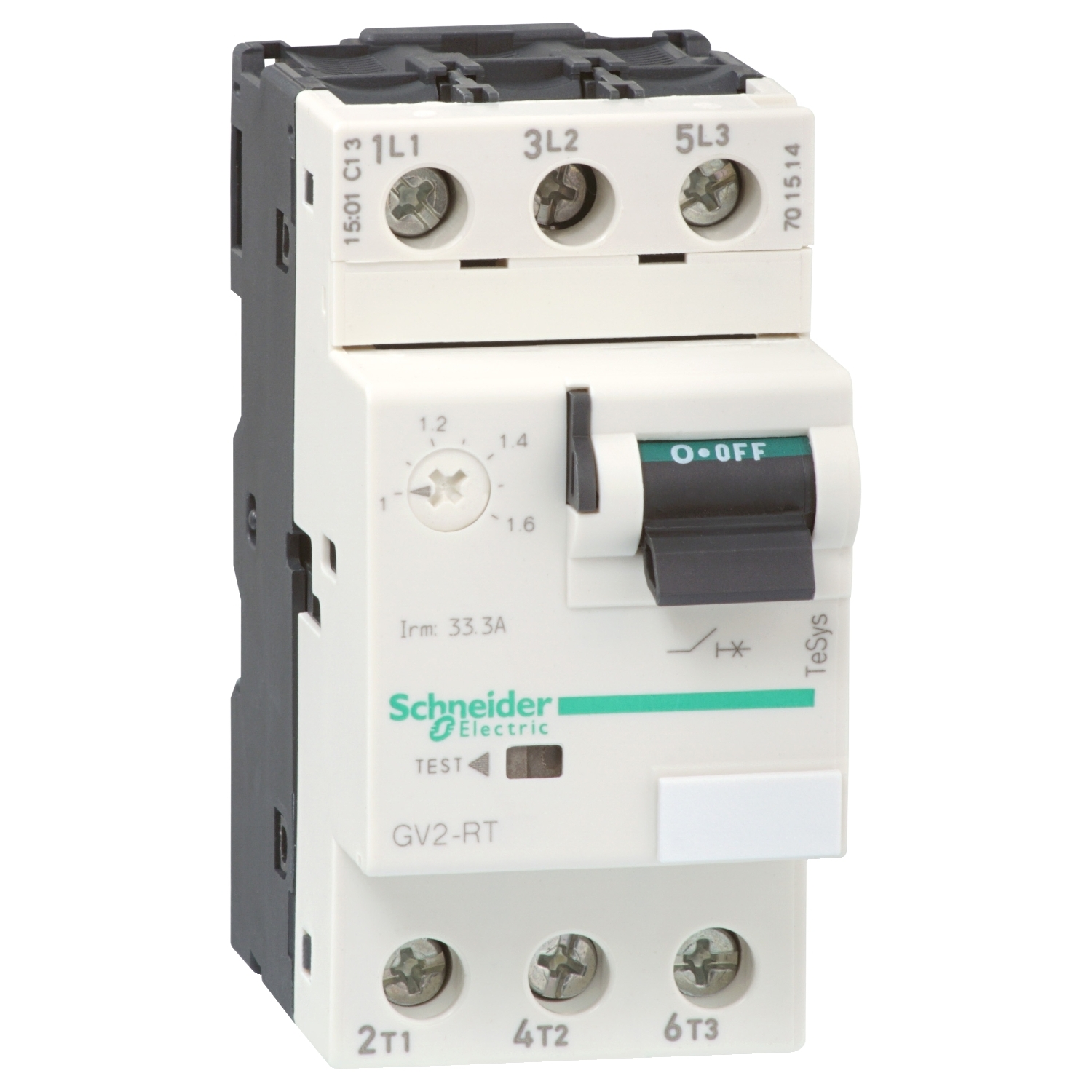

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for high starting current peak motor applications 0.25-0.37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GV2RT |
| Device application | transformer, motor protection |
| Range | TeSys Deca |
| Range of product | TeSys GV2 |
| Trip unit technology | thermal-magnetic |
| Product name | TeSys Deca, TeSys GV2 |
| Product or component type | motor circuit breaker |
| Complementary | |
| Compatibility code | GV2RT |
| Mechanical durability | 100000 cycles |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Suitability for isolation | yes conforming to IEC 60947-1 § 7-1-6 |
| Breaking capacity | 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2 |
| Electrical durability | 100000 cycles for AC-3e at 415 V In, 100000 cycles for AC-3 at 415 V In |
| Power dissipation per pole | 2.5 W |
| Control type | toggle |
| Fixing mode | panel: screwed (with adaptor plate), 35 mm symmetrical DIN rail: clipped |
| Maximum operating rate | 25 cyc/h |
| Magnetic tripping current | 22-22 A |
| Height | 89 mm |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Depth | 78.5 mm |
| Width | 45 mm |
| Poles description | 3P |
| Direct connector | without |
| Thermal protection adjustment range | 0.63-1 A conforming to IEC 60947-4-1 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Utilisation category | AC-3e conforming to IEC 60947-4-1, AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2 |
| Motor power kW | 1-1 kW at 690 V AC 50/60 Hz transformer protection, 0.63-0.63 kW at 500 V AC 50/60 Hz transformer protection, 0.63-0.63 kW at 440 V AC 50/60 Hz transformer protection, 0.55-0.55 kW at 690 V AC 50/60 Hz motor protection high peak current, 0.37-0.37 kW at 500 V AC 50/60 Hz motor protection high peak current, 0.37-0.37 kW at 440 V AC 50/60 Hz motor protection high peak current, 0.25-0.25 kW at 440 V AC 50/60 Hz motor protection high peak current, 0.37-0.37 kW at 400/415 V AC 50/60 Hz motor protection high peak current, 0.25-0.25 kW at 400/415 V AC 50/60 Hz motor protection high peak current, 0.12-0.12 kW at 220/230 V AC 50/60 Hz motor protection high peak current, 0.09-0.09 kW at 220/230 V AC 50/60 Hz motor protection high peak current |
| [Ith] conventional free air thermal current | 1 A conforming to IEC 60947-4-1 |
| Network type | AC |
| Rated duty | continuous conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 1 A |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for storage | -40-80 °C |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for operation | -20-60 °C |
| Mechanical robustness | vibrations: 5 Gn, 5...150 Hz, shocks: 30 Gn for 11 ms |
| IK degree of protection | IK04 |
| Operating altitude | 2000 m |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-2 |
| Product certifications | UKCA, BV, LROS (Lloyds register of shipping), EAC, CSA, UL, CCC |
