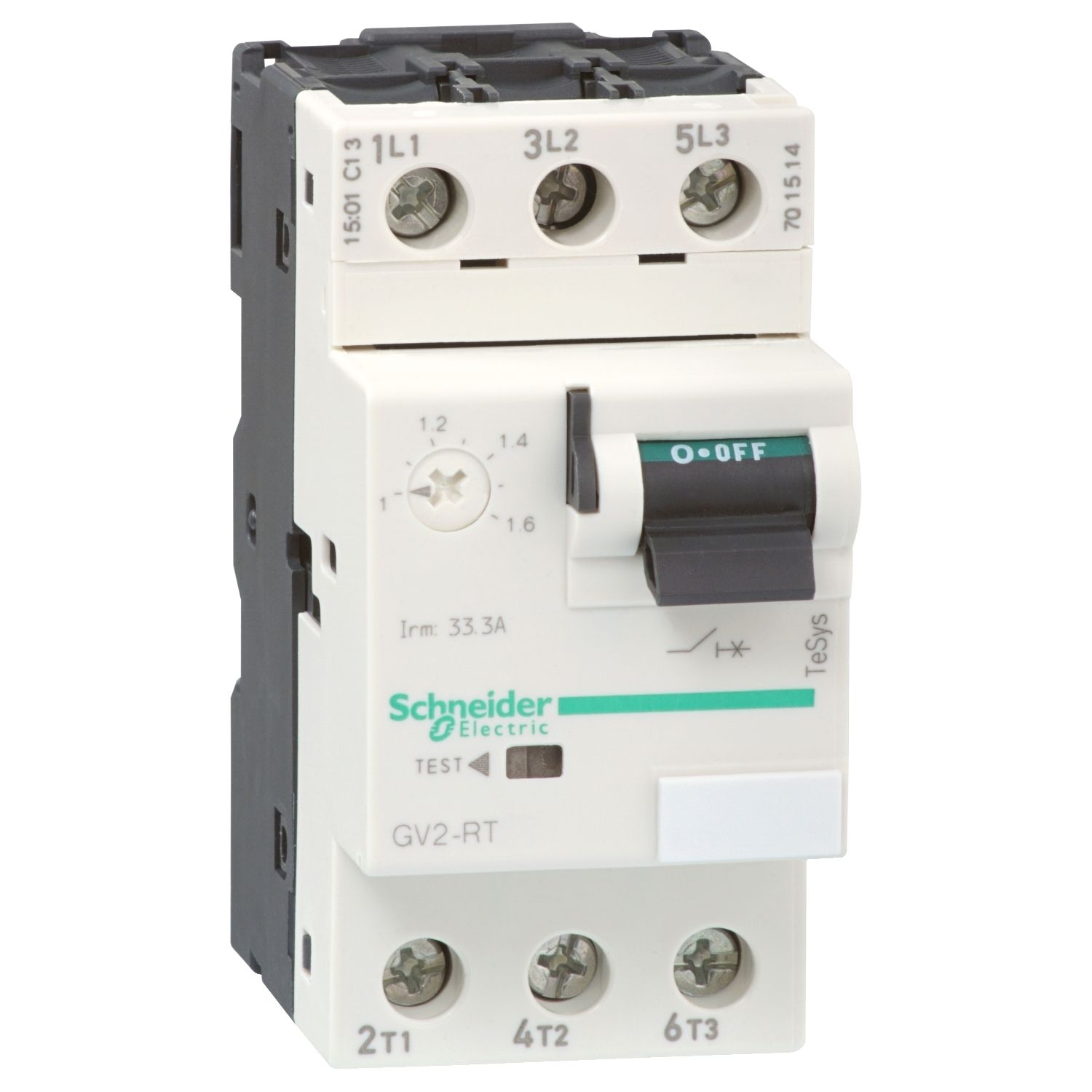

Motor circuit breaker, TeSys GV2, TeSys Deca,3P,17-23A,thermal magnetic,screw clamp terminals,toggle handle

Manufacturer: Schneider Electric

SKU: GV2RT21

GTIN: 3389110520729

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $523.60 inc GST

Price: $207.82 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for high starting current peak motor applications 9-11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, a magnetic tripping level at 17xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	GV2RT
Device application	motor protection
Range	TeSys Deca
Range of product	TeSys GV2
Trip unit technology	thermal-magnetic
Product name	TeSys Deca, TeSys GV2
Product or component type	motor circuit breaker
Complementary
Compatibility code	GV2RT
Mechanical durability	100000 cycles
Tightening torque	1.7 N.m - on screw clamp terminal
Suitability for isolation	yes conforming to IEC 60947-1 § 7-1-6
Breaking capacity	3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
Electrical durability	100000 cycles for AC-3e at 415 V In, 100000 cycles for AC-3 at 415 V In
Power dissipation per pole	2.5 W
Control type	toggle
Fixing mode	panel: screwed (with adaptor plate), 35 mm symmetrical DIN rail: clipped
Maximum operating rate	25 cyc/h
Magnetic tripping current	400-400 A
Height	89 mm
Network frequency	50/60 Hz conforming to IEC 60947-4-1
Depth	78.5 mm
Width	45 mm
Poles description	3P
Direct connector	without
Thermal protection adjustment range	17-23 A conforming to IEC 60947-4-1
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Utilisation category	AC-3e conforming to IEC 60947-4-1, AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2
Motor power kW	18.5-18.5 kW at 690 V AC 50/60 Hz motor protection high peak current, 11-11 kW at 500 V AC 50/60 Hz motor protection high peak current, 11-11 kW at 440 V AC 50/60 Hz motor protection high peak current, 11-11 kW at 400/415 V AC 50/60 Hz motor protection high peak current, 9-9 kW at 400/415 V AC 50/60 Hz motor protection high peak current, 5.5-5.5 kW at 220/230 V AC 50/60 Hz motor protection high peak current
[Ith] conventional free air thermal current	23 A conforming to IEC 60947-4-1
Network type	AC
Rated duty	continuous conforming to IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	23 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for storage	-40-80 °C
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-20-60 °C
Mechanical robustness	vibrations: 5 Gn, 5...150 Hz, shocks: 30 Gn for 11 ms
IK degree of protection	IK04
Operating altitude	2000 m
Standards	EN/IEC 60947-4-1, EN/IEC 60947-2
Product certifications	UKCA, BV, LROS (Lloyds register of shipping), EAC, CSA, UL, CCC
