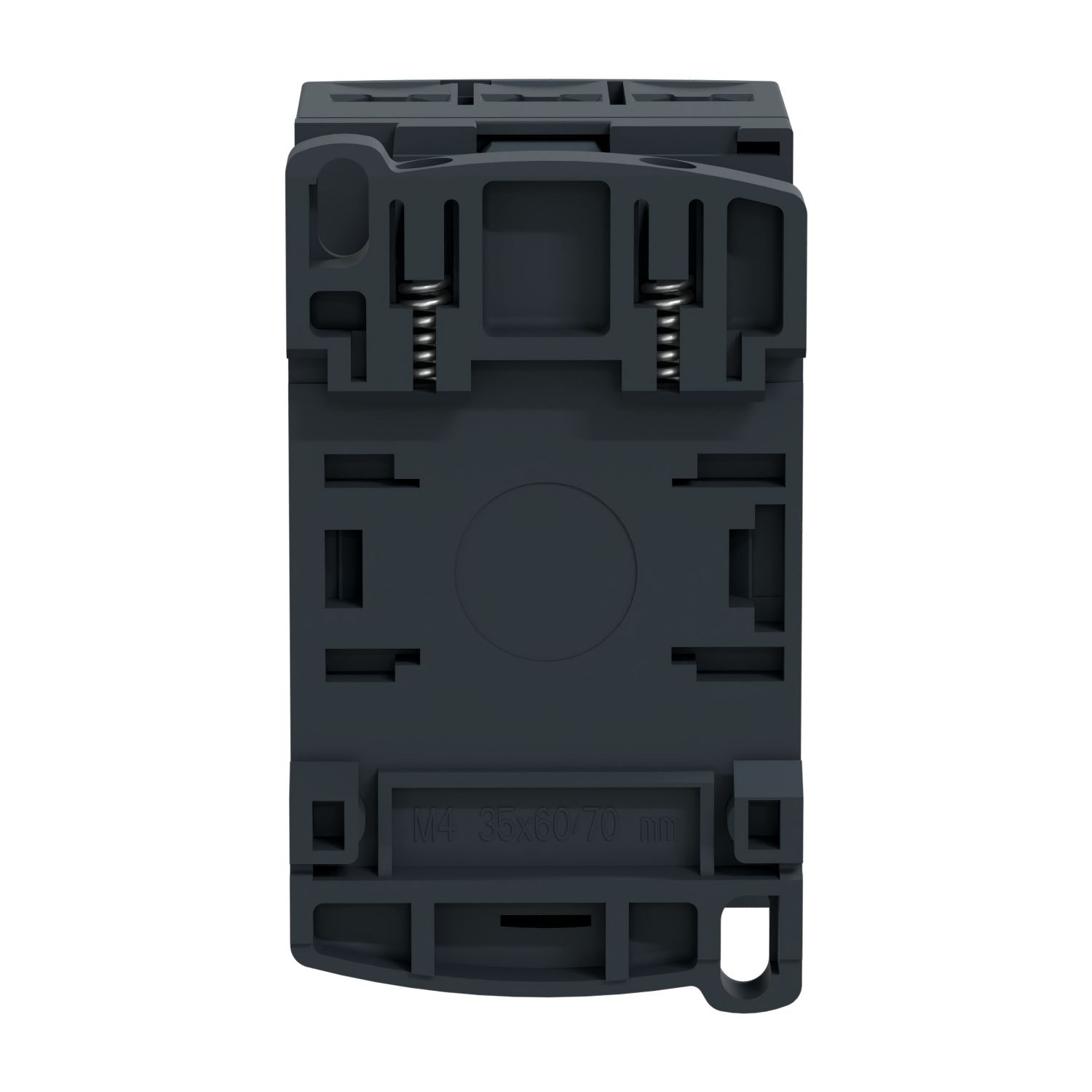

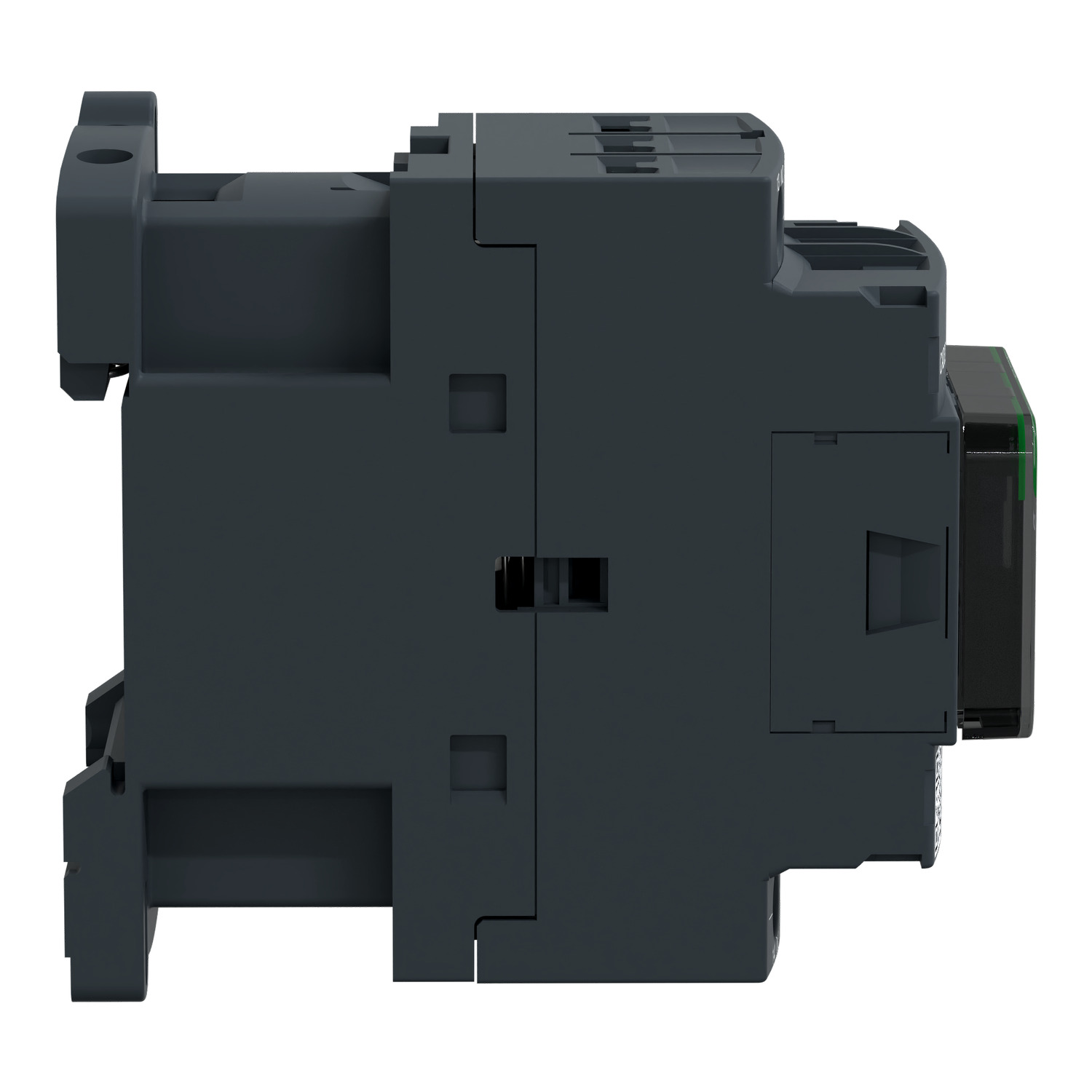

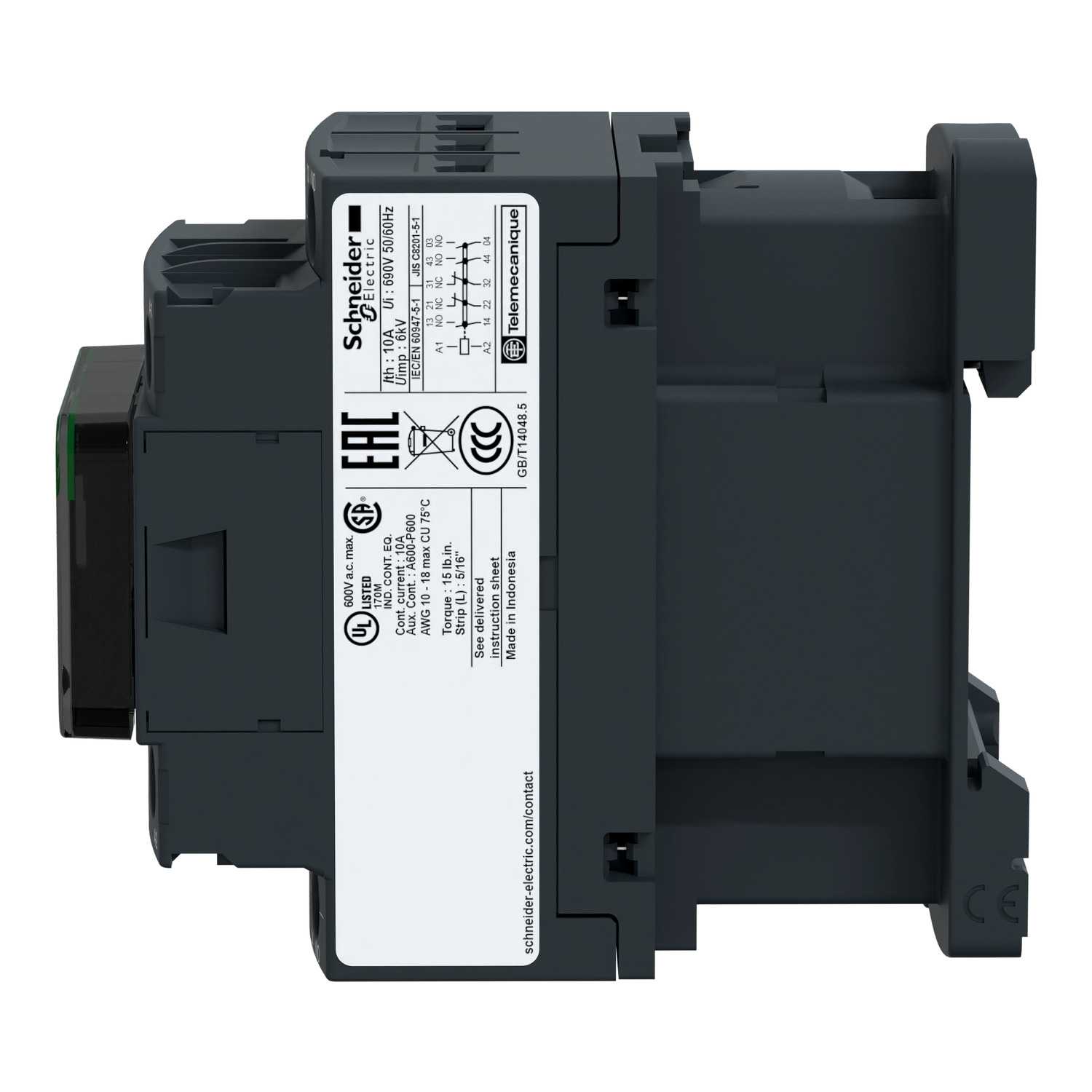

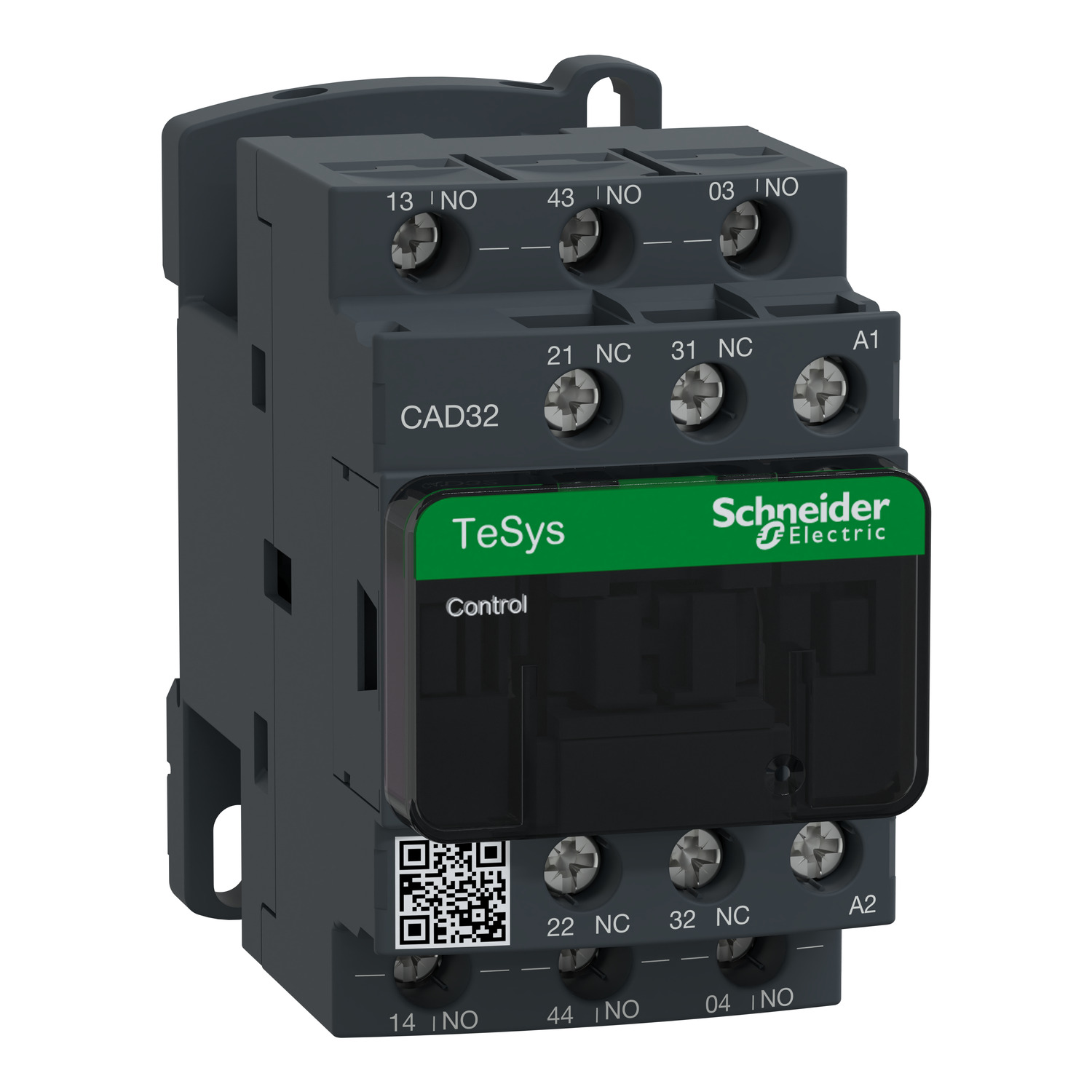

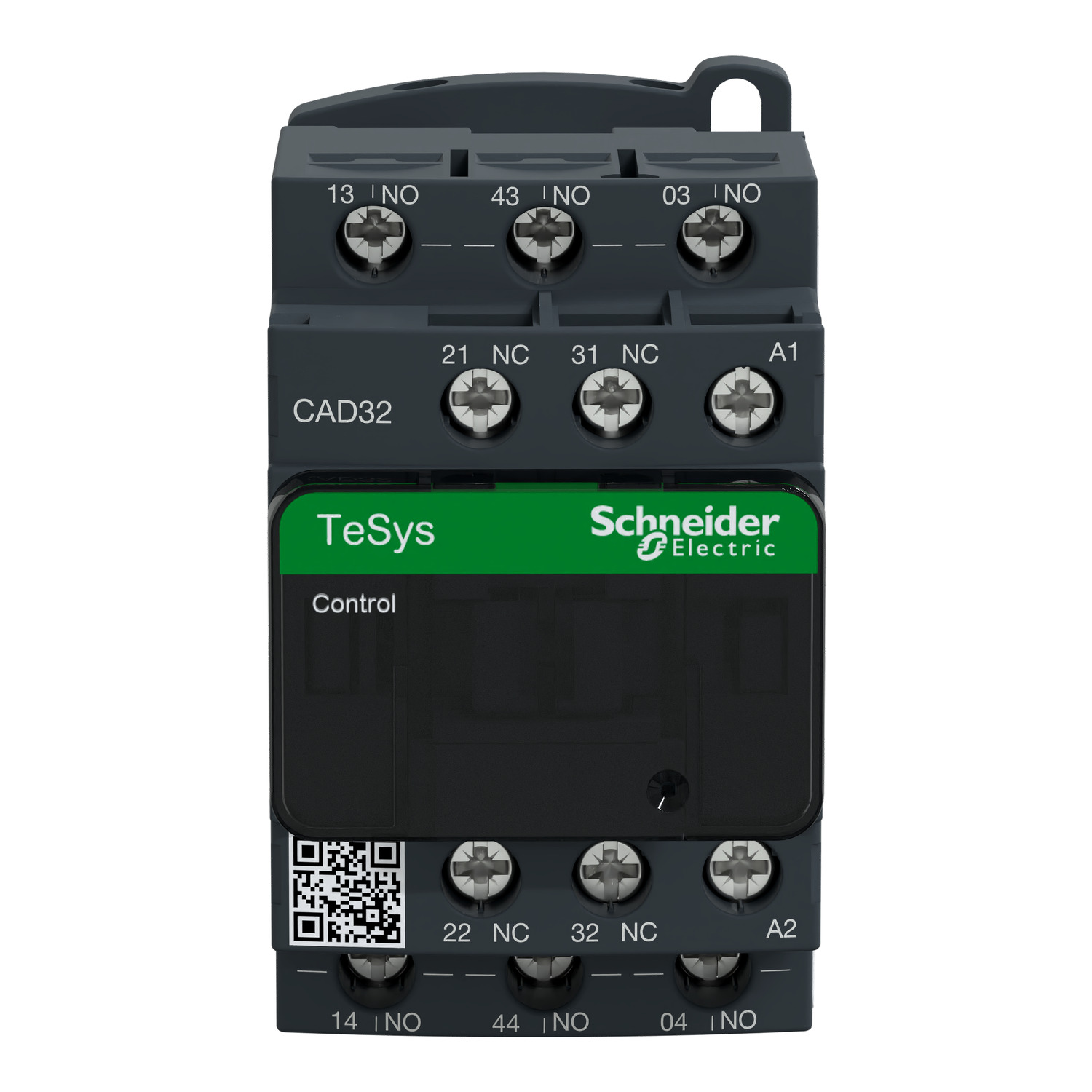

Control Relay, TeSys K, 3NO+2NC, 0 to 690V, 240VAC 50/60Hz standard coil, screw clamp

Manufacturer: Schneider Electric

SKU: CAD32U7

GTIN: 3389110402384

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $301.95 inc GST

Price: $119.84 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	CAD
Range	TeSys Deca, TeSys
Range of product	TeSys D control relay
Product name	TeSys CAD
Product or component type	control relay
Contactor application	control circuit
Complementary
Compatibility code	CAD
Connections - terminals	screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Associated fuse rating	10 A gG conforming to IEC 60947-5-1
Control circuit type	AC at 50/60 Hz
Height	77 mm
[Ui] rated insulation voltage	690 V conforming to IEC 60947-5-1, 600 V CSA certified, 600 V UL certified
Operating time	6...17 ms coil de-energisation and NC closing, 4...19 ms coil energisation and NC opening, 4...12 ms coil de-energisation and NO opening, 12...22 ms coil energisation and NO closing
Utilisation category	AC-15, DC-13, AC-14
Inrush power in VA	70-70 VA 50 Hz (at 20 °C)
Net weight	0.58 kg
[Uc] control circuit voltage	240 V AC 50/60 Hz
Minimum switching current	5 mA
Non-overlap time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
[Icw] rated short-time withstand current	140 A - 100 ms, 120 A - 500 ms, 100 A - 1 s
Mechanical durability	30 Mcycles
Tightening torque	1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
Minimum switching voltage	17 V
Irms rated making capacity	250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Control circuit voltage limits	1...1.1 Uc (60-70 °C):operational AC 50/60 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current	10 A (at 60 °C)
Mechanical robustness	vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Depth	84 mm
Width	45 mm
Hold-in power consumption in VA	8-8 VA 50 Hz (at 20 °C)
Maximum operating rate	180 cyc/mn
Pole contact composition	3 NO + 2 NC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Insulation resistance	> 10 MOhm
Mounting support	plate, rail
[Ue] rated operational voltage	<= 690 V AC 25...400 Hz
Environment
Ambient air temperature for storage	-60-80 °C
Standards	JIS C8201-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, GB/T 14048.5, EN/IEC 60947-5-1
Ambient air temperature for operation	60-70 °C with derating, -40-60 °C
Operating altitude	0...3000 m
Product certifications	UKCA, CE, EAC, CSA, UL, CCC, CB
IP degree of protection	IP2X front face conforming to VDE 0106
Protective treatment	TH conforming to IEC 60068
