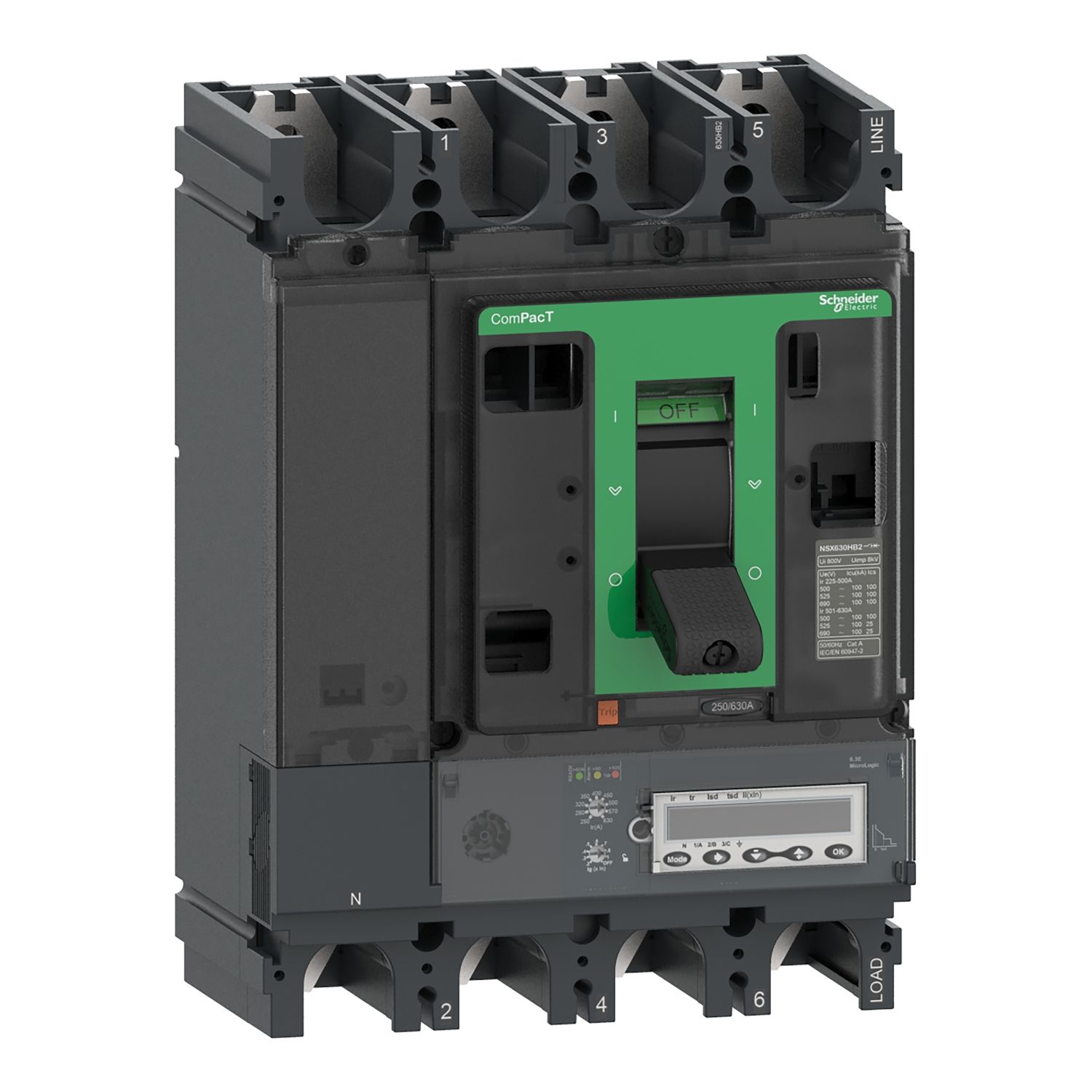

Circuit breaker, ComPacT NSX630HB2, 100kA/690VAC, 4 poles, MicroLogic 6.3E trip unit 630A

Manufacturer: Schneider Electric

SKU: C63W46E630

GTIN: 3606481989352

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $13,057.00 inc GST

Price: $8,736.75 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This ComPacT NSX630HB2 is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 630A rating electronic MicroLogic 6.3 E trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.3 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 6.3 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630HB2 is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to EN/IEC 60947-2
Trip unit technology	electronic
Neutral position	left
Utilisation category	category A
Network type	AC
Device short name	NSX630HB2
Breaking capacity code	HB2 100 kA 690 V AC
Breaking capacity	100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Protected poles description	3D, 3D + N/2, 3D + OSN, 4D
Range of product	ComPacT NSX400...630 new generation
Trip unit name	MicroLogic 6.3 E
Poles description	4P
Product name	ComPacT NSX new generation
Product or component type	circuit breaker
Trip unit protection functions	LSIG
[Ue] rated operational voltage	690 V AC 50/60 Hz
[In] rated current	630 A at 40 °C
Network frequency	50/60 Hz
Complementary
Short-time pick-up adjustment type Isd	adjustable
Display type	LCD display
[Uimp] rated impulse withstand voltage	8 kV
Compatibility code	NSX630
Trip unit rating	630-630 A at 40 °C
Long time pick-up adjustment type Ir	adjustable 9 settings
Electrical durability	2000 cycles at 690 V In, 6000 cycles at 690 V In/2, 4000 cycles at 440 V In, 8000 cycles at 440 V In/2
Zone selective interlocking ZSI	with
Communication of data	time-stamped histories and event tables, protection and alarm settings, power quality, instantaneous and demand values, maximeters/minimeters, energy metering, demand current and power, maintenance indicators
Downside connection	front
Earth-leakage protection	without
Thermal memory	20 minutes before and after tripping
[Ig] ground-fault pick-up adjustment range	Ig enable on/off, 0.2...1 x In for In > 40 A, 0.4...1 x In for In = 40 A
Height	255 mm
[Ics] rated service breaking capacity	100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[tsd] short-time delay adjustment range	0.1-0.4 s I²t=on, 0-0.4 s I²t=off
[tr] long-time delay adjustment range	0.35-11 s at 7.2 x Ir, 0.5-16 s at 6 x Ir, 15-400 s at 1.5 x Ir
Net weight	8.13 kg
Long time delay adjustment type	adjustable
Number of slots	6 slot(s)
Ground-fault time delay adjustment type -tg	adjustable 5 settings
Power dissipation per pole	39.69 W
Connection pitch	45 mm
Mechanical durability	15000 cycles
Upside connection	front
Long time pick-up adjustment range	250...630 A
Neutral protection setting	no protection (3D), 1.6 x Ir (3D + OSN), 1 x Ir (4D), 0.5 x Ir (3D + N/2)
Short-time delay adjustment type	adjustable 5 settings
Protection type	G : for ground fault protection, I : for instantaneous short-circuit protection, S : for short time short-circuit protection, L : for overload protection (long time)
Depth	110 mm
Width	185 mm
Mounting position	flat on the back, horizontal and vertical
[Isd] short-time pick-up adjustment range	1.5...10 x Ir
Local signalling	LED 90 % Ir (orange) for overload, LED 105 % Ir (red) for overload, flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii	adjustable
Type of measurement	energy meter
Instantaneous pick-up adjustment range	1.5...11 x In
Ground-fault pick-up adjustment type	adjustable 9 settings
Mounting support	backplate
[tg] Ground-fault time delay adjustment range	0.1-0.4 s I²t=on, 0-0.4 s I²t=off
Environment
Relative humidity	0-95 %
Ambient air temperature for storage	-40-85 °C
Overvoltage category	class II
Operating altitude	2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class	class II
Product certifications	Marine, EAC, CCC
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Standards	EN/IEC 60947
