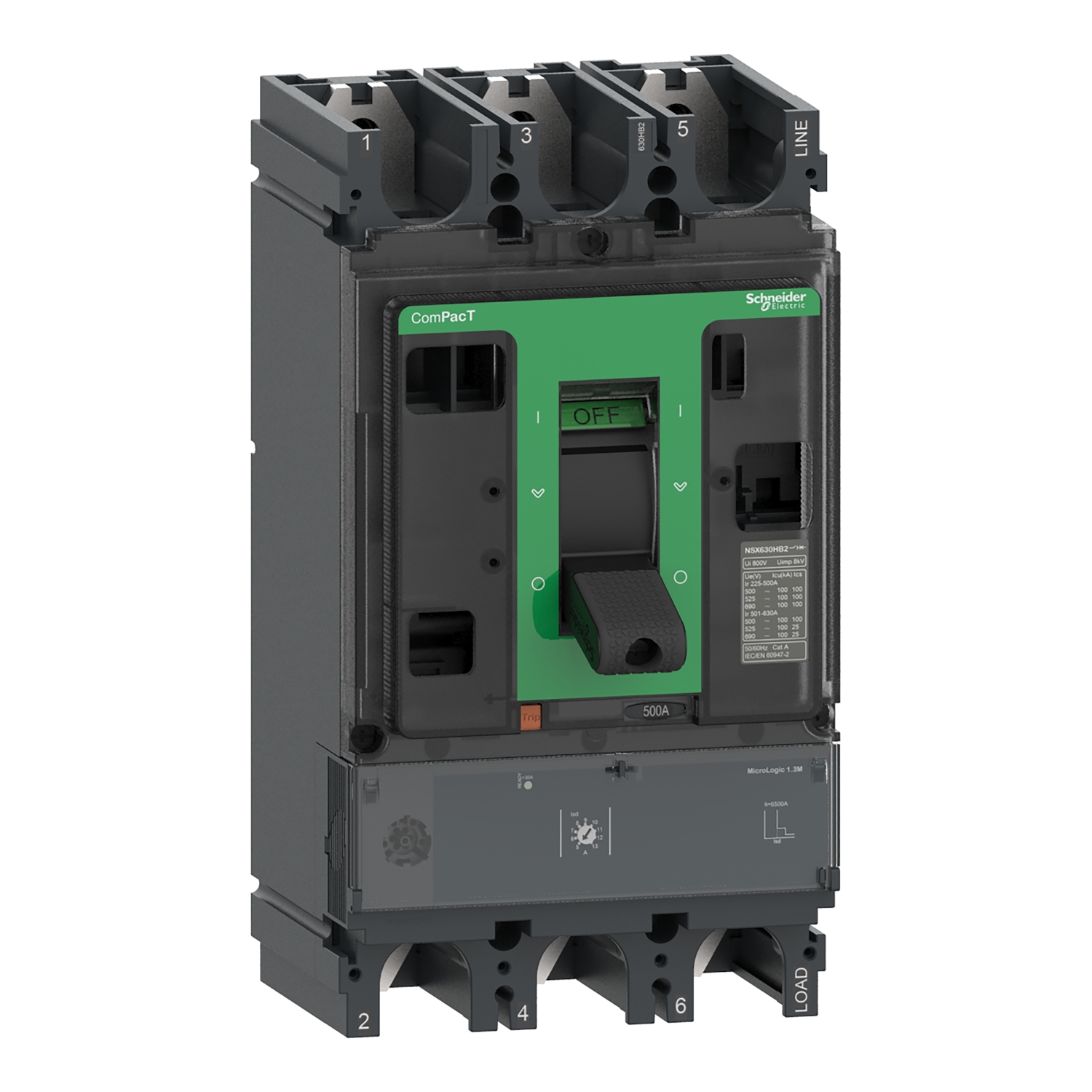

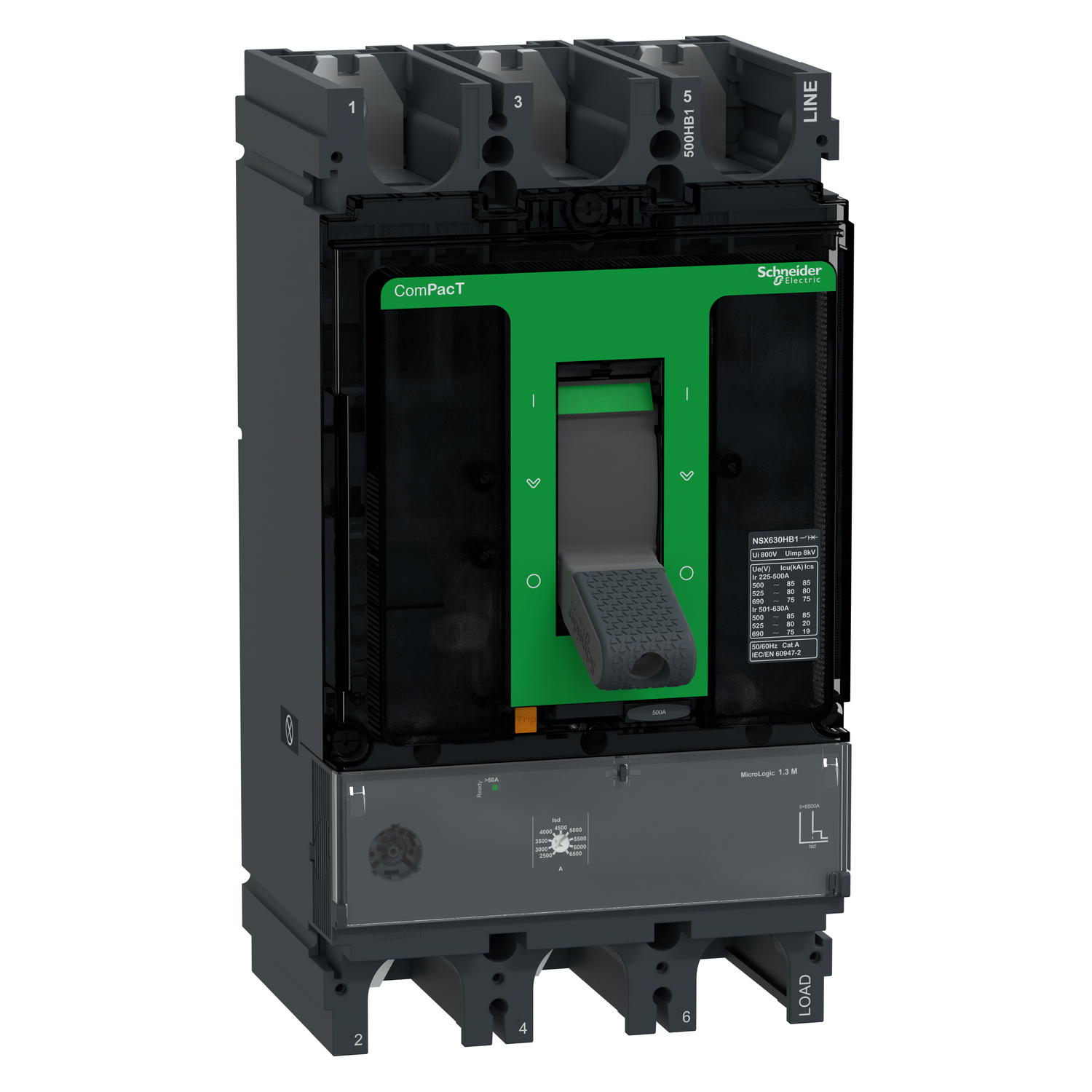

Circuit breaker, ComPacT NSX630HB1, 75kA/690VAC, 3 poles, MicroLogic 1.3M trip unit 500A

Manufacturer: Schneider Electric

SKU: C63V31M500

GTIN: 3606481989048

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $5,582.50 inc GST

Price: $3,735.38 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This ComPacT NSX630HB1 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 1.3 M trip unit, with 500A rating. MicroLogic 1.3 M trip unit provides an adjustable short time protection and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630HB1 is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name	Attribute value
Main
Device application	motor protection
Suitability for isolation	yes conforming to EN/IEC 60947-2
Trip unit technology	electronic
Utilisation category	category A
Network type	AC
Device short name	NSX630HB1
Breaking capacity code	HB1 75 kA 690 V AC
Breaking capacity	75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Protected poles description	3D
Range of product	ComPacT NSX400...630 new generation
Trip unit name	MicroLogic 1.3 M
Poles description	3P
Product name	ComPacT NSX new generation
Product or component type	circuit breaker
Trip unit protection functions	SI
[Ue] rated operational voltage	690 V AC 50/60 Hz
[In] rated current	500 A at 65 °C
Network frequency	50/60 Hz
Complementary
Short-time pick-up adjustment type Isd	adjustable 9 settings
[Uimp] rated impulse withstand voltage	8 kV
Compatibility code	NSX630
Trip unit rating	500-500 A at 65 °C
Electrical durability	2000 cycles at 690 V In, 6000 cycles at 690 V In/2, 4000 cycles at 440 V In, 8000 cycles at 440 V In/2
Zone selective interlocking ZSI	without
Downside connection	front
Earth-leakage protection	without
Height	255 mm
[Ics] rated service breaking capacity	75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	800 V AC 50/60 Hz
Net weight	6.2 kg
Number of slots	6 slot(s)
Power dissipation per pole	25 W
Connection pitch	45 mm
Mechanical durability	15000 cycles
Upside connection	front
Short-time delay adjustment type	fixed
Protection type	I : for instantaneous short-circuit protection, S : for short time short-circuit protection
Depth	110 mm
Width	140 mm
Mounting position	flat on the back, horizontal and vertical
[Isd] short-time pick-up adjustment range	6500 A, 6000 A, 5500 A, 5000 A, 4500 A, 4000 A, 3500 A, 3000 A, 2500 A
Local signalling	flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii	fixed
Instantaneous pick-up adjustment range	6500 A
Mounting support	backplate
Environment
Relative humidity	0-95 %
Ambient air temperature for storage	-50-85 °C
Overvoltage category	class II
Operating altitude	2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class	class II
Product certifications	EAC, CCC, Marine
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Standards	EN/IEC 60947
