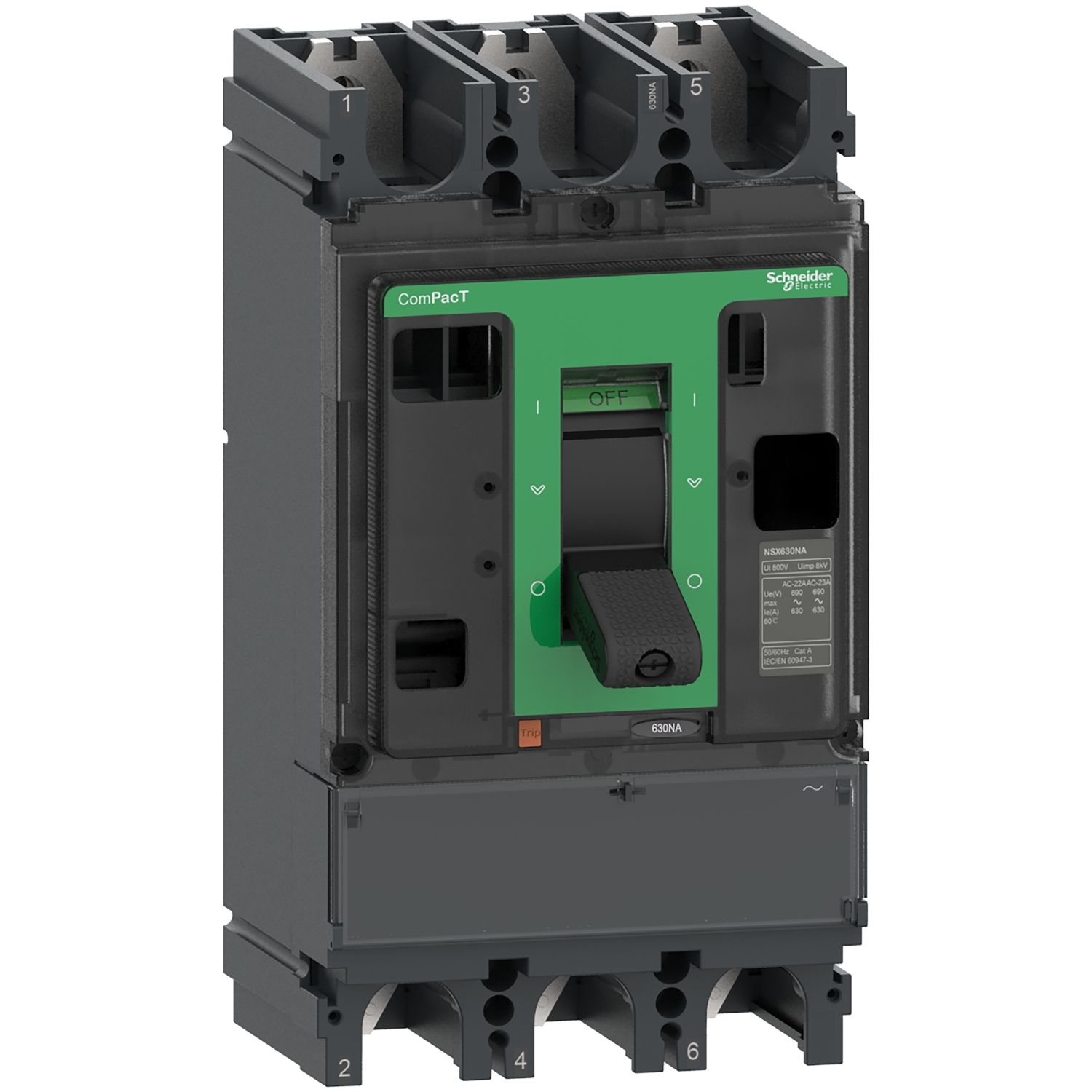

Switch disconnector, ComPacT NSX630NA, 3 poles, fixed, thermal current Ith 630A

Manufacturer: Schneider Electric

SKU: C633630S

GTIN: 3606482002883

Catalog

User guide

Instruction sheet

Environmental Disclosure

Declaration of conformity

Old price: $3,113.00 inc GST

Price: $2,082.98 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This ComPacT NSX630NA is a complete 3 poles switch disconnector. It is used to control and isolate electrical distribution circuits. It requires an upstream protection. The operational current is 630A at 415VAC 50/60Hz for AC22A and AC23A utilization categories. The operational voltage is 690VAC 50/60Hz. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimensions for this 3 poles version are 140mm x 255mm x 110mm. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	AC-23A: 630 A AC 50/60 Hz 220...690 V, AC-22A: 630 A AC 50/60 Hz 220...690 V
Suitability for isolation	yes conforming to EN/IEC 60947-3
[Ui] rated insulation voltage	800 V AC 50/60 Hz
Utilisation category	AC-23A, AC-22A
Network type	AC
Device short name	NSX630NA
[Icw] rated short-time withstand current	2.32 kA during 20 s, 6 kA during 3 s, 6 kA during 1 s
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
[Ith] conventional free air thermal current	630 A at 50 °C
Range of product	ComPacT NSX400...630 new generation
[Ue] rated operational voltage	690 V AC 50/60 Hz
Poles description	3P
[Icm] rated short-circuit making capacity	8.5 kA switch-disconnector alone, 330 kA with upstream protection circuit breaker
Product name	ComPacT NSX new generation
Product or component type	switch disconnector
Visible break	no
Breaking capacity code	NA
Contact position indicator	yes
[In] rated current	630 A
Network frequency	50/60 Hz
Complementary
Compatibility code	NSX630
Electrical durability	AC-23A: 6000 cycles 440 V AC 50/60 Hz In/2, AC-23A: 3000 cycles 690 V AC 50/60 Hz In/2, AC-23A: 3000 cycles 440 V AC 50/60 Hz In, AC-23A: 1500 cycles 690 V AC 50/60 Hz In, AC-22A: 6000 cycles 440 V AC 50/60 Hz In/2, AC-22A: 3000 cycles 690 V AC 50/60 Hz In/2, AC-22A: 3000 cycles 440 V AC 50/60 Hz In, AC-22A: 1500 cycles 690 V AC 50/60 Hz In
Downside connection	front
Height	255 mm
Mechanical durability	15000 cycles
Net weight	5.2 kg
Product certifications	CCC, EAC, CE
Upside connection	front
Connection pitch	45 mm
Depth	110 mm
Width	140 mm
Mounting support	backplate
Standards	EN/IEC 60947-3, EN/IEC 60947-1
Environment
Ambient air temperature for storage	-50-85 °C
Electrical shock protection class	class II
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
