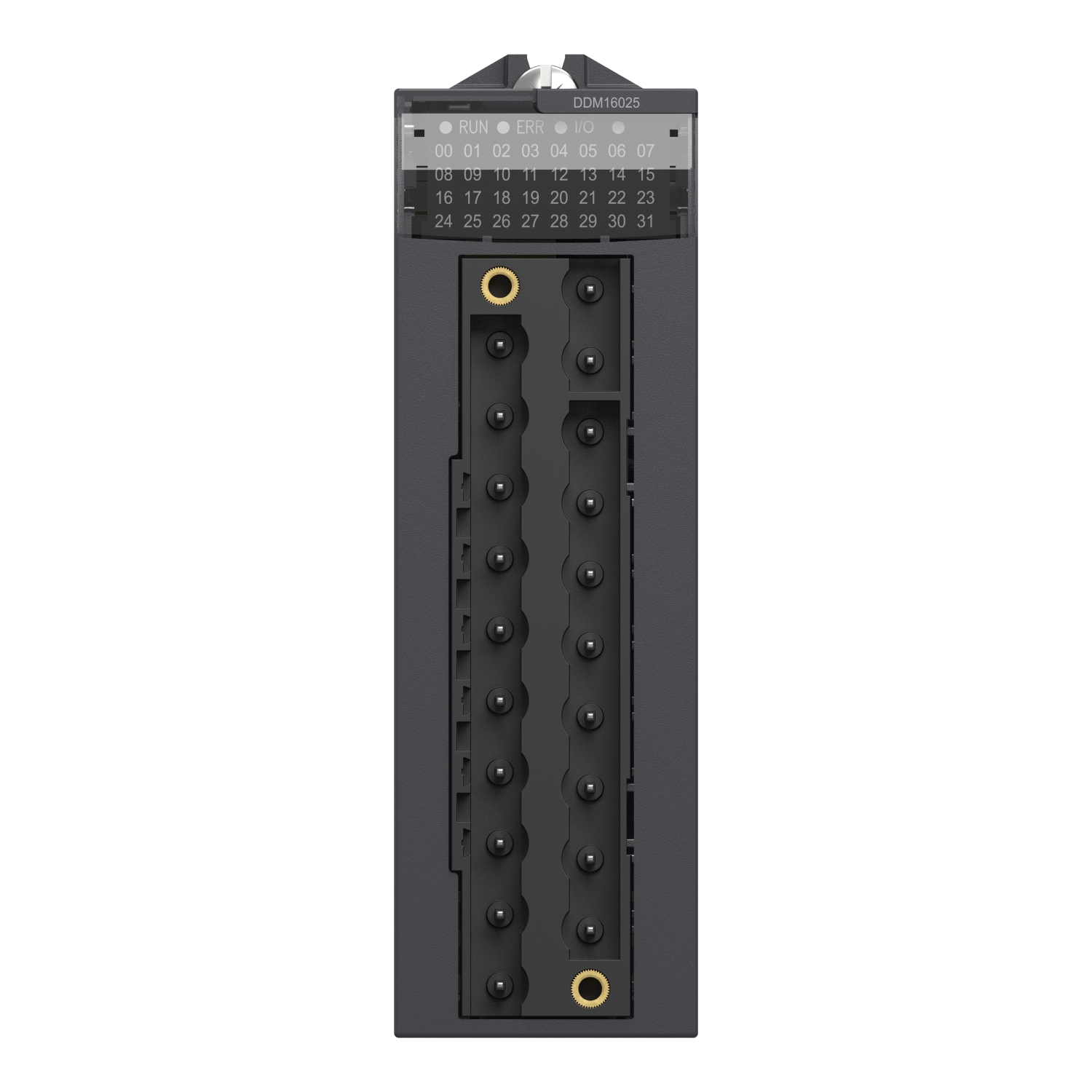

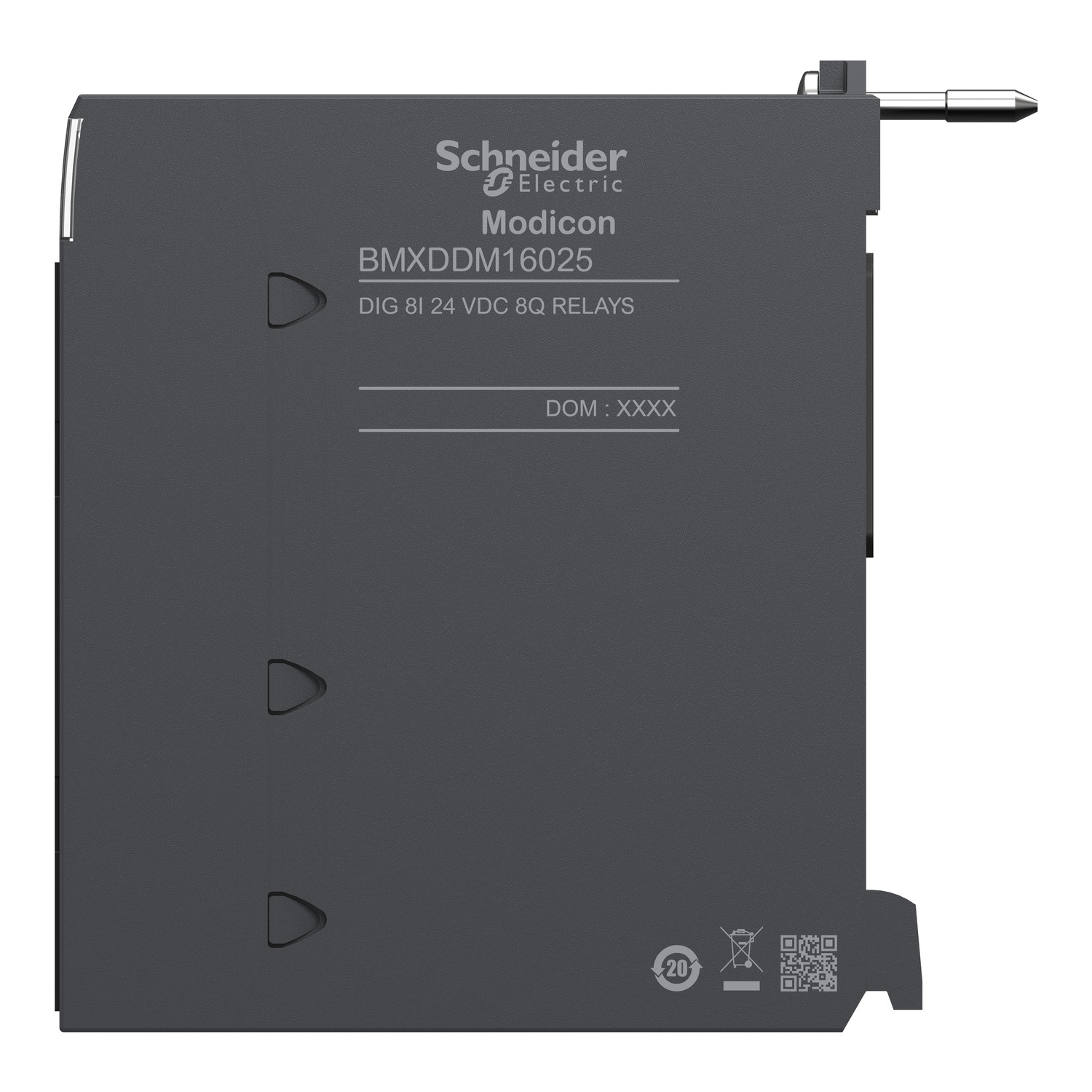

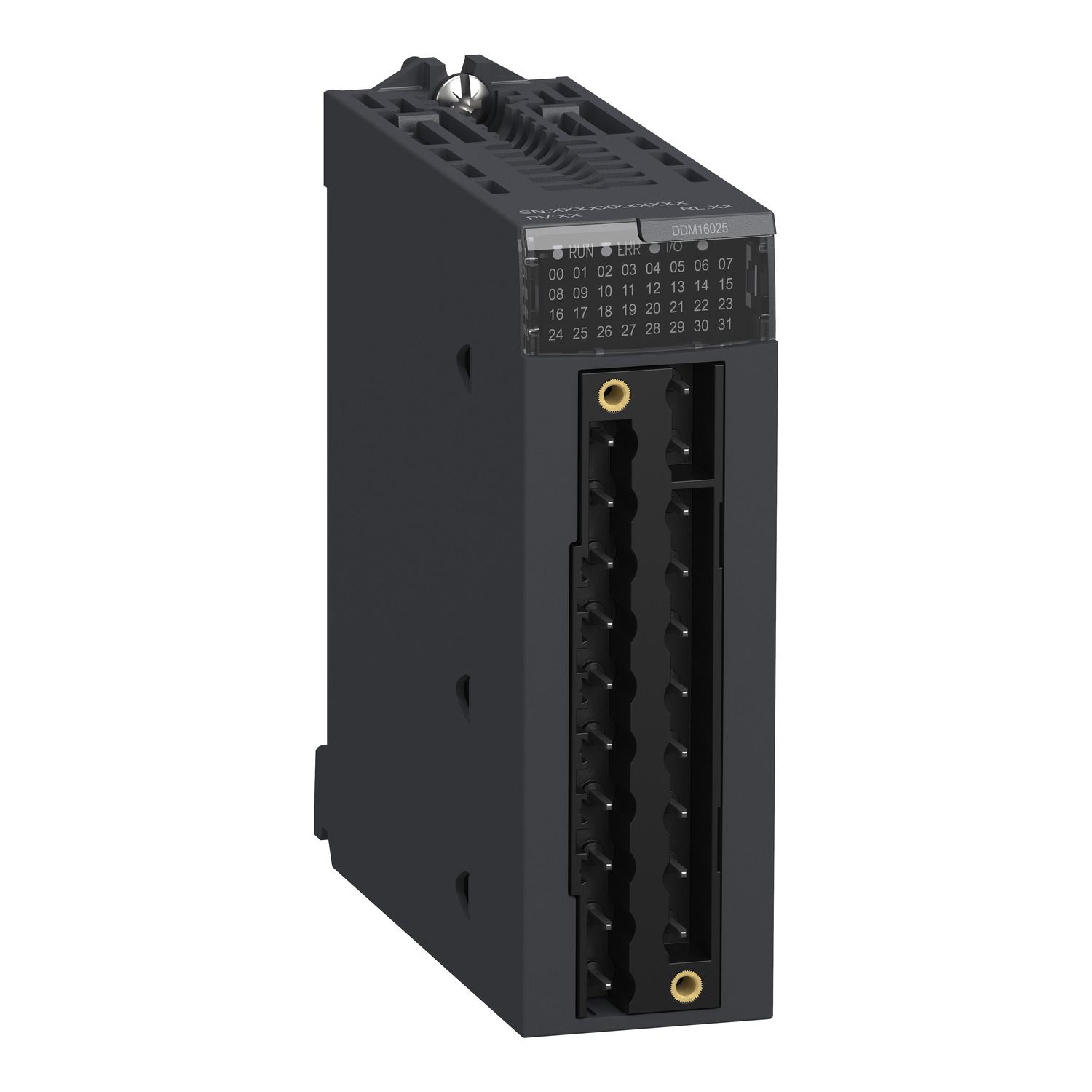

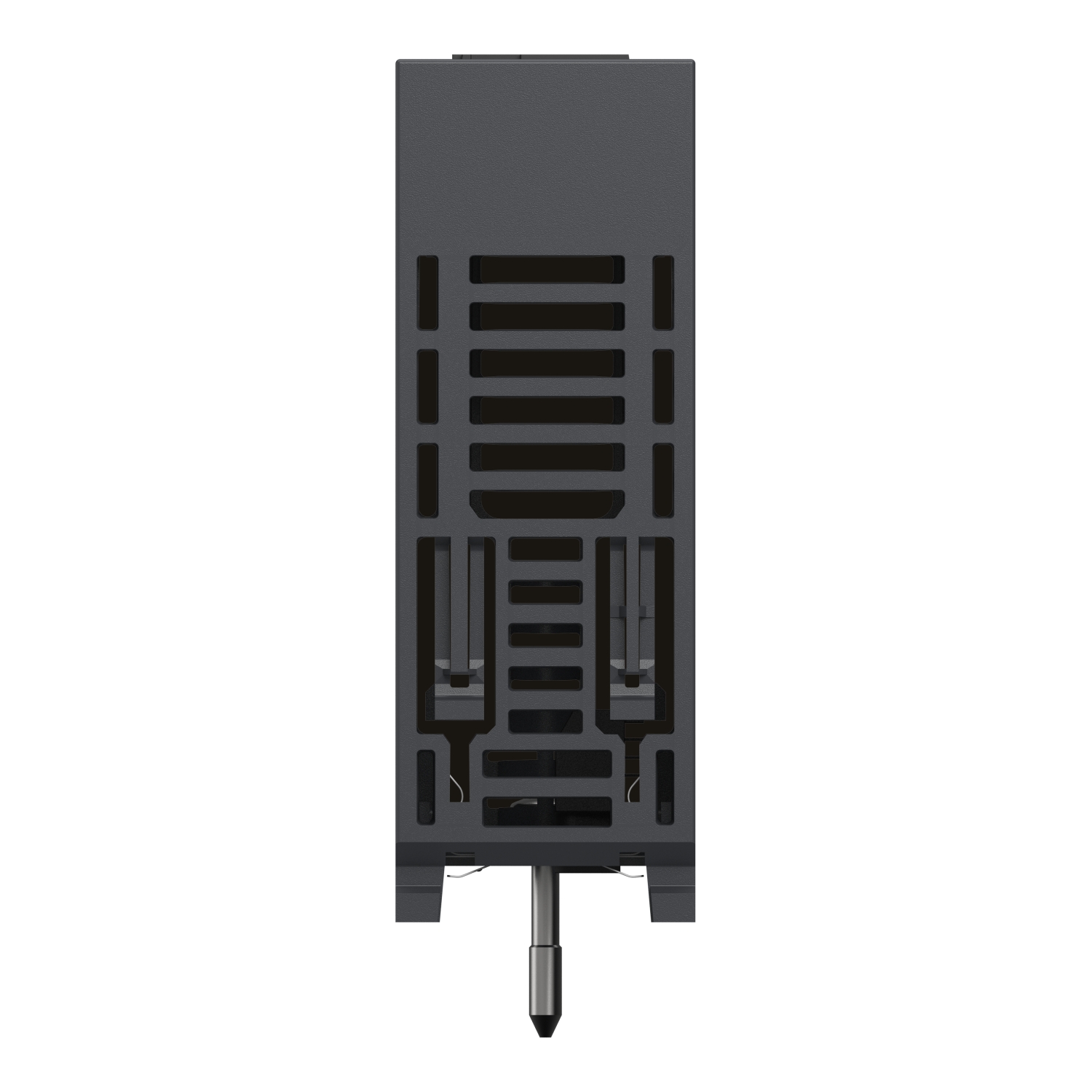

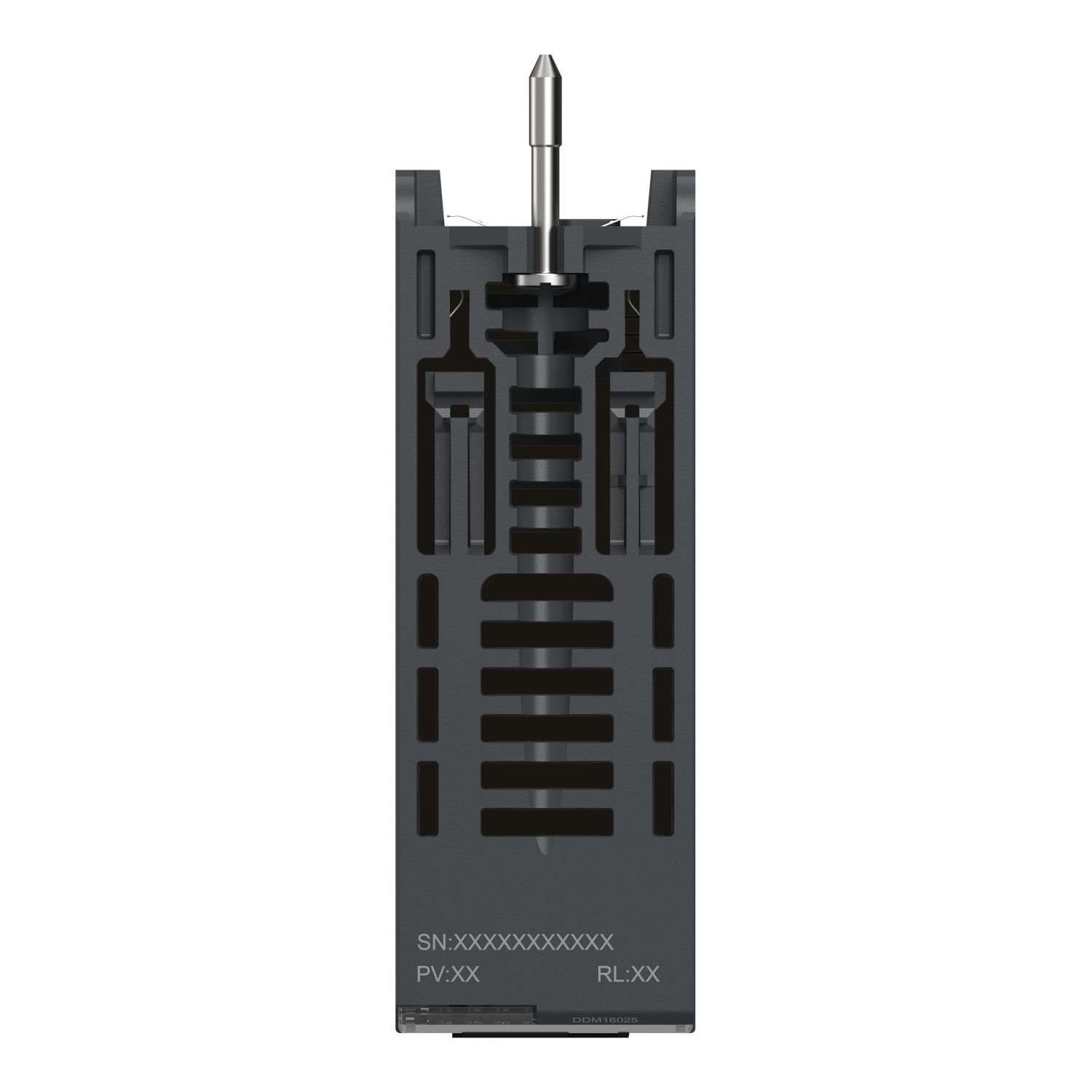

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 relay output channels. It is a discrete I/O module with a discrete input voltage of 24V DC, an output voltage of 24V DC, 24V to 240V AC, 10V to 264V AC, an output current of 2A, a maximum power dissipation of 3.1W and current consumption of 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers 912167 hours of MTBF. It is an IP20 rated product. It weighs 0.135kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 2000 mA |
| Discrete output voltage | 24...240 V 19...264 V AC, 24 V 19...30 V DC |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Range of product | Modicon X80 |
| Discrete output type | relay |
| Discrete input current | 3.5 mA |
| Discrete input number | 8 |
| Input type | current sink (logic positive) |
| Product or component type | discrete I/O module |
| Discrete output number | 8 |
| Complementary | |
| Response time on output | <= 10 ms activation, <= 8 ms deactivation |
| DC maximum filtering time | 7 ms |
| Mechanical durability | 20000000 cycles |
| Current state 0 guaranteed | <= 1.5 mA |
| Typical current consumption | 79 mA at 3.3 V DC |
| Electrical durability | DC-13: 300000 cycles at 7.2 W 24 V, AC-15: 300000 cycles at 60 VA 200 V (load factor 0.35 ), AC-15: 300000 cycles at 36 VA 240 V (load factor 0.35 ), AC-14: 300000 cycles at 80 VA 200 V (load factor 0.7 ), AC-14: 300000 cycles at 72 VA 240 V (load factor 0.7 ), DC-13: 100000 cycles at 24 W 24 V, AC-15: 100000 cycles at 200 VA 200 V (load factor 0.35 ), AC-15: 100000 cycles at 120 VA 240 V (load factor 0.35 ), AC-14: 100000 cycles at 300 VA 200 V (load factor 0.7 ), AC-14: 100000 cycles at 240 VA 240 V (load factor 0.7 ) |
| Input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Power dissipation in W | 3.1 W |
| Protection type | 1 external fuse per output channel or group of output channel fast blow, reverse polarity protection on input, 1 external fuse per group of input channel0.5 A fast blow |
| Voltage detection threshold | > 18 V DC sensor OK, < 14 V DC sensor fault |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Switching frequency | 1 Hz |
| MTBF reliability | 940000 H |
| Input impedance | 6800 Ohm |
| DC typical filtering time | 4 ms |
| Paralleling of inputs | no |
| Maximum switching voltage | 264 V AC, 125 V DC |
| Net weight | 0.135 kg |
| Current state 1 guaranteed | >= 2 mA |
| Insulation resistance | > 10 MOhm 500 V DC |
| Minimum switching current | 1 mA 5 V DC |
| Voltage range | 19...30 V |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of I/O, 2830 V AC at 50/60 Hz 1 minute, output relay, 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Shock resistance | 30 gn |
