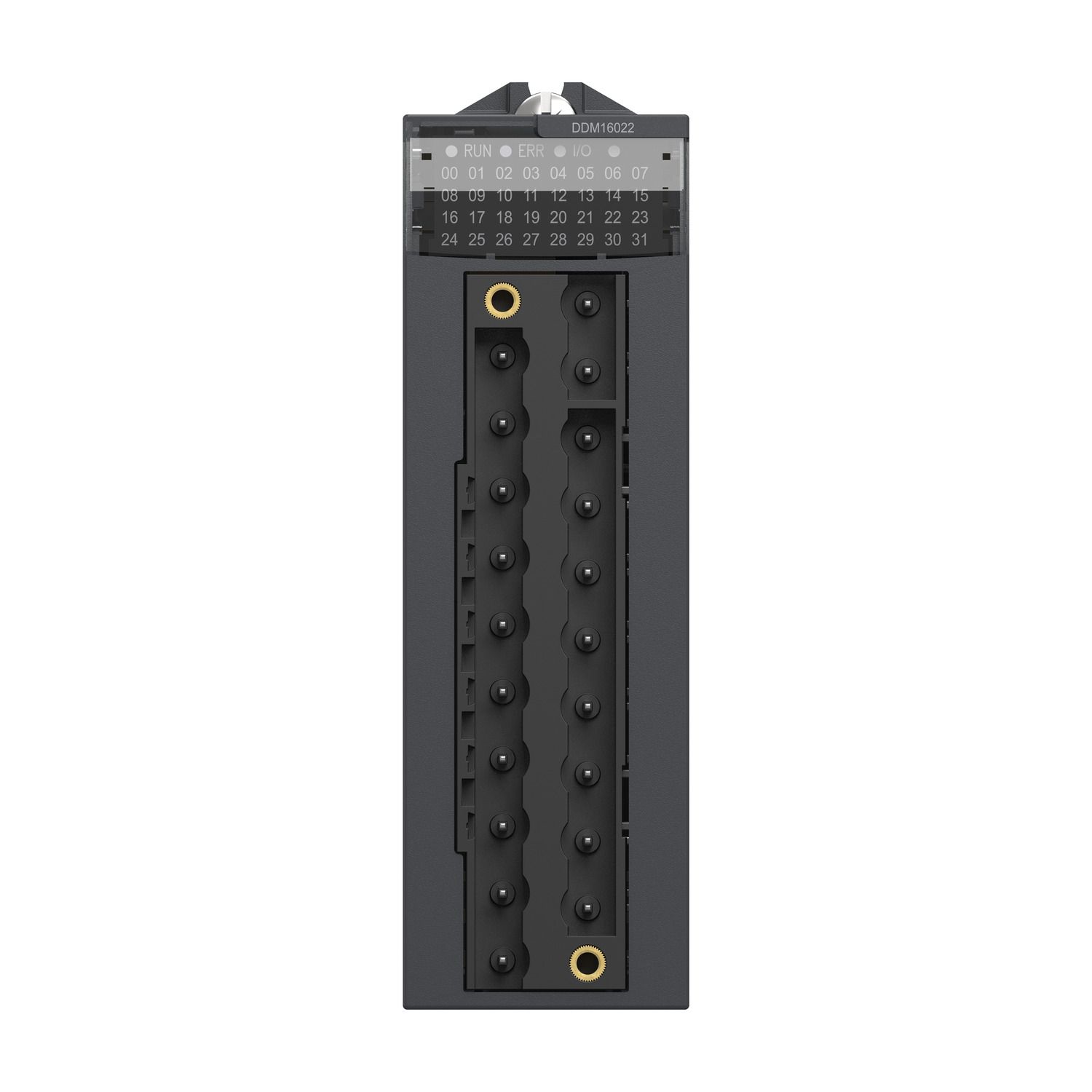

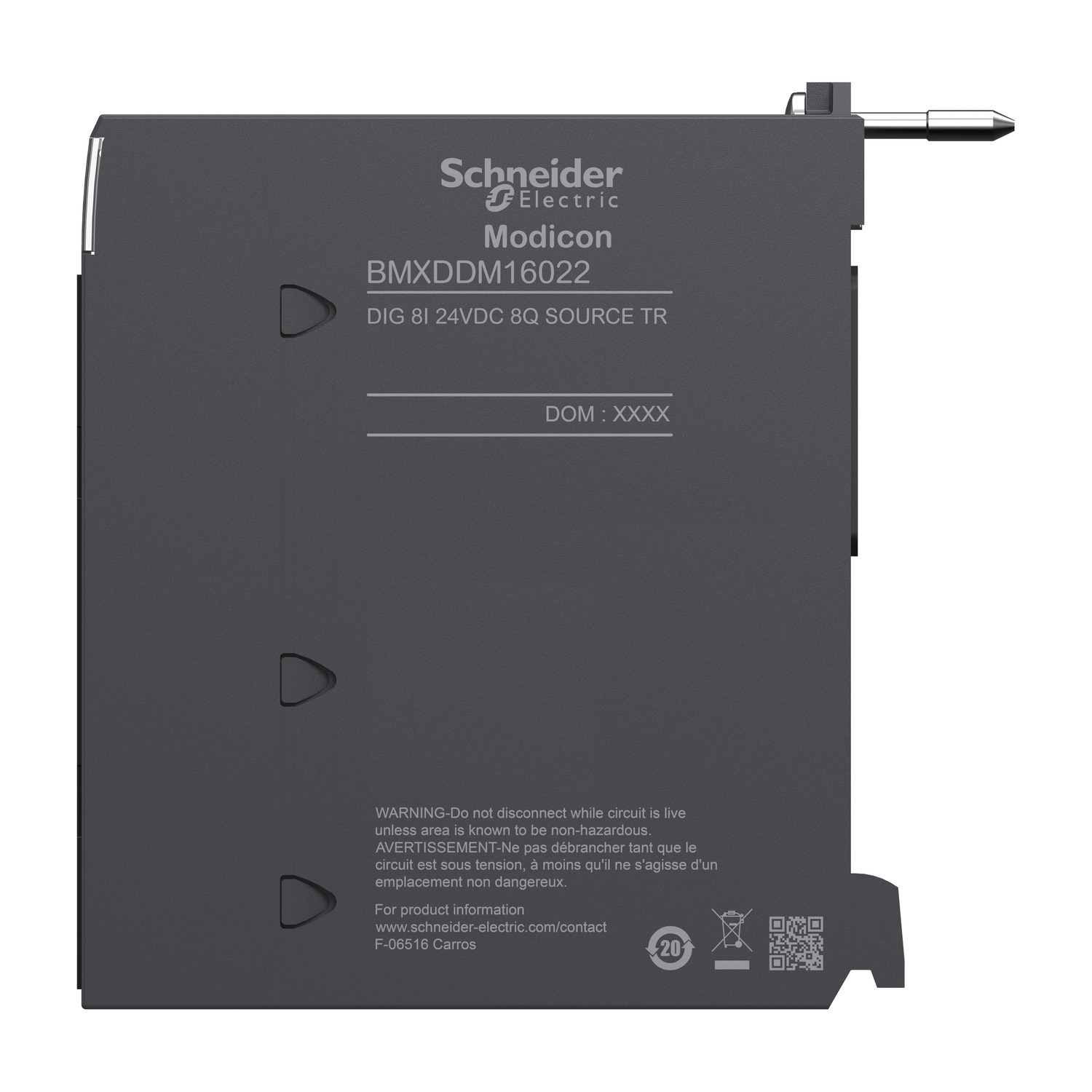

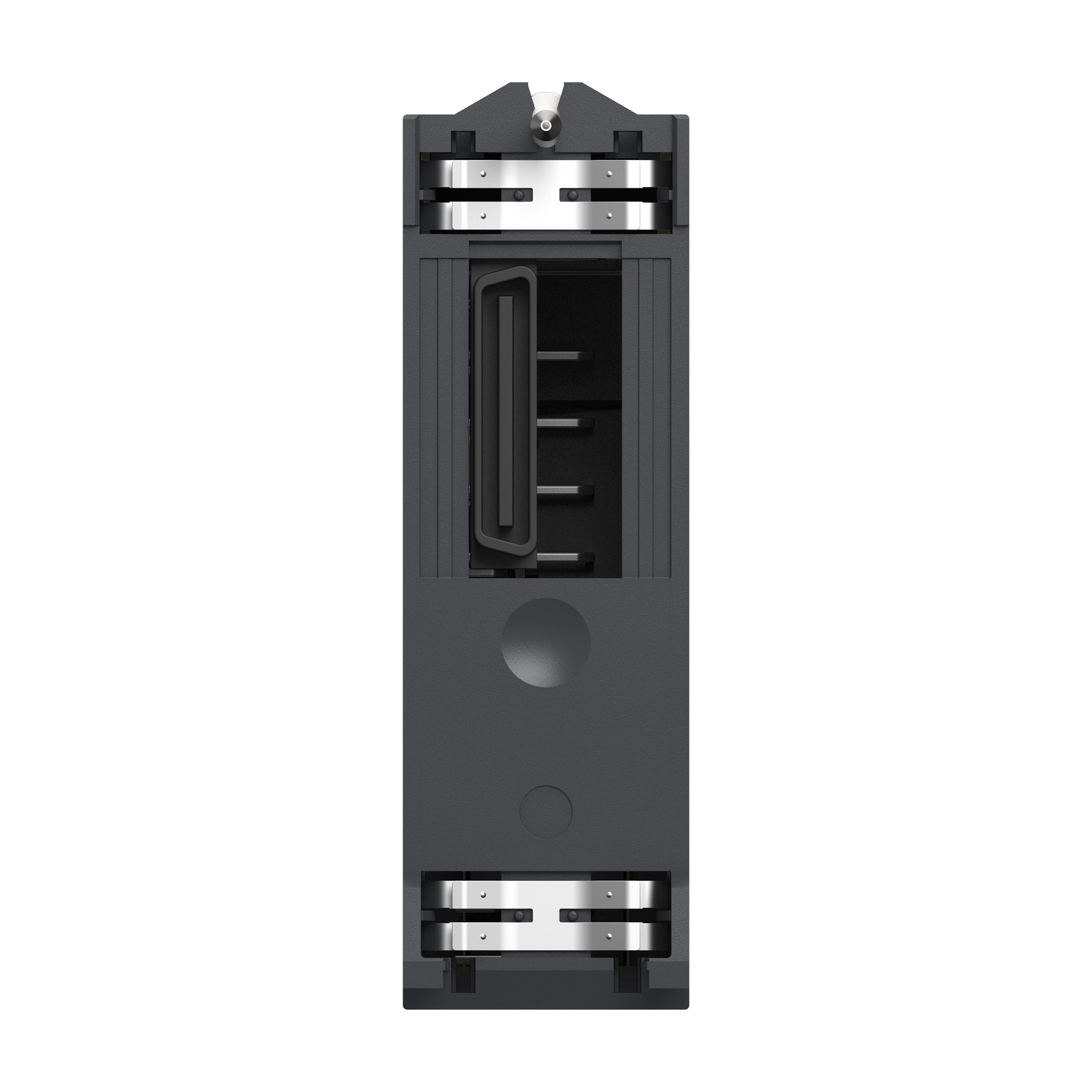

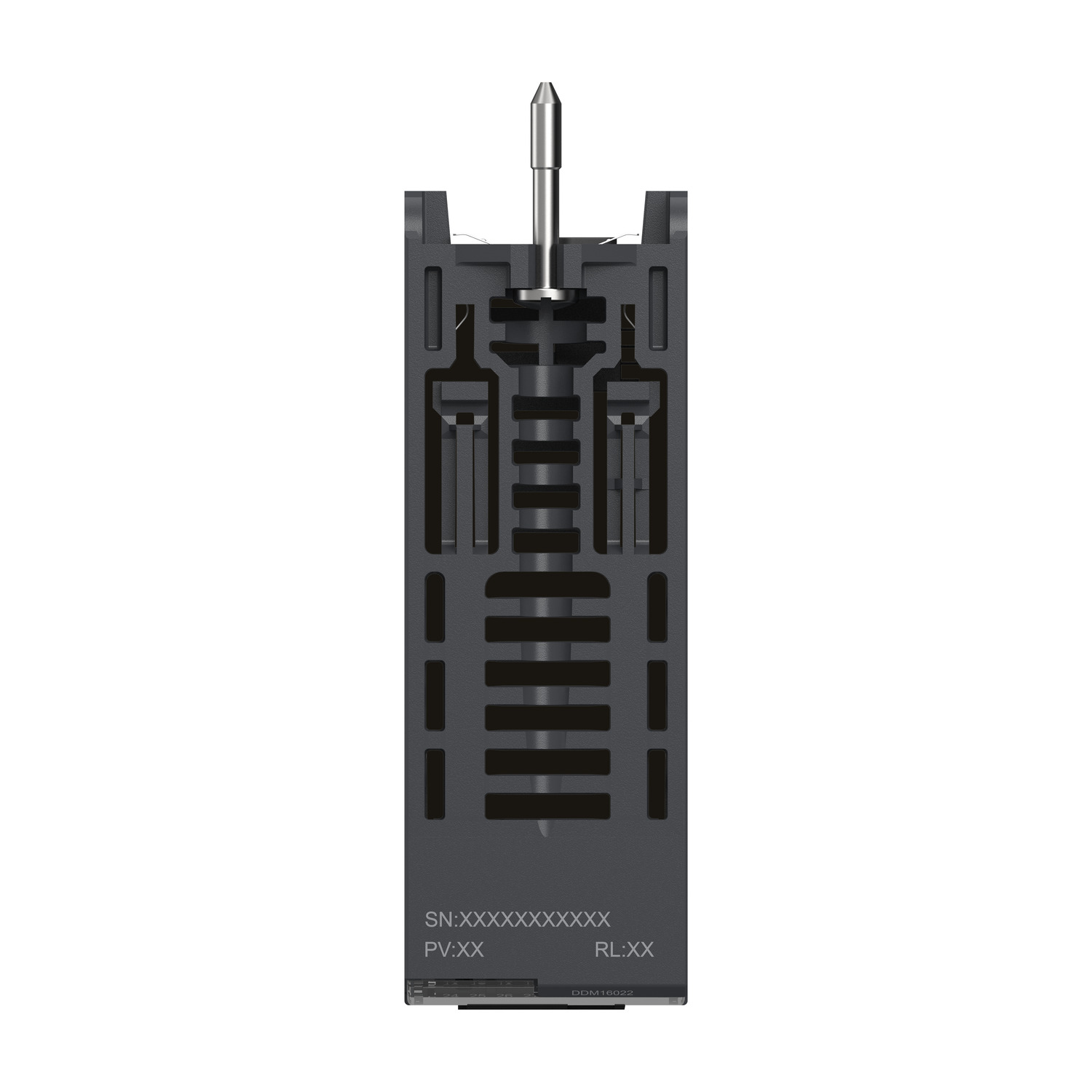

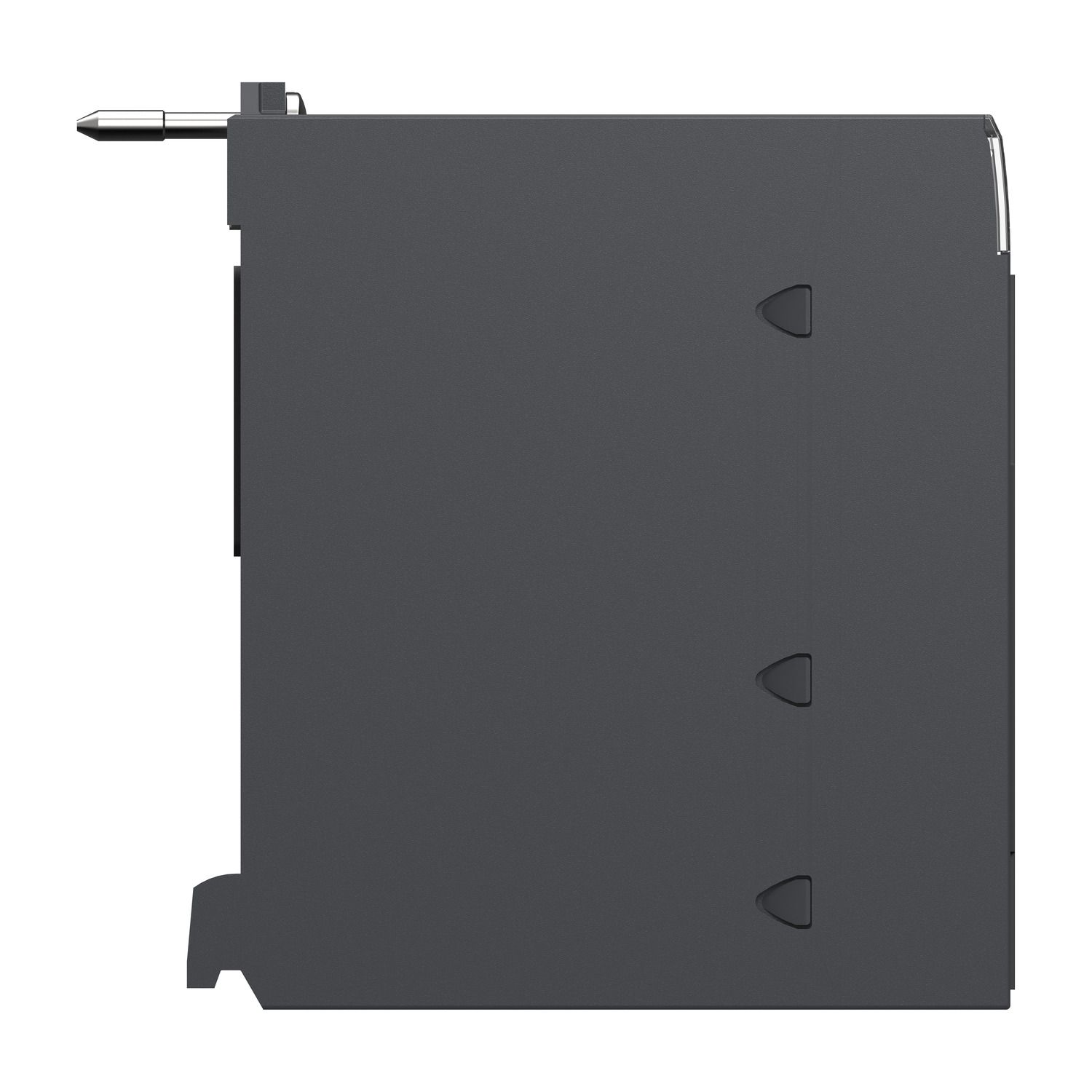

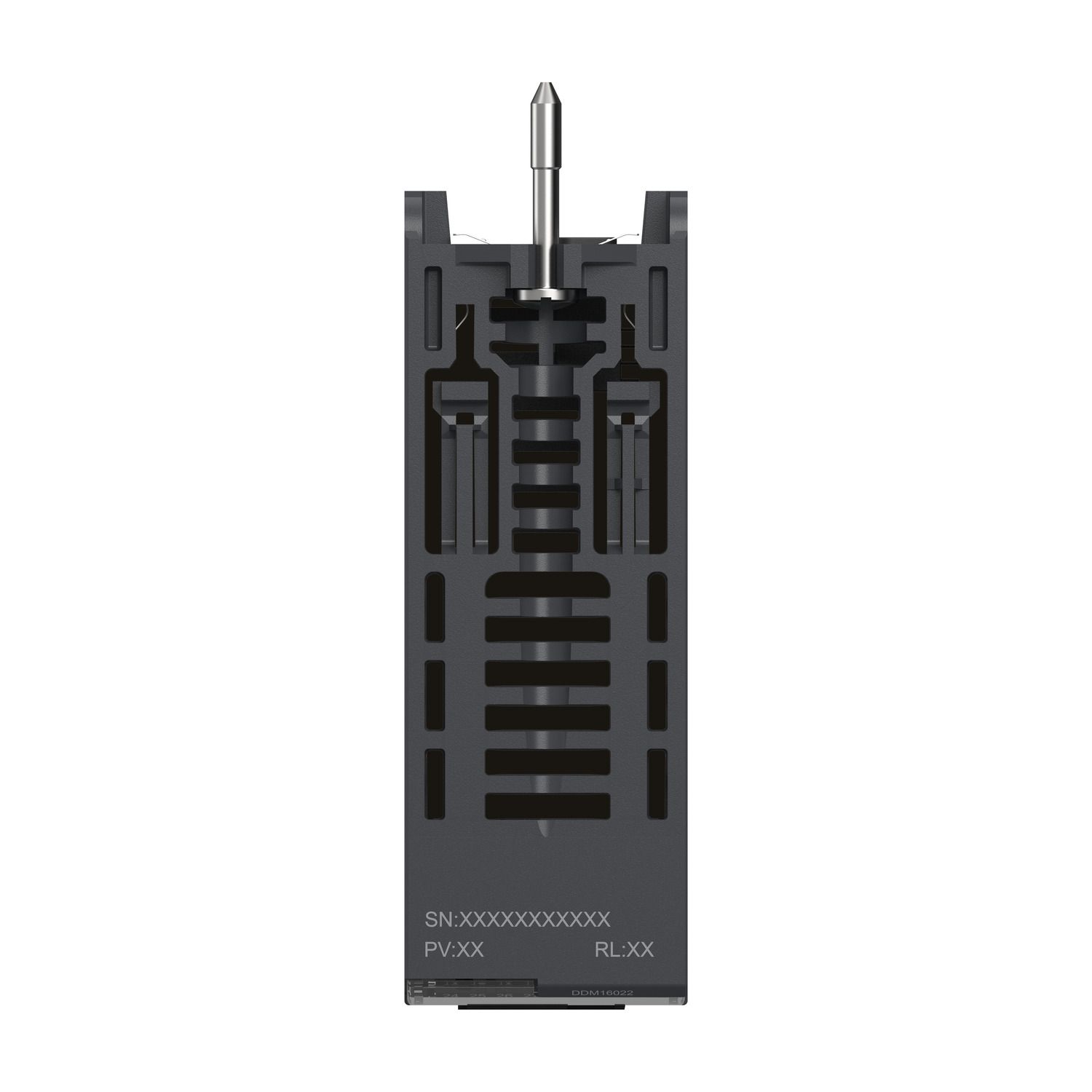

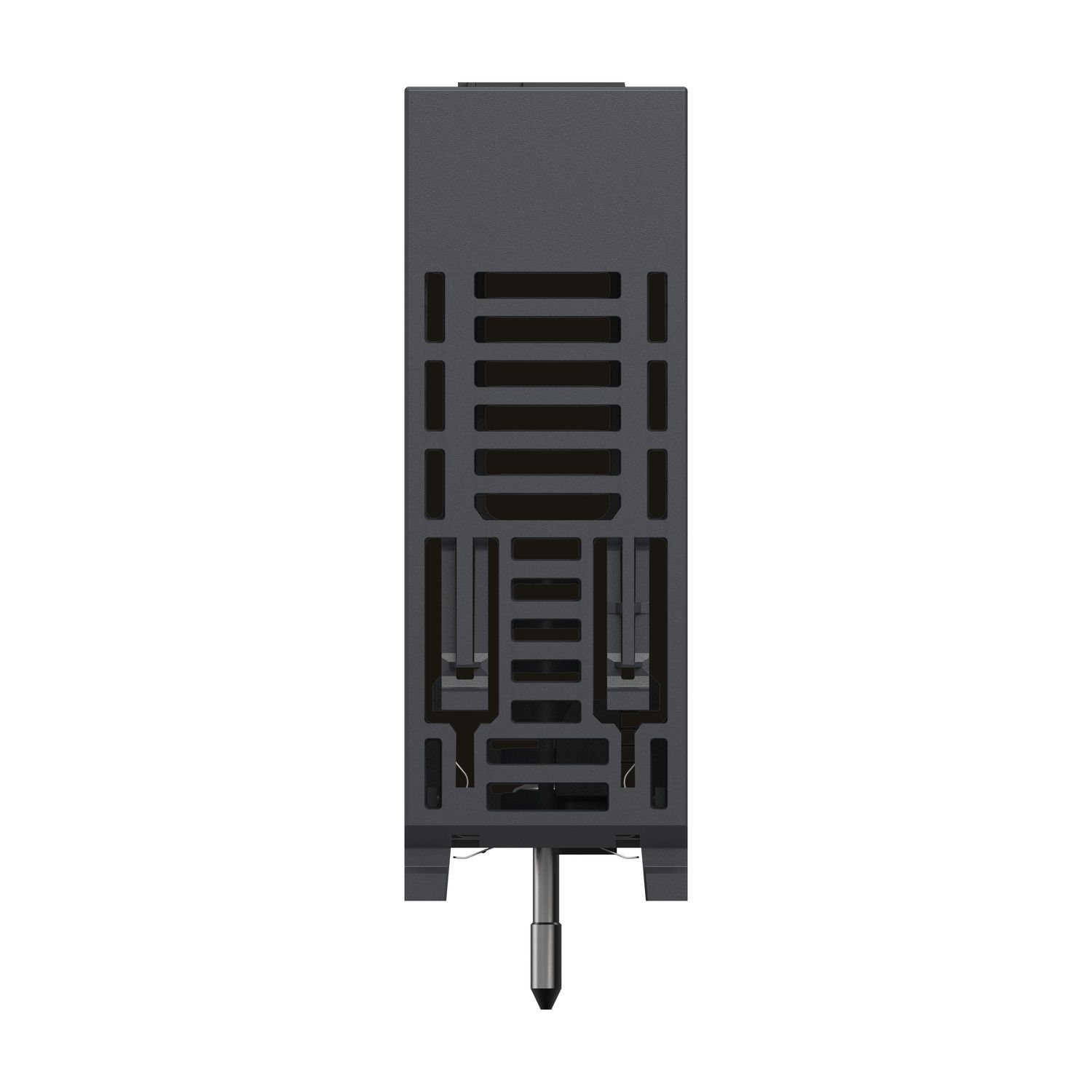

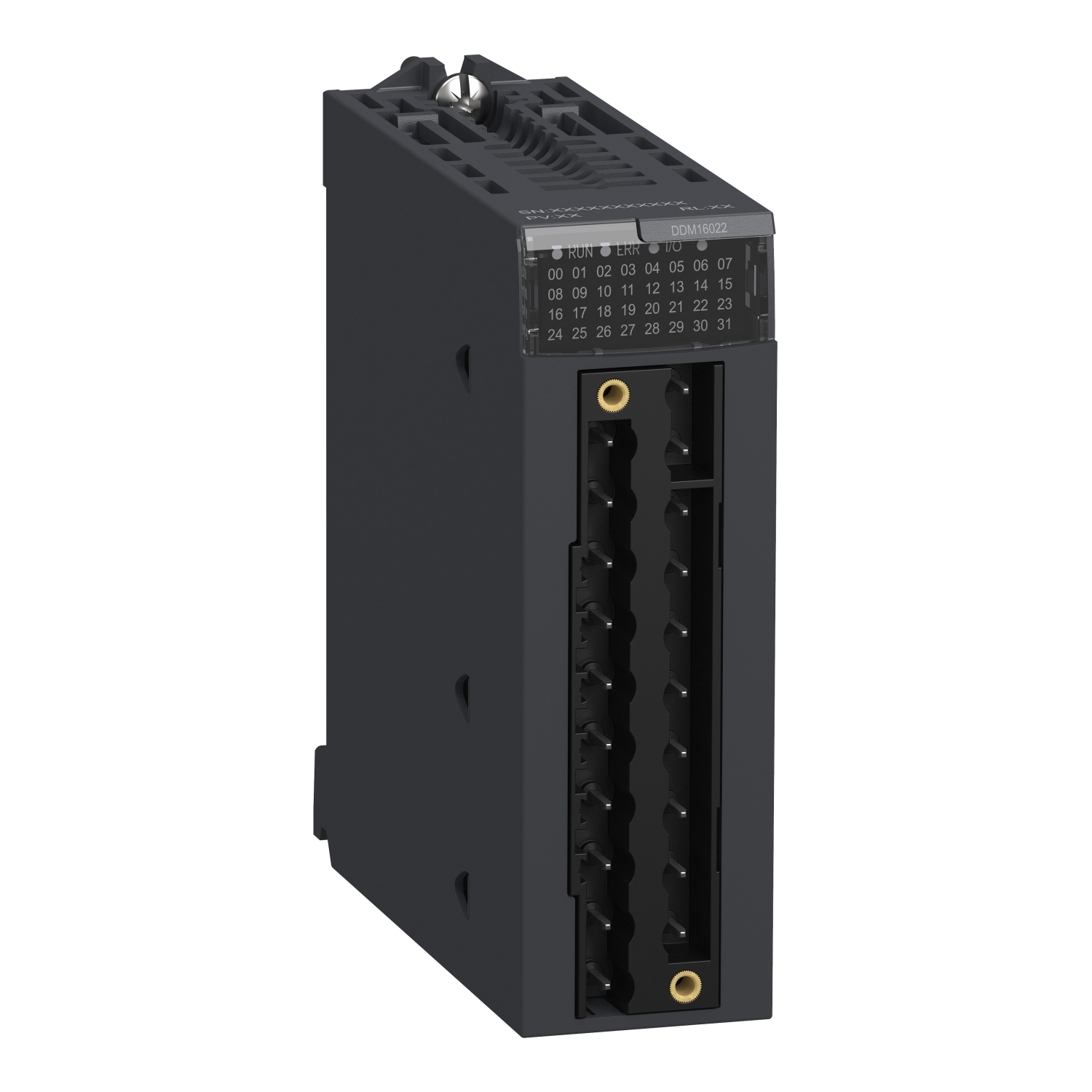

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.5A, a maximum power dissipation of 3.7W and current consumption of 67mA at 24V DC, 111mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 447581 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 0.5 A |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Range of product | Modicon X80 |
| Discrete output type | solid state |
| Discrete input current | 3.5 mA |
| Discrete input number | 8 |
| Input type | current sink (logic positive) |
| Product or component type | discrete I/O module |
| Discrete output number | 8 |
| Complementary | |
| Response time on output | 1.2 ms |
| DC maximum filtering time | 7 ms |
| Output overload protection | with electronic circuit breaker 1.5 In < Id < 2 In, with current limiter |
| Output short-circuit protection | with 2 A external fuse |
| Output overvoltage protection | with transil diode |
| Current state 0 guaranteed | <= 1.5 mA |
| Typical current consumption | 59 mA at 24 V DC, 79 mA at 3.3 V DC |
| Input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Power dissipation in W | 3.7 W |
| Protection type | reverse polarity protection on output, reverse polarity protection on input, overvoltage protection on output, 1 external fuse per group of input channel0.5 A fast blow |
| Maximum voltage drop | <1.2 V at state 1 |
| Voltage detection threshold | > 18 V DC sensor OK, > 18 V DC preactuator OK, < 14 V DC sensor fault, < 14 V DC preactuator fault |
| Current per channel | 0.625 A |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Maximum overload time | 15 ms |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 5 A |
| MTBF reliability | 450000 H |
| Reverse polarity protection | reverse mounted diode |
| Maximum tungsten load | 6 W |
| Input impedance | 6800 Ohm |
| DC typical filtering time | 4 ms |
| Paralleling of outputs | yes : 2 maximum |
| Load impedance ohmic | >= 48 Ohm |
| Maximum leakage current | 0.5 mA at state 0 |
| Net weight | 0.115 kg |
| Current state 1 guaranteed | >= 3 mA |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current consumption | <= 67 mA at 24 V DC, <= 111 mA at 3.3 V DC |
| Voltage range | 19...30 V |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of inputs and outputs, 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground |
| Shock resistance | 30 gn |
