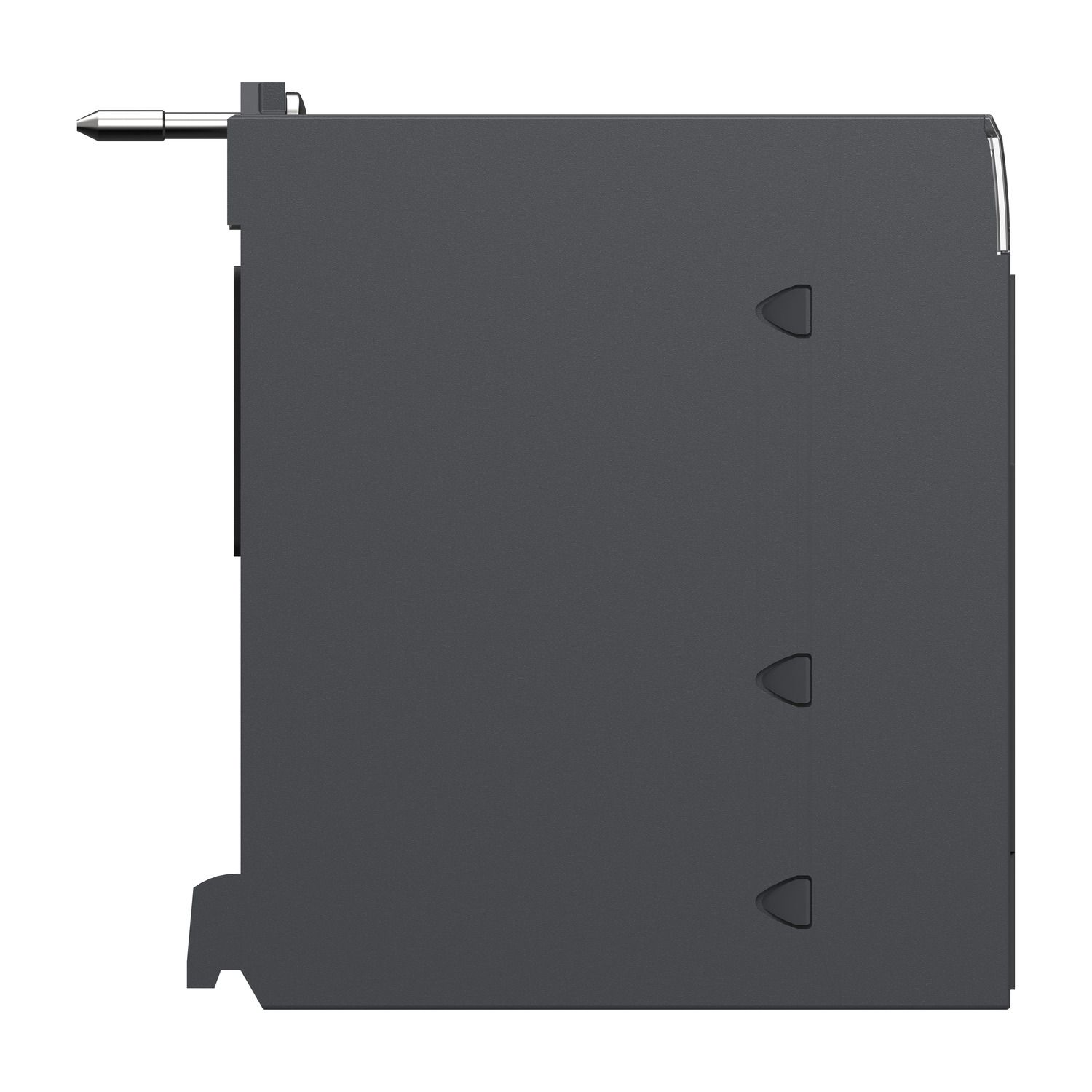

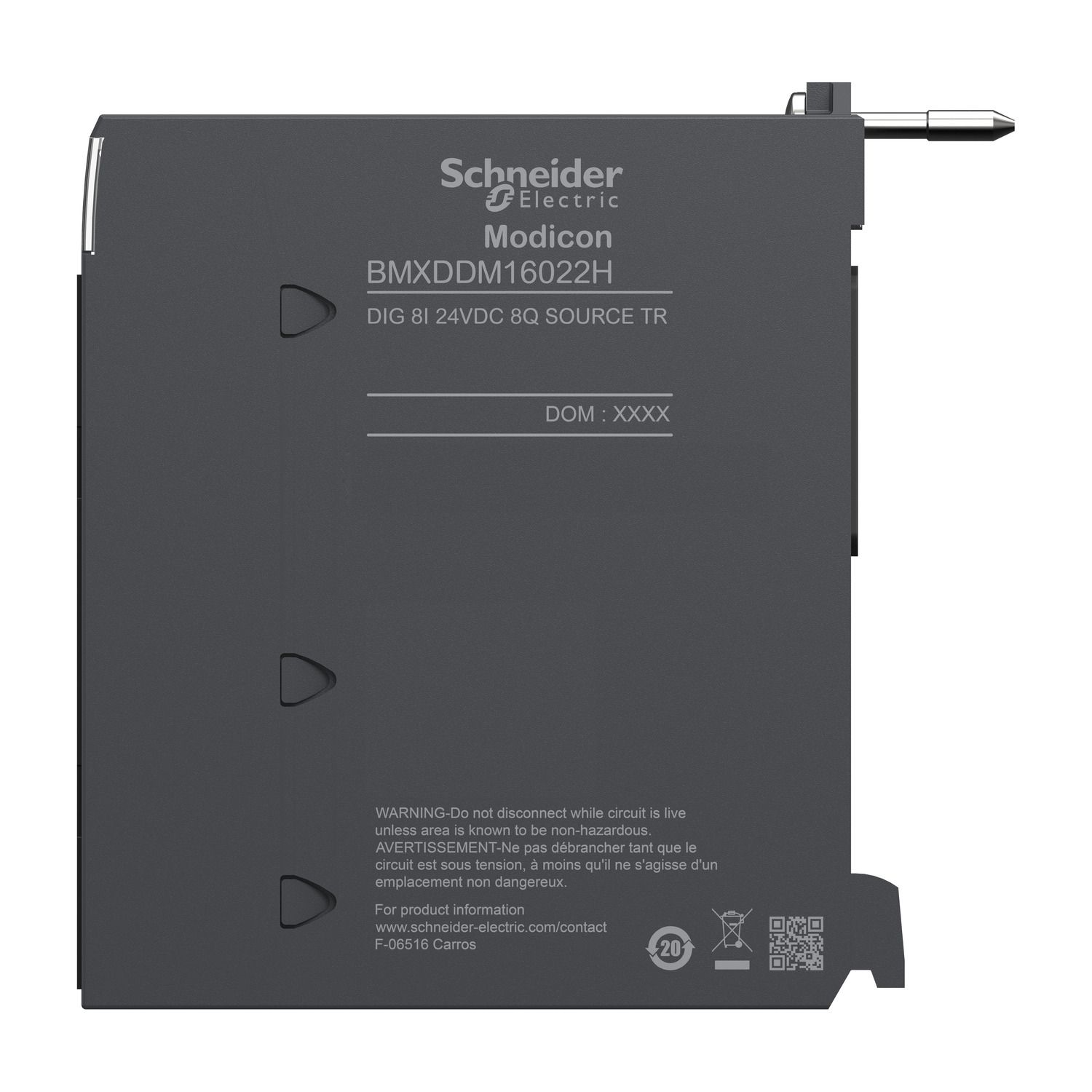

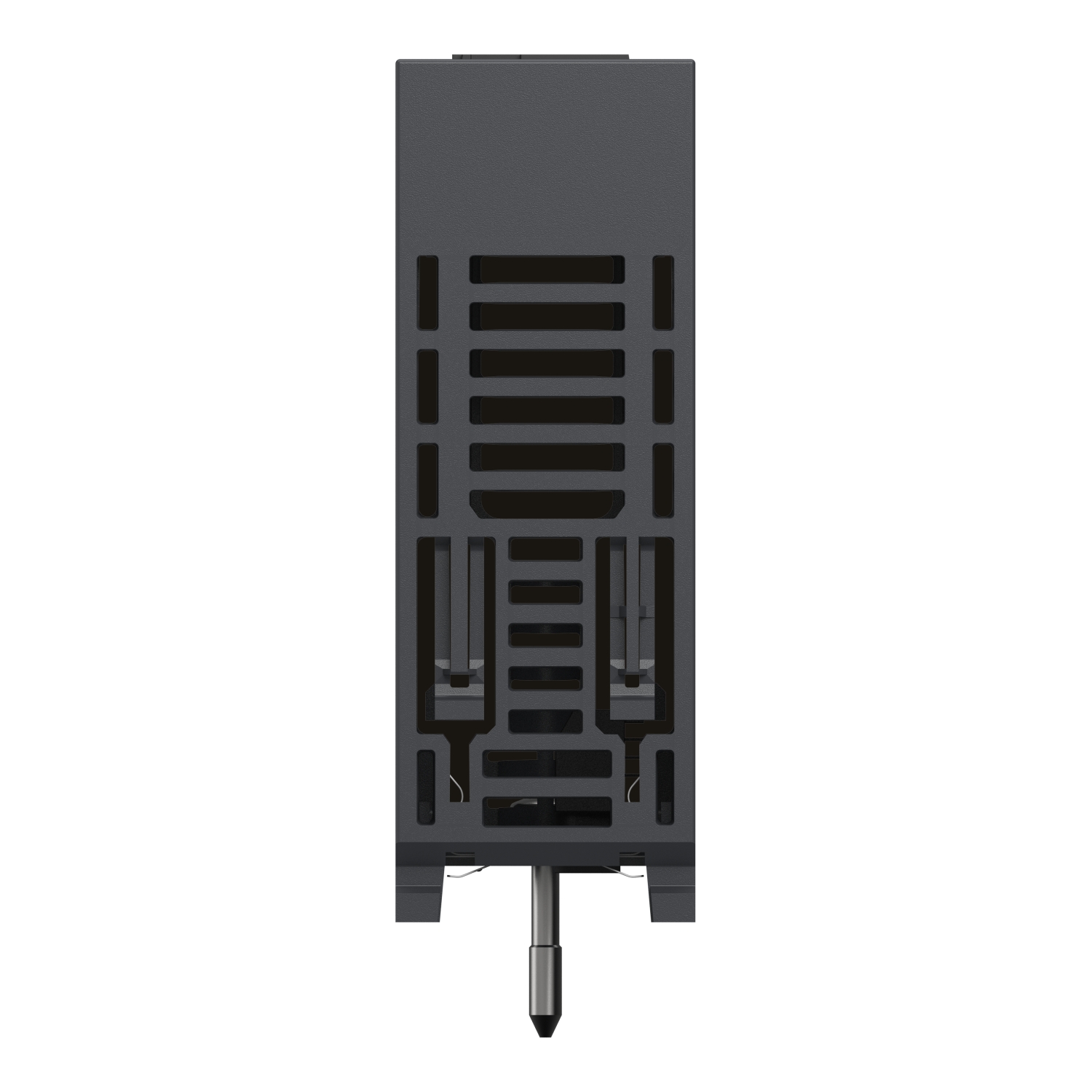

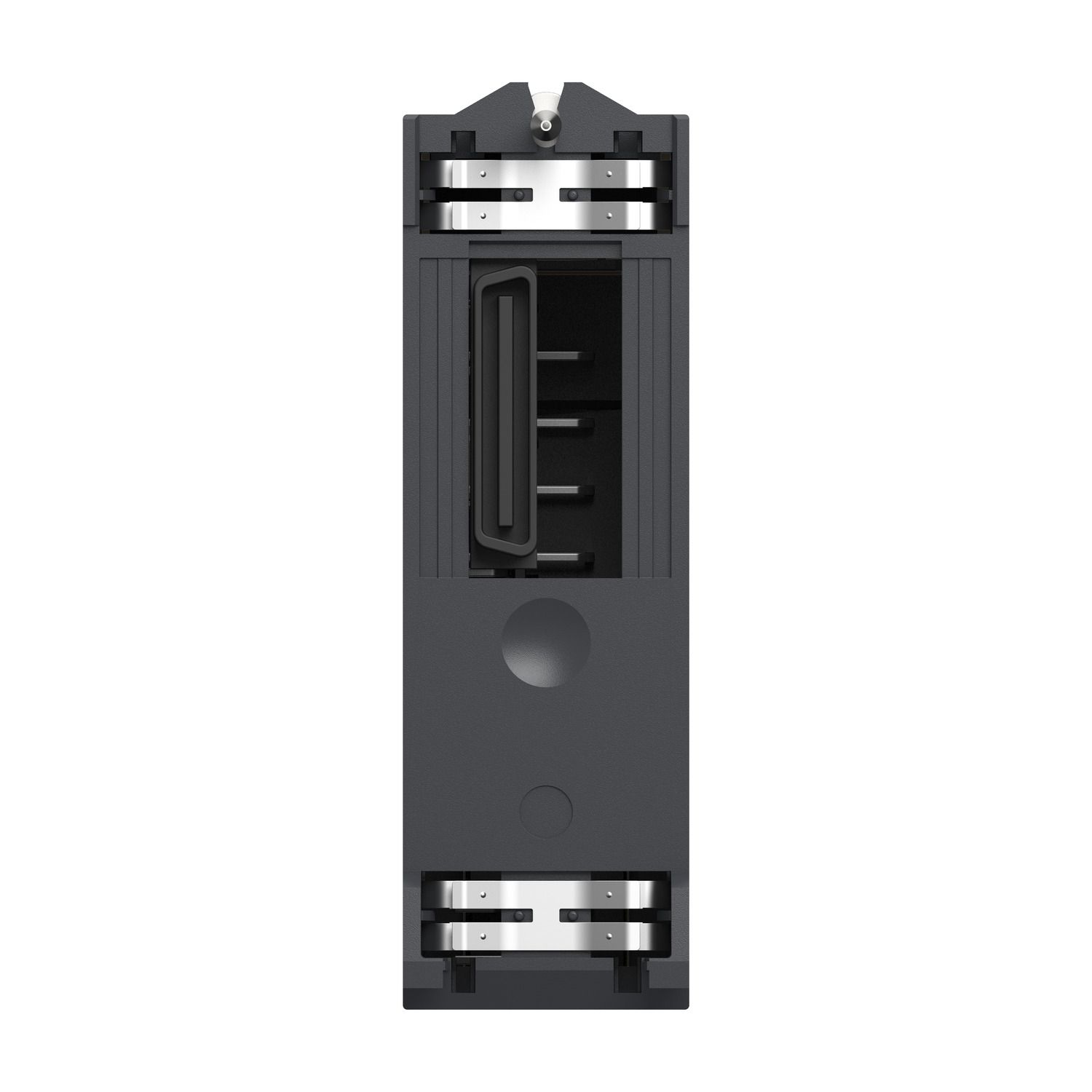

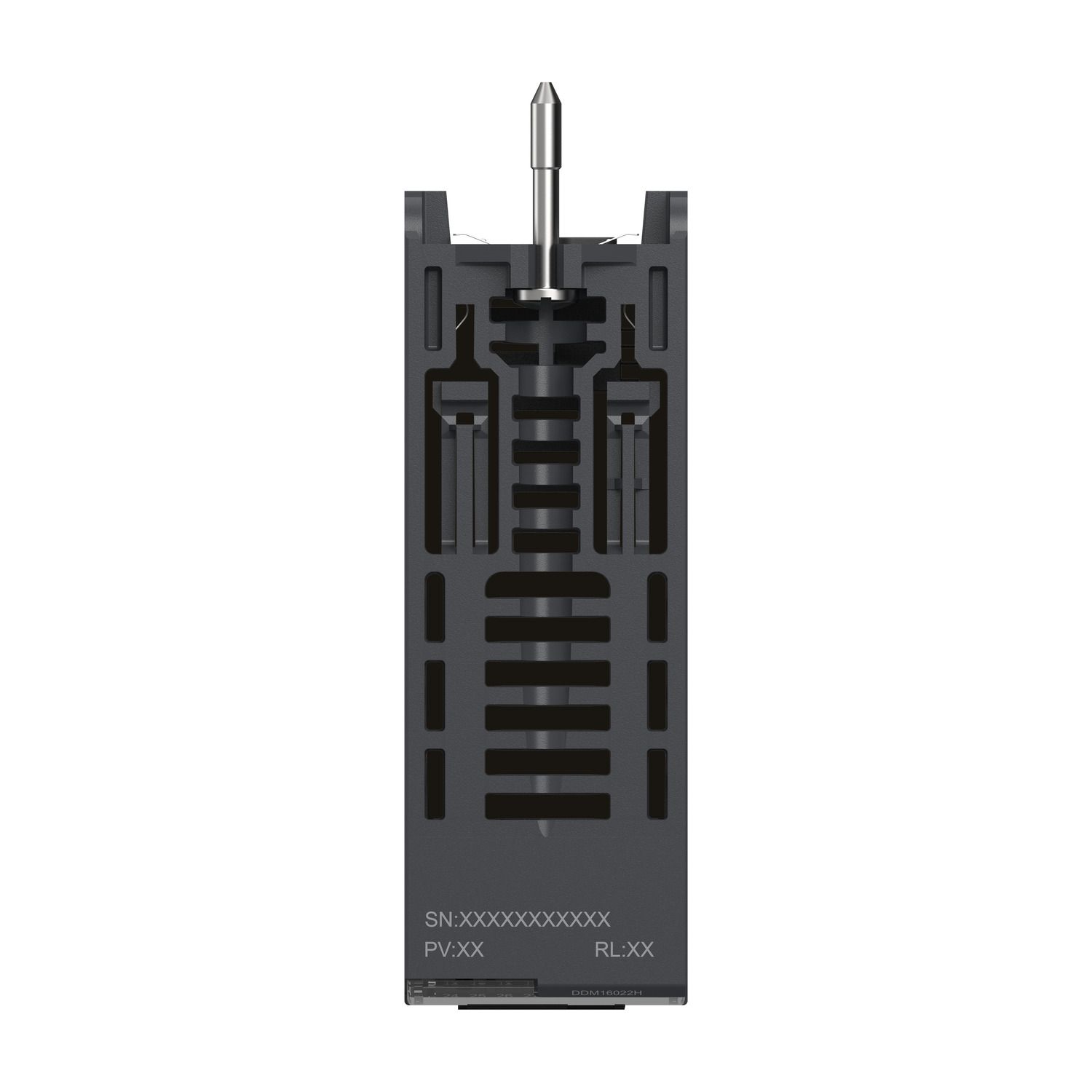

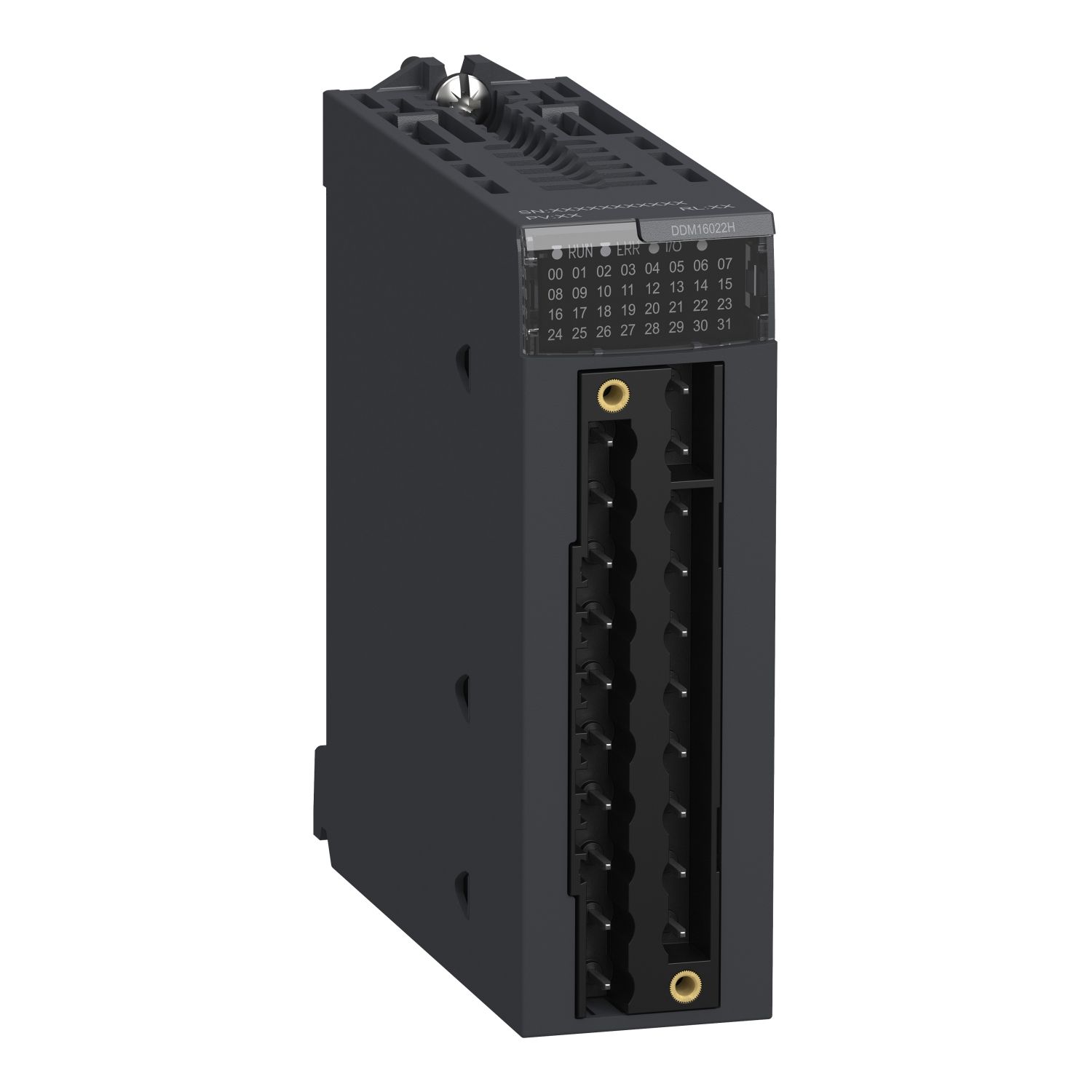

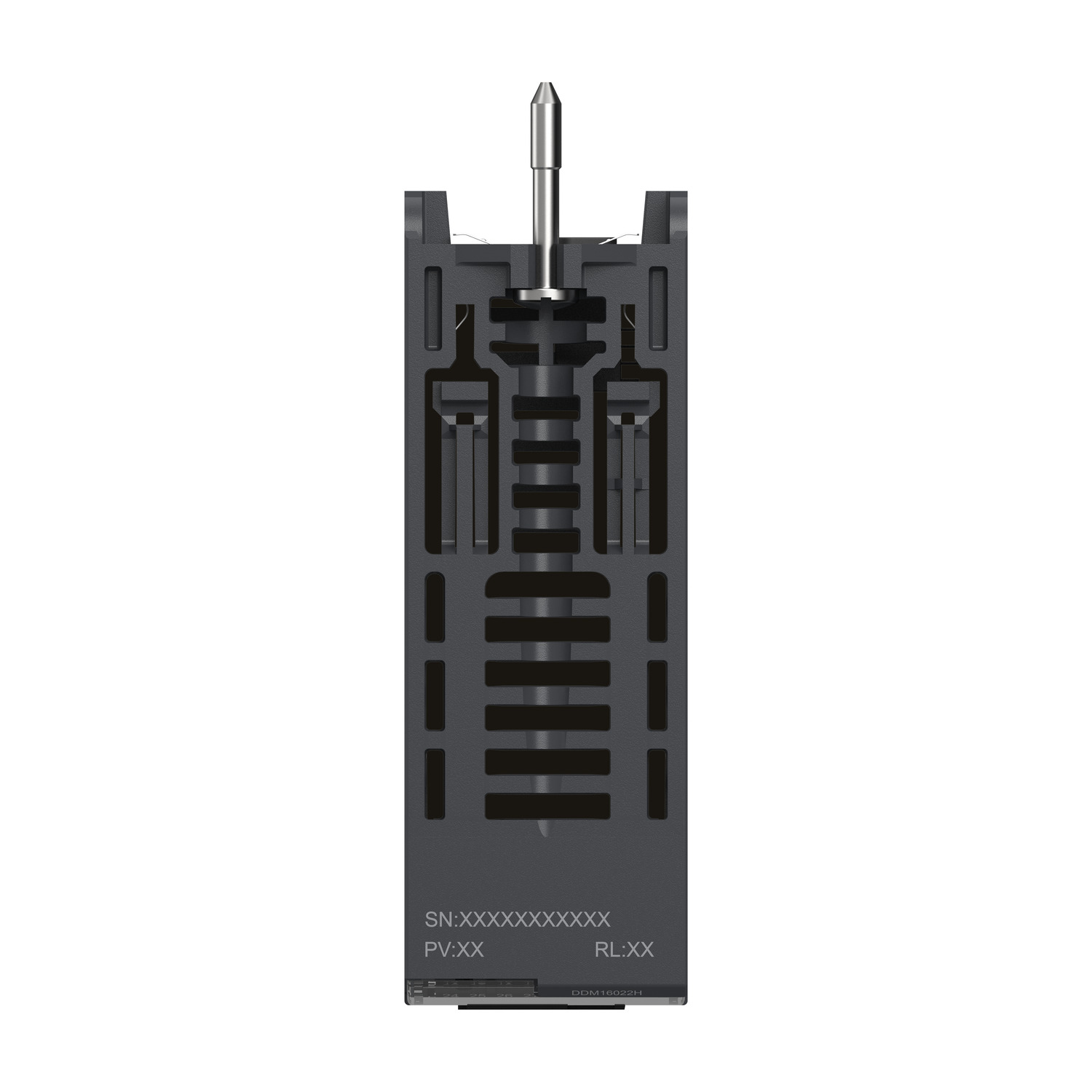

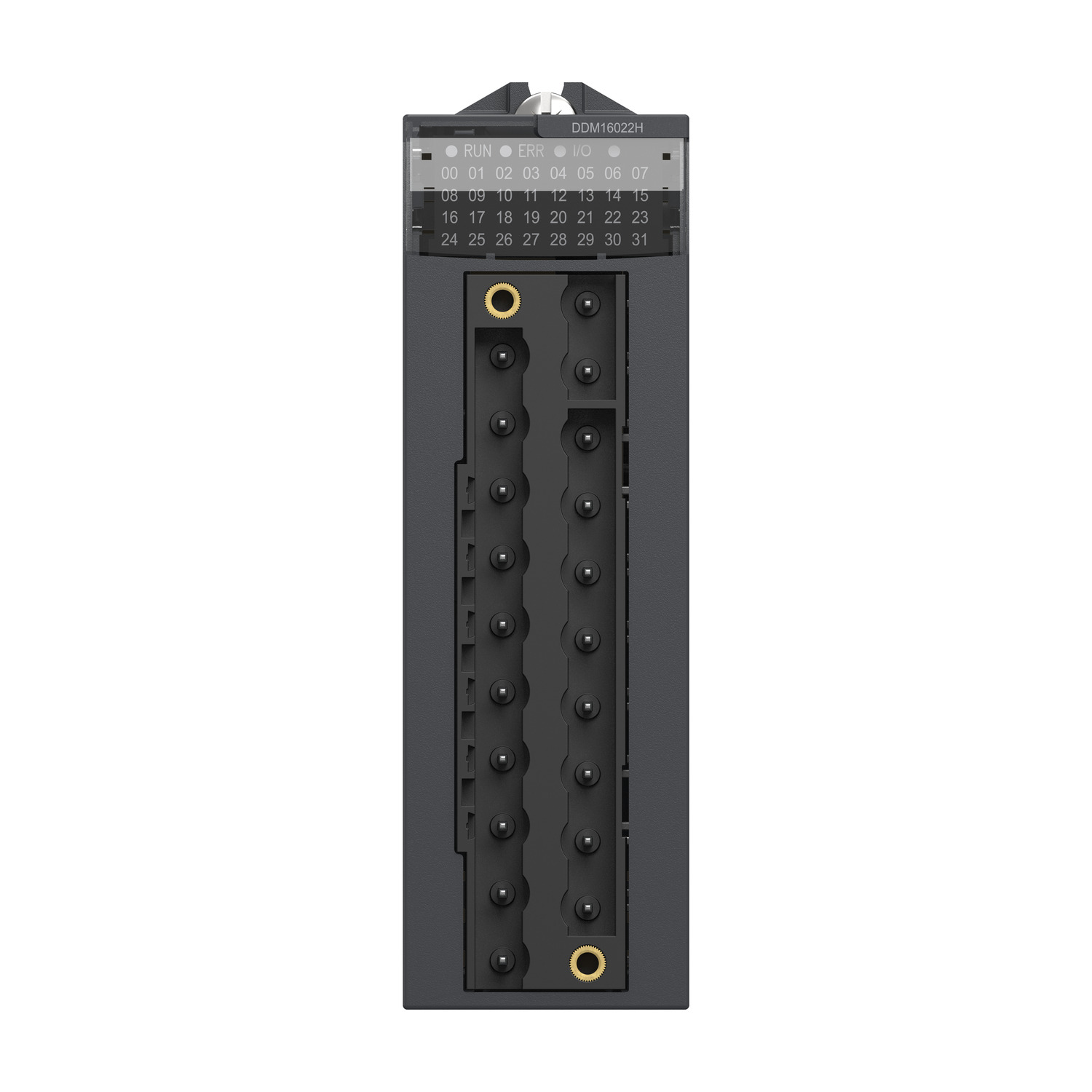

This discrete mixed I/O module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 444196 hours of MTBF. This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 0.5 A |
| Discrete output voltage | 24 V 26.4 V DC at 70 °C, 24 V 19...30 V DC at 60 °C |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Range of product | Modicon X80 |
| Discrete output type | solid state |
| Discrete input current | 3.5 mA |
| Product specific application | for severe environments |
| Discrete input number | 8 |
| Input type | current sink (logic positive) |
| Product or component type | discrete I/O module |
| Discrete output number | 8 |
| Complementary | |
| Response time on output | 1.2 ms |
| DC maximum filtering time | 7 ms |
| Output overload protection | with current limiter, with electronic circuit breaker 1.5 In < Id < 2 In |
| Output short-circuit protection | with 2 A external fuse |
| Output overvoltage protection | with transil diode |
| Current state 0 guaranteed | <= 1.5 mA |
| Typical current consumption | 59 mA at 24 V DC, 79 mA at 3.3 V DC |
| Input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Power dissipation in W | 3.7 W |
| Protection type | reverse polarity protection on output, reverse polarity protection on input, overvoltage protection on output, 1 external fuse per group of input channel0.5 A fast blow |
| Maximum voltage drop | <1.2 V at state 1 |
| Voltage detection threshold | > 18 V DC sensor OK, > 18 V DC preactuator OK, < 14 V DC sensor fault, < 14 V DC preactuator fault |
| Current per channel | 0.625 A at 60 °C, 0.55 A at 70 °C |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Maximum overload time | 15 ms |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 4.4 A 70 °C, 5 A 60 °C |
| MTBF reliability | 450000 H |
| Reverse polarity protection | reverse mounted diode |
| Maximum tungsten load | 6 W |
| Input impedance | 6800 Ohm |
| DC typical filtering time | 4 ms |
| Paralleling of outputs | yes : 2 maximum |
| Load impedance ohmic | >= 48 Ohm |
| Maximum leakage current | 0.5 mA at state 0 |
| Net weight | 0.115 kg |
| Current state 1 guaranteed | >= 3 mA |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current consumption | <= 67 mA at 24 V DC, <= 111 mA at 3.3 V DC |
| Voltage range | 19...30 V 60 °C, 21.1...29.0 V 70 °C |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of inputs and outputs, 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
