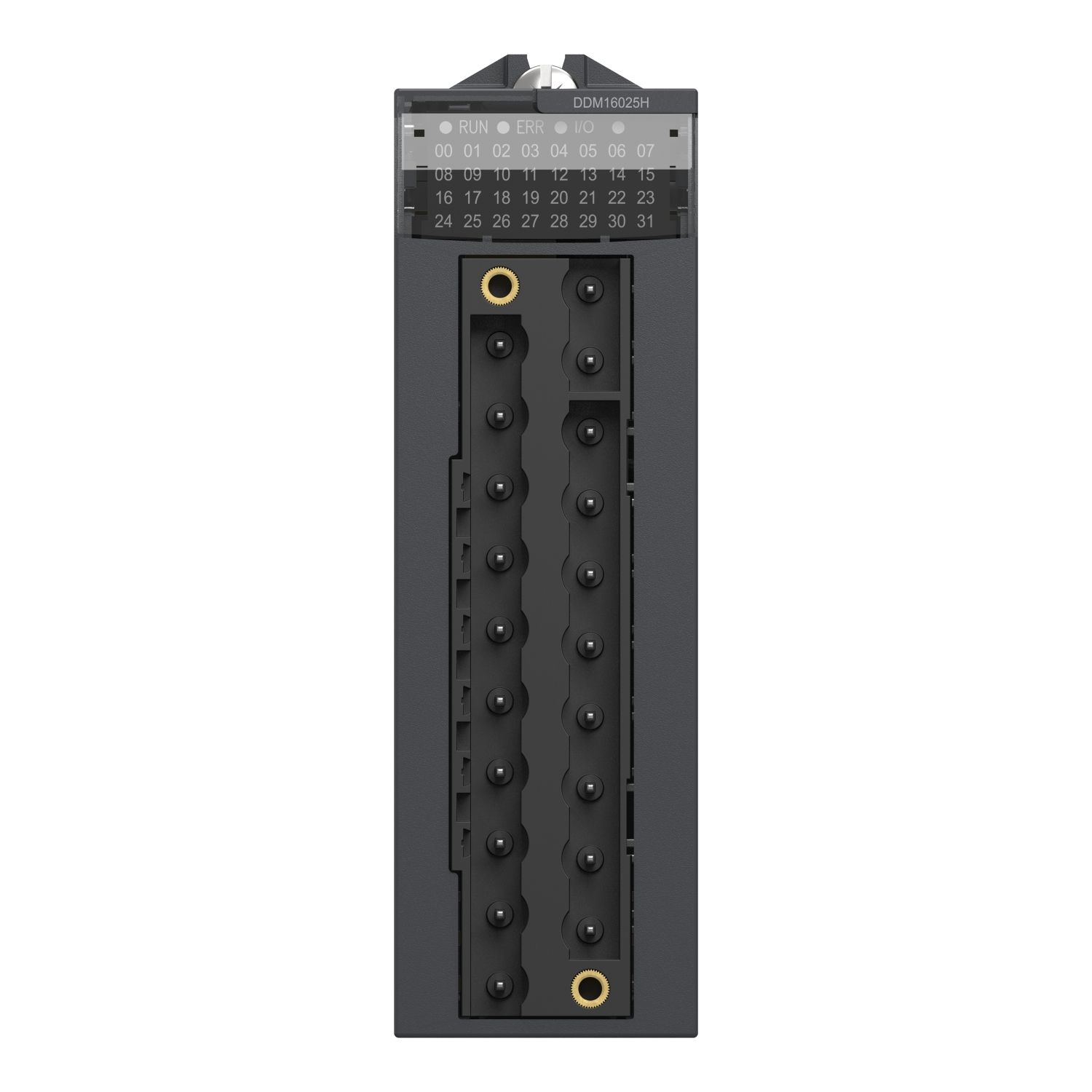

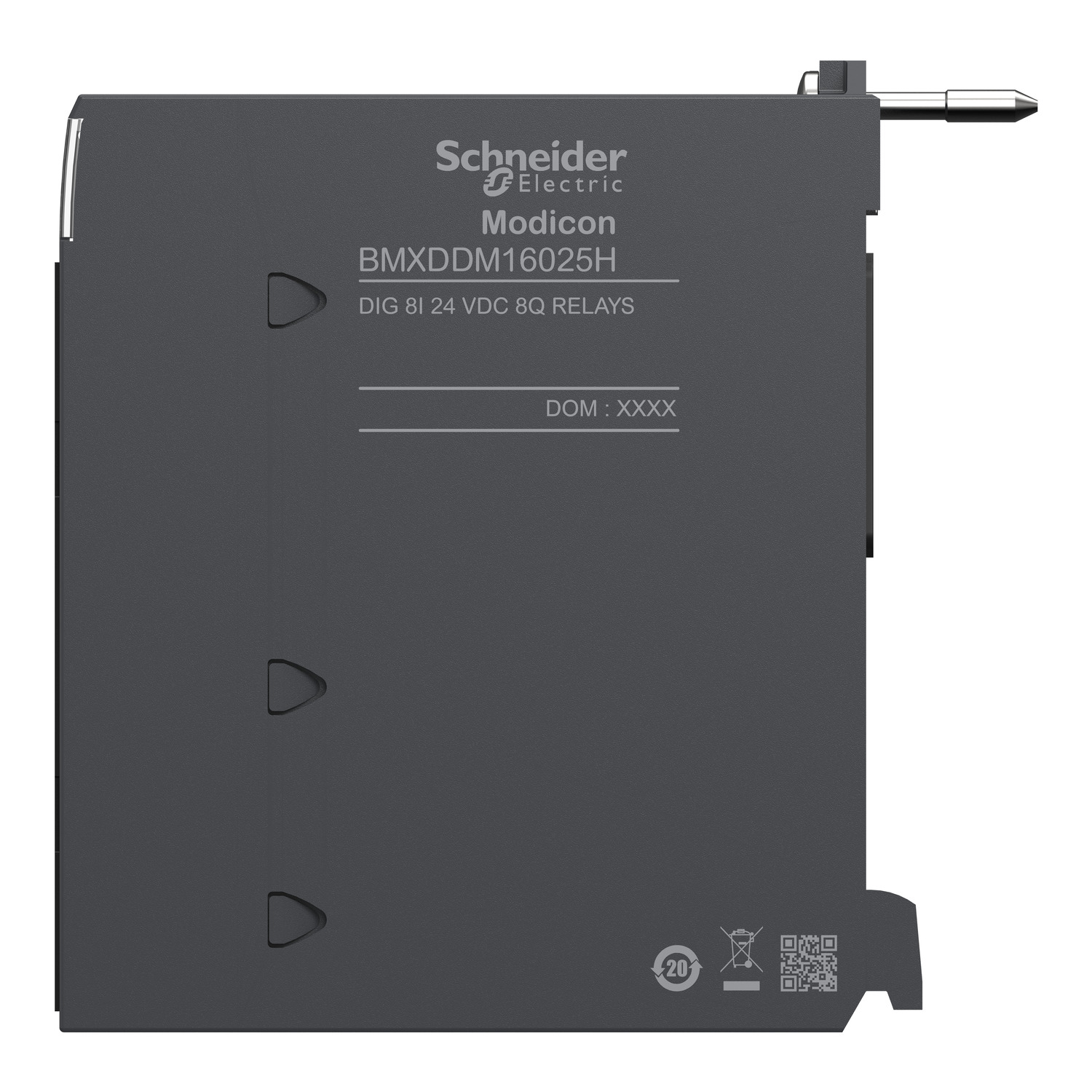

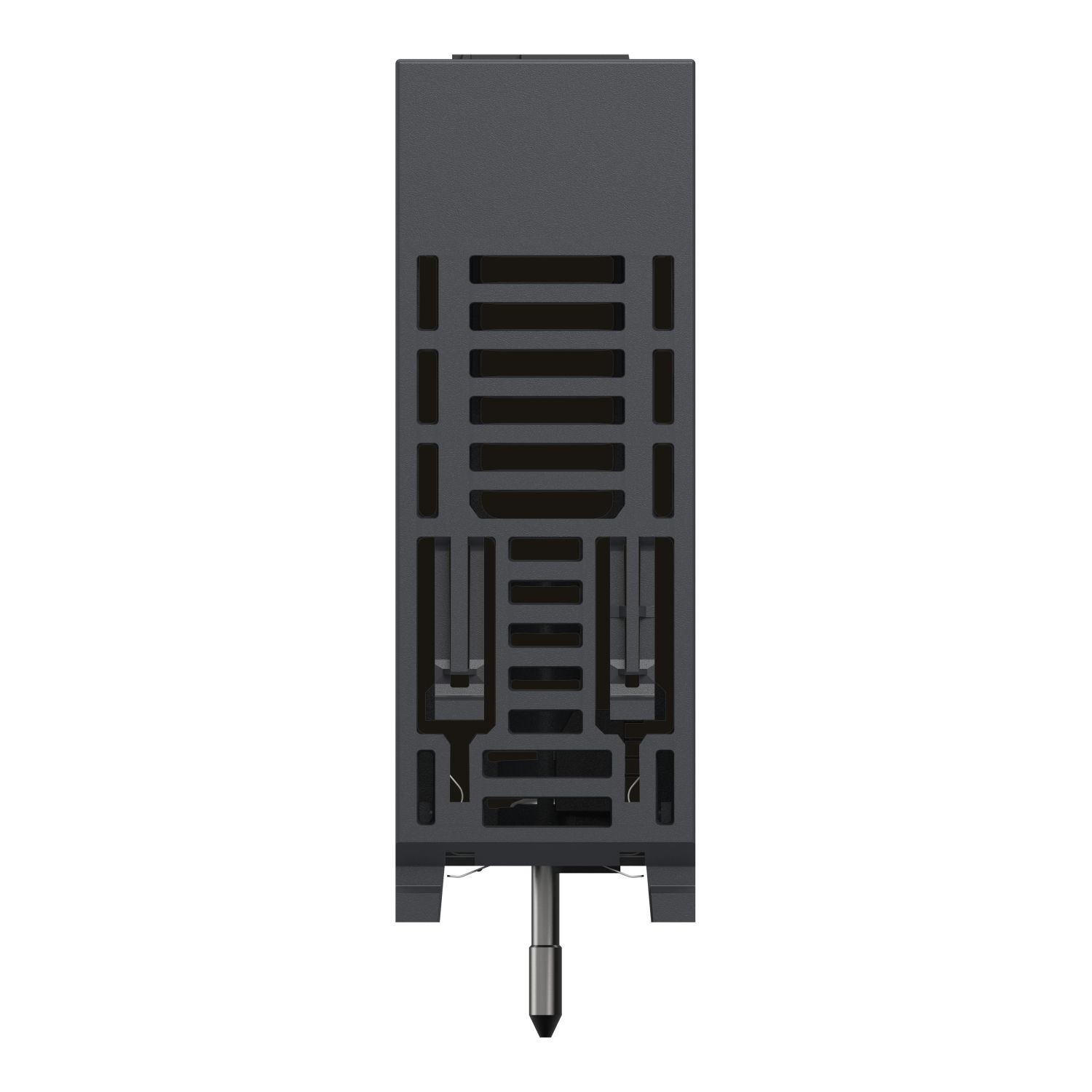

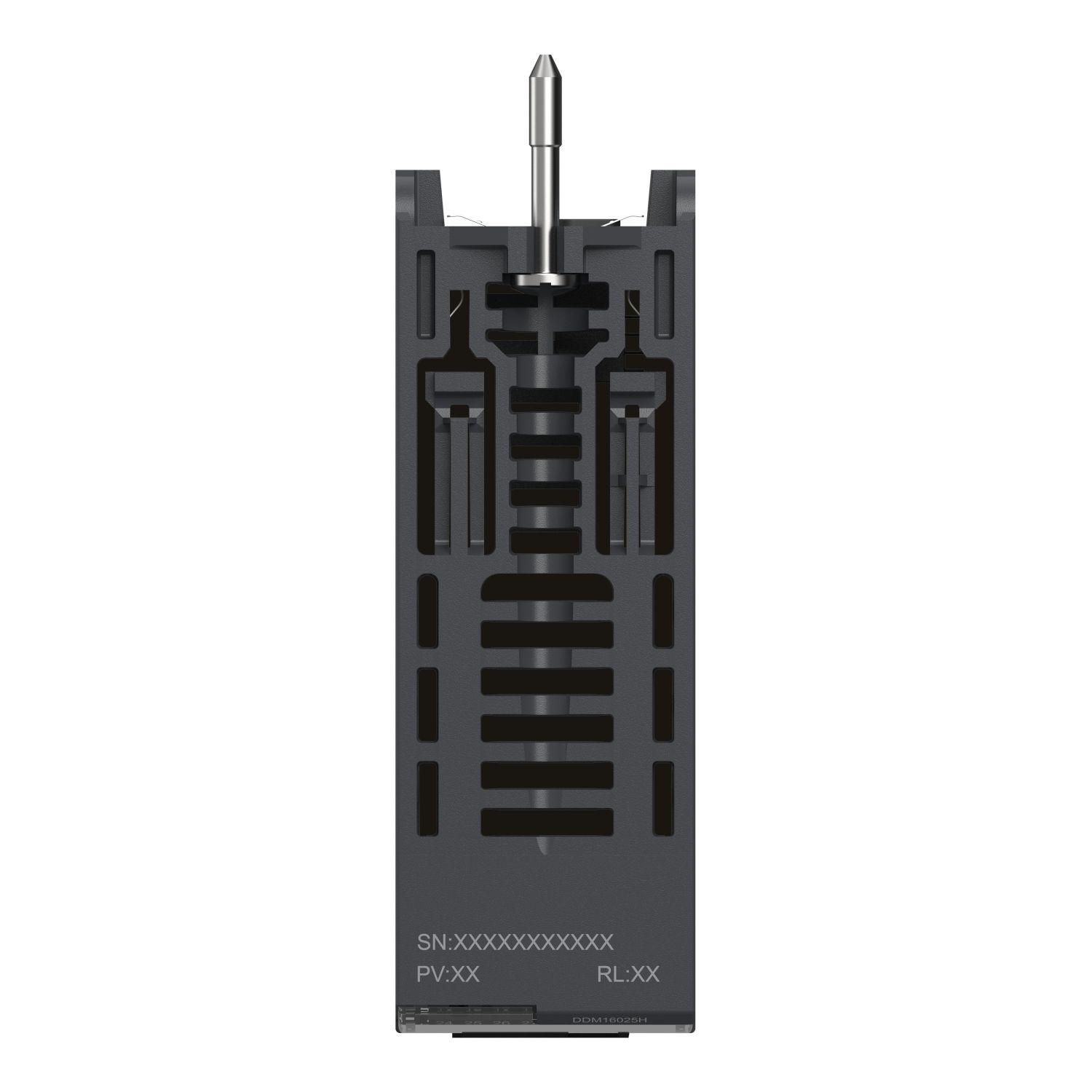

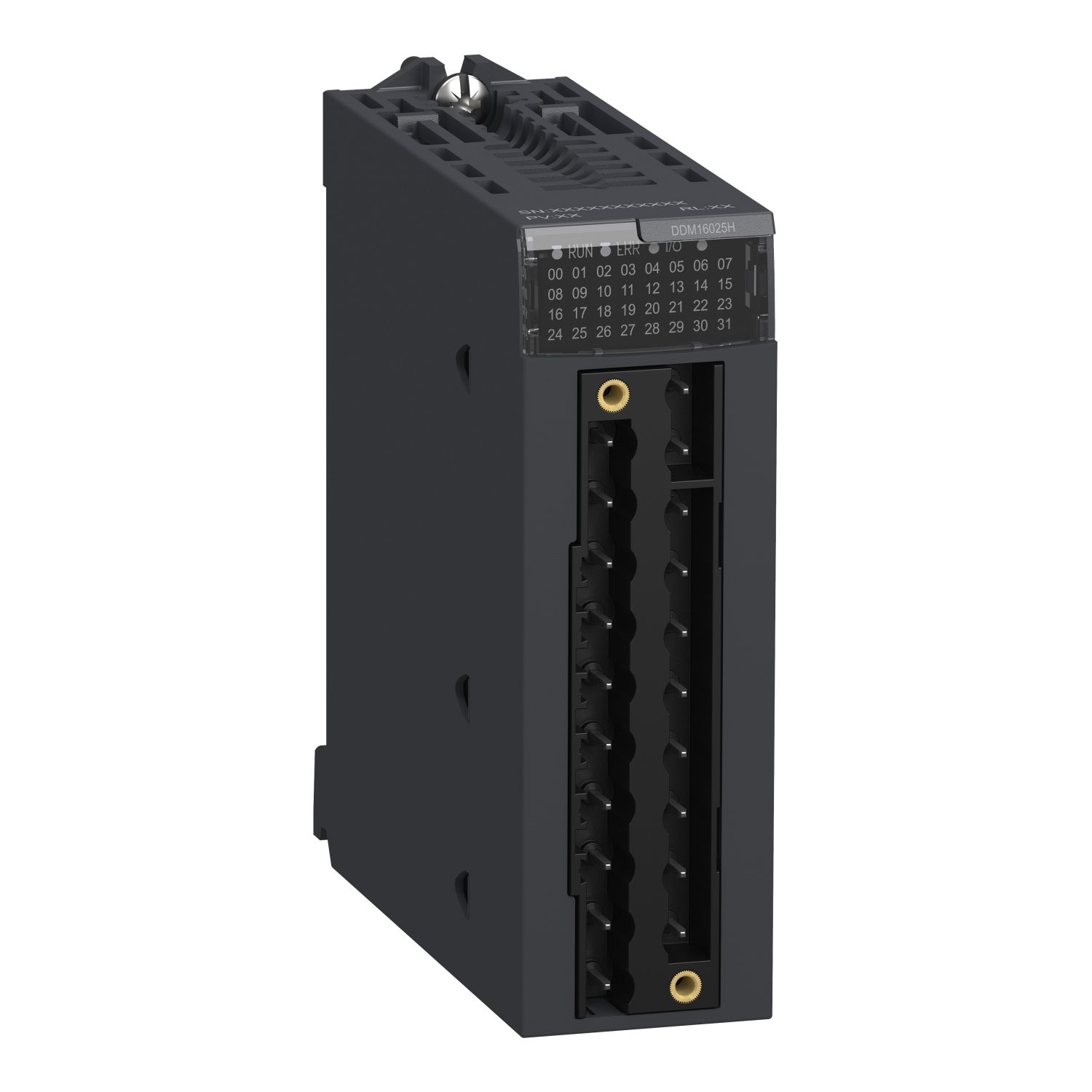

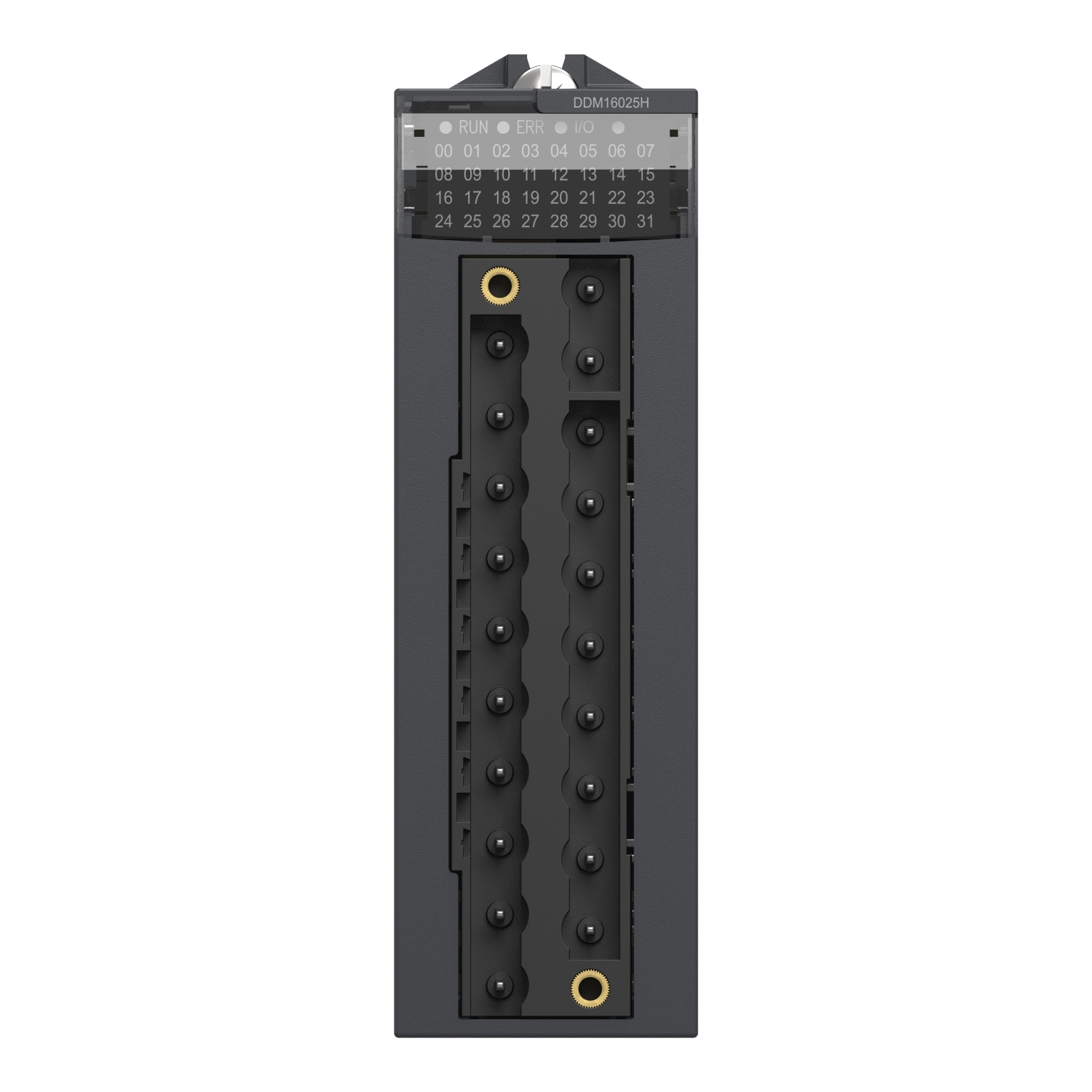

This discrete mixed I/O relay module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 940097 hours of MTBF. This discrete module has a weight of 0.135kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output current | 2000 mA |
| Discrete output voltage | 24...240 V 19...264 V AC, 24 V 19...30 V DC |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Range of product | Modicon X80 |
| Discrete output type | relay |
| Discrete input current | 3.5 mA |
| Product specific application | for severe environments |
| Discrete input number | 8 |
| Input type | current sink (logic positive) |
| Product or component type | discrete I/O module |
| Discrete output number | 8 |
| Complementary | |
| Response time on output | <= 10 ms activation, <= 8 ms deactivation |
| DC maximum filtering time | 7 ms |
| Mechanical durability | 20000000 cycles |
| Current state 0 guaranteed | <= 1.5 mA |
| Typical current consumption | 79 mA at 3.3 V DC |
| Electrical durability | DC-13: 300000 cycles at 7.2 W 24 V at -25-60 °C, DC-13: 300000 cycles at 3.6 W 24 V at 70-70 °C, AC-15: 300000 cycles at 60 VA 200 V at -25-60 °C (load factor 0.35 ), AC-15: 300000 cycles at 36 VA 240 V at -25-60 °C (load factor 0.35 ), AC-15: 300000 cycles at 30 VA 200 V at 70-70 °C (load factor 0.35 ), AC-15: 300000 cycles at 18 VA 240 V at 70-70 °C (load factor 0.35 ), AC-14: 300000 cycles at 80 VA 200 V at -25-60 °C (load factor 0.7 ), AC-14: 300000 cycles at 72 VA 240 V at -25-60 °C (load factor 0.7 ), AC-14: 300000 cycles at 40 VA 200 V at 70-70 °C (load factor 0.7 ), AC-14: 300000 cycles at 36 VA 240 V at 70-70 °C (load factor 0.7 ), DC-13: 100000 cycles at 24 W 24 V at -25-60 °C, DC-13: 100000 cycles at 12 W 24 V at 70-70 °C, AC-15: 100000 cycles at 60 VA 240 V at 70-70 °C (load factor 0.35 ), AC-15: 100000 cycles at 200 VA 200 V at -25-60 °C (load factor 0.35 ), AC-15: 100000 cycles at 120 VA 240 V at -25-60 °C (load factor 0.35 ), AC-15: 100000 cycles at 100 VA 200 V at 70-70 °C (load factor 0.35 ), AC-14: 100000 cycles at 300 VA 200 V at -25-60 °C (load factor 0.7 ), AC-14: 100000 cycles at 240 VA 240 V at -25-60 °C (load factor 0.7 ), AC-14: 100000 cycles at 150 VA 200 V at 70-70 °C (load factor 0.7 ), AC-14: 100000 cycles at 120 VA 240 V at 70-70 °C (load factor 0.7 ) |
| Input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Power dissipation in W | 3.1 W |
| Protection type | 1 external fuse per output channel or group of output channel fast blow, reverse polarity protection on input, 1 external fuse per group of input channel0.5 A fast blow |
| Voltage detection threshold | > 18 V DC sensor OK, < 14 V DC sensor fault |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| Switching frequency | 1 Hz |
| MTBF reliability | 940000 H |
| Input impedance | 6800 Ohm |
| DC typical filtering time | 4 ms |
| Paralleling of inputs | no |
| Maximum switching voltage | 264 V AC, 125 V DC |
| Net weight | 0.135 kg |
| Current state 1 guaranteed | >= 2 mA |
| Insulation resistance | > 10 MOhm 500 V DC |
| Minimum switching current | 1 mA 5 V DC |
| Voltage range | 21.1...29.0 V 70 °C, 19...30 V 60 °C |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of I/O, 2830 V AC at 50/60 Hz 1 minute, output relay, 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
