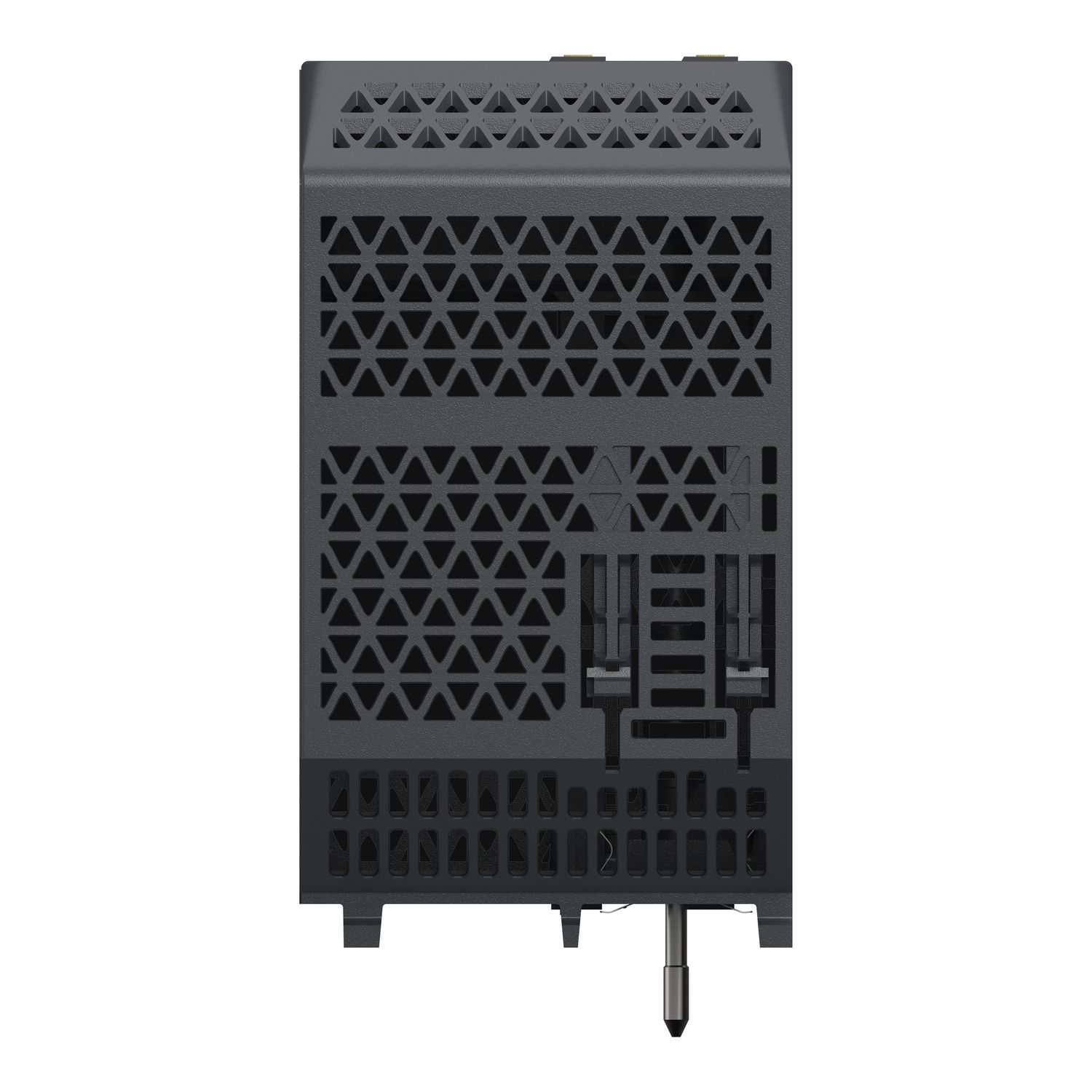

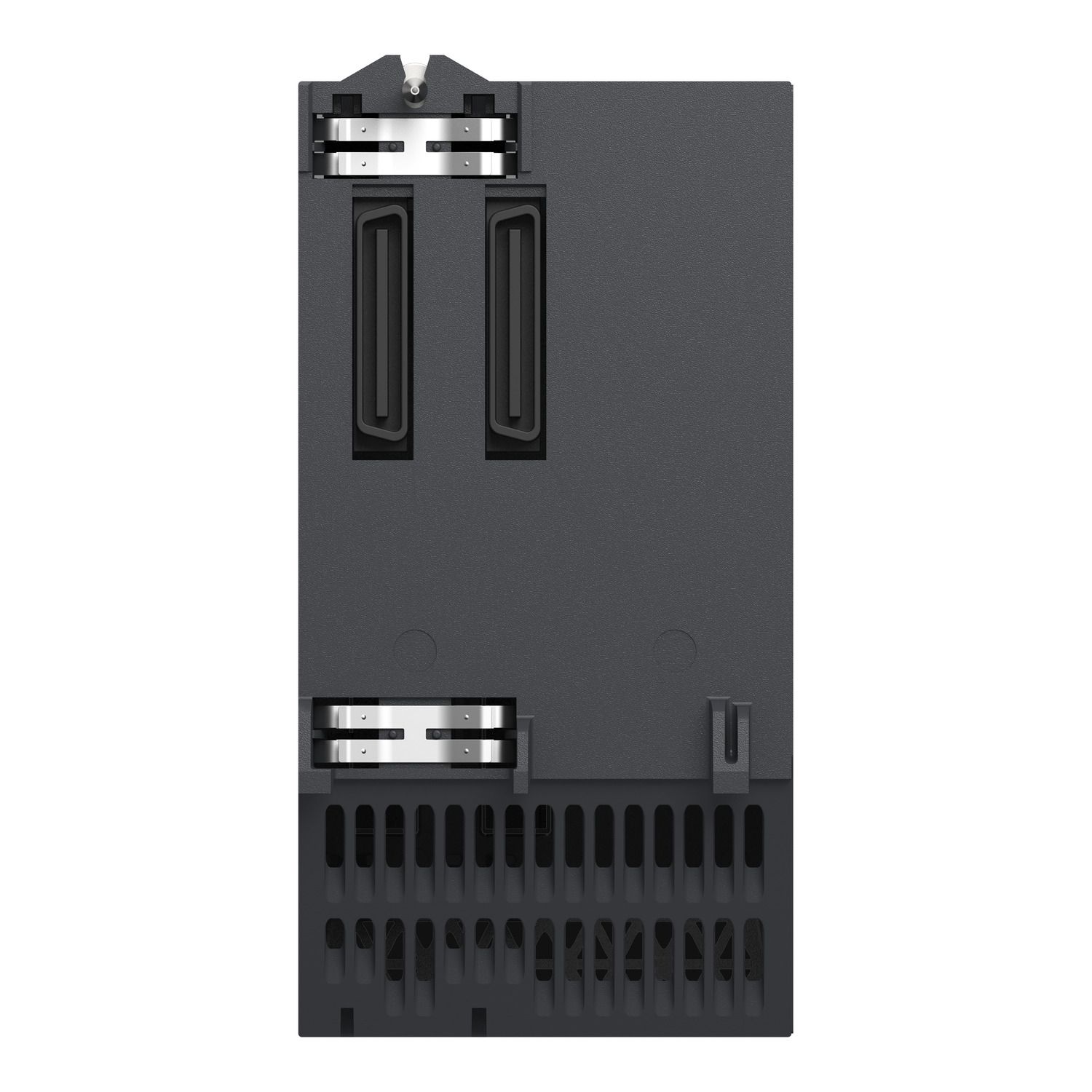

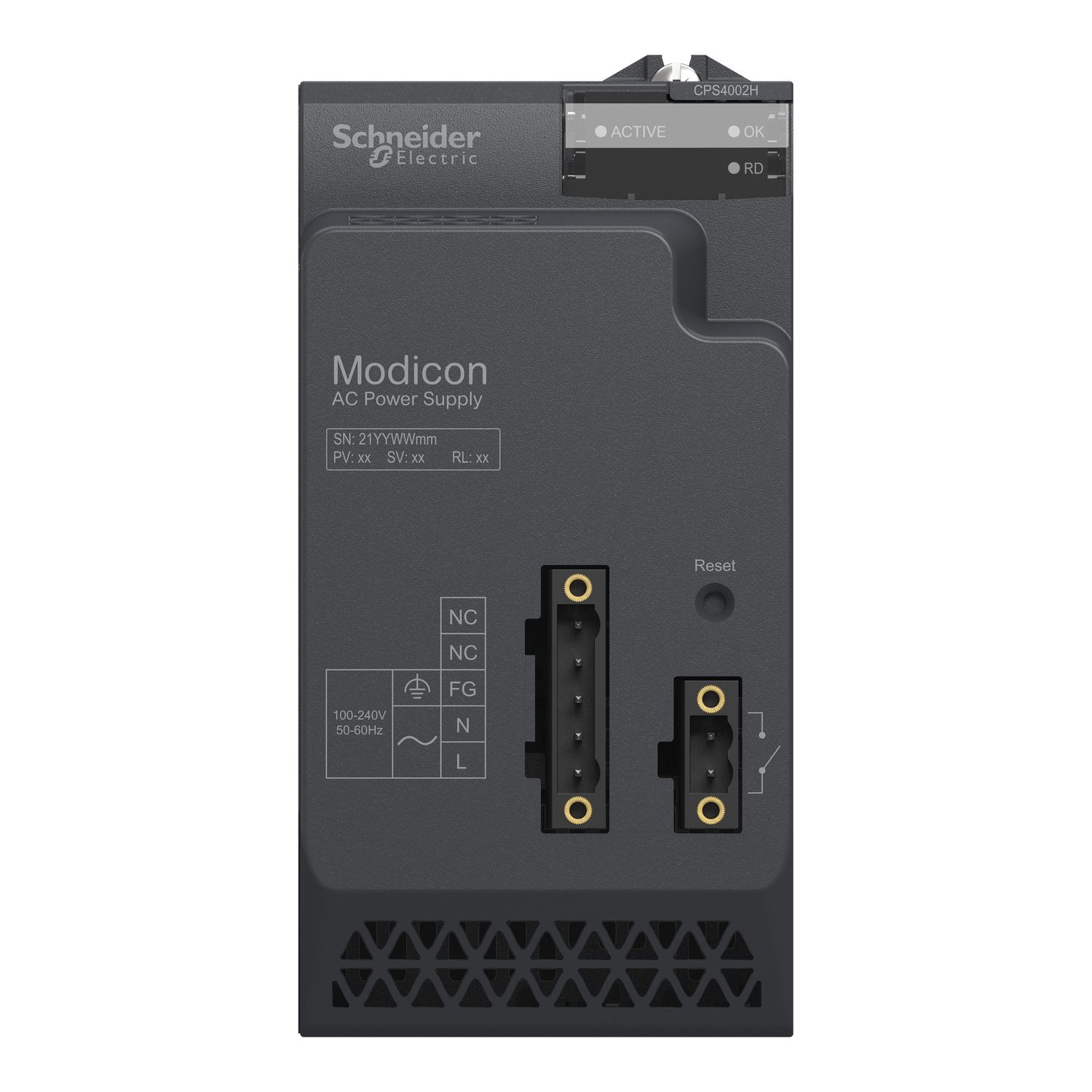

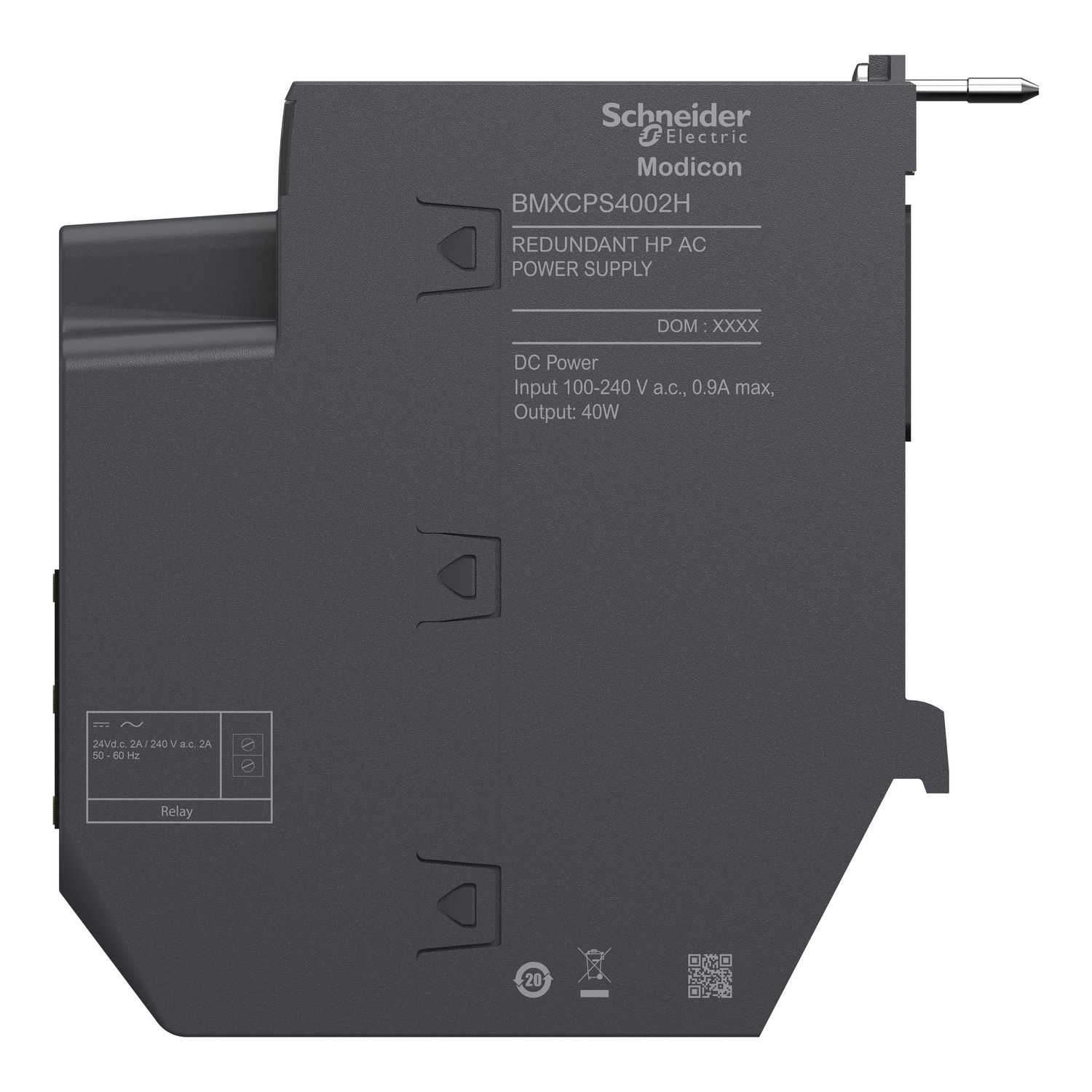

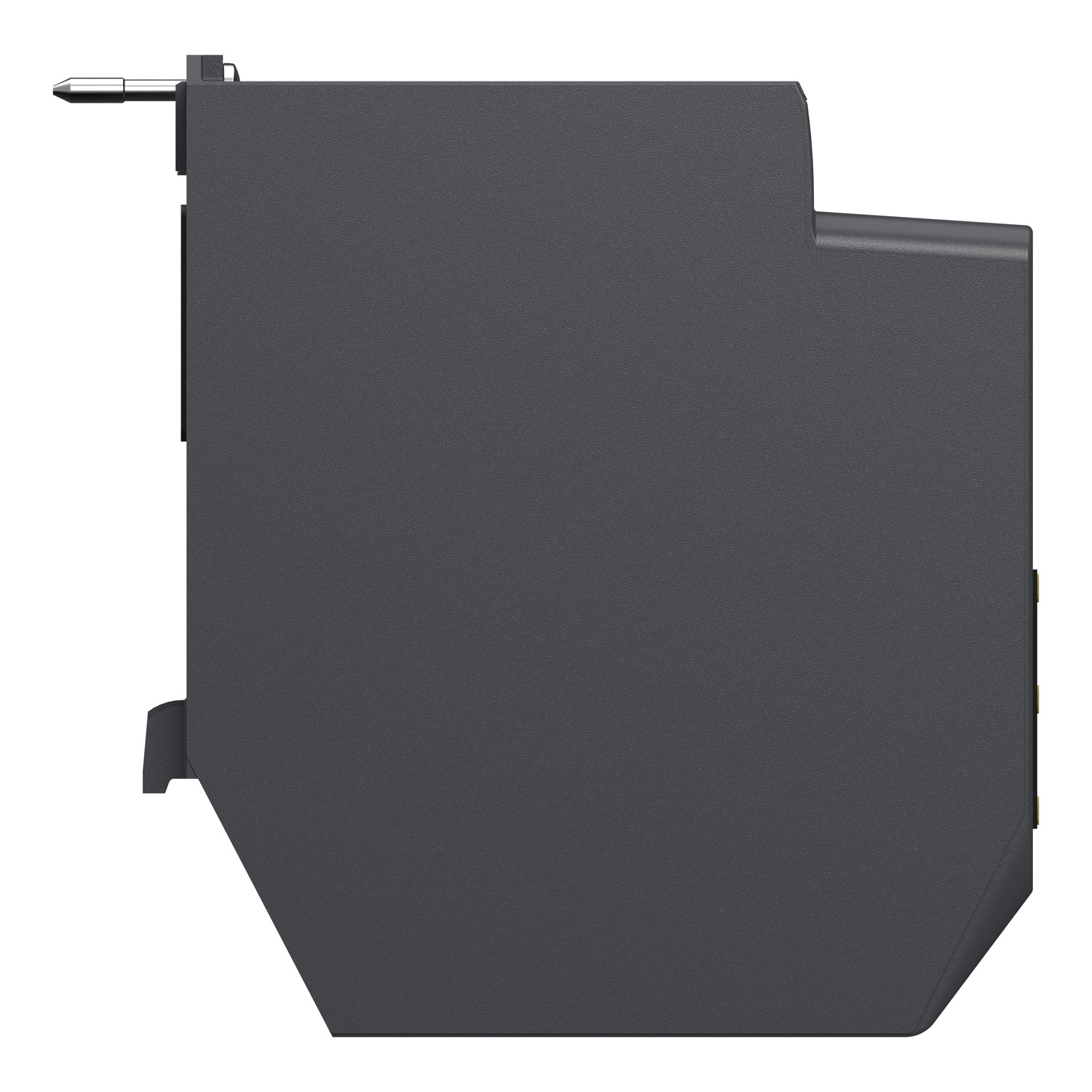

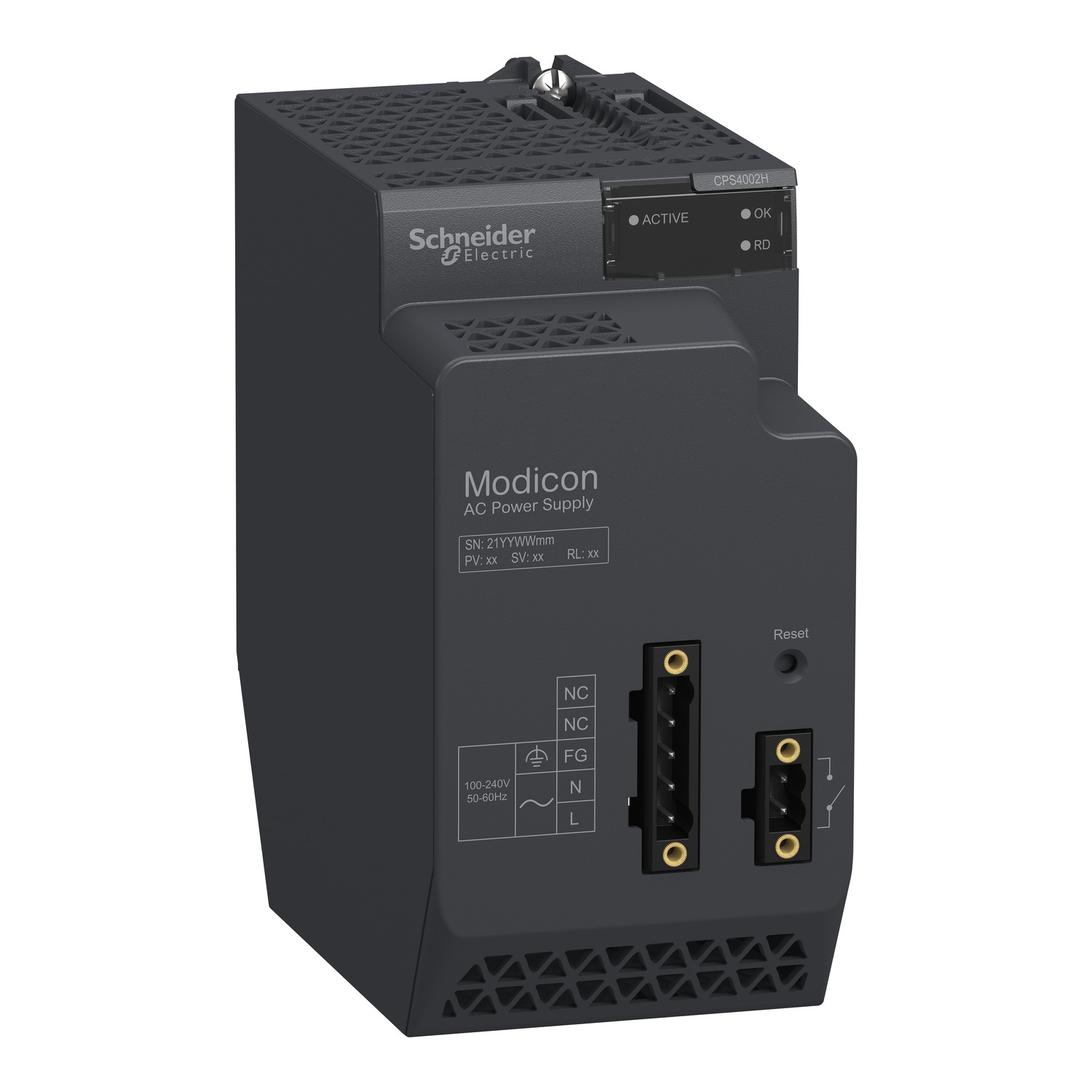

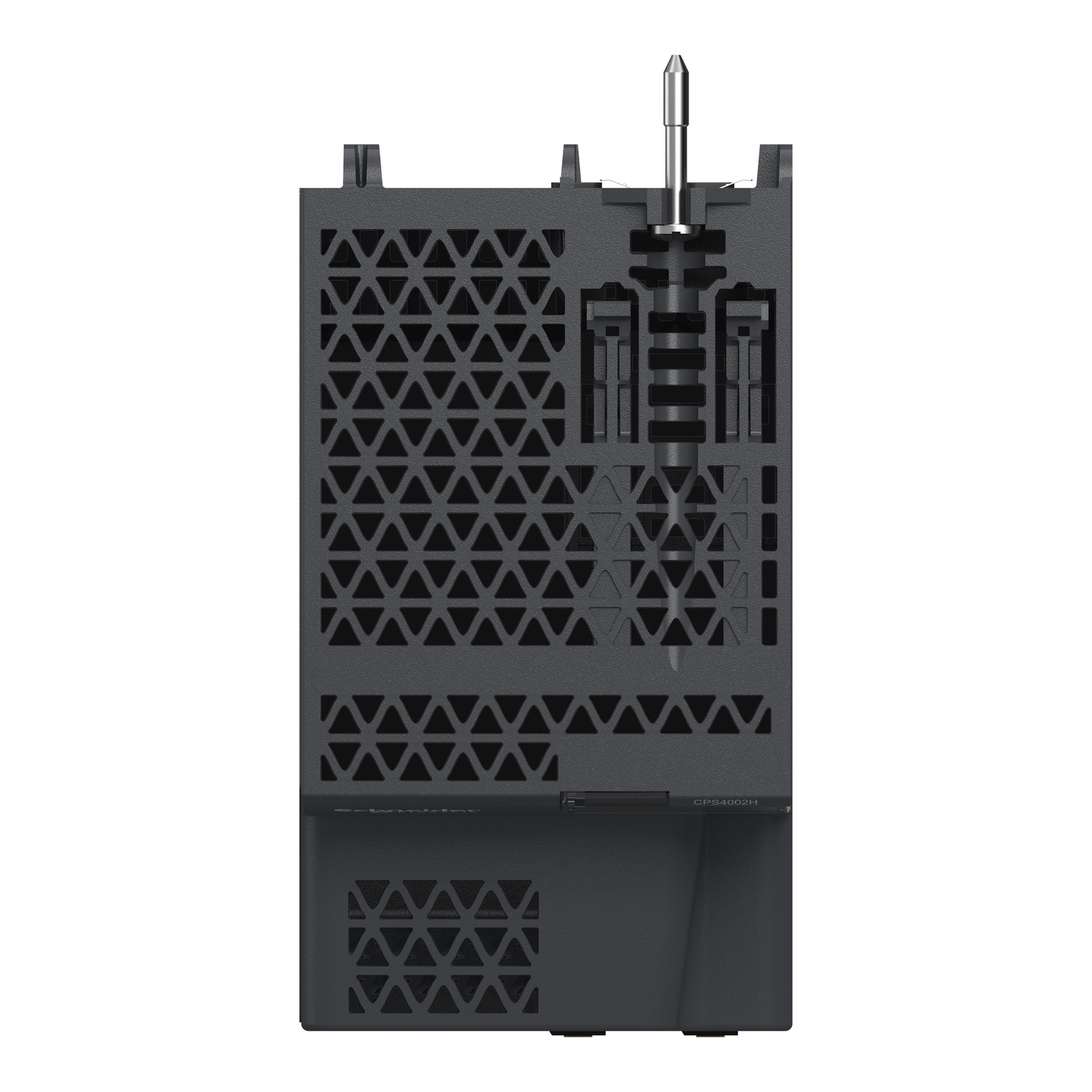

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | all backplane |
| Supply circuit type | AC |
| Product specific application | for severe environments |
| Secondary power | 40 W 24 V DC at -25-70 °C I/O module power supply and processor if 3.3 V not loaded, 18 W 3.3 V DC at -25-70 °C I/O module logic power supply |
| Function available | uptime duration, redundancy information, redundancy test, temperature sensing, remaining lifetime |
| Product or component type | power supply module |
| Range of product | Modicon X80 |
| Primary voltage | 100...240 V |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit |
| Inrush current | 60 A 240 V, 30 A 120 V |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay |
| Apparent power | 0.13 kVA |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Net weight | 0.51 kg |
| Network frequency limits | 47-63 Hz |
| Insulation resistance | >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground |
| Current at secondary voltage | 1.67 A 24 V DC I/O module power supply and processor, 5.5 A 3.3 V DC I/O module logic power supply |
| Input current | 1.01 A 115 V, 0.55 A 240 V |
| I²t on activation | 3 A².s 240 V, 1 A².s 120 V |
| Status LED | 1 LED (green) power supply status, 1 LED (green) redundancy OK, 1 LED (green) presence of voltages (OK) |
| It on activation | 0.07 A.s 240 V, 0.05 A.s 120 V |
| Primary voltage limit | 85...264 V |
| Network frequency | 50/60 Hz |
| MTBF reliability | 792000 H |
| Environment | |
| Dielectric strength | 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Environmental characteristic | hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04 |
| Shock resistance | 30 gn |
| Product certifications | Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | -25-70 °C |
