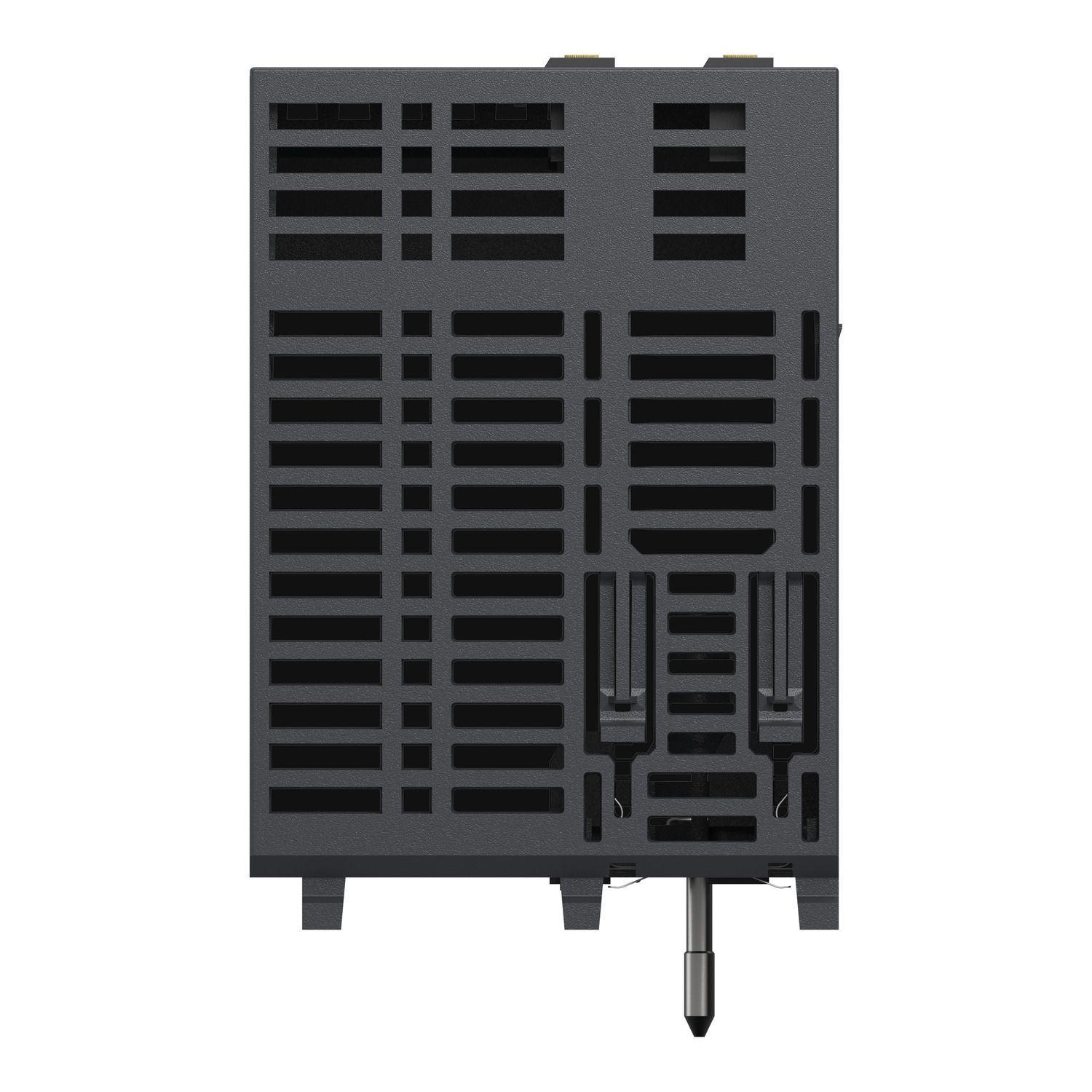

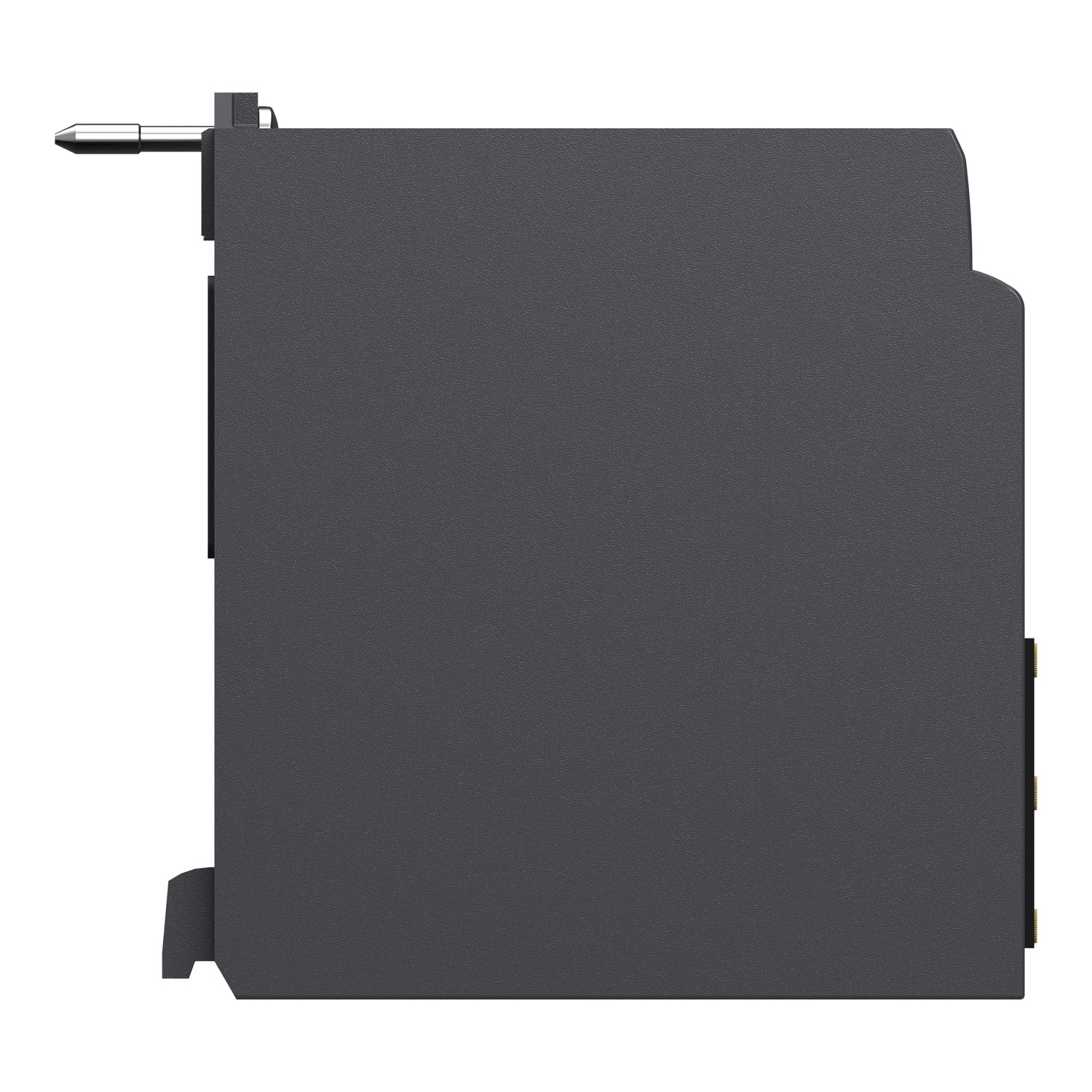

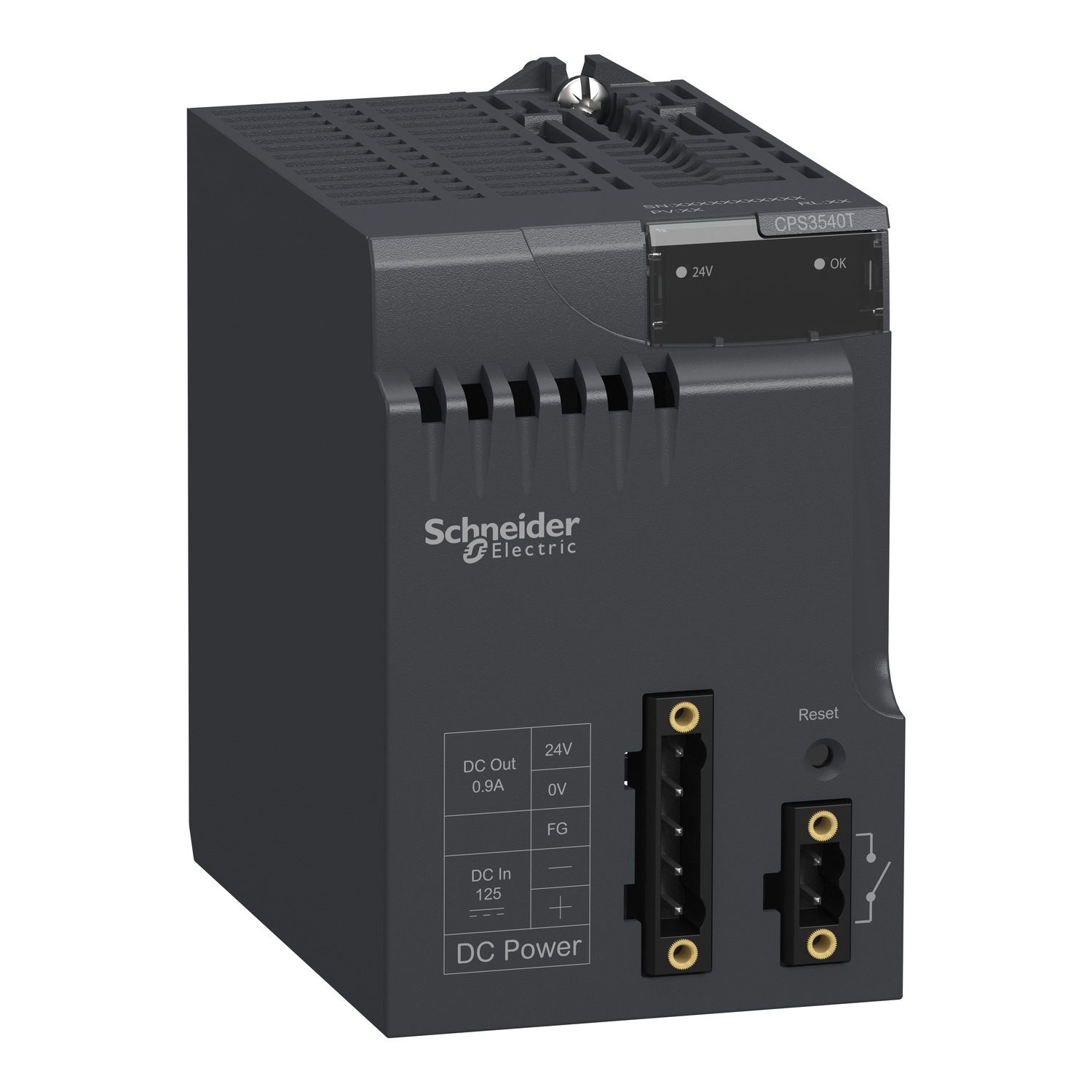

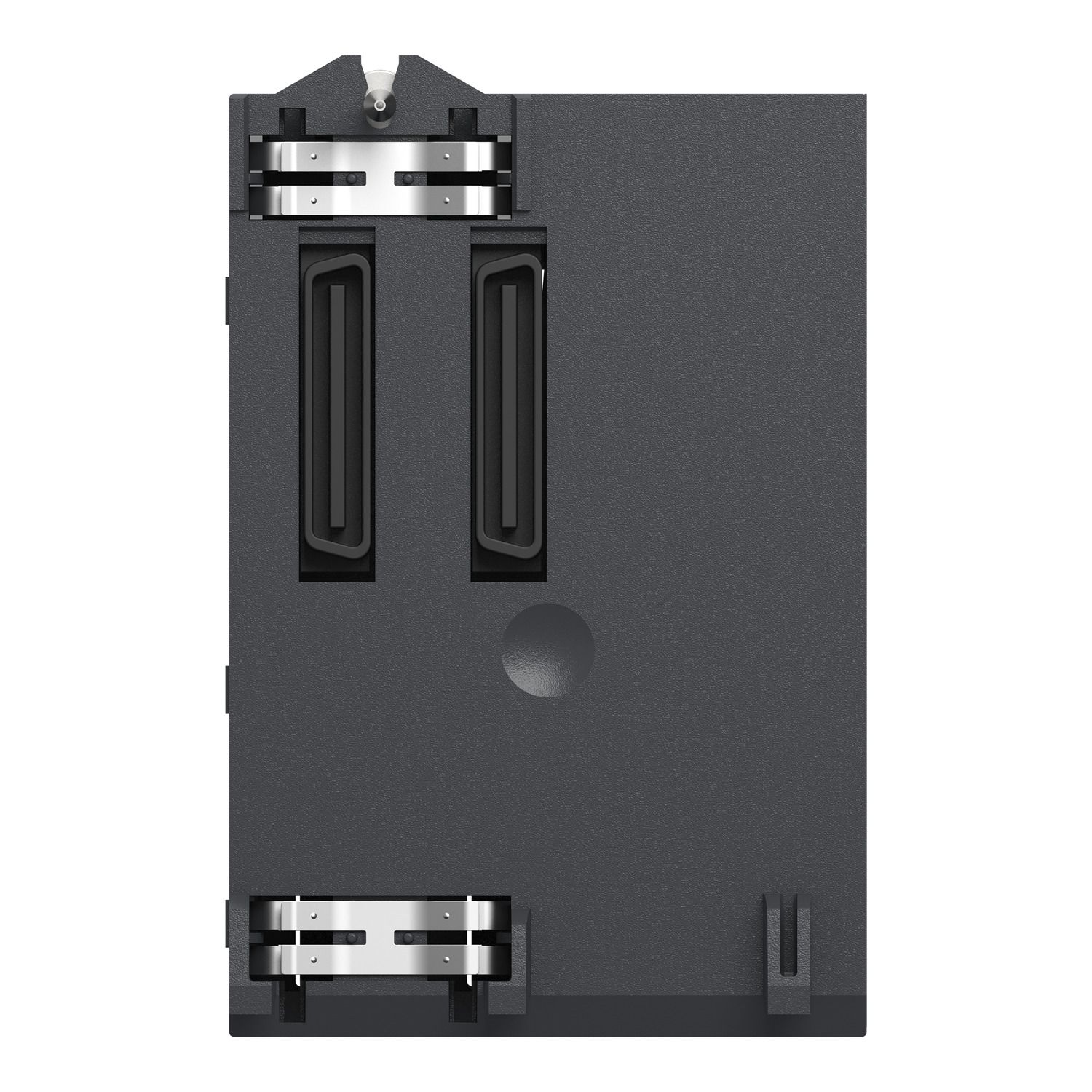

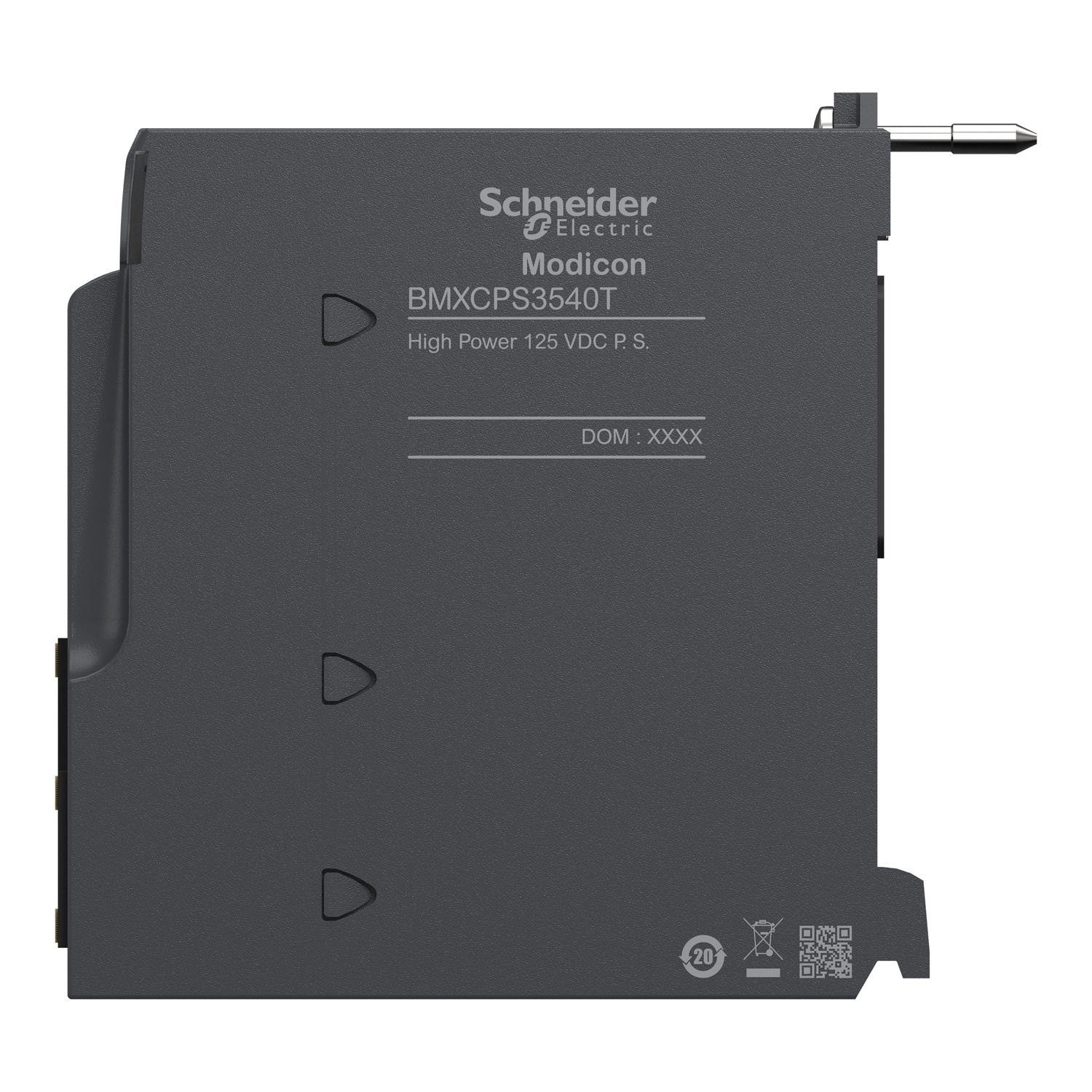

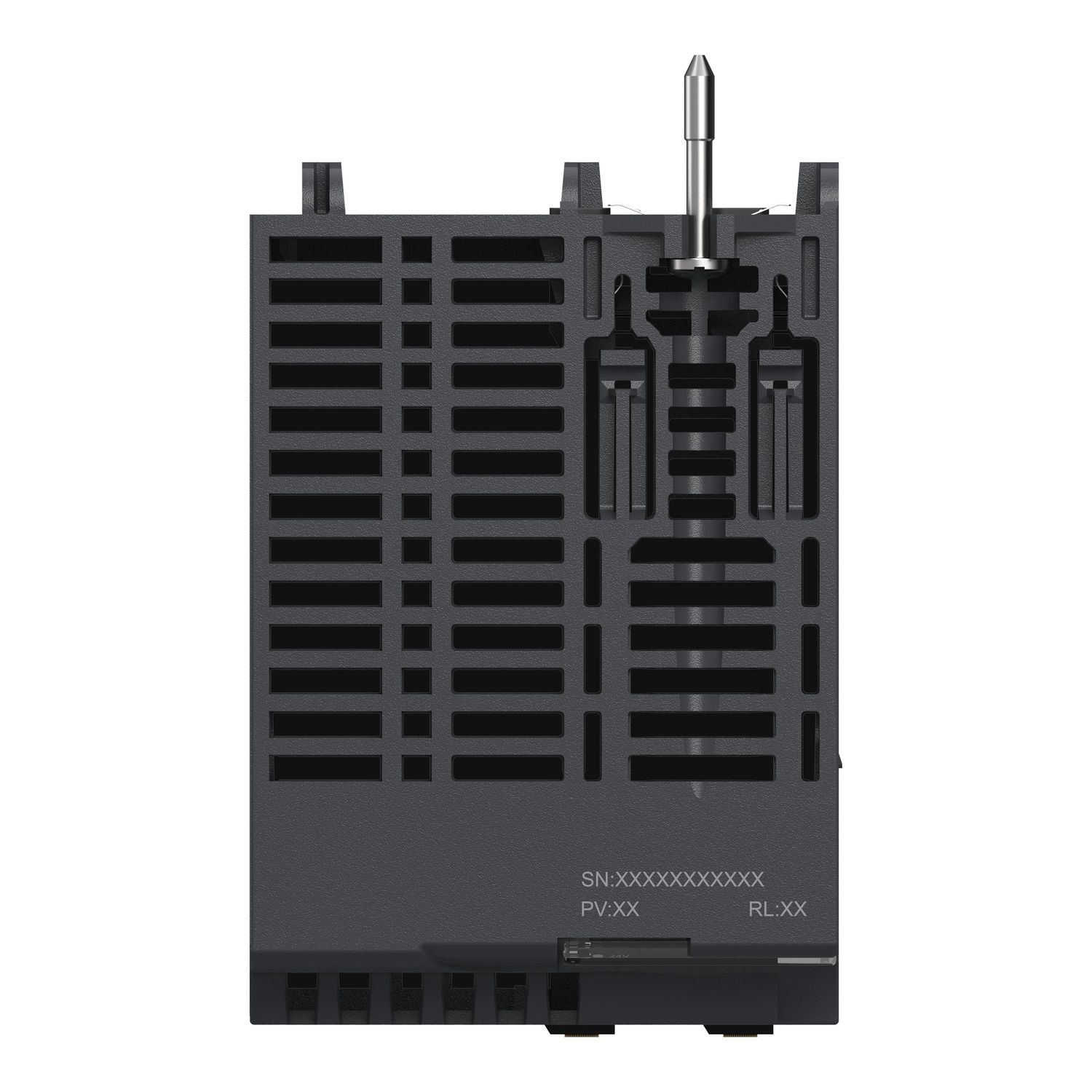

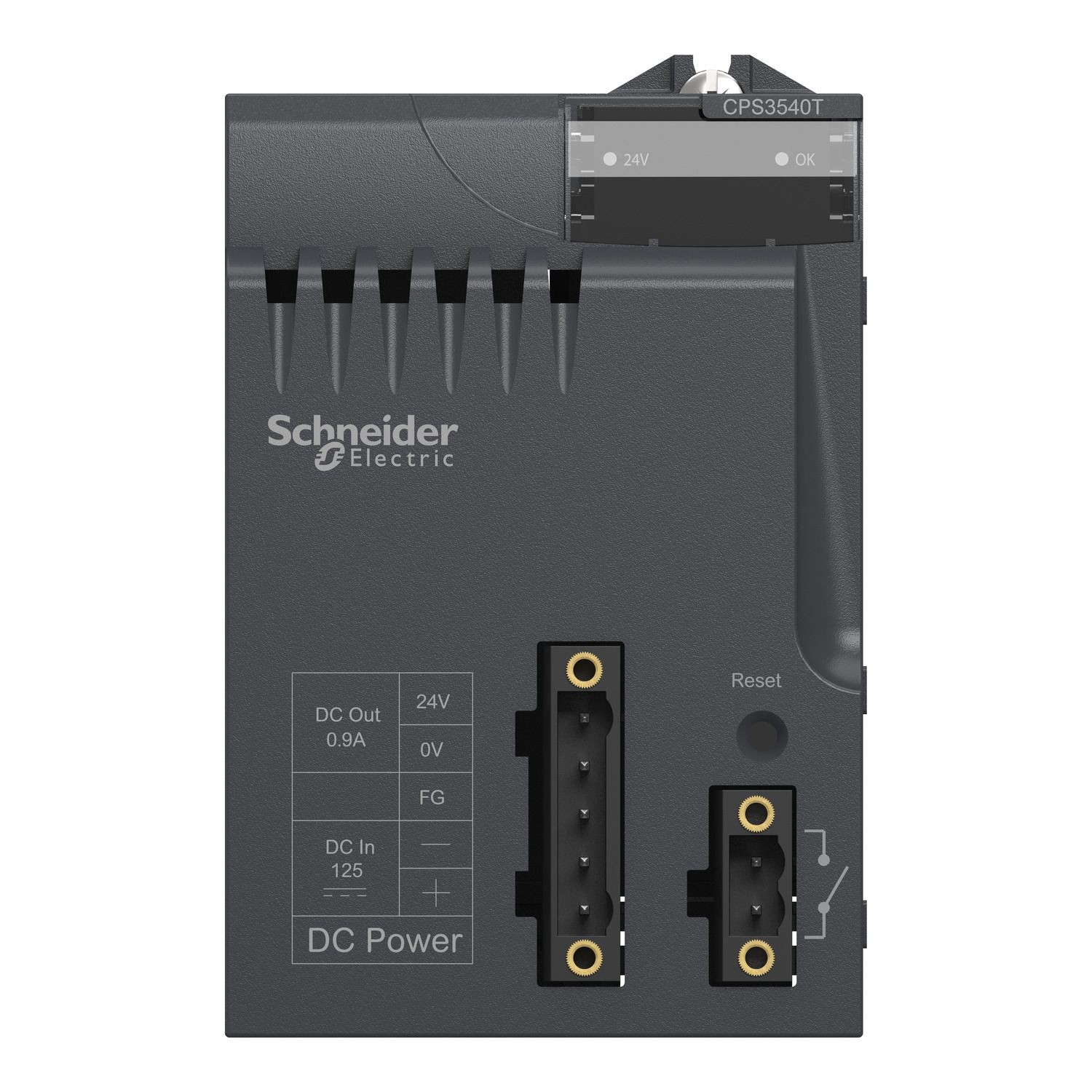

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | not compatible with BMEXBP..02 |
| Supply circuit type | DC |
| Product specific application | extended temperature |
| Secondary power | 31.2 W 24 V DC I/O module power supply and processor, 15 W 3.3 V DC I/O module logic power supply |
| Product or component type | power supply module |
| Range of product | Modicon X80 |
| Primary voltage | 125 V |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, 24 V sensor power supply, overvoltage protection for secondary circuit, 24 V sensor power supply, overload protection for secondary circuit, 24 V sensor power supply, internal fuse not accessible for primary circuit |
| Inrush current | 30 A 125 V |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Net weight | 0.36 kg |
| Insulation resistance | >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground |
| Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor |
| Input current | 350 mA 125 V |
| I²t on activation | 2 A².s 125 V |
| Status LED | 1 LED (green) sensor voltage, 1 LED (green) rack voltage OK |
| It on activation | 0.05 A.s 125 V |
| Primary voltage limit | 100...150 V |
| MTBF reliability | 4400000 H |
| Environment | |
| Dielectric strength | 500 V 24 V sensor output/ground, 2000 V primary/secondary I/O module logic power supply |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Environmental characteristic | fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx |
| Shock resistance | 30 gn |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | -25-70 °C |
