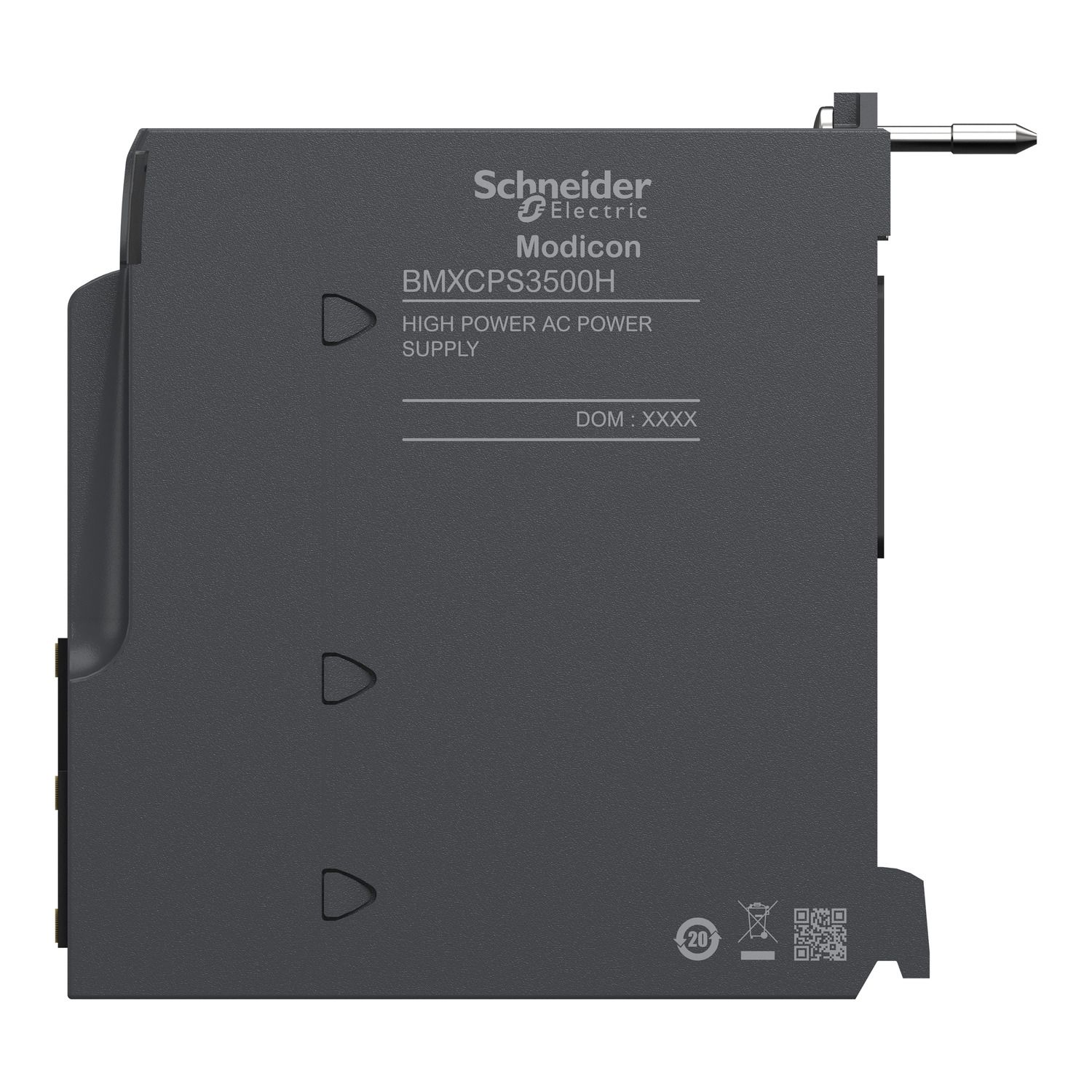

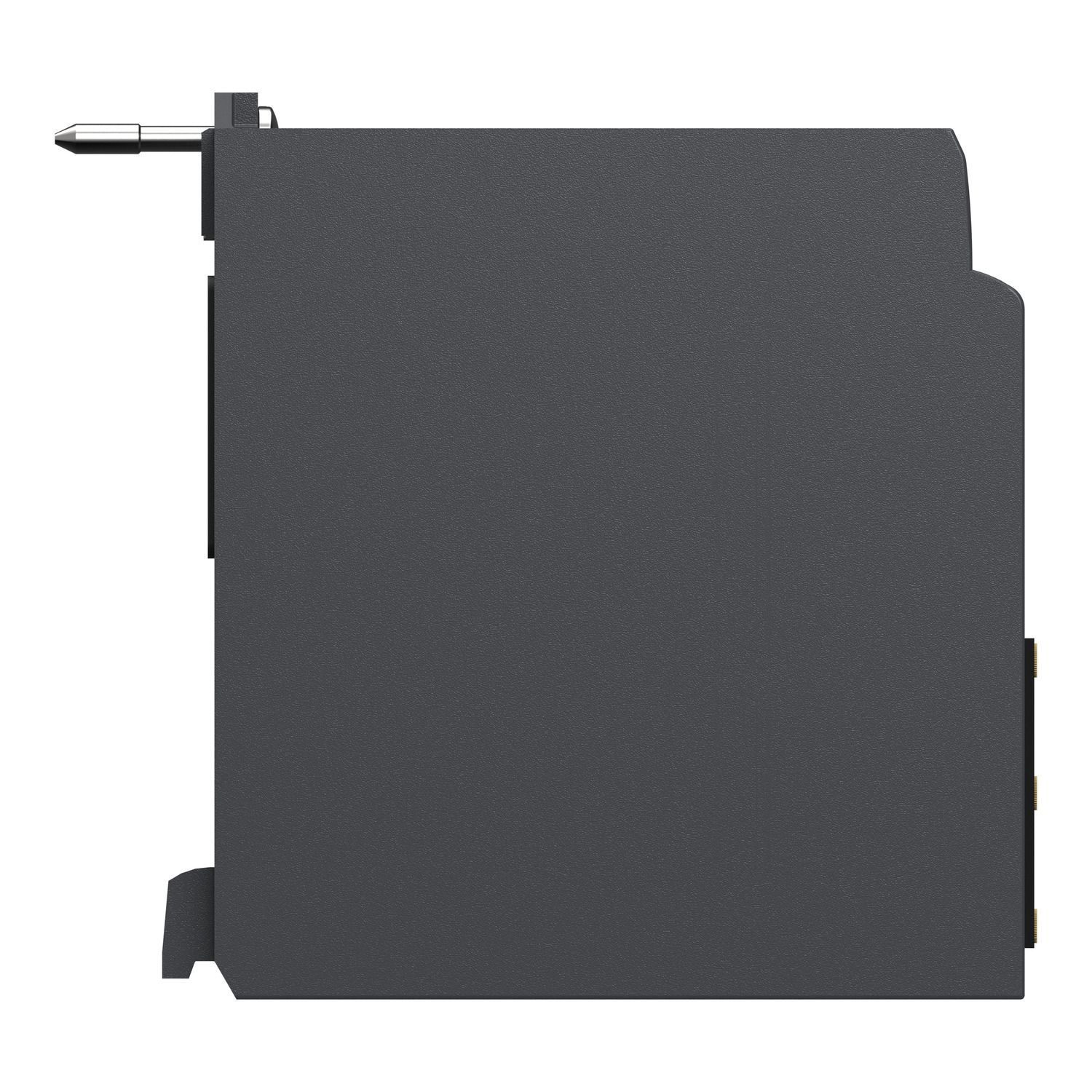

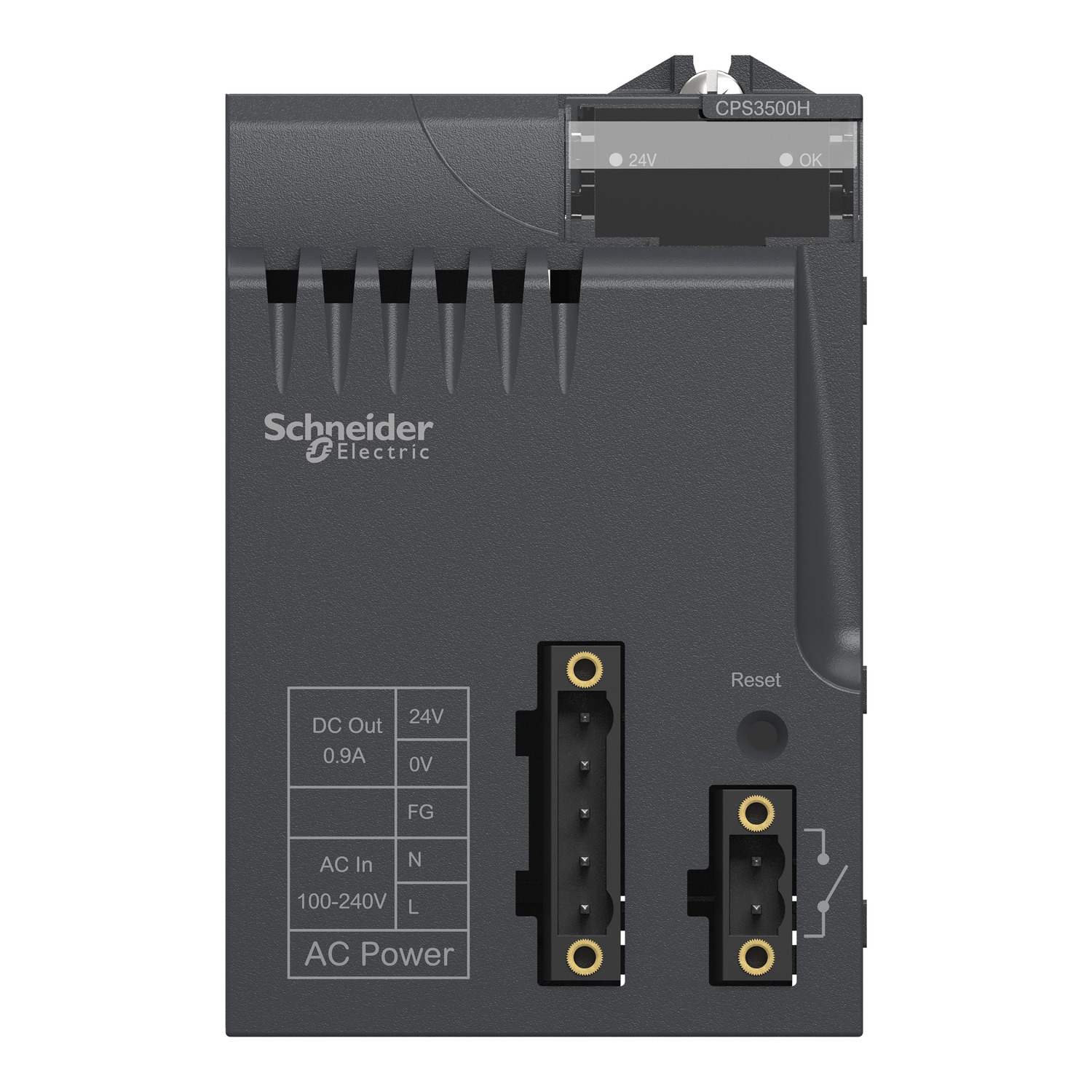

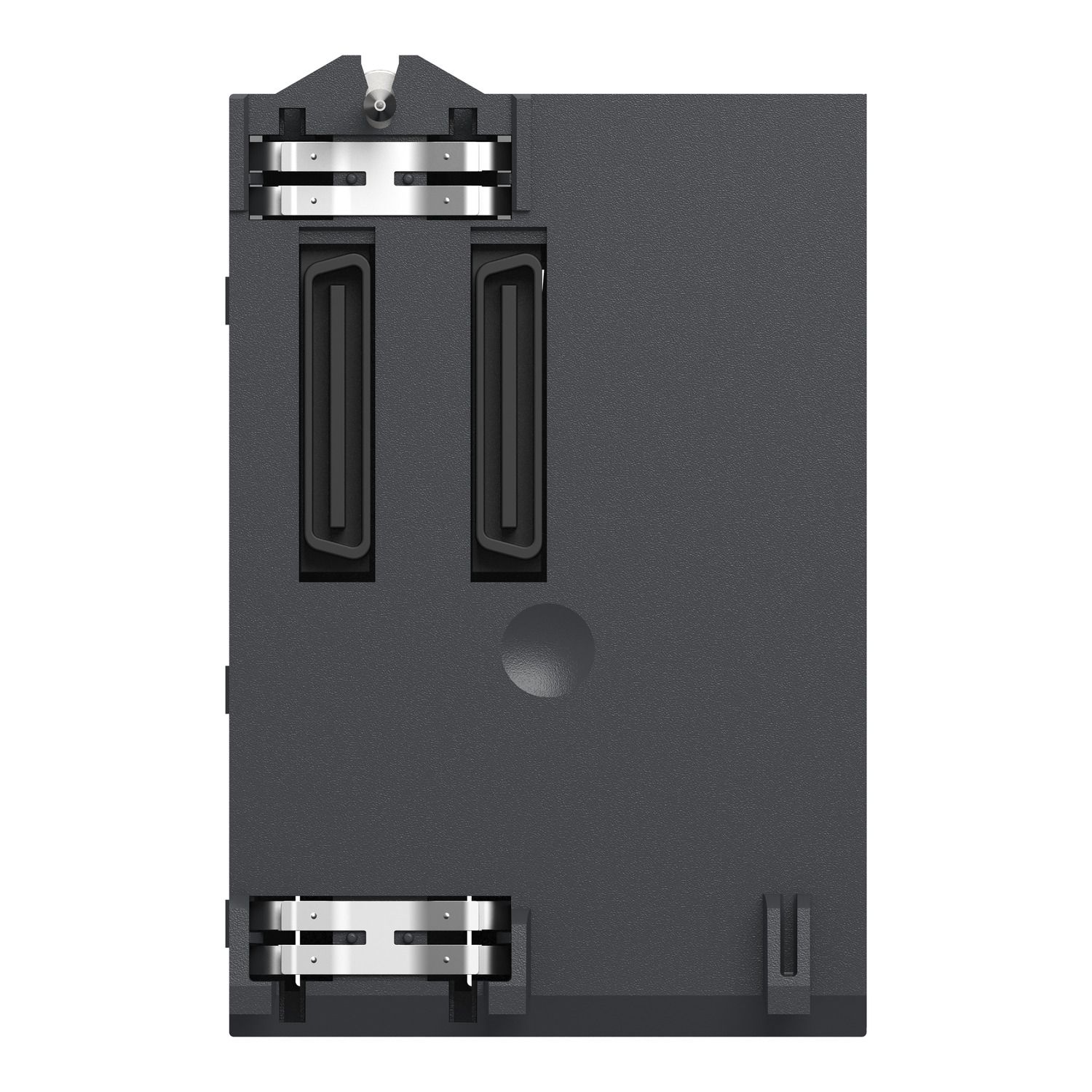

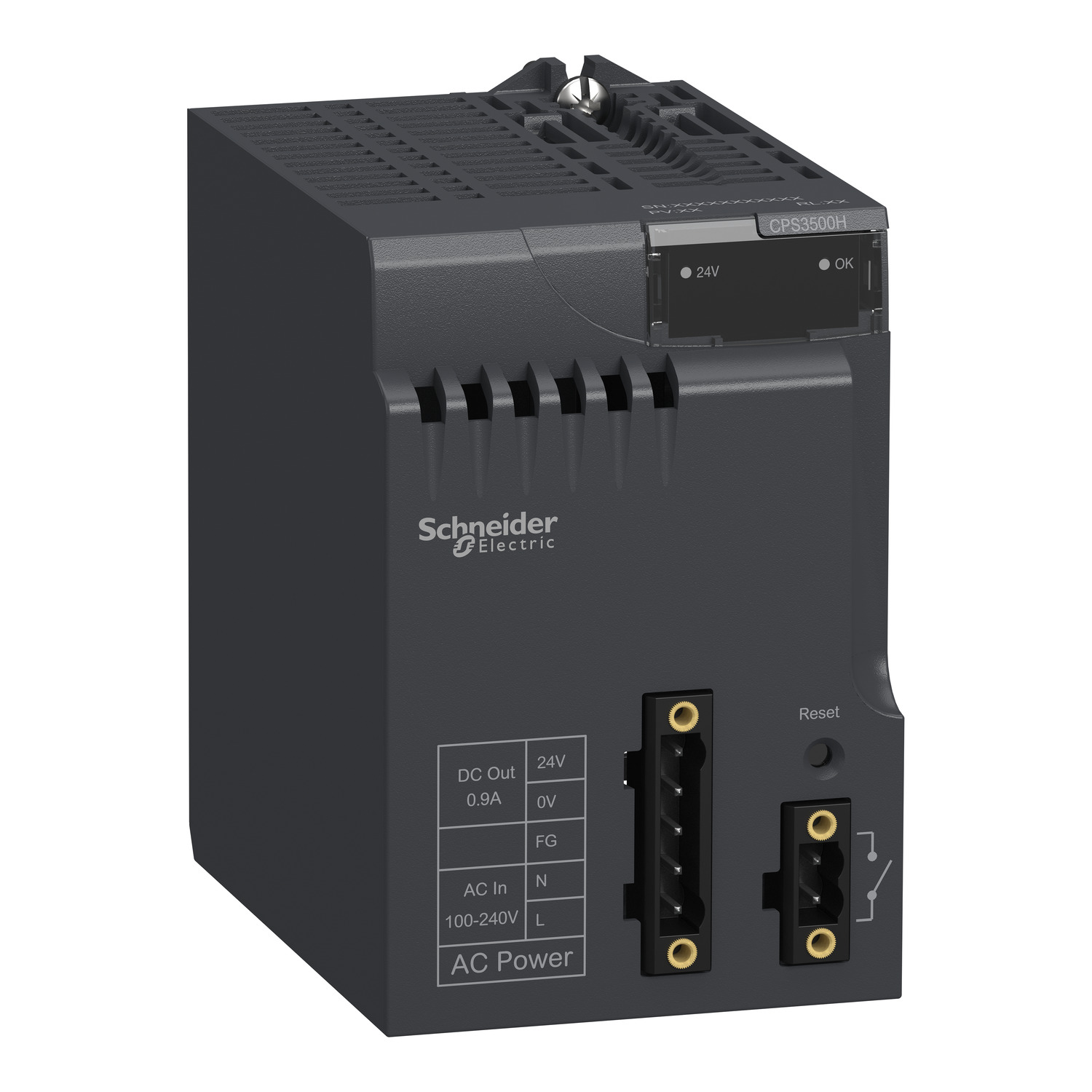

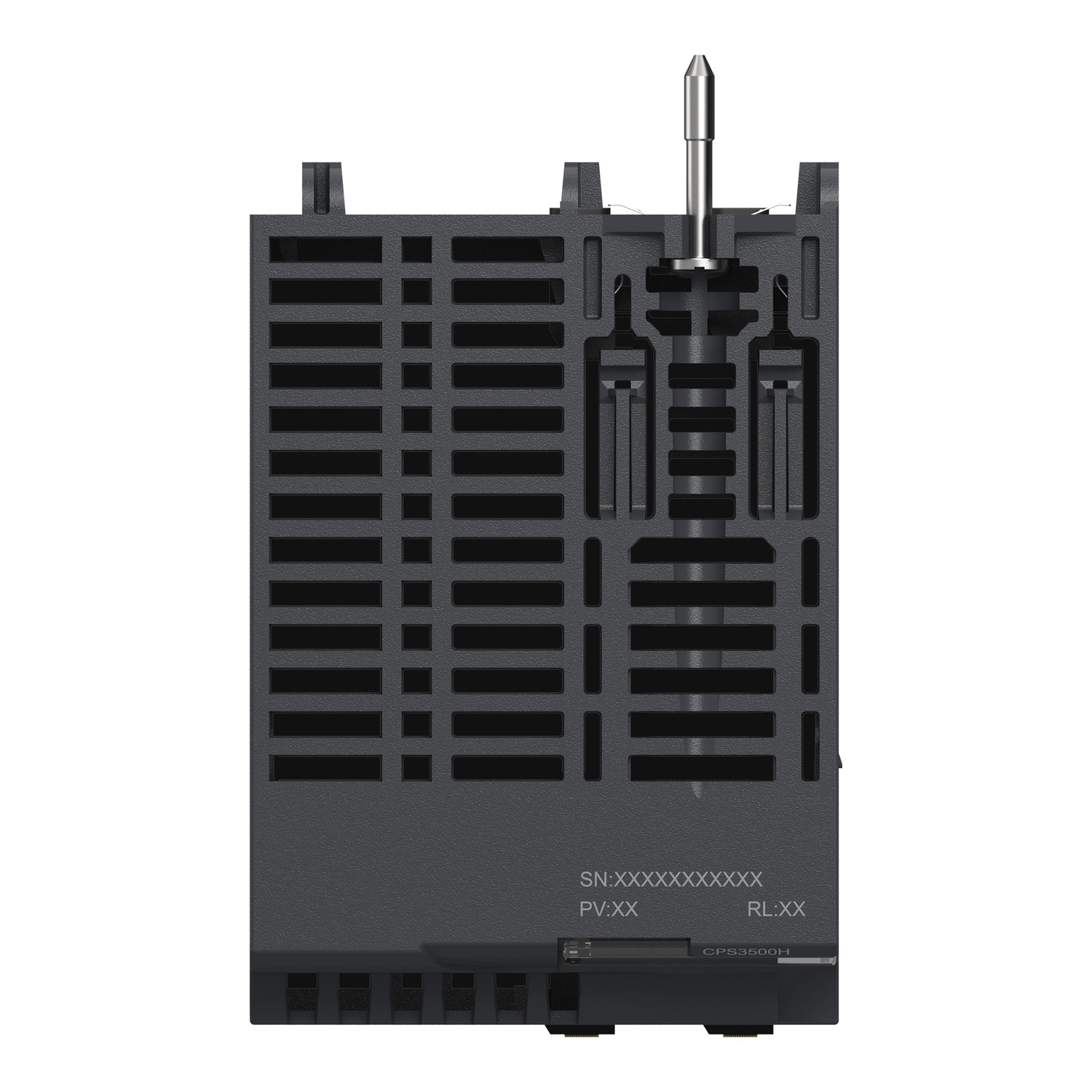

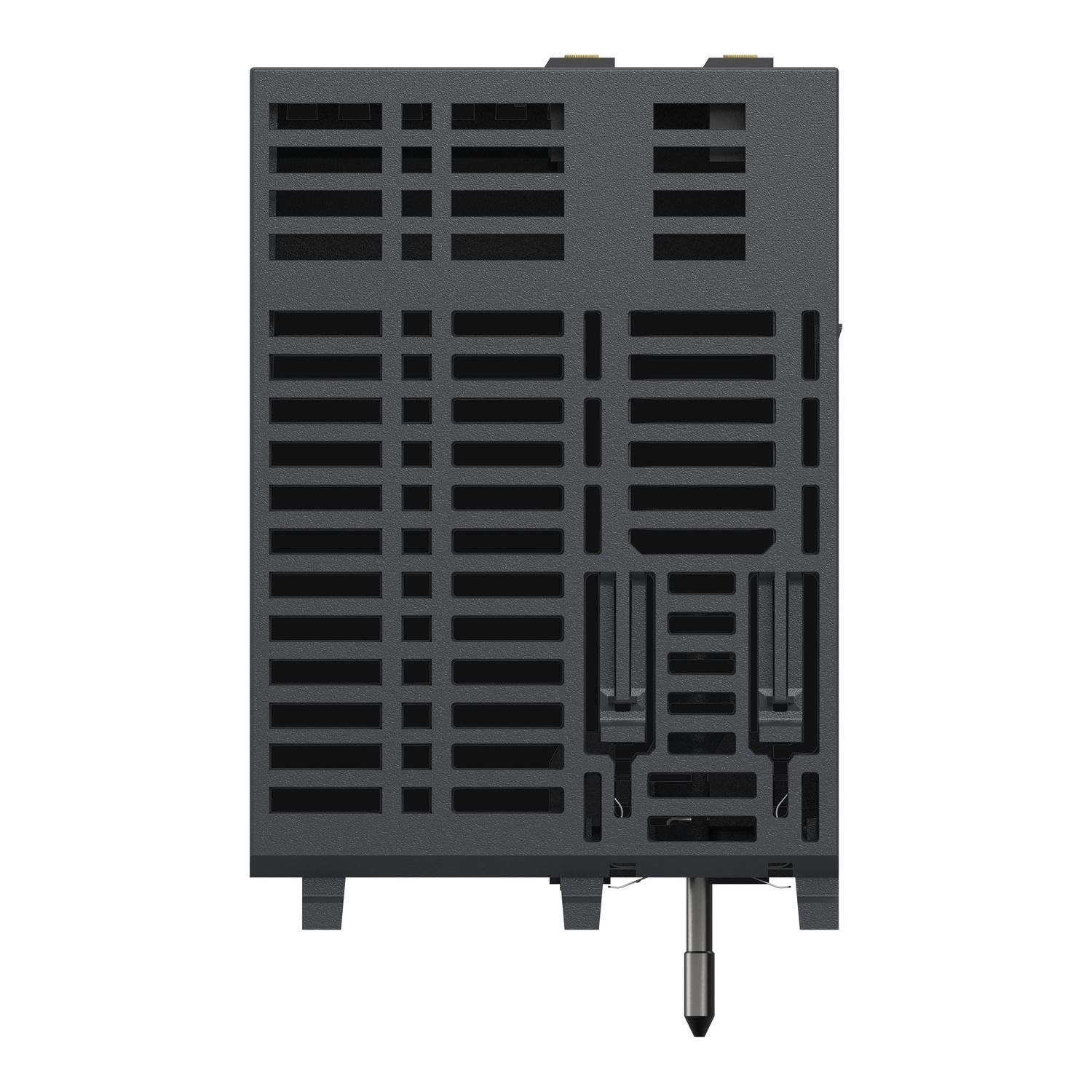

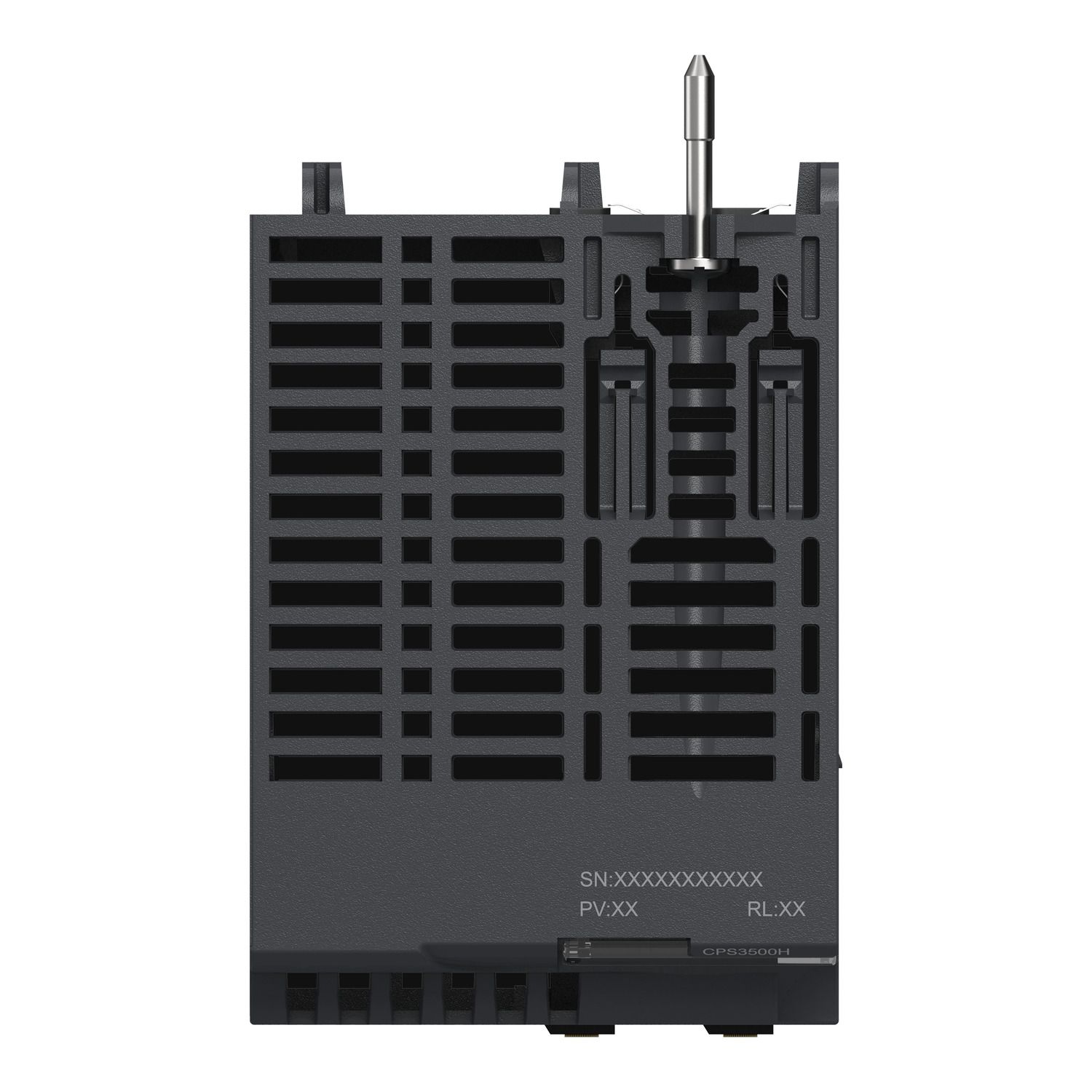

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | not compatible with BMEXBP..02 |
| Secondary power | 16.2 W 24 V DC at -25-70 °C sensor power supply, 21.6 W 24 V DC at 0-60 °C sensor power supply, 23.4 W 24 V DC at -25-70 °C I/O module power supply and processor, 11.3 W 3.3 V DC at -25-70 °C I/O module logic power supply, 31.2 W 24 V DC at 0-60 °C I/O module power supply and processor, 15 W 3.3 V DC at 0-60 °C I/O module logic power supply |
| Range of product | Modicon X80 |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| Product specific application | for severe environments |
| Product or component type | power supply module |
| Complementary | |
| Protection type | short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit |
| Inrush current | 60 A 240 V, 30 A 120 V |
| Maximum power dissipation in W | 8.5 W |
| Control type | RESET push-button cold restart |
| Network frequency limits | 47-63 Hz |
| Current at secondary voltage | 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor, 0.9 A 24 V DC sensor power supply |
| Input current | 1.04 A 115 V, 0.52 A 240 V |
| Status LED | 1 LED (green) sensor voltage, 1 LED (green) rack voltage OK |
| It on activation | 0.07 A.s 240 V, 0.05 A.s 120 V |
| Primary voltage limit | 85...264 V |
| MTBF reliability | 4300000 H |
| Electrical connection | 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay |
| Apparent power | 0.12 kVA |
| Net weight | 0.36 kg |
| Insulation resistance | >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground |
| I²t on activation | 3 A².s 240 V, 1 A².s 120 V |
| Network frequency | 50/60 Hz |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | conformal coating |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for operation | -25-70 °C |
| Dielectric strength | 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Environmental characteristic | hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04 |
| Shock resistance | 30 gn |
