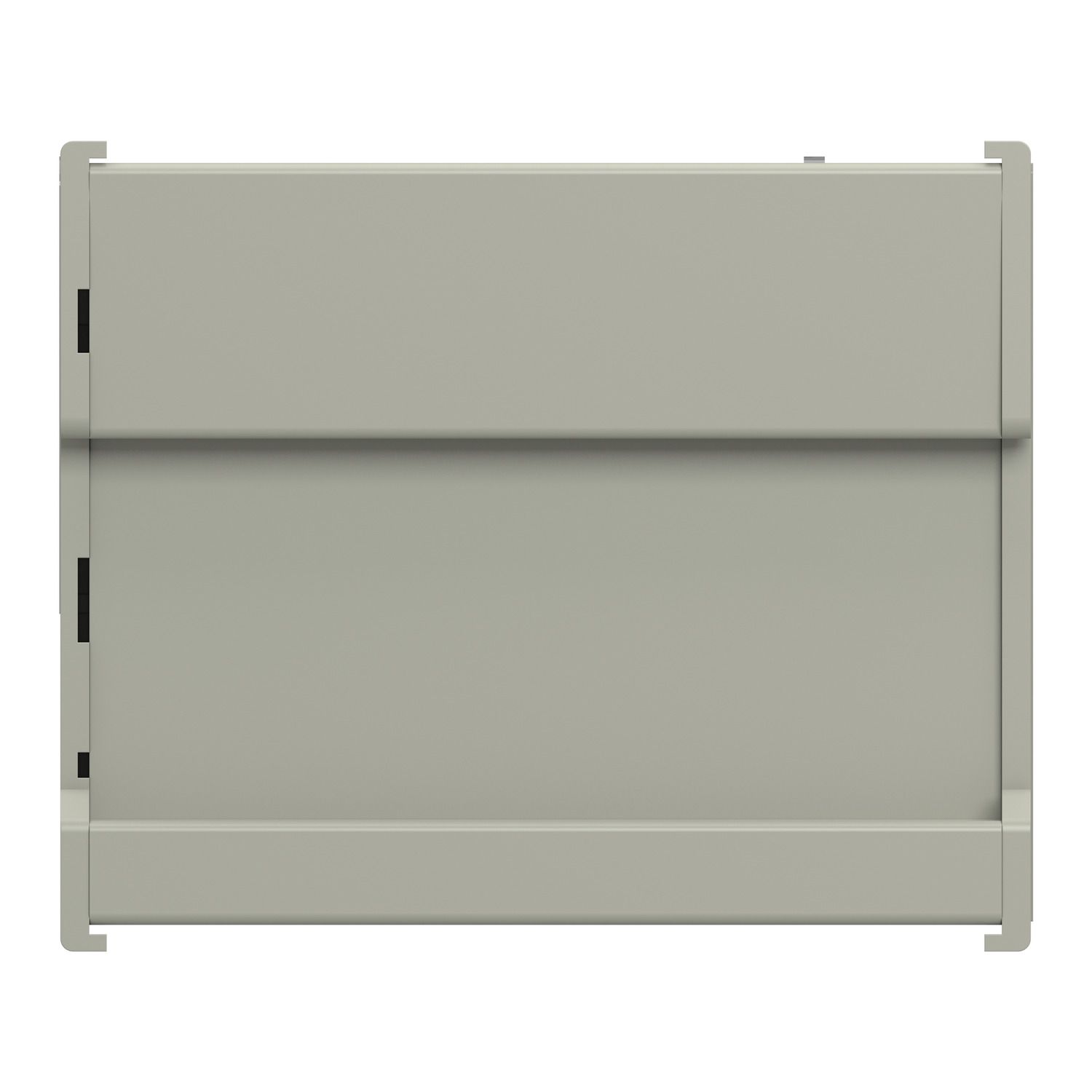

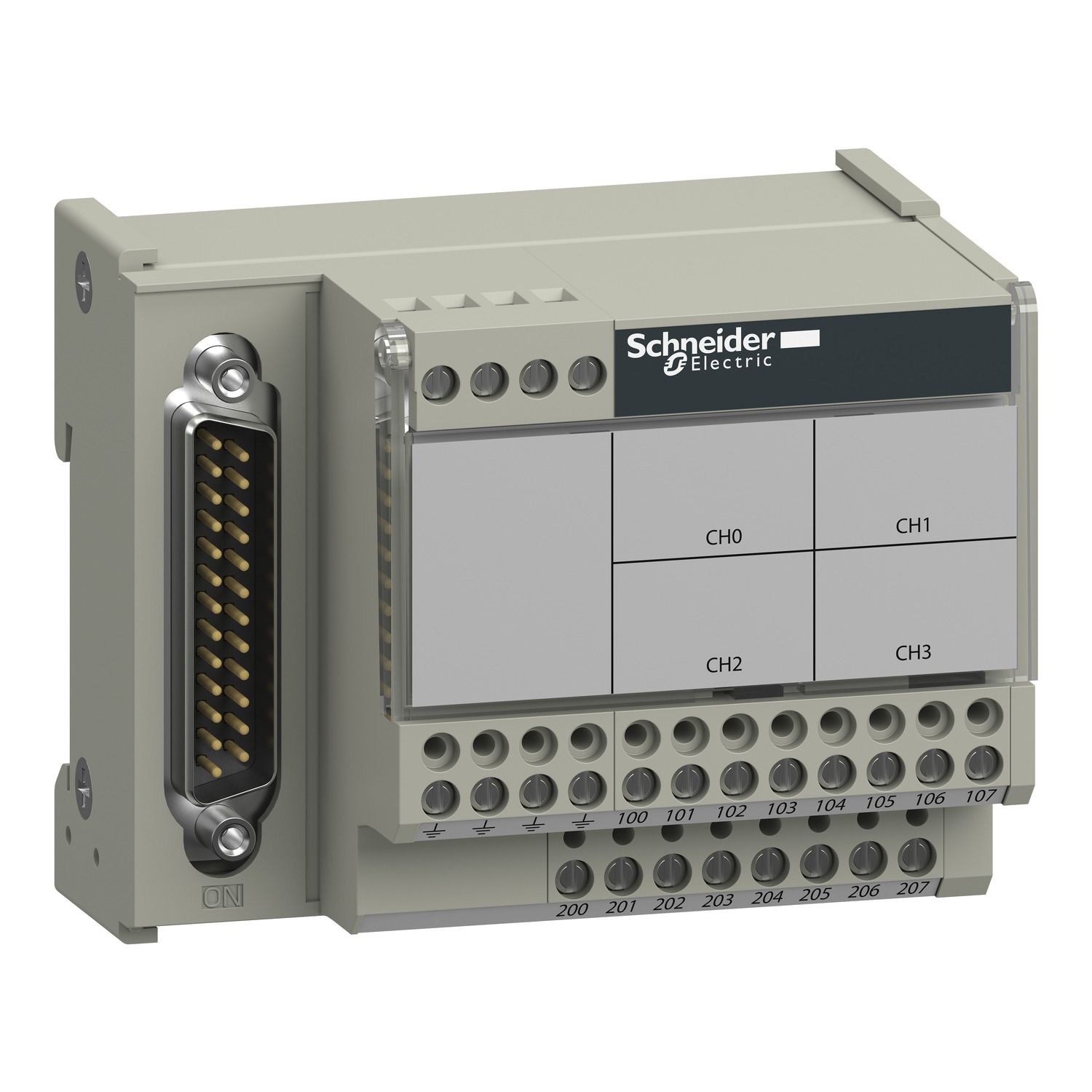

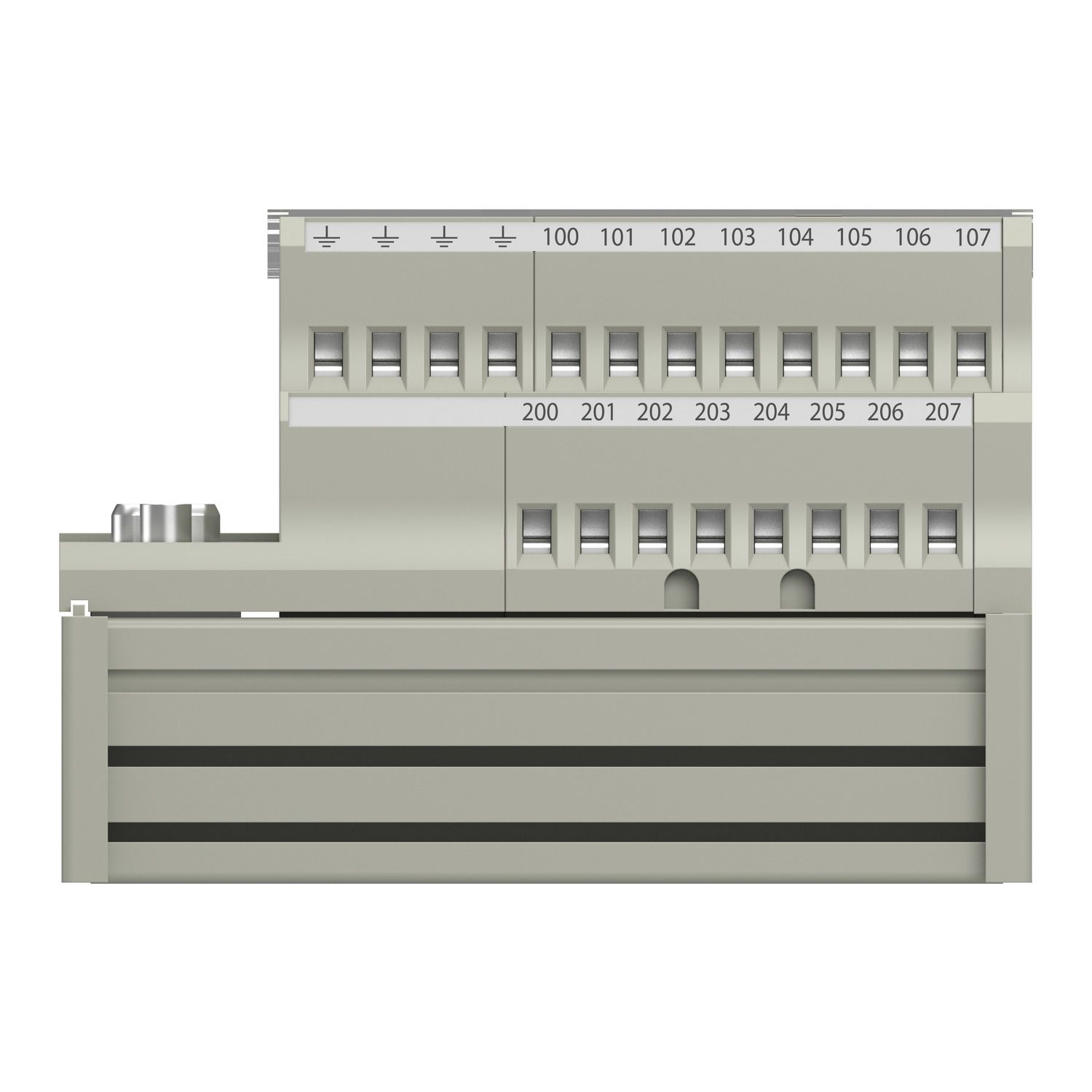

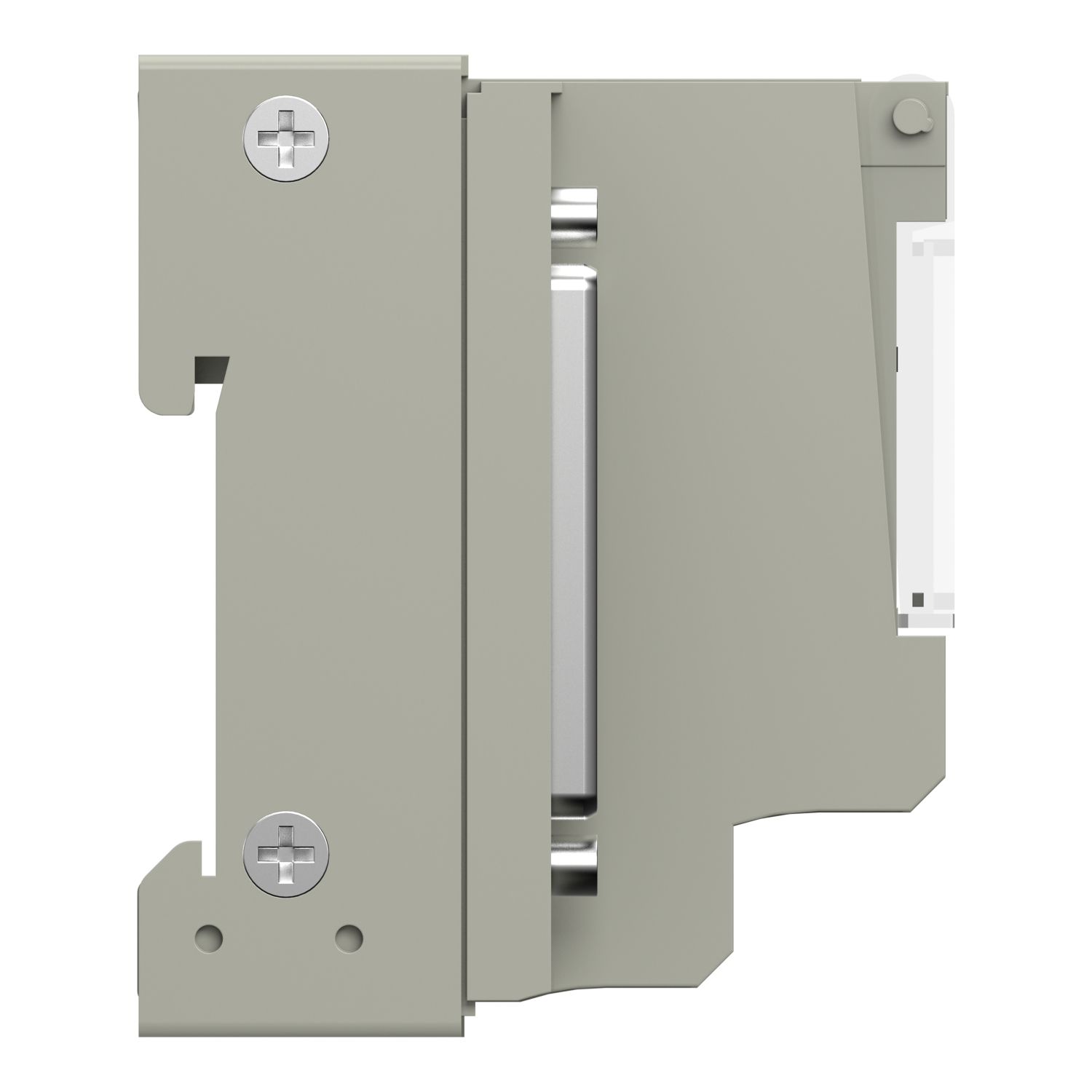

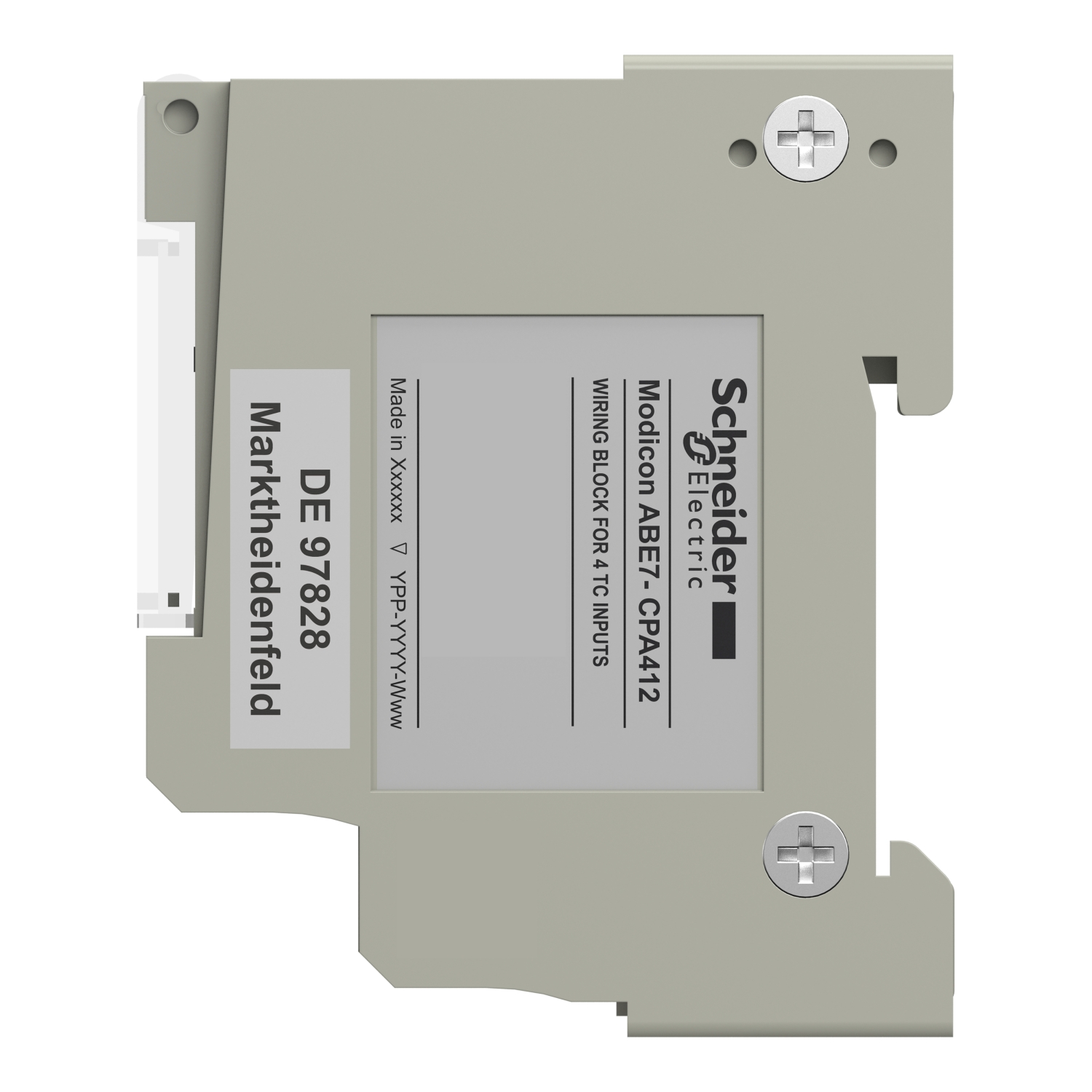

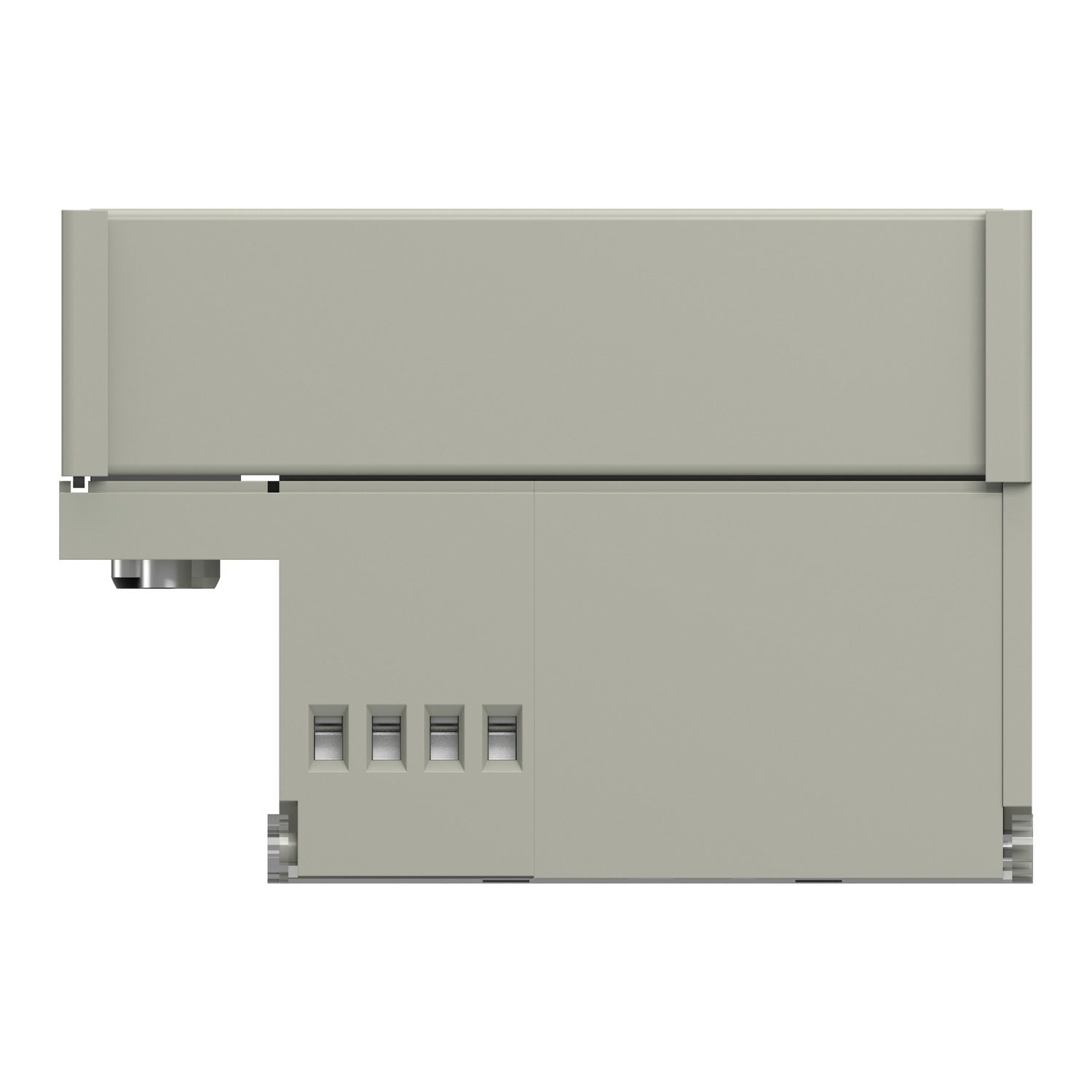

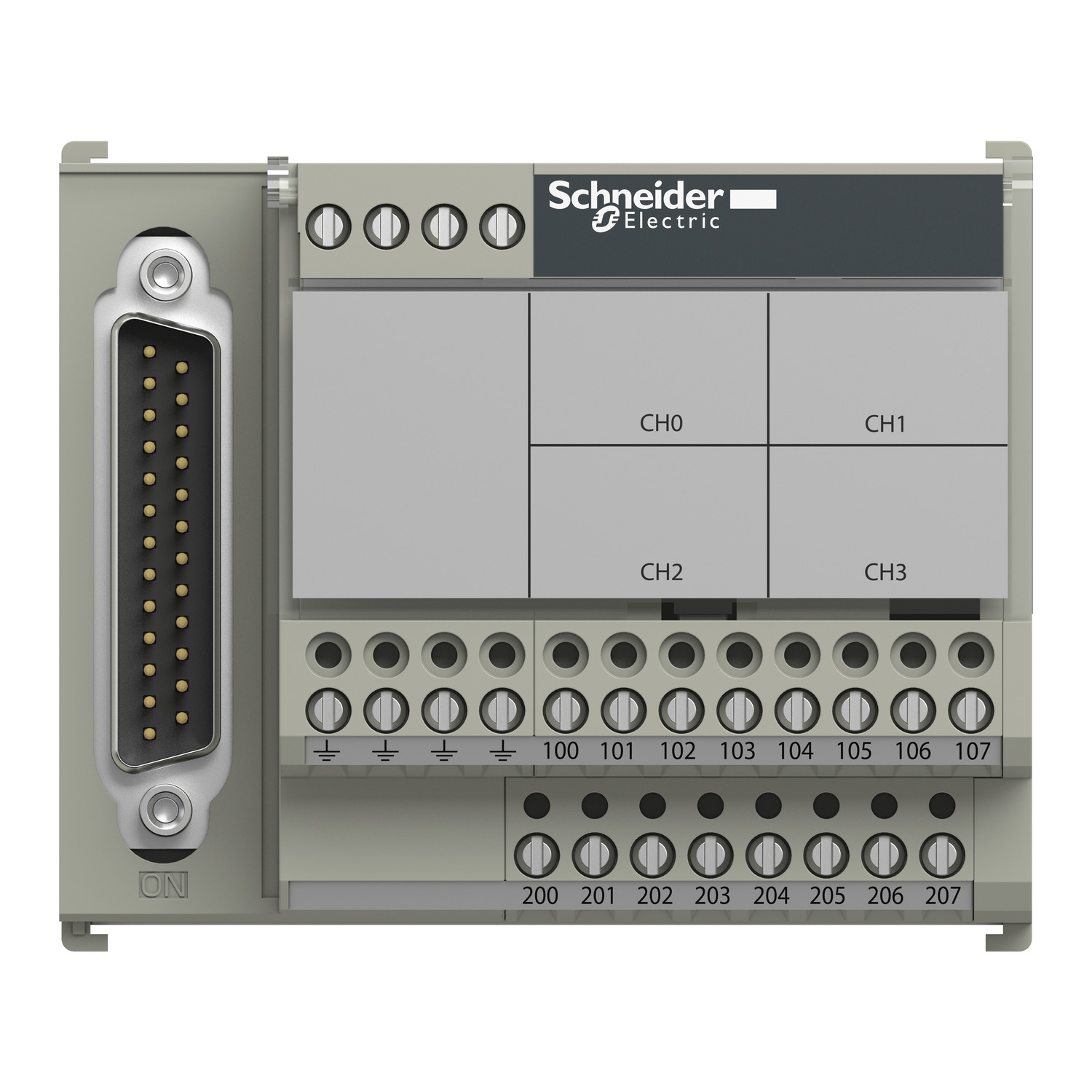

This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 4 thermocouples. It distributes isolated sensor power supplies by means of a converter. It supplies cold-junction compensation for the connected thermocouple input. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXART0414 analog input module and Modicon M340 BMXART0814 analog input module. It is delivered in 2 packages (PCE and SO3 types). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of channels | 4 |
| Connections - terminals | screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end |
| Product or component type | connection sub-base for analogue channels |
| Range of product | Modicon ABE7 |
| Complementary | |
| Function of module | distribution of 4 thermocouples, compatible with Modicon M340 |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Connection to PLC | SUB-D 25 |
| Product compatibility | Modicon M340 BMXART0814, Modicon M340 BMXART0414 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Fixing mode | by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail) |
| Net weight | 0.18 kg |
| Installation category | II conforming to IEC 60664-1 |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Vibration resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | 0-60 °C conforming to IEC 61131-2 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | DNV, UL, CSA, GL |
