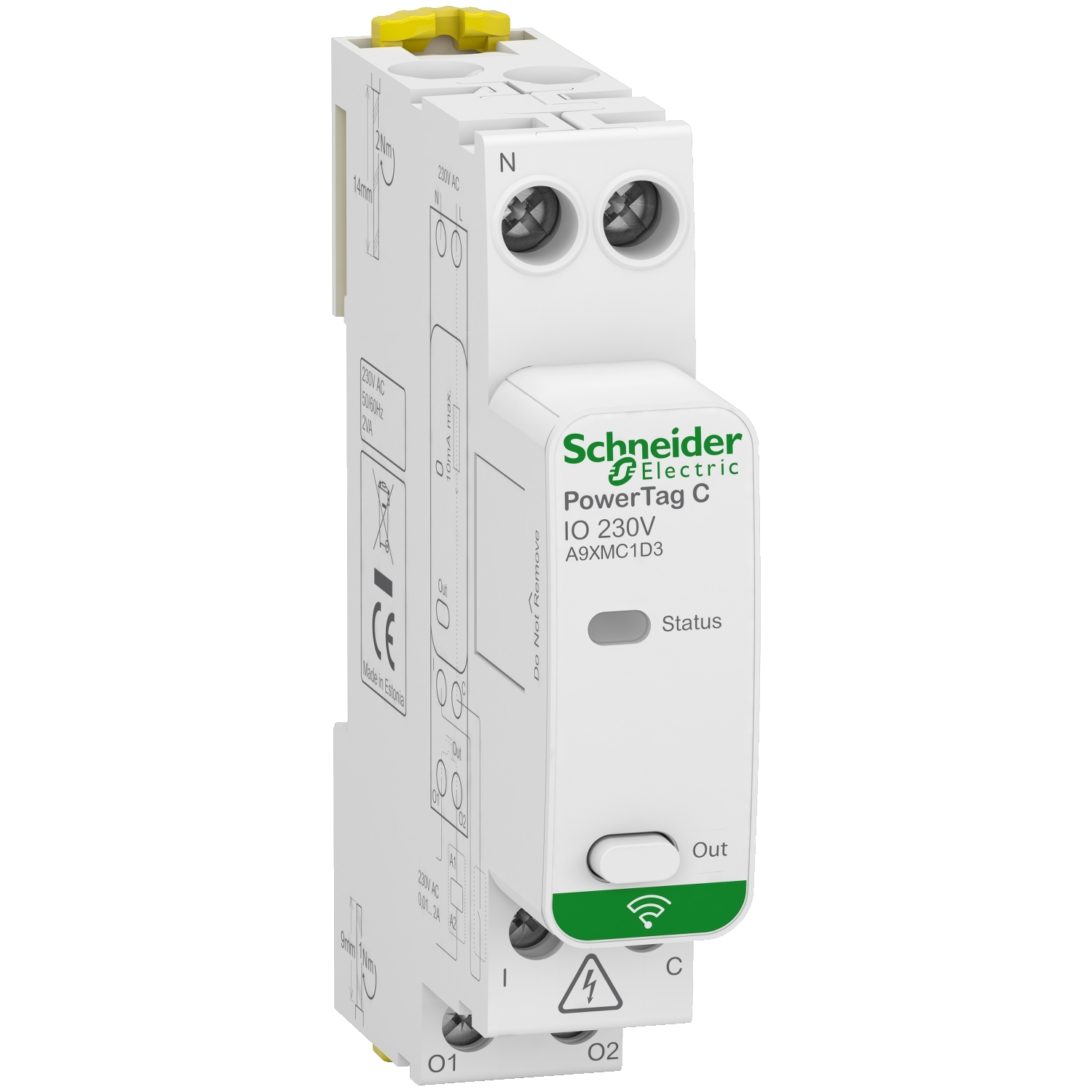

Digital input output module, PowerTag, C IO 230V

Manufacturer: Schneider Electric

SKU: A9XMC1D3

GTIN: 3606489749118

Circularity Profile

Environmental Disclosure

Instruction sheet

Declaration of conformity

User guide

Old price: $205.92 inc GST

Price: $148.78 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This PowerTag Control IO 230V is a wireless-communication input and output module. It is designed specifically for Control and monitoring applications. It is designed to monitor a circuit, notifying wireless to the concentrator the information status of a contract It has to be associated with a concentrator PowerTag Link or a Wiser IP module. This product can be installed in new or existing panels with simple commissioning operation. It has a status LED who provides information about PowerTag Control status. It is mounted on DIN rail and is compatible with horizontal comb busbars 9 mm modules. The Un Rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 2VA. The degree of protection is IP20 for casing and IP40 for front face. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The dimensions are (W) 18mm x (H) 85mm x (D) 62mm. This product complies with IEC 60529 standard

Products specifications

Attribute name	Attribute value
Main
Device short name	PowerTag C IO 230V
Concentrator compatibility	Acti9 PowerTag Link HD, Acti9 PowerTag Link, Wiser IP module, Acti9 PowerTag Link C
Range	PowerTag
Product name	PowerTag Control
Product or component type	input and ouput module
Range compatibility	Acti9 iATLs remote indication auxiliary, Acti9 iACTs remote indication auxiliary, Acti9 contactor, Acti9 impulse relay
Complementary
Tightening torque	digital input/output: 1-1 N.m bottom, power supply: 2-2 N.m top
Colour	white (RAL 9003)
Digital input number	1
Mounting mode	clip-on
Current state 0 guaranteed	<= 0.5 mA (digital input)
Power consumption in VA	2 VA
Output function	NO/NC programmable
Wire stripping length	9 mm for bottom connection, 14 mm for top connection
Input type	dry contact 230 V AC 2 mA
Voltage state 0 guaranteed	<= 40 V for digital input
Output type	dry contact 230 V 0.01...2 A AC
Standards	EN/IEC 61326-1, EN/IEC 61010-2-201, ETSI EN 301 489-1, ETSI EN 301 489-17, EN/IEC 62479, ETSI EN 300 328, EN/IEC 61010-1
Height	85 mm
Discrete output type	configurable relay logic
Depth	62 mm
Width	18 mm
Impulse duration	300 ms by default - 0 ms, + 300 ms
Time between 2 impulse	100 ms minimum - tolerance: - 0 ms, + 300 ms
Mechanical durability	100000 cycles for output
Voltage state 1 guaranteed	>= 164 V for digital input
Local signalling	green, orange and red LED for product status
Connections - terminals	tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - flexible, tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - rigid, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible with ferrule, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible, tunnel type terminals (bottom) - 1 cable(s) 1-6 mm² (AWG 18...AWG 10) - rigid, tunnel type terminals (top) - 1 cable(s) 0.5-10 mm² (AWG 21...AWG 8) - flexible, tunnel type terminals (top) - 1 cable(s) 1-16 mm² (AWG 18...AWG 16) - rigid
Net weight	80 g
Material	PA6 GF30
Current state 1 guaranteed	>= 2 mA (digital input)
9 mm pitches	2
Mounting support	DIN rail
Digital output number	1
Total power losses	2 W
[Us] rated supply voltage	230 V AC (+/- 20 %)
Network frequency	50/60 Hz
Environment
Fire resistance	960 °C / 30 s conforming to UL 94 V0
IP degree of protection	IP40 front face: conforming to IEC 60529, IP20 casing: conforming to IEC 60529
Relative humidity	0-93 % at 40-40 °C conforming to IEC 60068-2-78
Ambient air temperature for storage	-40-85 °C
Pollution degree	3
Ambient air temperature for operation	-25-60 °C
IK degree of protection	IK05
Operating altitude	0...2000 m
Overvoltage category	III conforming to IEC 61010-1
