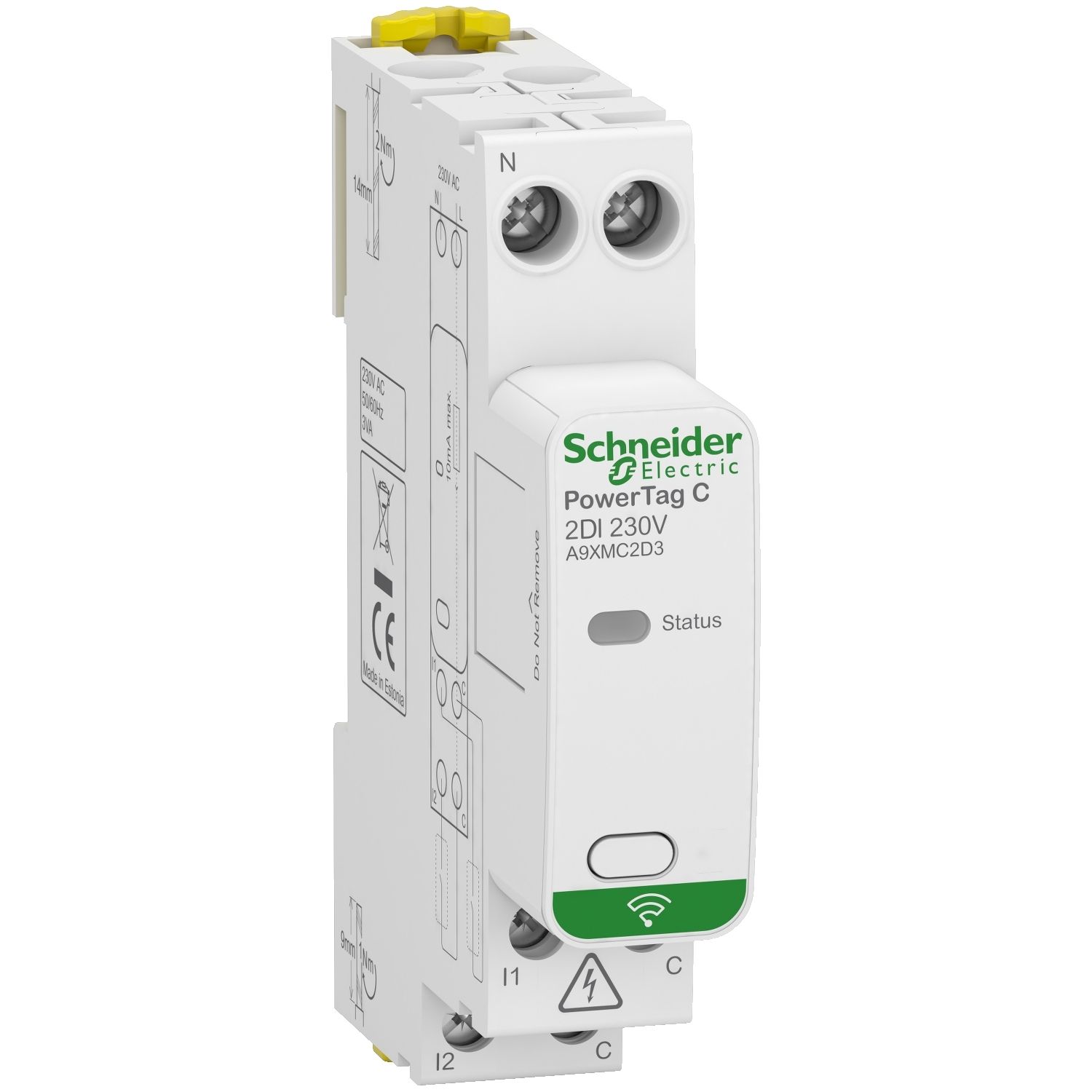

This PowerTag Control 2DI 230V is a wireless-communication input module. It is designed specifically for monitoring applications. It is designed to monitor a circuit, notifying wireless to the concentrator the information status of a contract It has to be associated with a concentrator PowerTag Link. This product can be installed in new or existing panels with simple commissioning operation. It has a status LED who provides information about PowerTag Control status. It is mounted on DIN rail and is compatible with horizontal comb busbars 9 mm modules. The Un Rated voltage is Phase-to-neutral 230VAC +/- 20%. The maximum consumption is below or equal to 3VA. The degree of protection is IP20 for casing and IP40 for front face. The operating temperature is between -25°C to +60°C. The storage temperature is between 40°C to +85°C. The dimensions are (W) 18mm x (H) 85mm x (D) 62mm. This product complies with IEC 60529 standard
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PowerTag C 2DI 230V |
| Concentrator compatibility | Acti9 PowerTag Link HD, Acti9 PowerTag Link |
| Range | PowerTag |
| Product name | PowerTag Control |
| Product or component type | input module |
| Range compatibility | Acti9 OF and SD double OC or fault contact |
| Complementary | |
| Tightening torque | digital input: 1-1 N.m bottom, power supply: 2-2 N.m top |
| Colour | white (RAL 9003) |
| Digital input number | 2 |
| Mounting mode | clip-on |
| Current state 0 guaranteed | <= 0.5 mA (digital input) |
| Power consumption in VA | 3 VA |
| Wire stripping length | 9 mm for bottom connection, 14 mm for top connection |
| Input type | dry contact 230 V AC 2 mA |
| Voltage state 0 guaranteed | <= 40 V for digital input |
| Standards | EN/IEC 61010-2-201, EN/IEC 62479, EN/IEC 61010-1, ETSI EN 301 489-17, EN/IEC 61326-1, ETSI EN 301 489-1, ETSI EN 300 328 |
| Height | 85 mm |
| Switching frequency | 10 Hz maximum |
| Depth | 62 mm |
| Width | 18 mm |
| Voltage state 1 guaranteed | >= 164 V for digital input |
| Local signalling | green, orange and red LED for product status |
| Connections - terminals | tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - flexible, tunnel type terminals (bottom) - 2 cable(s) 1.5-2.5 mm² (AWG 16...AWG 14) - rigid, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible with ferrule, tunnel type terminals (bottom) - 1 cable(s) 0.5-4 mm² (AWG 21...AWG 12) - flexible, tunnel type terminals (bottom) - 1 cable(s) 1-6 mm² (AWG 18...AWG 10) - rigid, tunnel type terminals (top) - 1 cable(s) 0.5-10 mm² (AWG 21...AWG 8) - flexible, tunnel type terminals (top) - 1 cable(s) 1-16 mm² (AWG 18...AWG 16) - rigid |
| Net weight | 75 g |
| Material | PA6 GF30 |
| Current state 1 guaranteed | >= 2 mA (digital input) |
| 9 mm pitches | 2 |
| Mounting support | DIN rail |
| [Us] rated supply voltage | 230 V AC (+/- 20 %) |
| Network frequency | 50/60 Hz |
| Environment | |
| Fire resistance | 960 °C / 30 s conforming to UL 94 V0 |
| IP degree of protection | IP40 front face: conforming to IEC 60529, IP20 casing: conforming to IEC 60529 |
| Relative humidity | 0-93 % at 40-40 °C conforming to IEC 60068-2-78 |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK05 |
| Operating altitude | 0...2000 m |
| Overvoltage category | III conforming to IEC 61010-1 |
