Control and remote indication, Acti9, with Ti24 connector

Manufacturer: Schneider Electric

SKU: A9C15424

GTIN: 3606480430626

Catalog

User guide

Instruction sheet

Environmental Disclosure

Old price: $471.35 inc GST

Price: $164.58 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

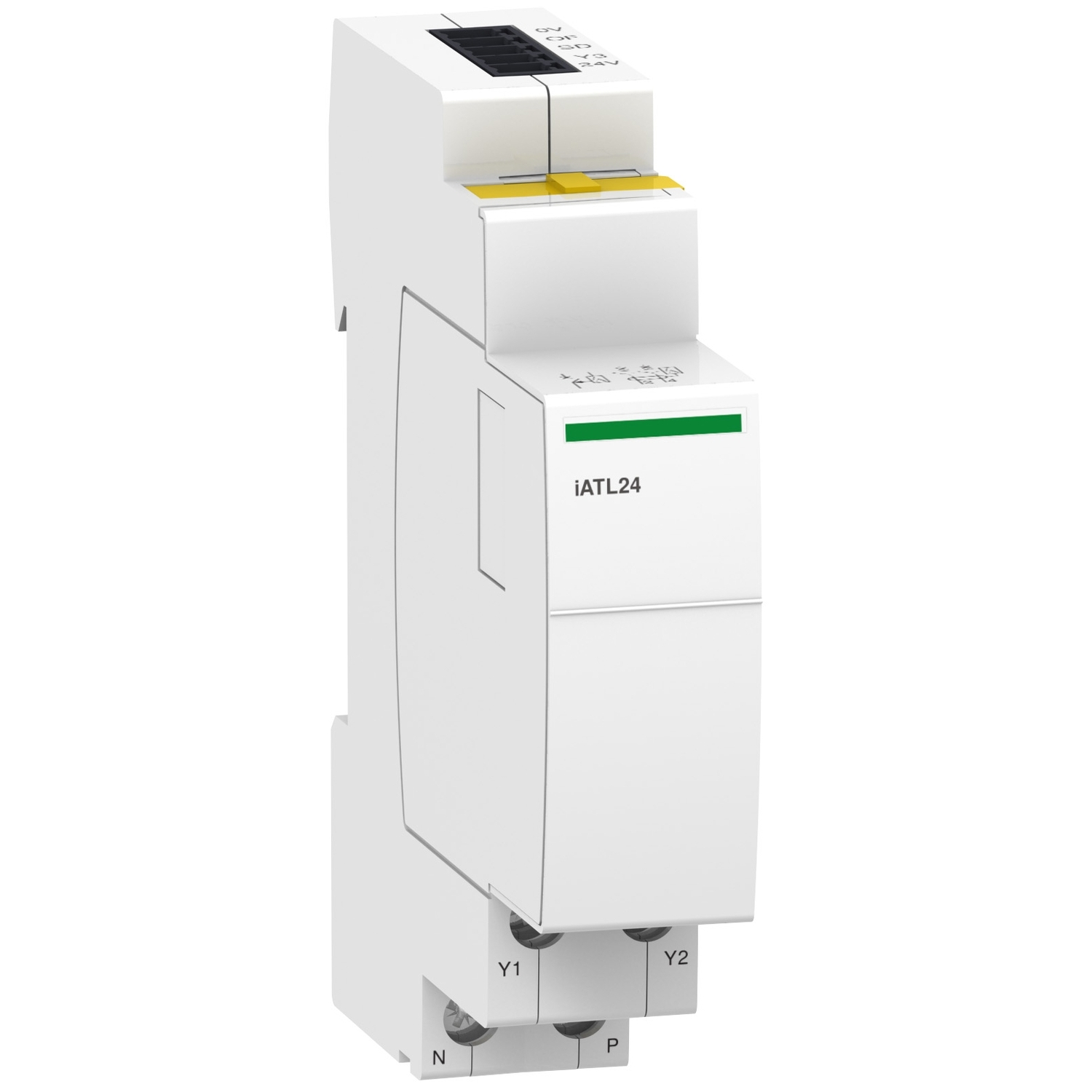

This Acti9 iATL24 product is reliable control and remote indication with Ti24 connector auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with IEC 60947-1 appendix S.

Products specifications

Attribute name	Attribute value
Main
Device short name	iATL24
Range	Acti9
Range of product	Acti9
[Us] rated supply voltage	230 V AC at 50/60 Hz
Signal contacts composition	1 NO
Signalling circuit voltage	24 V DC: +/- 20 % 0.002...0.1 A
Product or component type	control and indication auxiliary
[Uc] control circuit voltage	24 V DC rising edge, 24 V DC falling edge, 230 V AC 50/60 Hz impulse >= 200 ms
Complementary
Product compatibility	iTL (16 A) - 230/240 V 50 Hz, iTL (32 A) - 230/240 V 50 Hz, Acti 9 Smartlink
Tightening torque	input: 1-1 N.m bottom, power supply: 1-1 N.m bottom
Colour	white
Compatibility code	iATL24
Electrical durability	250000 cycles conforming to IEC 60947-5-1
Mounting mode	fixed, on the left of CT
Control type	remote control
Wire stripping length	Ti24 interface: 10 mm for top connection, input: 9 mm for bottom connection, power supply: 9 mm for bottom connection
Comb busbar and distribution block compatibility	top: NO, bottom: YES
Immunity to microbreaks	10 ms
Height	81 mm
Depth	68 mm
Market segment	small commercial
Width	18 mm
[Ui] rated insulation voltage	250 V AC 50/60 Hz
Connections - terminals	Ti24 interface: spring-loaded terminal Ti24 1 cable(s) 0.5-1.5 mm² - flexible, Ti24 interface: spring-loaded terminal Ti24 2 cable(s) 0.5-1.5 mm² - rigid, input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - flexible with ferrule, input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - flexible, input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - rigid, power supply: tunnel type terminals 1 cable(s) 0.5-4 mm² - flexible with ferrule, power supply: tunnel type terminals 1 cable(s) 0.5-6 mm² - flexible, power supply: tunnel type terminals 1 cable(s) 0.5-10 mm² - rigid
[Uimp] rated impulse withstand voltage	8 kV
Power consumption in W	1 W
9 mm pitches	2
Range compatibility	Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Mounting support	DIN rail
Undervoltage behaviour	no opening if loss of 24 V DC
Environment
Relative humidity	93-93 % at 40-40 °C conforming to IEC 60068-2
Ambient air temperature for storage	-40-80 °C
Pollution degree	3 conforming to IEC 60439-1
IP degree of protection	IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation	2 conforming to IEC 60947-5-1
Ambient air temperature for operation	-25-60 °C
Overvoltage category	IV
Quality labels	CE
Standards	IEC 60947-1 appendix S
