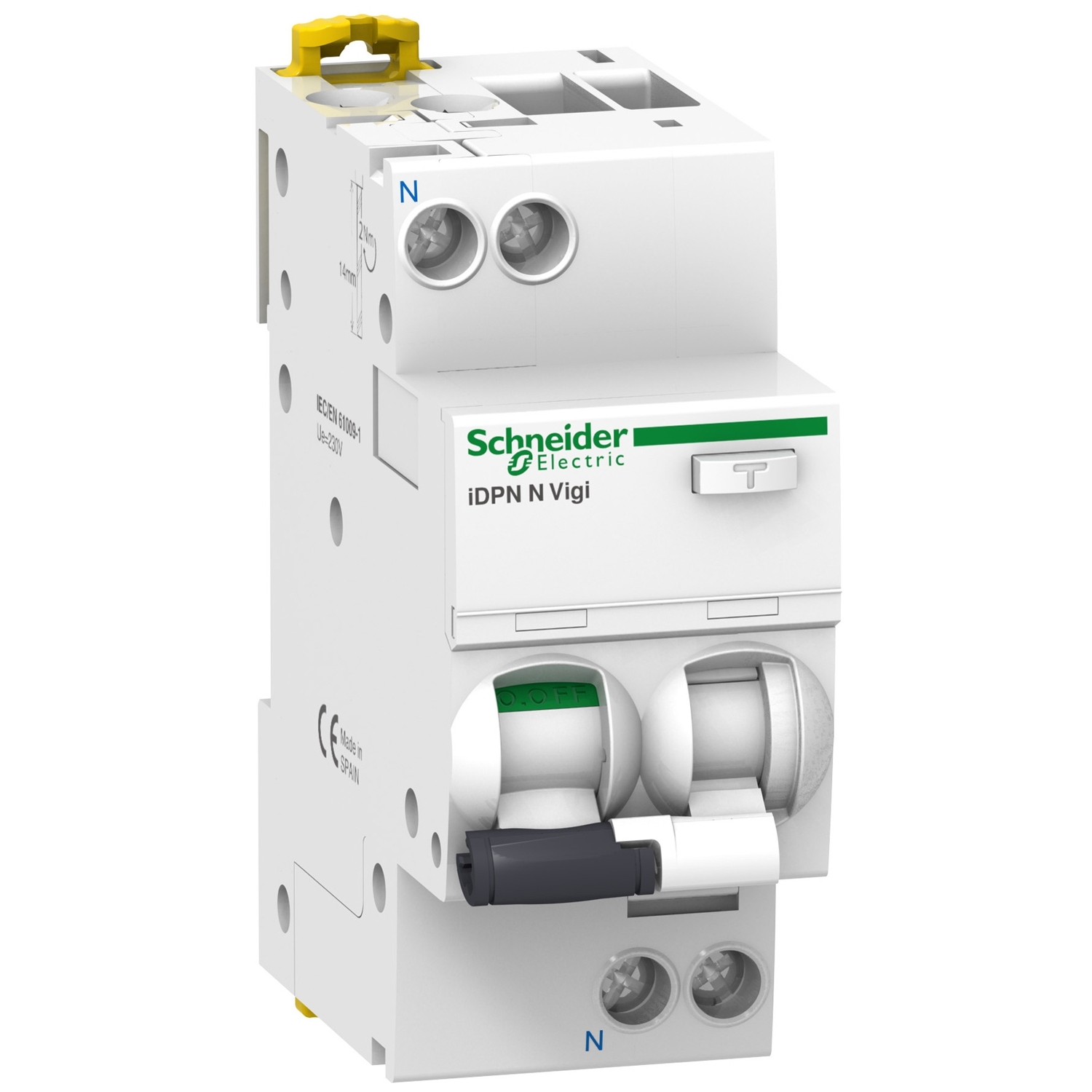

This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It has 2P with 1 protected pole, 32A rated current and C tripping curve. This A-SI type device has 30mA sensibility. Breaking capacity at 230VAC is 6000A according to IEC 61009-1. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It brings safety and reliable solution for commercial and industrial applications. This product is compliant with EN/IEC 61009-2-1 standard. It offers 2 VisiTrip window to reduce intervention time and VisiSafe for safe intervention. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iDPN N Vigi |
| Device application | distribution |
| Suitability for isolation | yes conforming to EN/IEC 60947-2 |
| Breaking capacity | 6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| Range | Acti9 |
| Earth-leakage protection class | type A-SI (Super Immunised) |
| Number of protected poles | 1 |
| Curve code | C |
| Range of product | iDPN Vigi |
| Trip unit technology | thermal-magnetic |
| Neutral position | left |
| Poles description | 1P + N |
| Earth-leakage protection time delay | instantaneous |
| Product name | Acti9 iDPN Vigi |
| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Earth-leakage sensitivity | 30 mA |
| Network type | AC |
| [In] rated current | 32 A |
| Complementary | |
| Tightening torque | 2-2 N.m top or bottom |
| Colour | white |
| Connection pitch | 9 mm between phase and neutral |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Compatibility code | iDPN |
| Mechanical durability | 20000 cycles |
| Rated breaking and making capacity | Idm 6000 A at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| Electrical durability | 10000 cycles |
| Mounting mode | clip-on |
| Residual current tripping technology | voltage independent |
| Control type | toggle |
| Wire stripping length | 15 mm for top or bottom connection |
| Comb busbar and distribution block compatibility | top or bottom: YES |
| Connections - terminals | single terminal top or bottom 1-10 mm² flexible with ferrule, single terminal top or bottom 1-10 mm² flexible, single terminal top or bottom 1-16 mm² rigid |
| Locking options description | padlocking device |
| Earth-leakage protection | integrated |
| Height | 85 mm |
| [Ics] rated service breaking capacity | 6000 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| Magnetic tripping limit | 5...10 x In |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Depth | 73 mm |
| Market segment | small commercial, residential |
| Width | 36 mm |
| Local signalling | ON, OFF, fault trip |
| [Ui] rated insulation voltage | 440 V AC 50 Hz |
| Net weight | 125 g |
| Limitation class | 3 conforming to EN/IEC 61009-2-1 |
| 9 mm pitches | 4 |
| Device location in system | outgoer |
| Mounting support | DIN rail |
| Contact position indicator | yes |
| Network frequency | 50 Hz |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529 |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1 |
| Product certifications | RCM, VDE |
| Standards | EN/IEC 61009-2-1 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Ambient air temperature for operation | -25-60 °C |
| Overvoltage category | III conforming to IEC 60364 |
