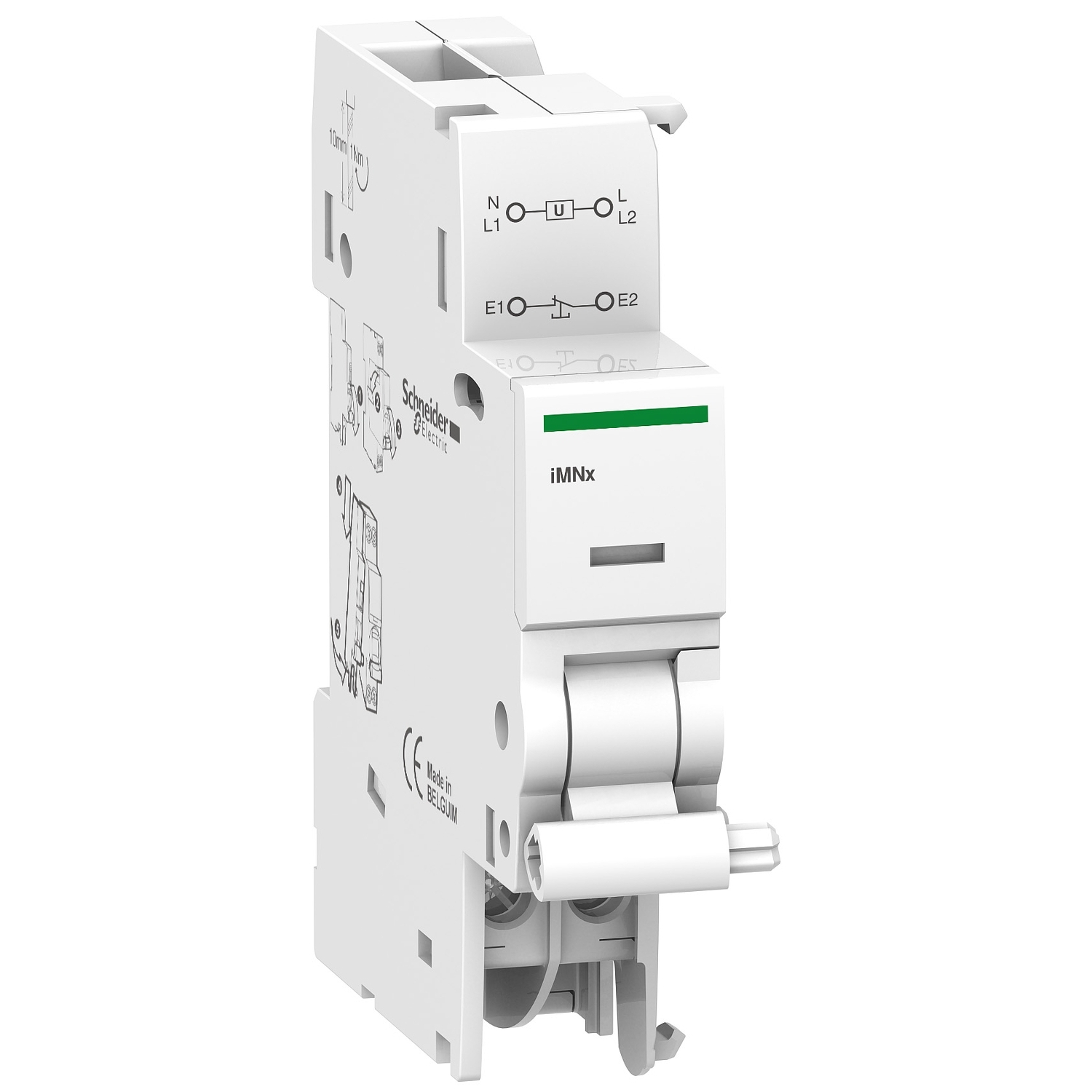

Undervoltage release, Acti9, iMNx, voltage release, 220...240 V AC

Manufacturer: Schneider Electric

SKU: A9A26969

GTIN: 3606480088025

Catalog

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $199.76 inc GST

Price: $69.75 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 iMNx electrical auxiliary is an undervoltage release independent of the supply voltage. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA and iC60, iID double terminals. The width in 9mm pitches is 2. It trips the associated device by opening of the control circuit. A drop in the supply voltage does not trip the associated device. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name	Attribute value
Main
Device short name	iMNx
Product compatibility	iID, single terminal, iSW-NA, iDPN Vigi, double terminal, RCA, ARA, iC60
Control type	with external feeding
Range	Acti9
Product or component type	undervoltage release
9 mm pitches	2
Range of product	iID, iDPN Vigi, iC60, iSW-NA
[Uc] control circuit voltage	220...240 V AC 50/60 Hz
Complementary
Tightening torque	1-1 N.m
Market segment	residential, small commercial
Width	18 mm
Colour	white
Local signalling	action indicator
Compatibility code	iMNx
Mounting mode	clip-on
Connections - terminals	clamp terminal - 2 cable(s) 2.1-2.1 mm² - flexible with cable end, clamp terminal - 1 cable(s) 9-9 mm² - flexible, clamp terminal - 2 cable(s) 2.1-2.1 mm² - rigid, clamp terminal - 1 cable(s) 11-11 mm² - rigid
Comb busbar and distribution block compatibility	top: YES
Range compatibility	Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support	DIN rail
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Standards	EN/IEC 60947-5-1
Ambient air temperature for operation	-35-70 °C
