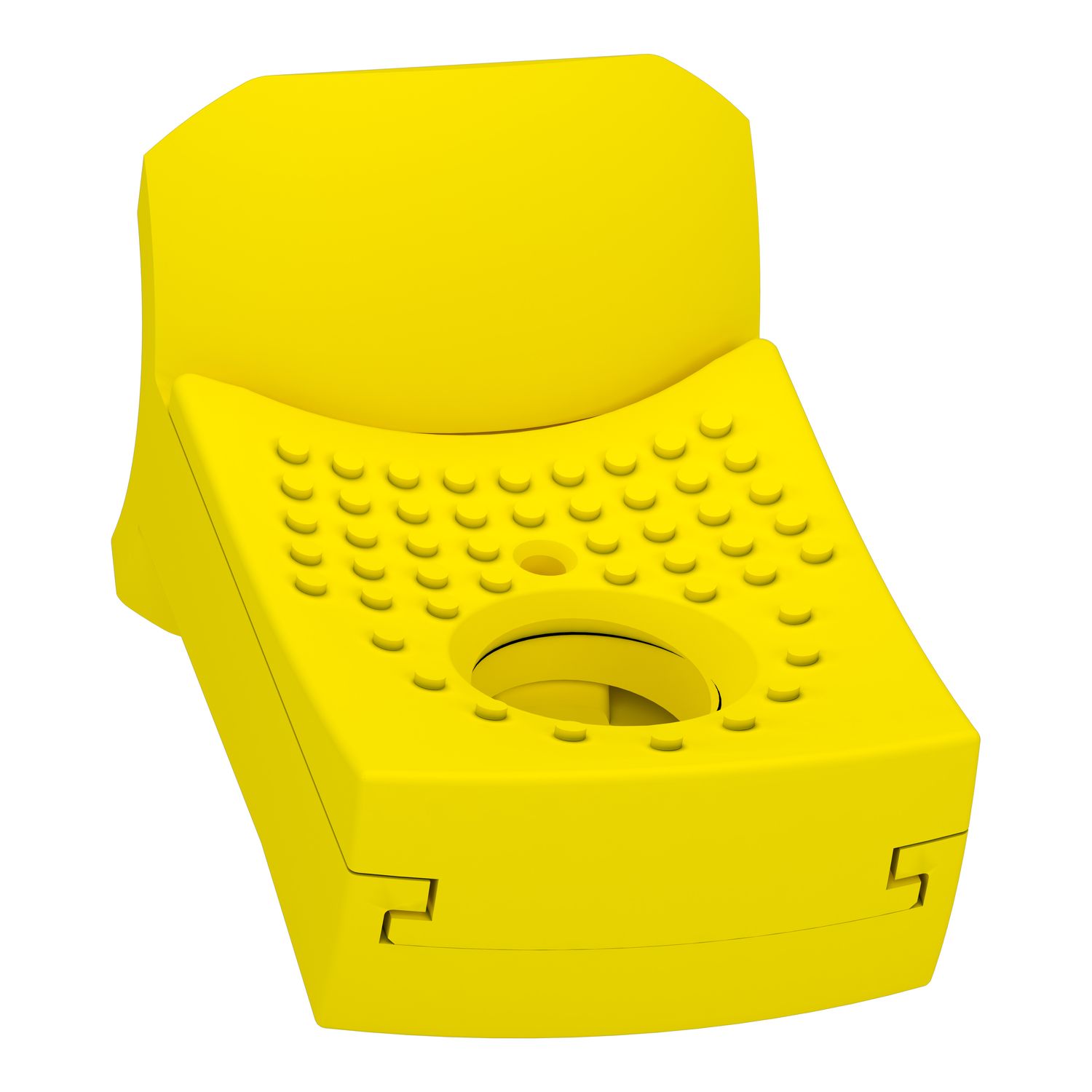

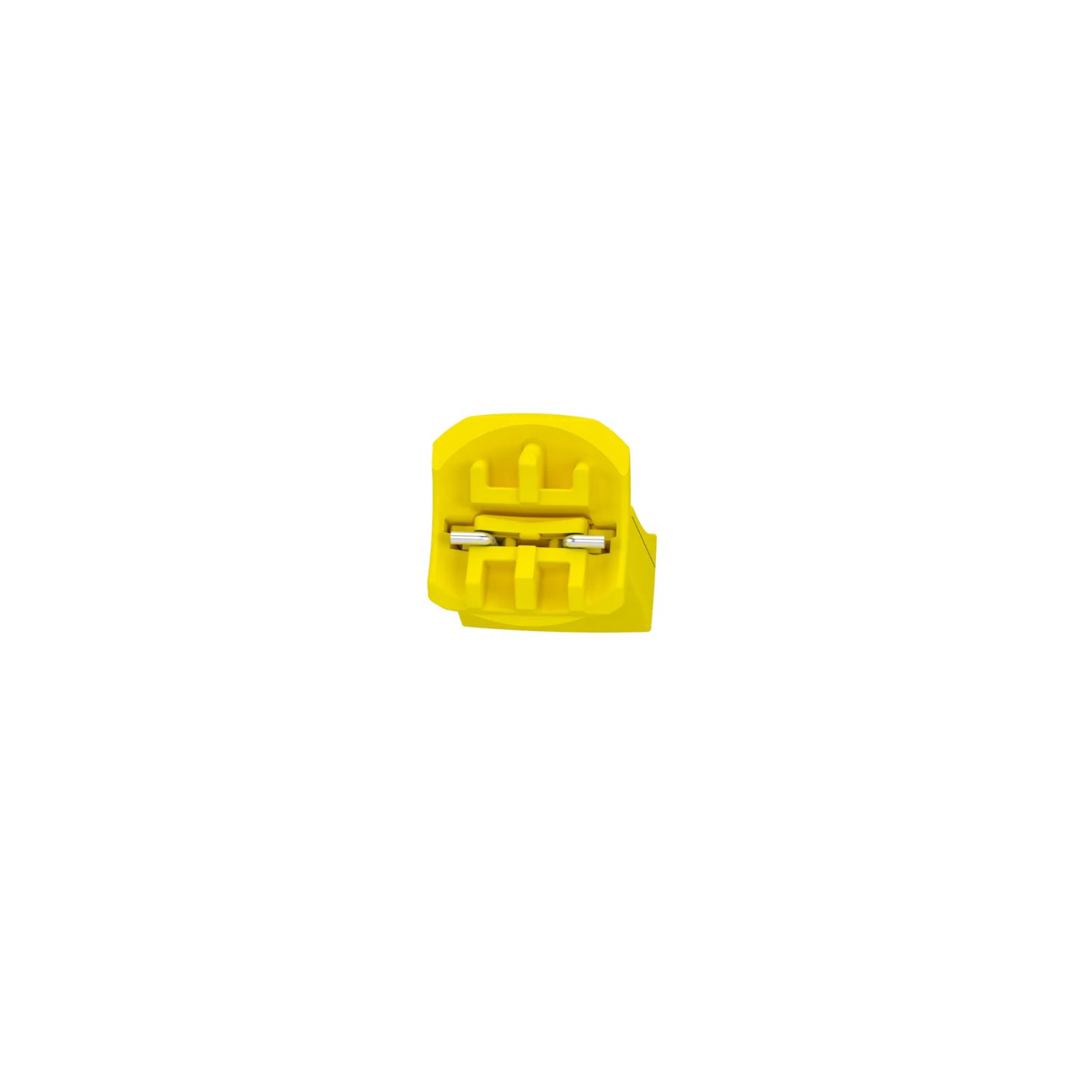

This Acti9 product is a padlocking device is used to padlock in open or closed position. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. The padlock diameter is from 3mm to 6mm. The sealable maximum diameter is 1.2mm. The locking in ON position does not prevent tripping of the breaker in the event of faults. This yellow padlocking accessory is mounted on the front of the product to be protected. This mounting device is suitable for iC60, iC60 + Vigi, iID, iDPN Vigi, iSW-NA, iSW Acti9. This product is suitable with IEC/EN 60947-2 standard compliant disconnection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 10 |
| Range | Acti9 |
| Product or component type | padlocking device |
| Accessory / separate part category | locking accessory |
| Range of product | MAX4, Acti9 iDPN N VigiARC, Acti9 iDPN H VigiARC, iSW 40...125, iK60, RCA, ARA, iID, K60, iC60, iDPN Vigi, iID K, iSW-NA |
| Complementary | |
| Market segment | residential, small commercial |
| Diameter | 3-6 mm |
| Compatibility code | Acti 9 iC60 |
| Keylock destination | toggle |
| Range compatibility | Acti9 - Acti9 iDPN N VigiARC, Acti9 - Acti9 iDPN H VigiARC, Acti 9 - Acti9 iC40, Acti 9 - Acti9 iK60 iK60N - , Acti 9 - Acti9 iSW-NA, Acti 9 - Acti9 iC60 ARA iC60 - , Acti 9 - Acti9 iC60 RCA iC60 - , Acti 9 - Acti9 Reflex iC60, Acti 9 - Acti9 iDPN Vigi, Acti 9 - Acti9 iID K, Acti 9 - Vigi iC60 - , Acti 9 - Acti9 iSW, Acti 9 - Acti9 iID, Acti 9 - Acti9 iC60 |
| Locking options description | keylock in OFF or ON position, sealable |
