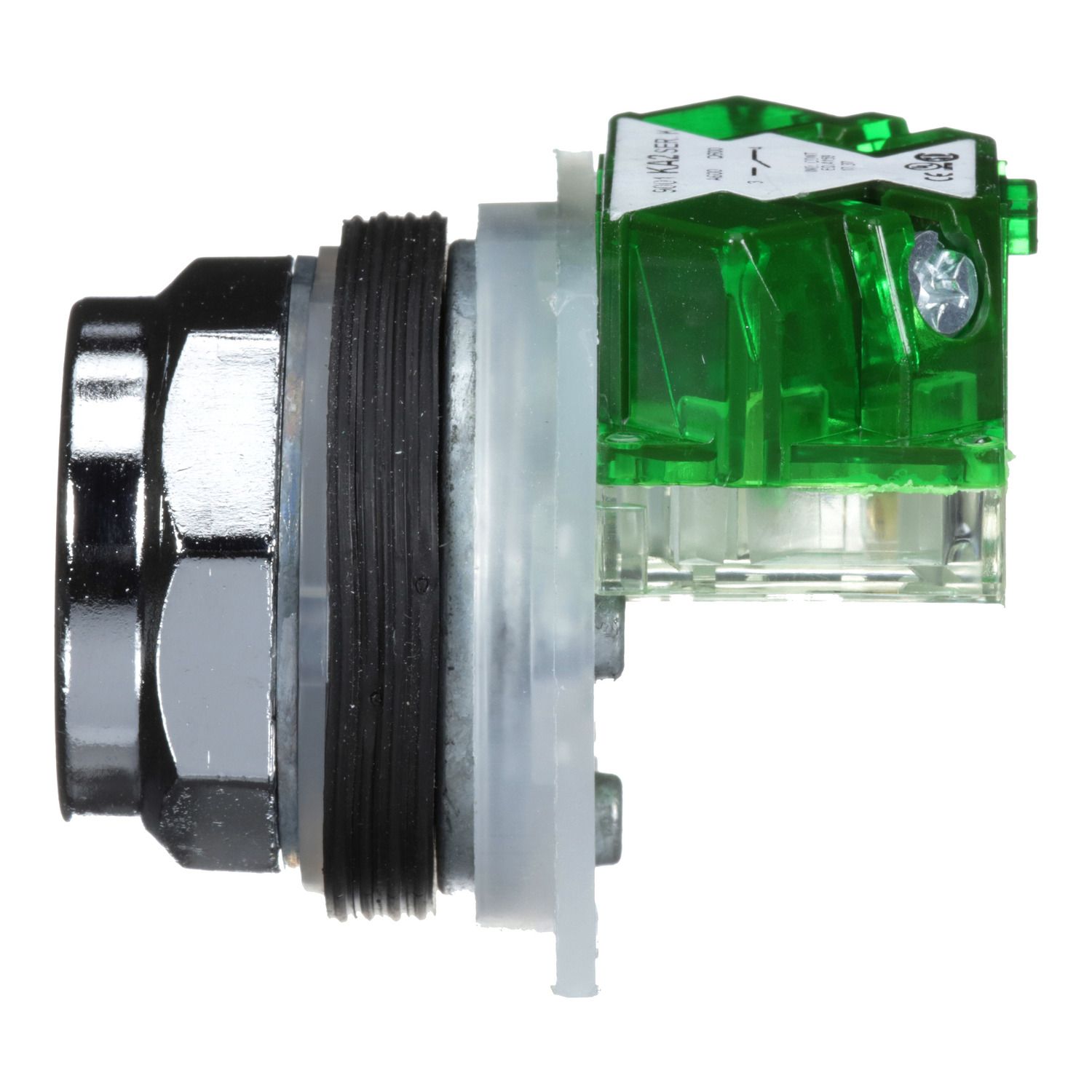

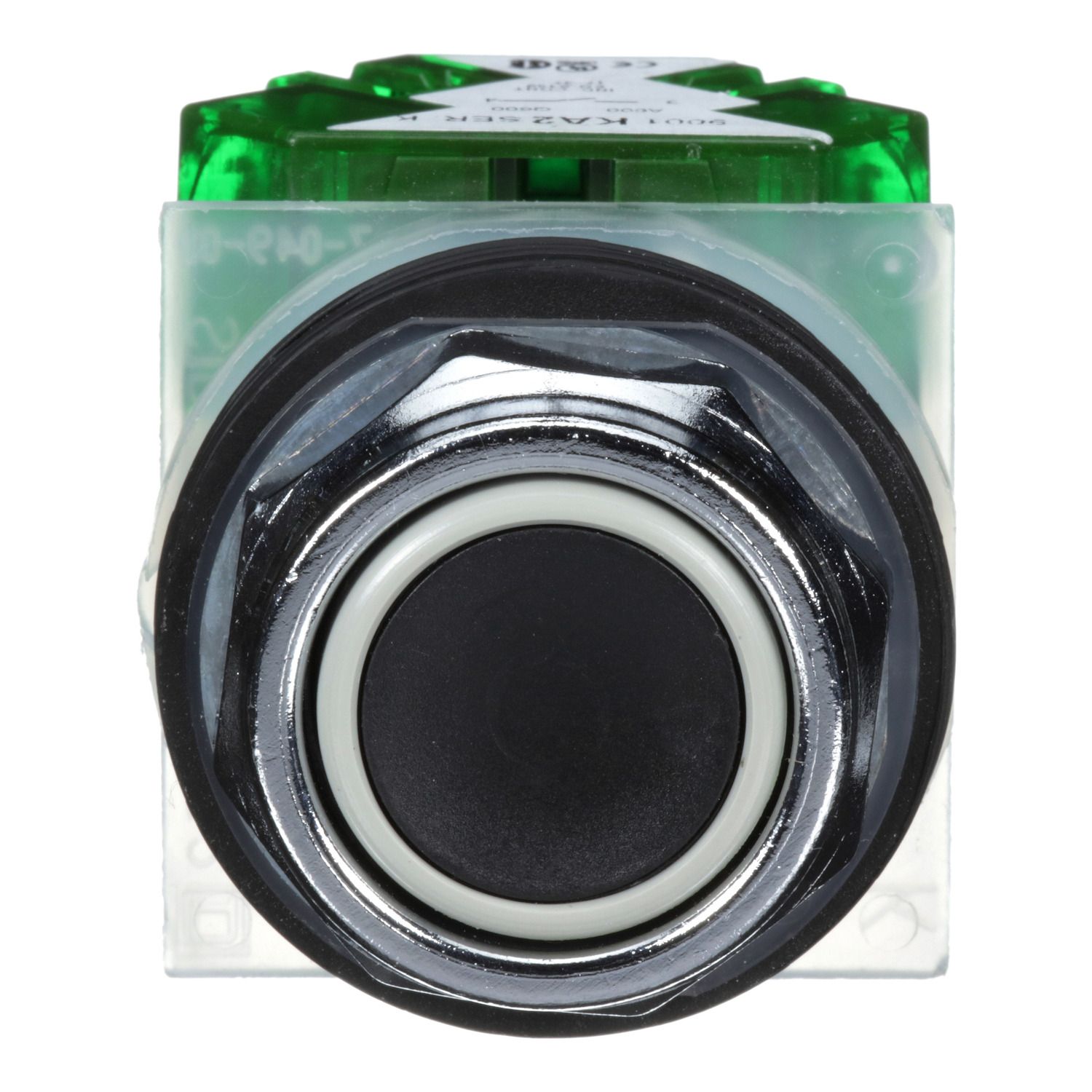

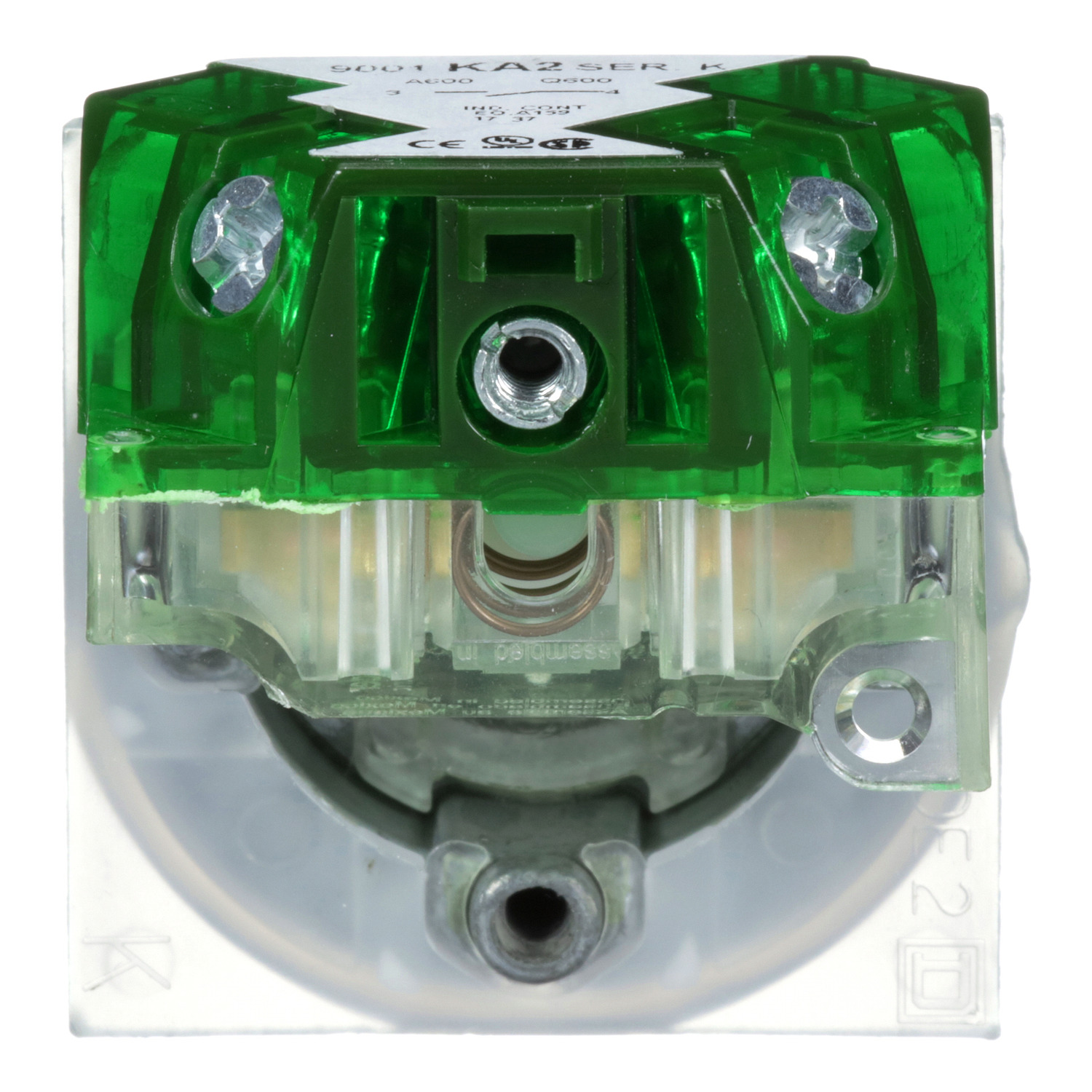

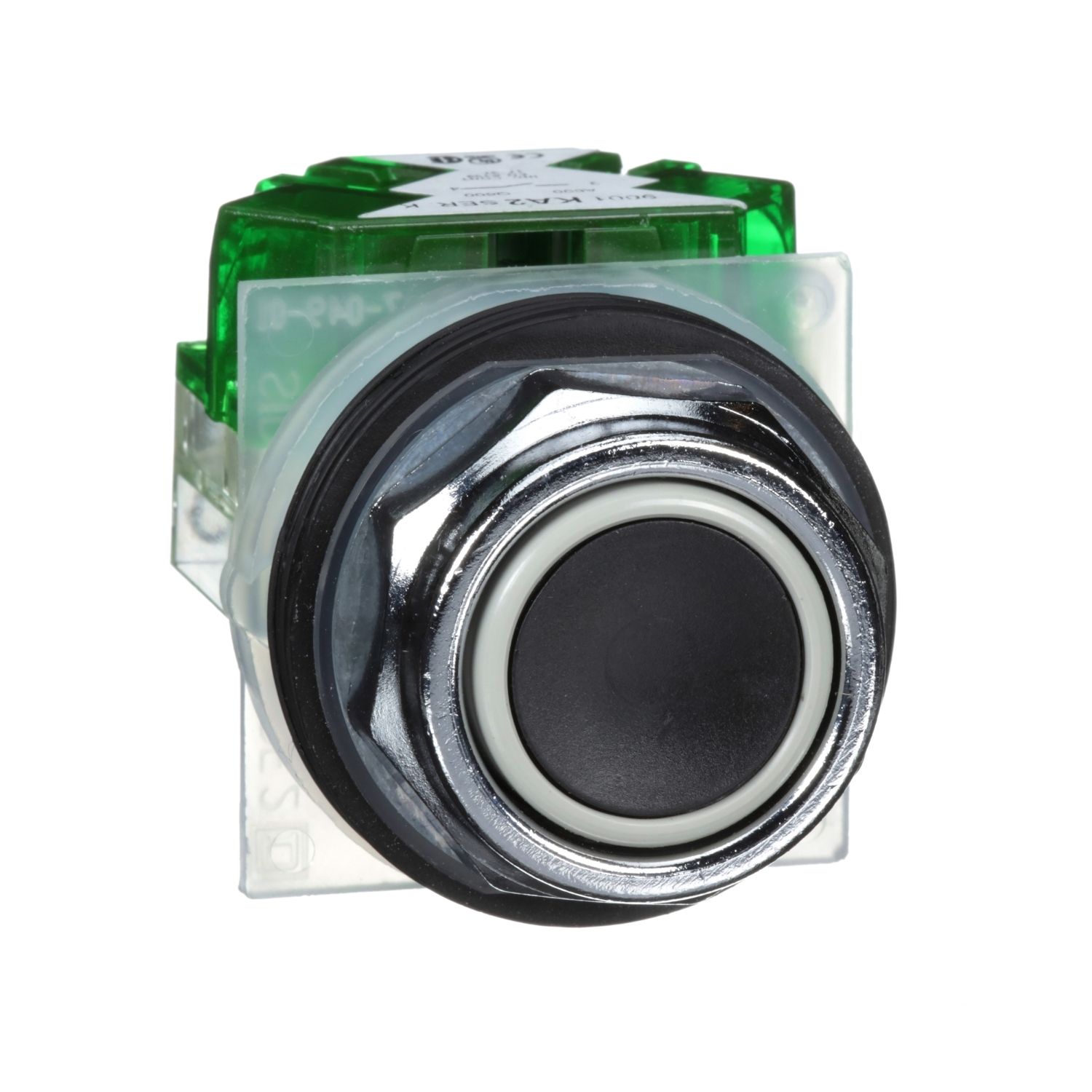

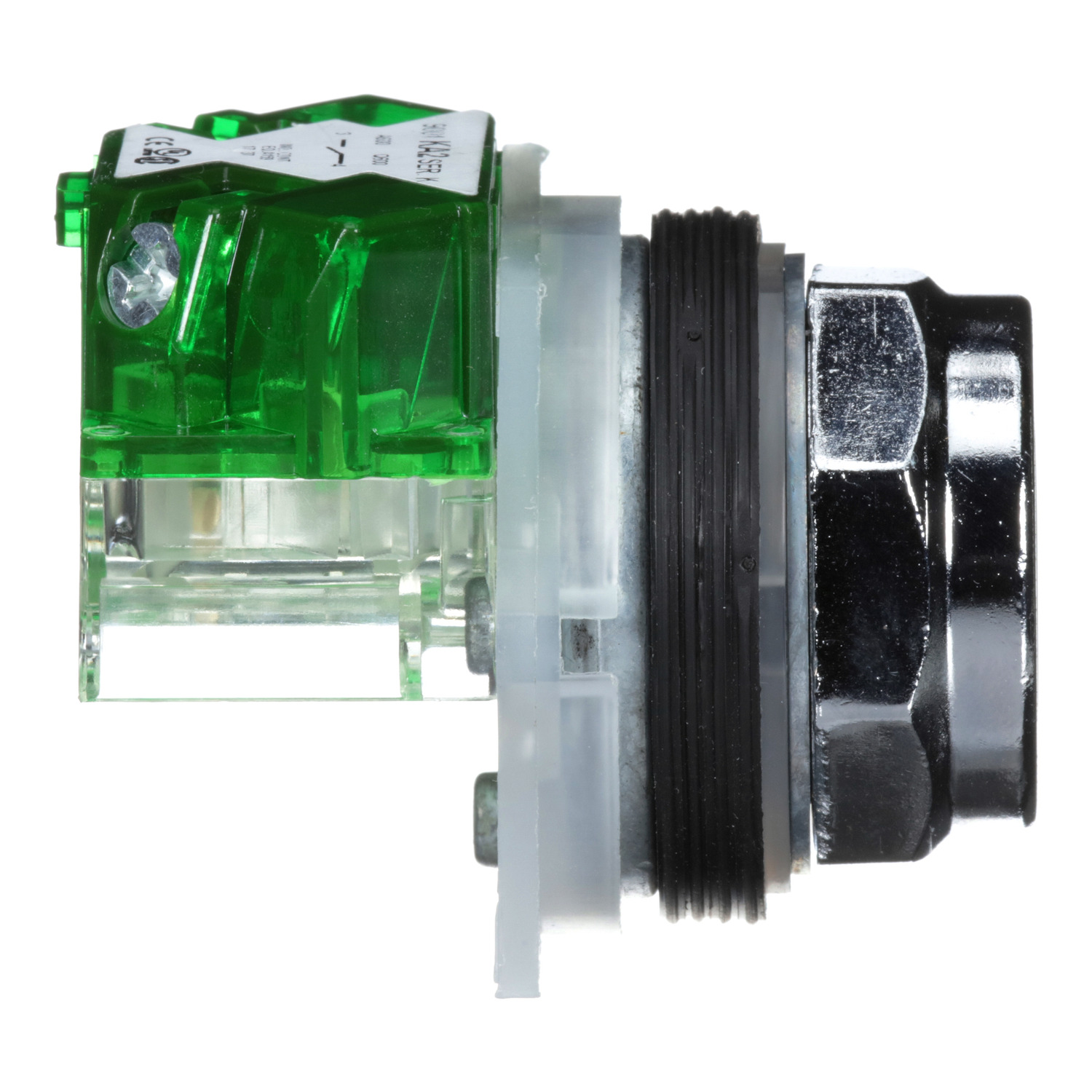

Push button, Harmony 9001K, metal, flush, black, 30mm, spring return, 1NO

Manufacturer: Schneider Electric

SKU: 9001KR1BH5

GTIN: 785901066781

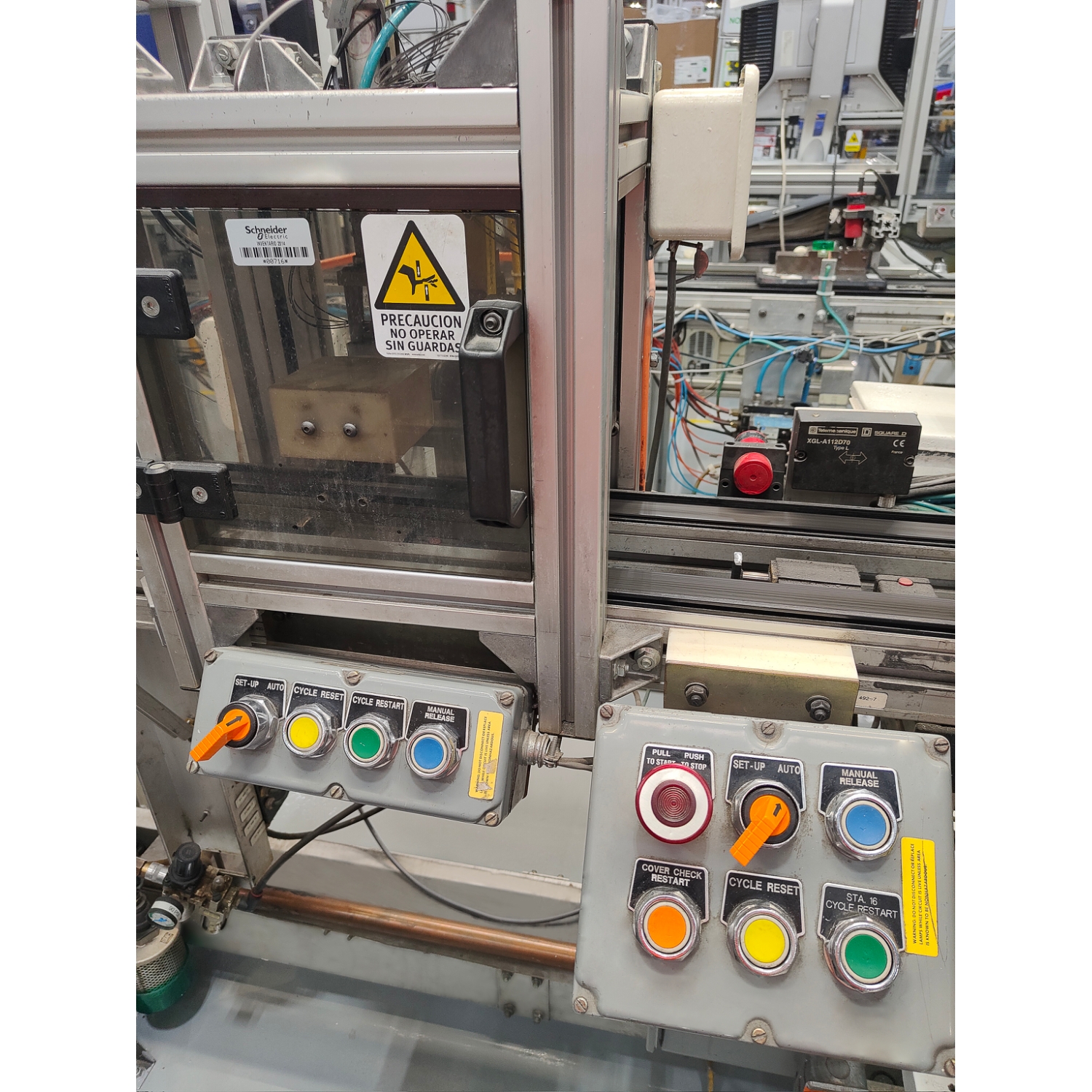

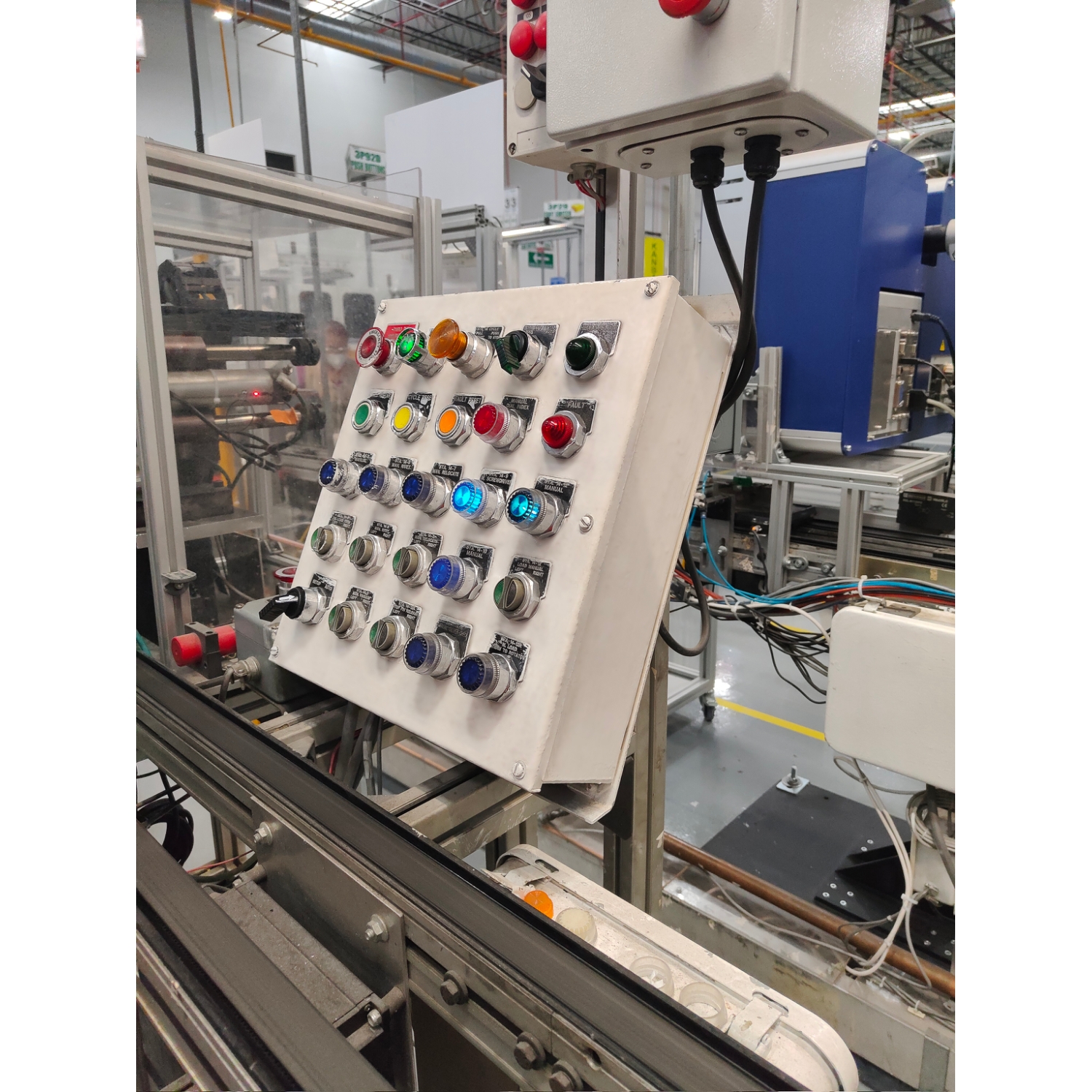

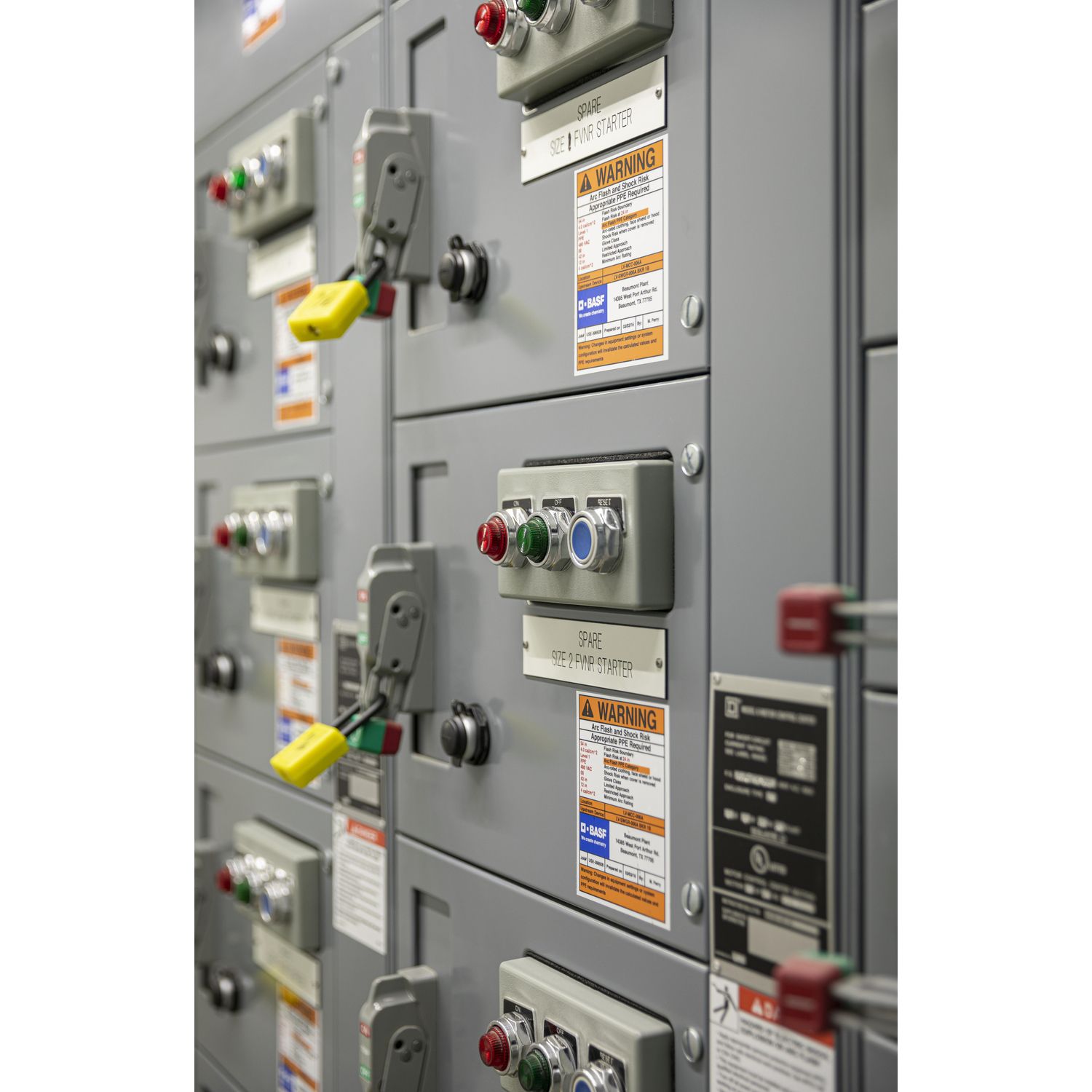

Image of product in real life situation

Catalog

Environmental Disclosure

Instruction sheet

Circularity Profile

Declaration of conformity

Old price: $88.88 inc GST

Price: $54.07 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This black push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 1 x NO contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features spring return flush push. It weighs 121g and its dimensions are, 48mm wide, 45mm high, 56mm deep. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name	Attribute value
Main
Device short name	9001K
Operator profile	black flush, unmarked
Product or component type	push-button
Type of operator	spring return
Range of product	Harmony 9001K
Operator additional information	metal guard
Complementary
CAD overall depth	56 mm
Shape of screw head	cross slotted
CAD overall width	48 mm
Tightening torque	0.8-0.8 N.m conforming to IEC 60947-1
Operating position	any position
Type of operator	spring return
Compatibility code	9001K
Mechanical durability	5000000 cycles
Contact operation	standard
Connections - terminals	screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
[Ie] rated operational current	0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
Bezel material	metal
[Ui] rated insulation voltage	250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition	1 NO
[Icm] rated short-circuit making capacity	0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Device presentation	complete product
CAD overall height	45 mm
[Uimp] rated impulse withstand voltage	2.5 kV conforming to IEC 60947-1
Size	30 mm
Net weight	0.121 kg
Cap/operator or lens colour	black
Shape of signaling unit head	octagonal
Rated breaking capacity	0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
[Ith] conventional free air thermal current	10 A
Operator profile	flush
Mounting diameter	30 mm
Positive opening	without
Contacts material	silver alloy contacts
Short-circuit protection	10 A cartridge fuse conforming to IEC 60947-5-1
Terminals description ISO n°1	(13-14)NO
Environment
Protective treatment	TC
Electrical shock protection class	class II conforming to IEC 61140
NEMA degree of protection	NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP66 conforming to IEC 60529
Vibration resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn conforming to IEC 60068-2-27
Standards	EN/IEC 60947-5-4, JIS C 4520, EN/IEC 60947-5-1, JIS C 852, UL 508, CSA C22.2 No 14, EN/IEC 60947-1
Ambient air temperature for operation	-25-70 °C
Product certifications	UL 508, NEMA
