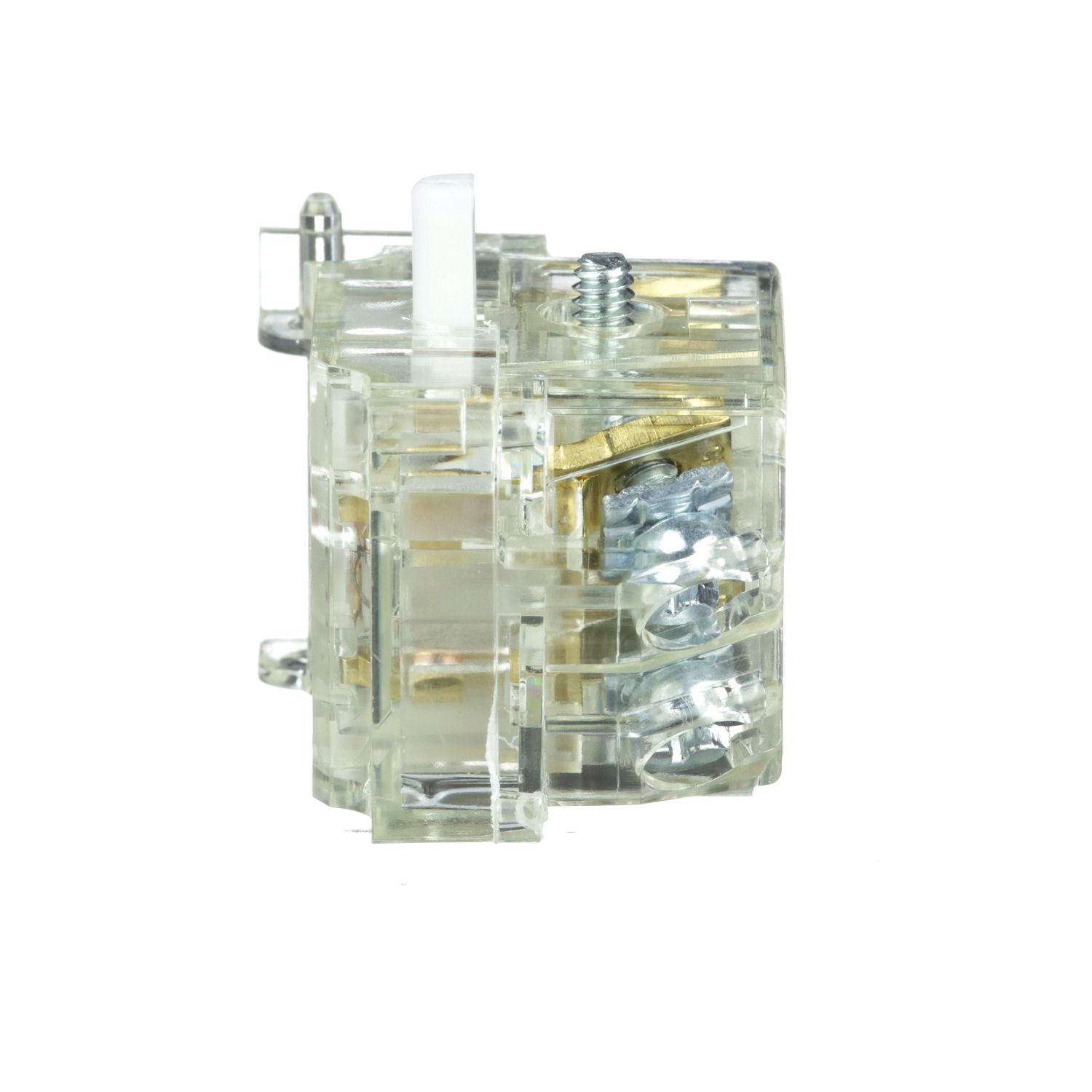

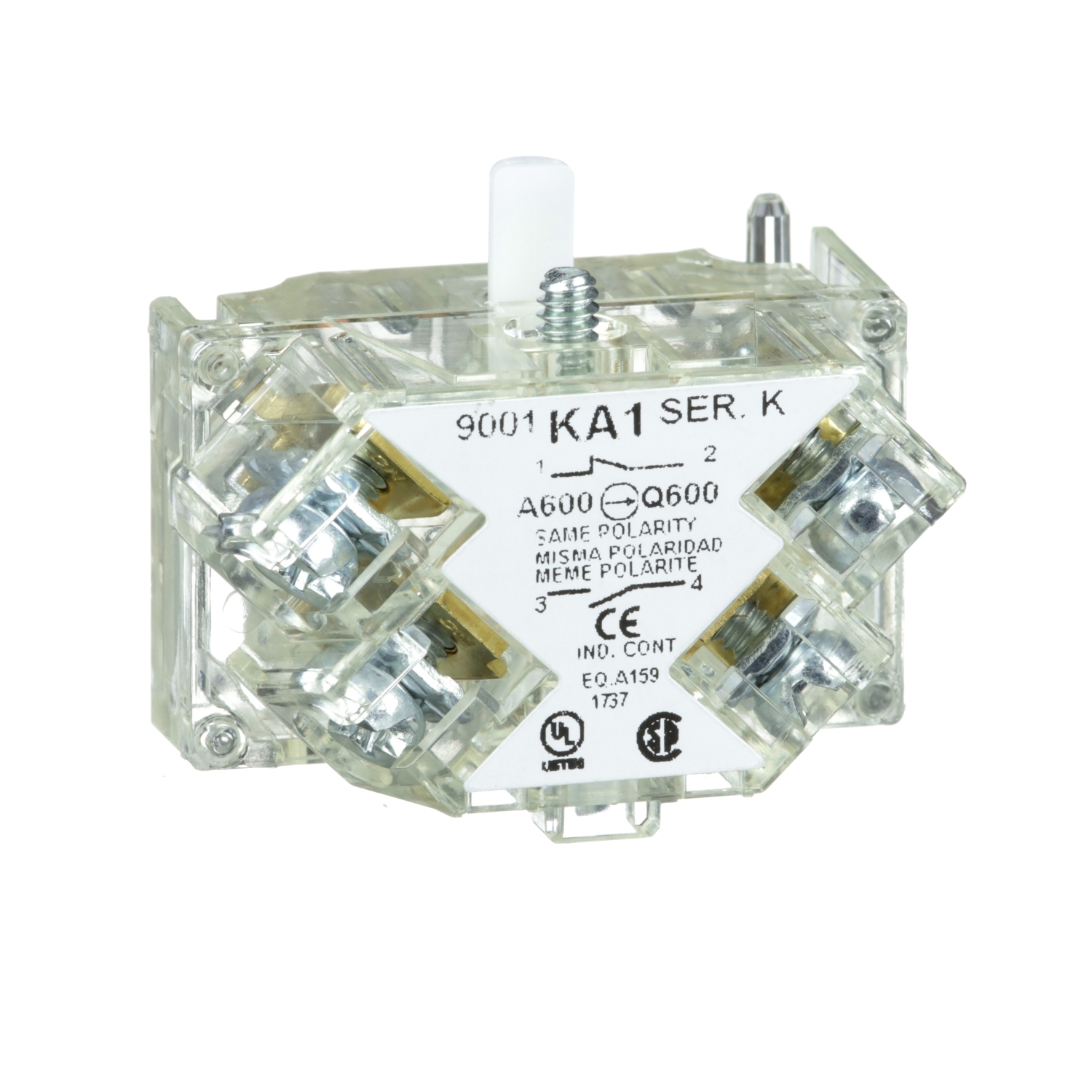

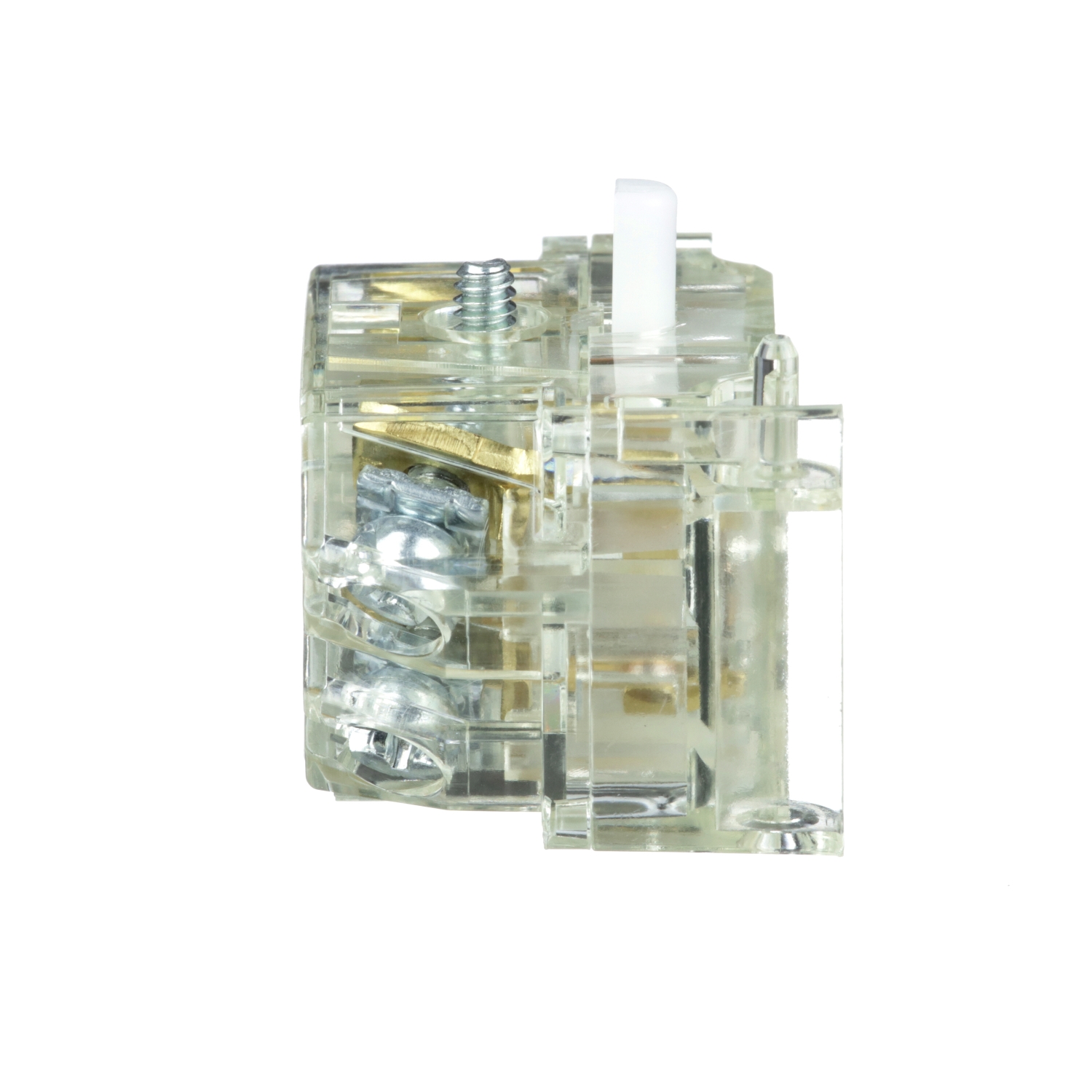

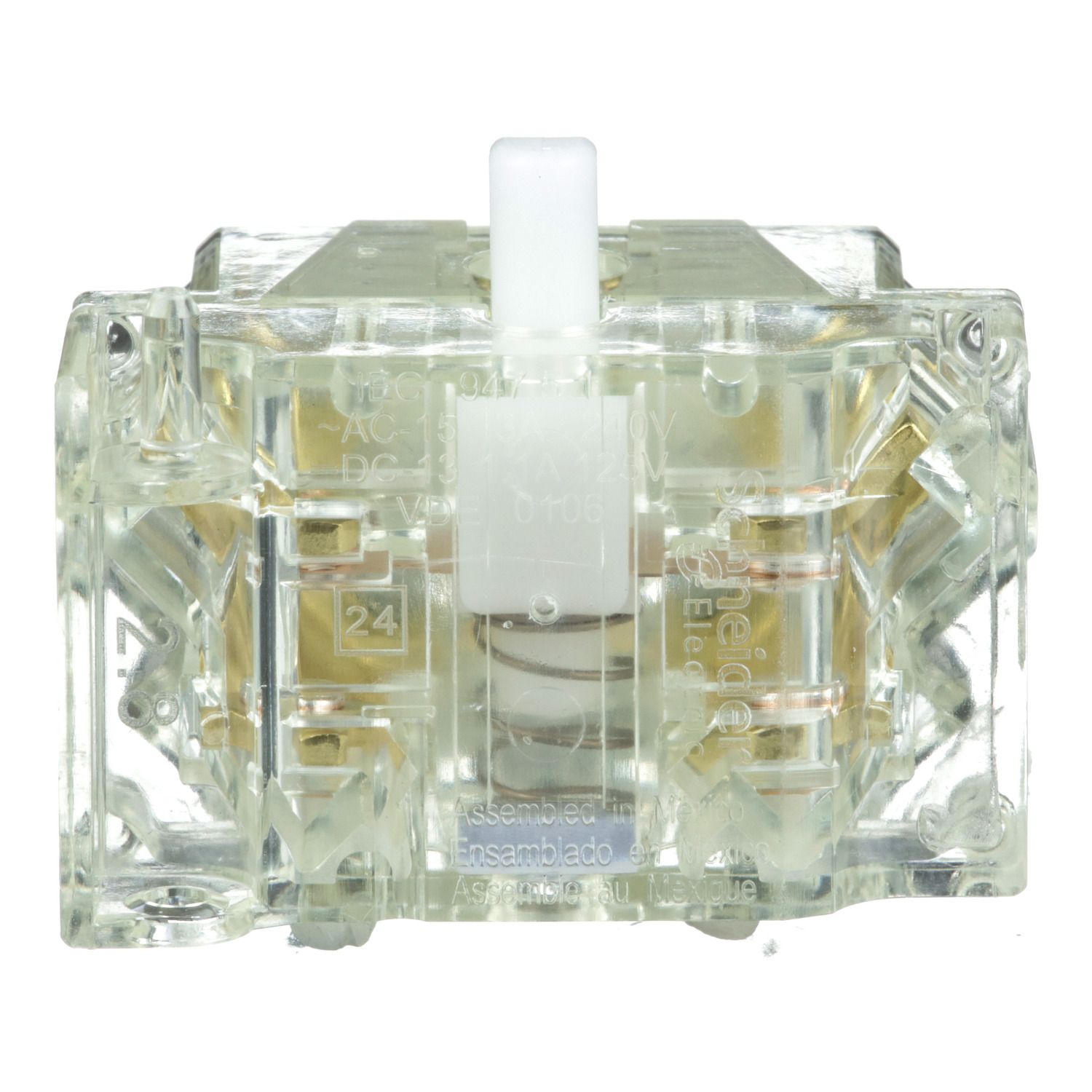

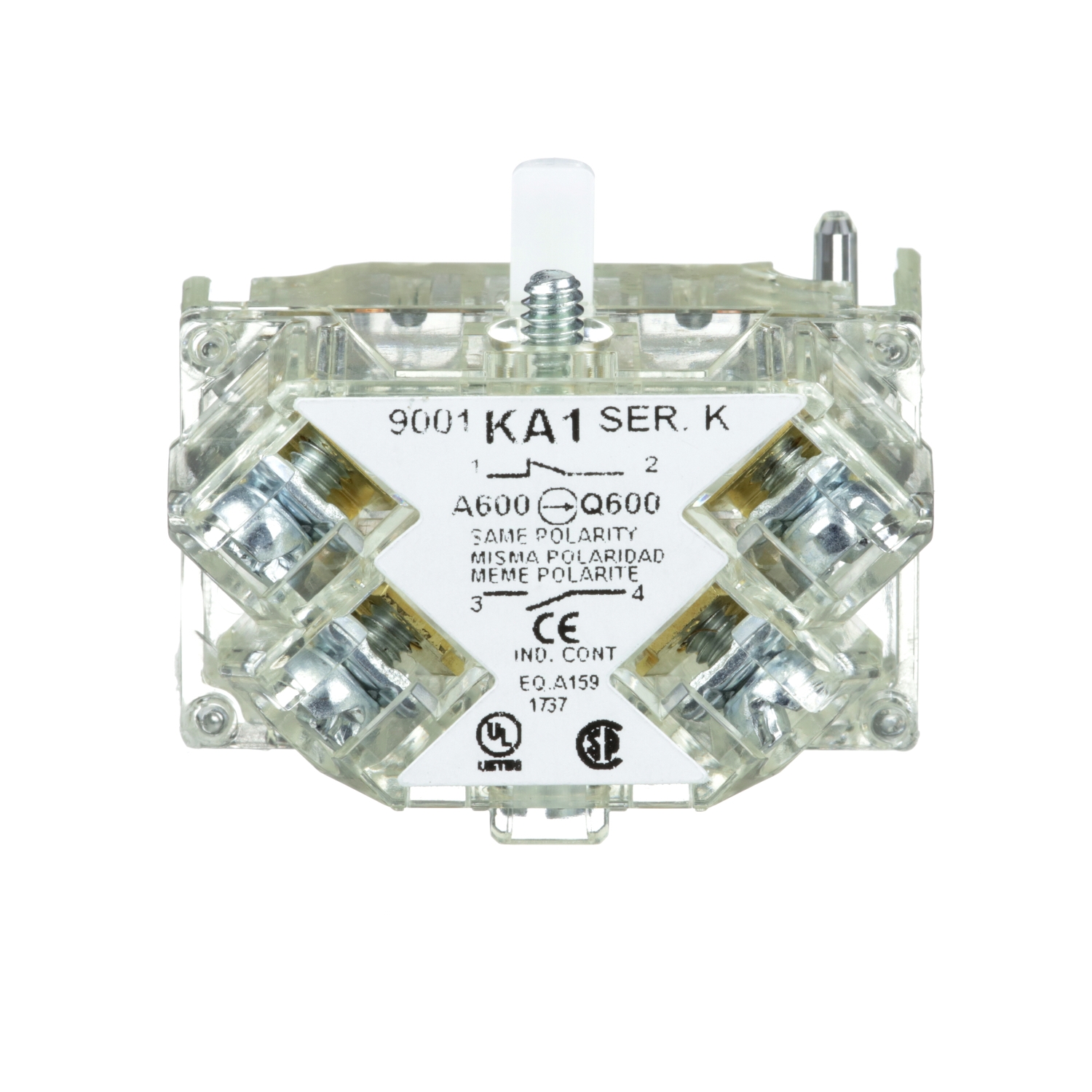

This Harmony 9001K, contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | 9001K |
| Range of product | Harmony 9001SK, Harmony 9001K |
| Product or component type | contact block |
| Complementary | |
| Shape of screw head | cross slotted |
| Tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| Compatibility code | 9001K |
| Contact operation | positive opening |
| [Ie] rated operational current | 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA |
| Rated breaking capacity | 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA |
| Contacts material | silver alloy contacts |
| [Us] rated supply voltage | 0...600 V |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Contacts type and composition | 1 C/O |
| [Icm] rated short-circuit making capacity | 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 7200 VA, 0.1 kA at 600 V DC-13, 7200 VA, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1, screw-clamp terminals |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| Net weight | 0.027 kg |
| [Ith] conventional free air thermal current | 10 A |
| Positive opening | without |
| Short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Vibration resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Standards | UL 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, JIS C 852, IEC 60947-1, UL 508, JIS C 4520, IEC 60947-5-1 |
| Product certifications | UL 508, NEMA |
Only registered users can write reviews
Related products
Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center
9001K35
Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center
$532.95 inc GST
$324.25 inc GST

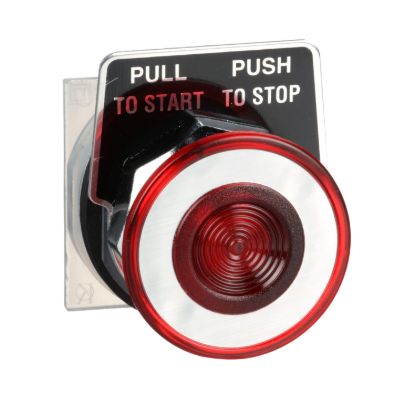

Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull
9001KR9R
Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull
$240.35 inc GST
$146.23 inc GST

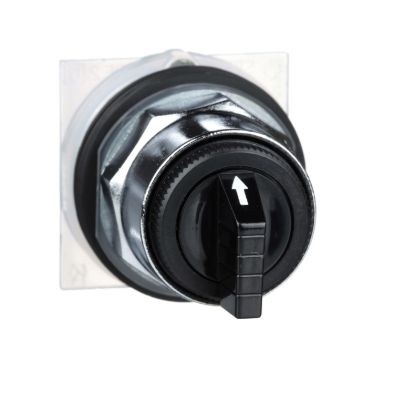

Head for selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, stay put, Cam C
9001KS43B
Head for selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, stay put, Cam C
$168.96 inc GST
$102.80 inc GST

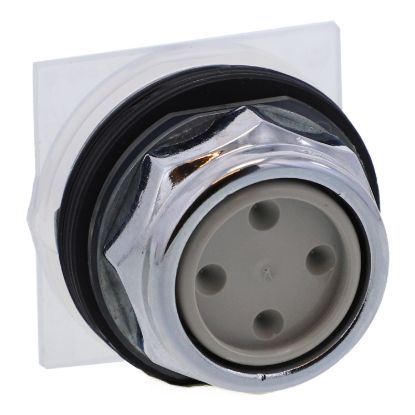

Head for spring return push button, Harmony 9001K, metal, flush, 7 colours choice, 30mm
