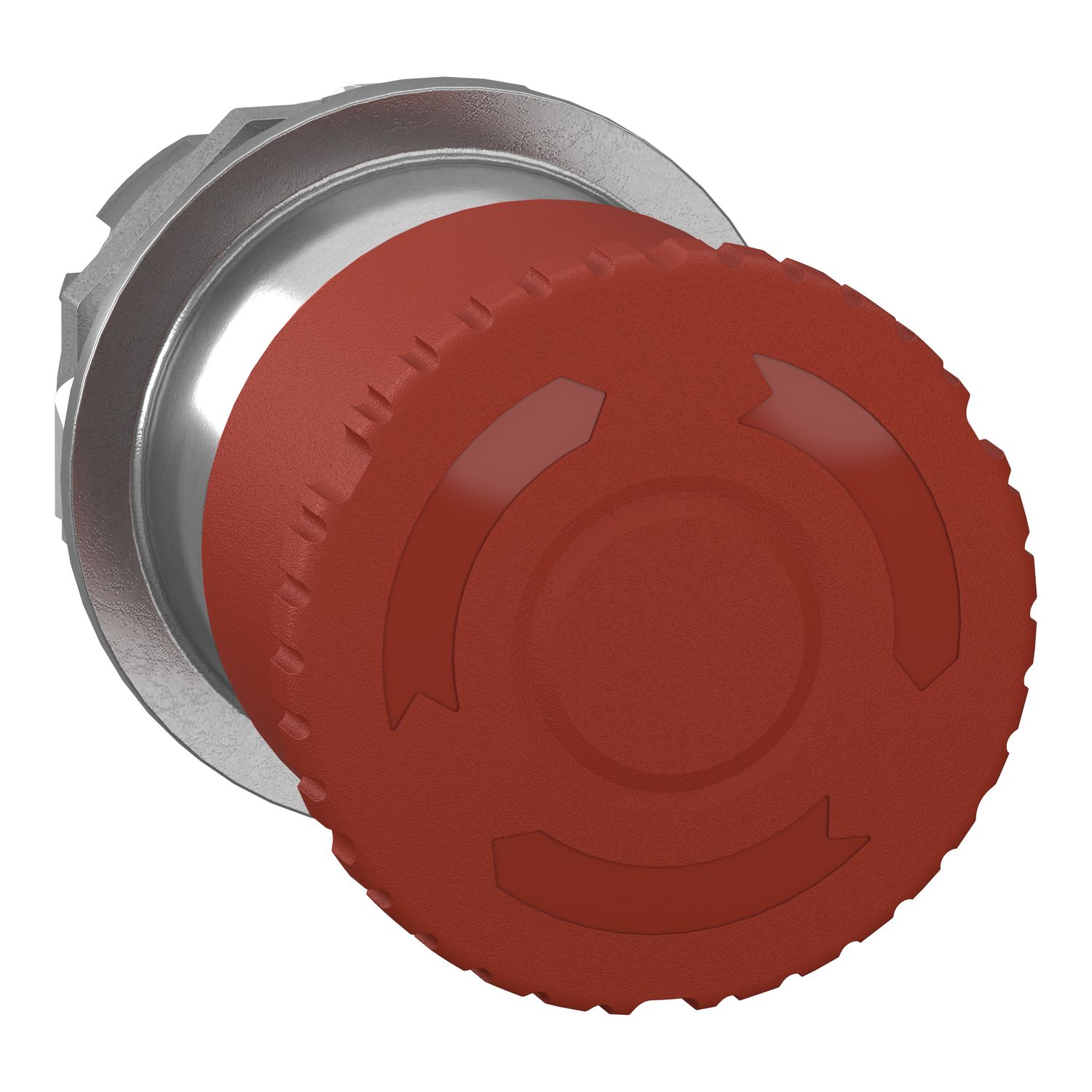

E-Stop Non-illuminated Head, Harmony 9001K, KR18, Metal, 43.5mm Mushroom, 30.5mm hole, trigger action with latch-in contact, turn-to-release
Manufacturer: Schneider Electric
SKU: 9001KR18
GTIN: 3606487209096
This product is part of the Harmony 9001K range, offering Ø 30mm metal pushbuttons, switches, and pilot lights. It is a non-illuminated metal mushroom head for Emergency Stop, that operates with a turn-to-release mechanism. It is easily installed on compatible Emergency stop bodies and features a chromium plated metal bezel. It is distinguishable visually at a distance thanks to a clear color and a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant. This metal head weighs 0.141kg (0.311lb) and has a push diameter of 43.5mm (1.712 inches). Its wide range of operating temperatures from -25°C to 70°C allows versatility in the usage of the product. This head meets many standards, including UL 508A, UL 60947-5-1, UL 60947-5-5, CSA C22.2 No 60947-5-1, and certifications such as UL, CSA and ABS. It holds CE marking. Pre-assembled bodies for non-illuminated Emergency stops can be purchased separately. The range of Ø 30mm metal and plastic control and signaling units provides robust and reliable solutions for a wide range of heavy industry applications.
Availability: Out of stock
Old price: $182.95 inc GST
$111.31 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type head for emergency stop push-button
Operator profile red mushroom Ø 43.5 mm
Range of product Harmony 9001K
Device short name 9001K
Complementary
Mounting diameter 30.5 mm
Shape of signaling unit head round
Bezel material metal
CAD overall width 43.5 mm
CAD overall depth 79.4 mm
Mechanical durability 300000 cycles
Net weight 0.1415 kg
Contacts type and composition without contact block
Type of operator turn to release trigger action and mechanical latching
Cap/operator or lens colour red
CAD overall height 43.5 mm
Device presentation operator head
Compatibility code 9001K
Environment
Standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-1, UL 60947-5-5, CSA C22.2 No 60947-5-1
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class class I conforming to IEC 61140
Ambient air temperature for operation -25-70 °C
Product certifications UL, CSA, CE, ABS (Marine)
NEMA degree of protection UL type 1/2/3/3R/4/4X/12/13 conforming to UL 60947-5-1, UL type 1/2/3/3R/4/4X/12/13 conforming to UL 60947-5-5
Shock resistance 50 gn conforming to IEC 60068-2-27
Ambient air temperature for storage -40-70 °C
Contractual warranty
Warranty 18
