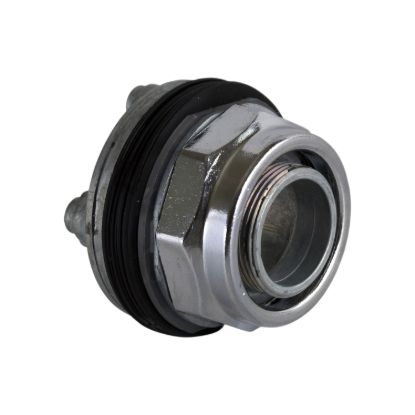

This Harmony 9001K metal pilot light head, without a cap and bulb, is supplied with 6V. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. A dedicated bulb and cap need to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | K |
| Product or component type | head for pilot light |
| Range of product | Harmony 9001K |
| Complementary | |
| Bulb base | BA 9s |
| Shape of screw head | round |
| Bezel material | metal |
| Size | 30 mm |
| Cap/operator or lens colour | without cap |
| Operating mode | normal |
| Light block supply | full voltage, direct <= 250 V |
| Mounting diameter | 30 mm |
| Light source | bulb not included |
| [Us] rated supply voltage | 6 V |
| Environment | |
| NEMA degree of protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product certifications | UL listed file E42259 CCN NKCR, CE, CSA LR25490 class 3211 03 |
