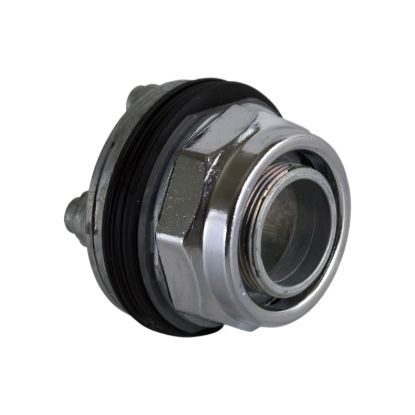

Pilot light head, Harmony 9001K, metal, without cap, 30mm, 220-240V

Manufacturer: Schneider Electric

SKU: 9001KP7

GTIN: 785901008743

Environmental Disclosure

Instruction sheet

CAD

Circularity Profile

Declaration of conformity

Full Description

This Harmony 9001K is a head for a metal pilot light, without a cap, and is supplied with 220-240V. It has a chromium-plated metal bezel and an incandescent BA 9s bulb. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. It complies with CE, UL listed file E42259 CCN NKCR, and CSA LR25490 class 3211 03 certifications. A dedicated cap needs to be purchased separately. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.

Old price: $293.15 inc GST

Price: $178.35 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Range of product	Harmony 9001K
Product or component type	head for pilot light
Device short name	K
Complementary
[Us] rated supply voltage	220...240 V
Light source	incandescent bulb
Light block supply	via transformer 220 V AC 50/60 Hz, via transformer 240 V AC 50/60 Hz, via integral transformer
Mounting diameter	30 mm
Operating mode	normal
Cap/operator or lens colour	without cap
Size	30 mm
Bezel material	metal
Shape of screw head	round
Supply frequency	50...60 Hz
Bulb base	BA 9s
Environment
Product certifications	CE, UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03
NEMA degree of protection	NEMA 3R/6/13
IP degree of protection	IP65/IP66
Contractual warranty
Warranty	18
