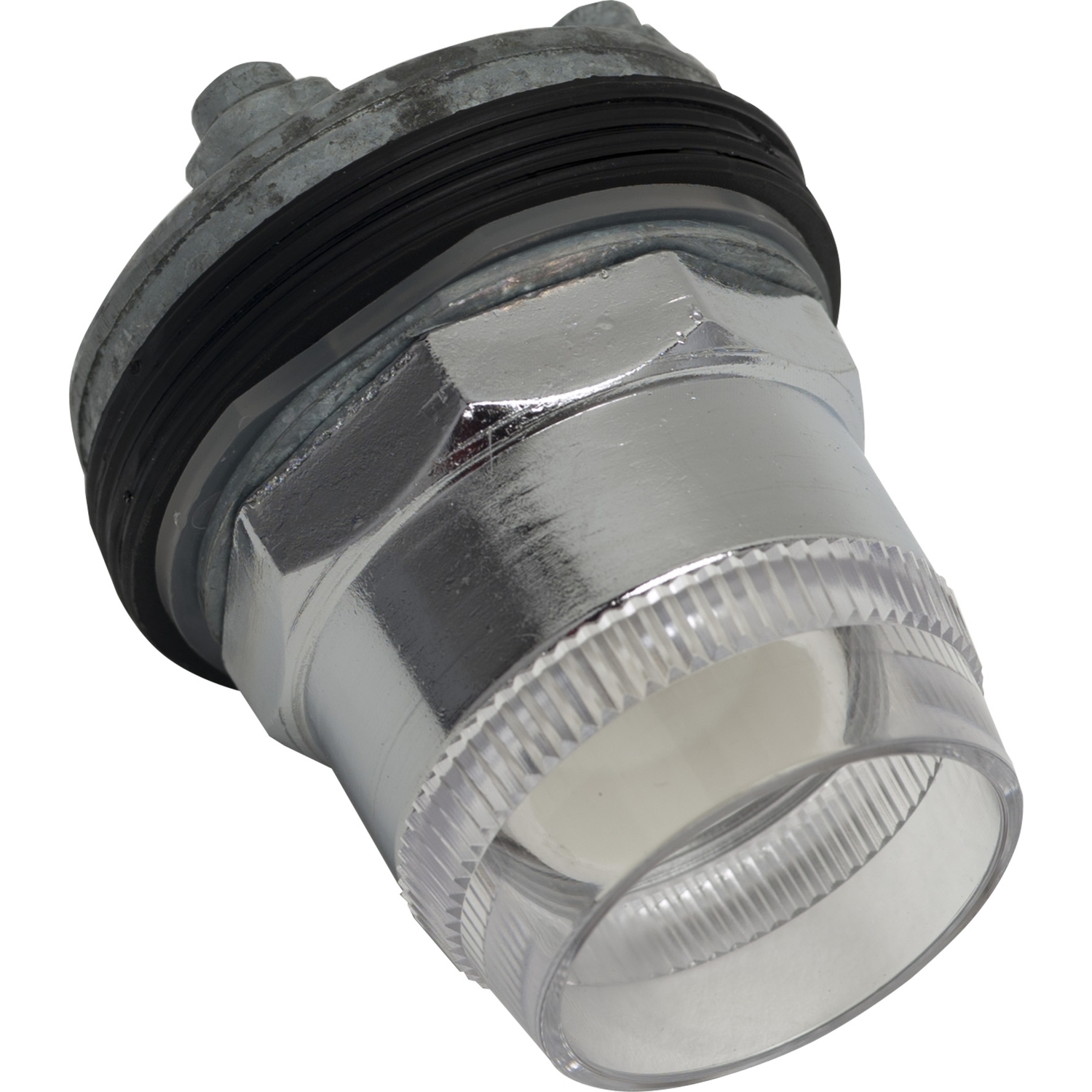

This illuminated push-button with full guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | K |
| Product or component type | head for illuminated push-button |
| Range of product | Harmony 9001K |
| Operator additional information | plastic guard |
| Complementary | |
| Bulb base | BA 9s |
| Type of operator | spring return |
| [Ie] rated operational current | 10 A, DC-13, 10 A, AC-15 |
| Bezel material | metal |
| Light source | without, bulb not included |
| Contacts type and composition | without contact block |
| Device presentation | basic element |
| Size | 30 mm |
| Cap/operator or lens colour | without cap |
| Operator profile | flush |
| Mounting diameter | 30 mm |
| Light block supply | without supply |
| Environment | |
| NEMA degree of protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product certifications | CE, CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR, NEMA |
