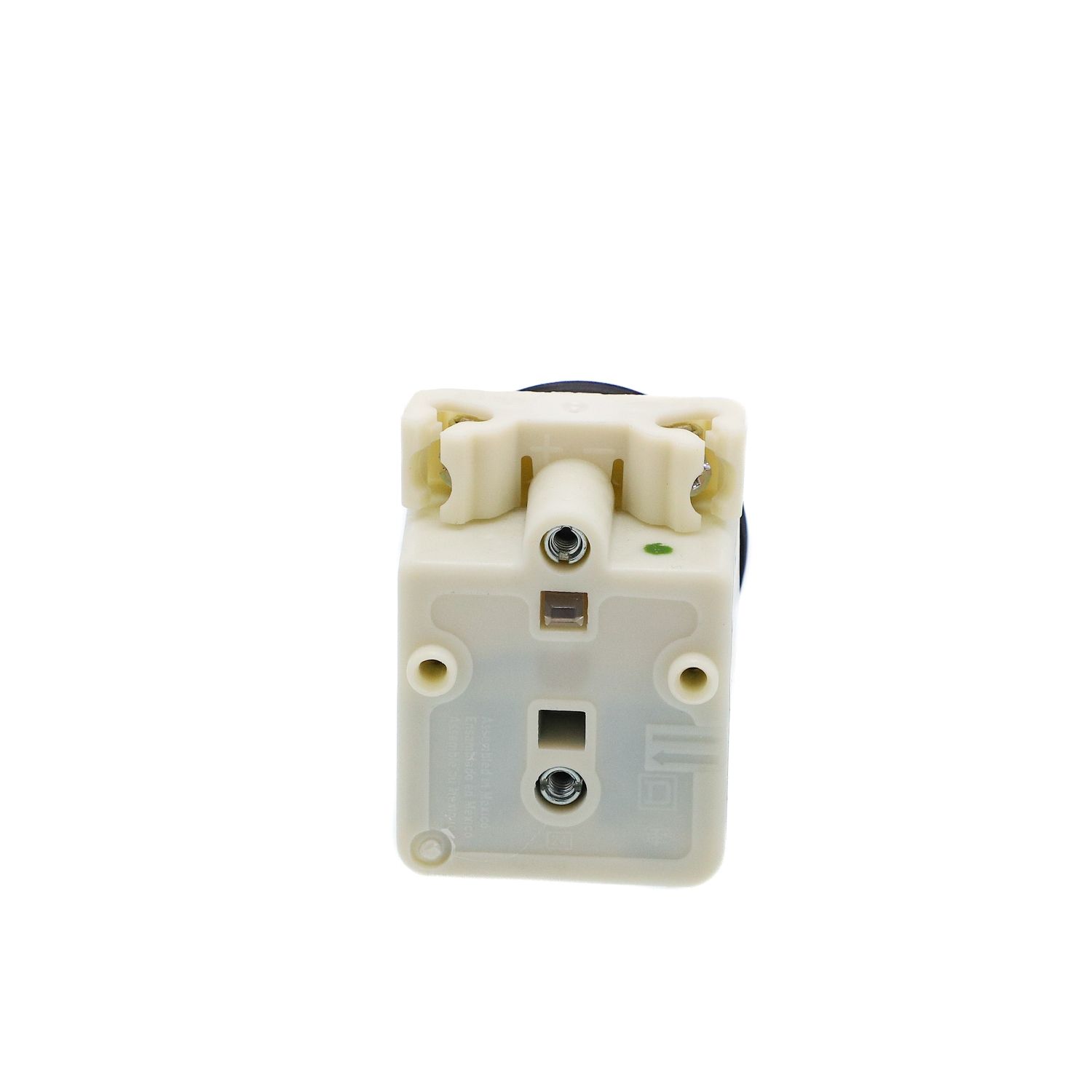

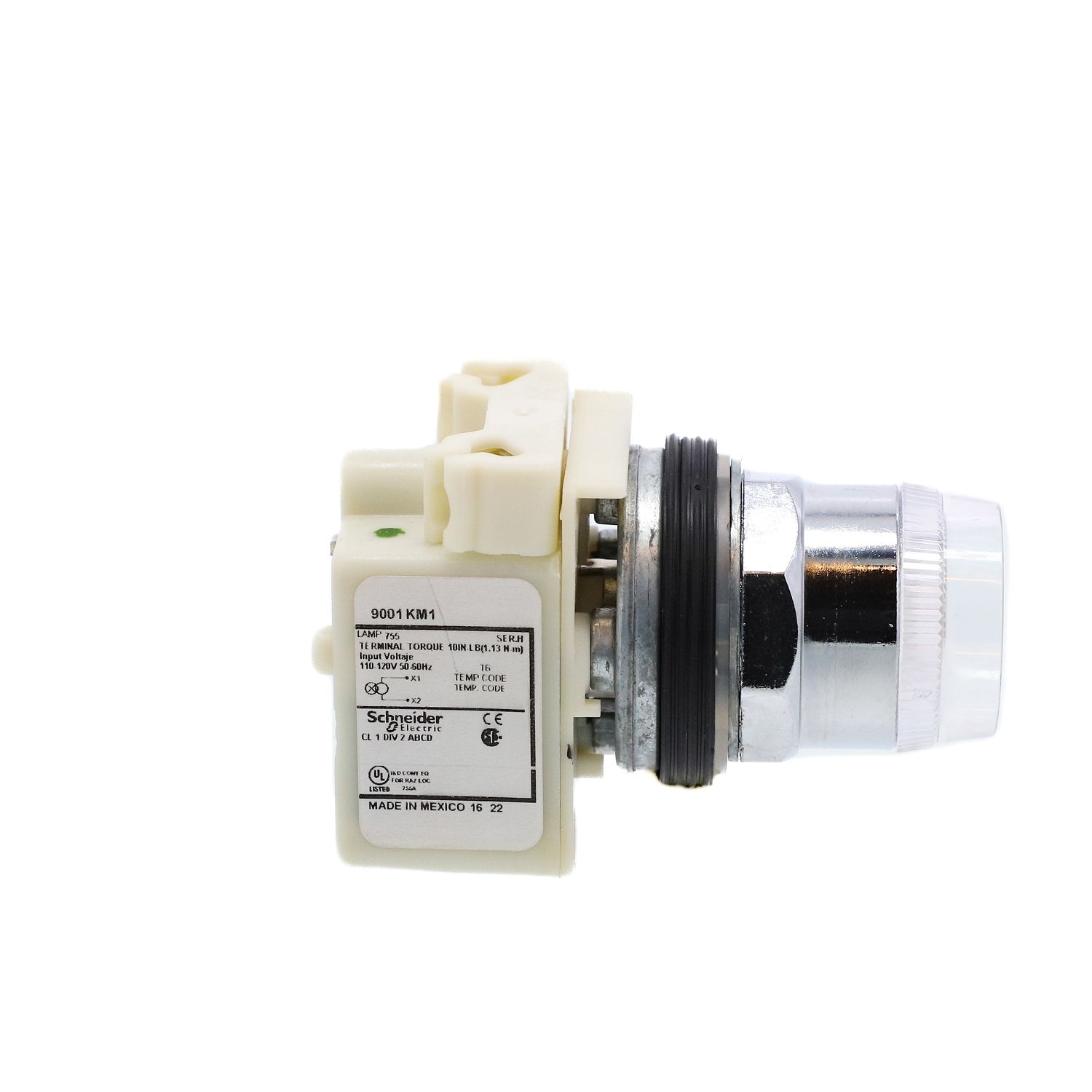

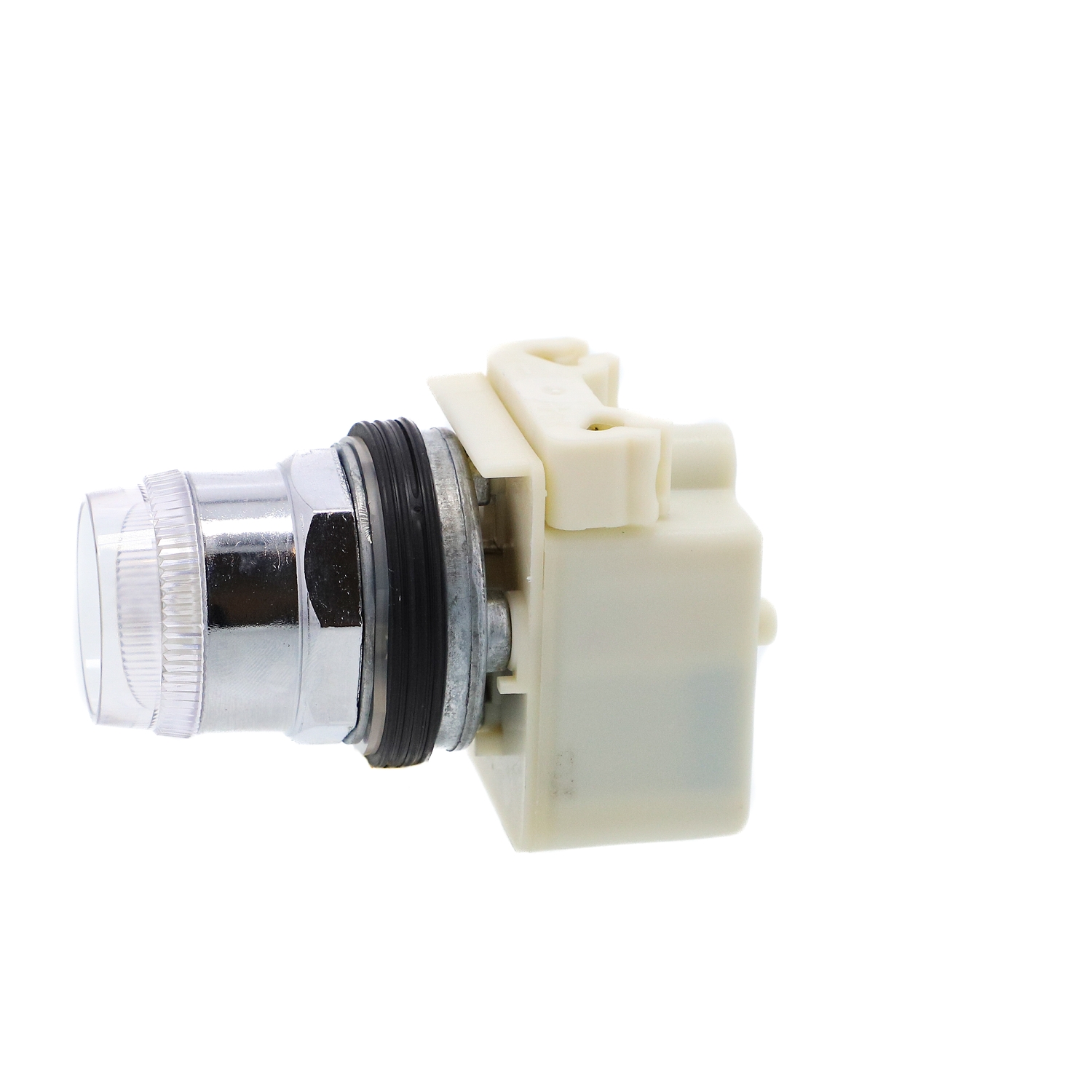

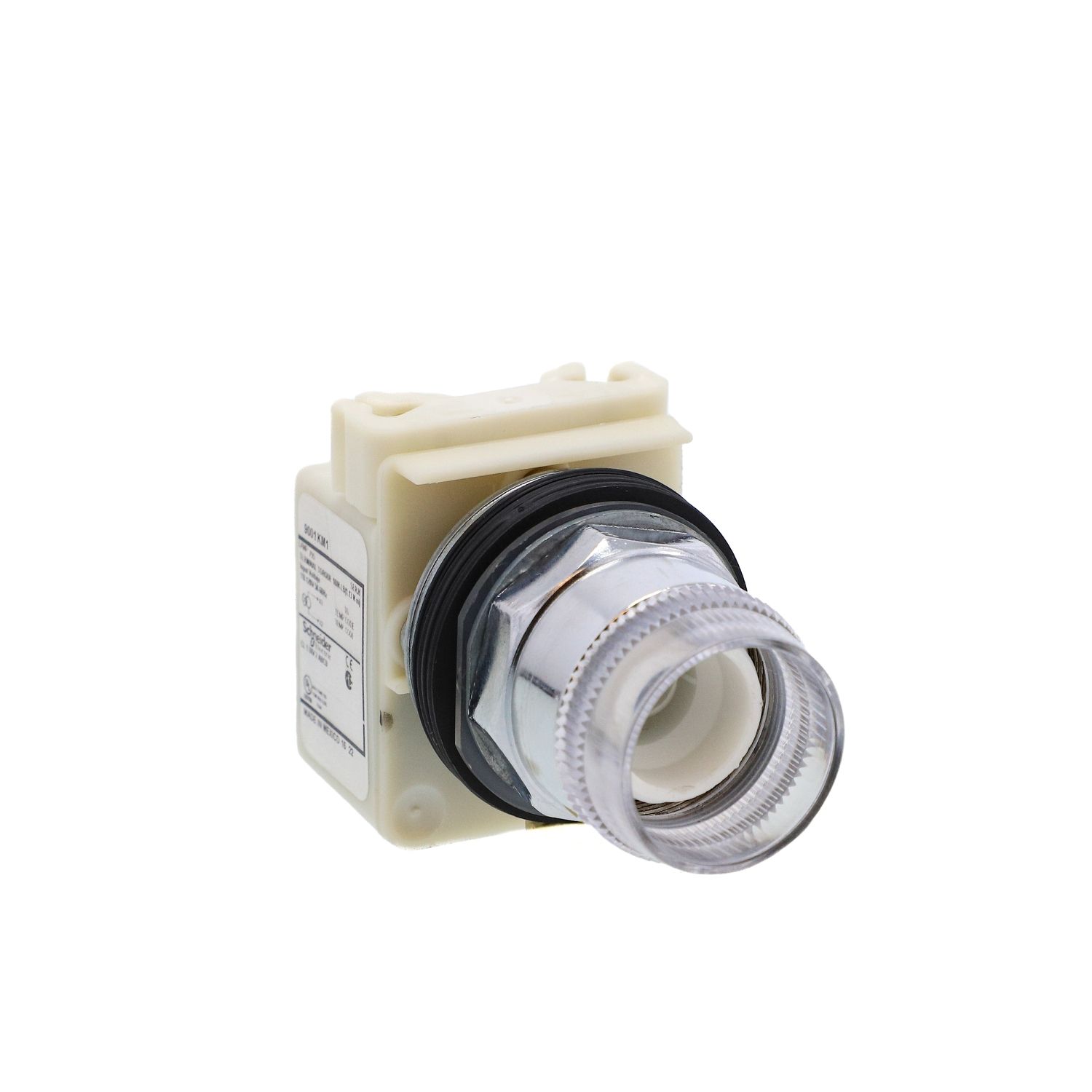

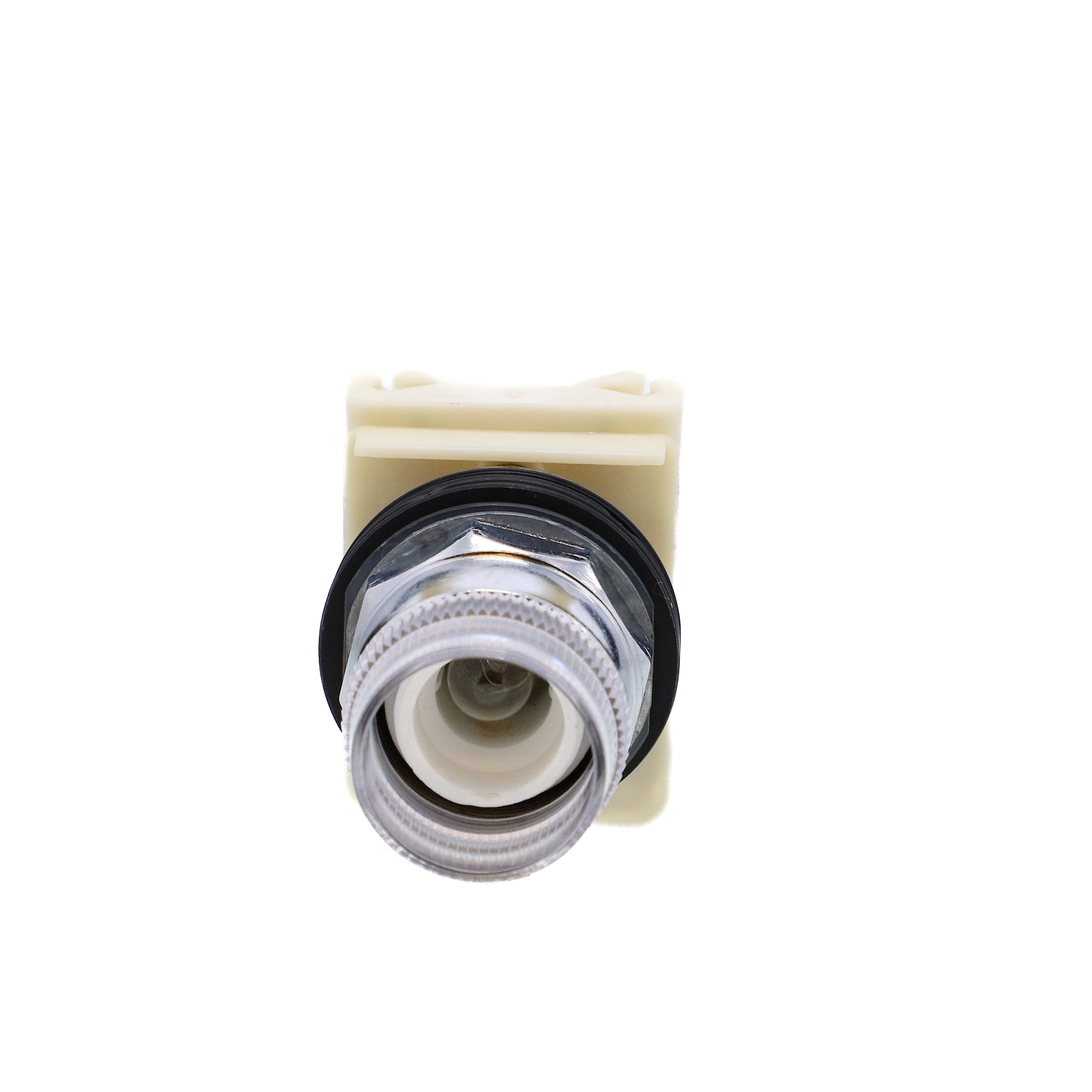

This illuminated push-button with transformer and full plastic guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | K |
| Product or component type | head for illuminated push-button |
| Range of product | Harmony 9001K |
| Operator additional information | plastic guard |
| Complementary | |
| Bulb base | BA 9s |
| Supply frequency | 50...60 Hz |
| Type of operator | spring return |
| [Ie] rated operational current | 10 A, DC-13, 10 A, AC-15 |
| Bezel material | metal |
| Contacts type and composition | without contact block |
| Device presentation | basic element |
| Size | 30 mm |
| Cap/operator or lens colour | without cap |
| Operator profile | flush |
| Light block supply | via integral transformer, via transformer |
| Mounting diameter | 30 mm |
| Light source | incandescent bulb |
| [Us] rated supply voltage | 110...120 V |
| Environment | |
| NEMA degree of protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product certifications | CE, UL listed file E42259 CCN NKCR, NEMA, CSA LR 25490 class 3211 03 |
