| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | 9001K |
| Operator profile | flush |

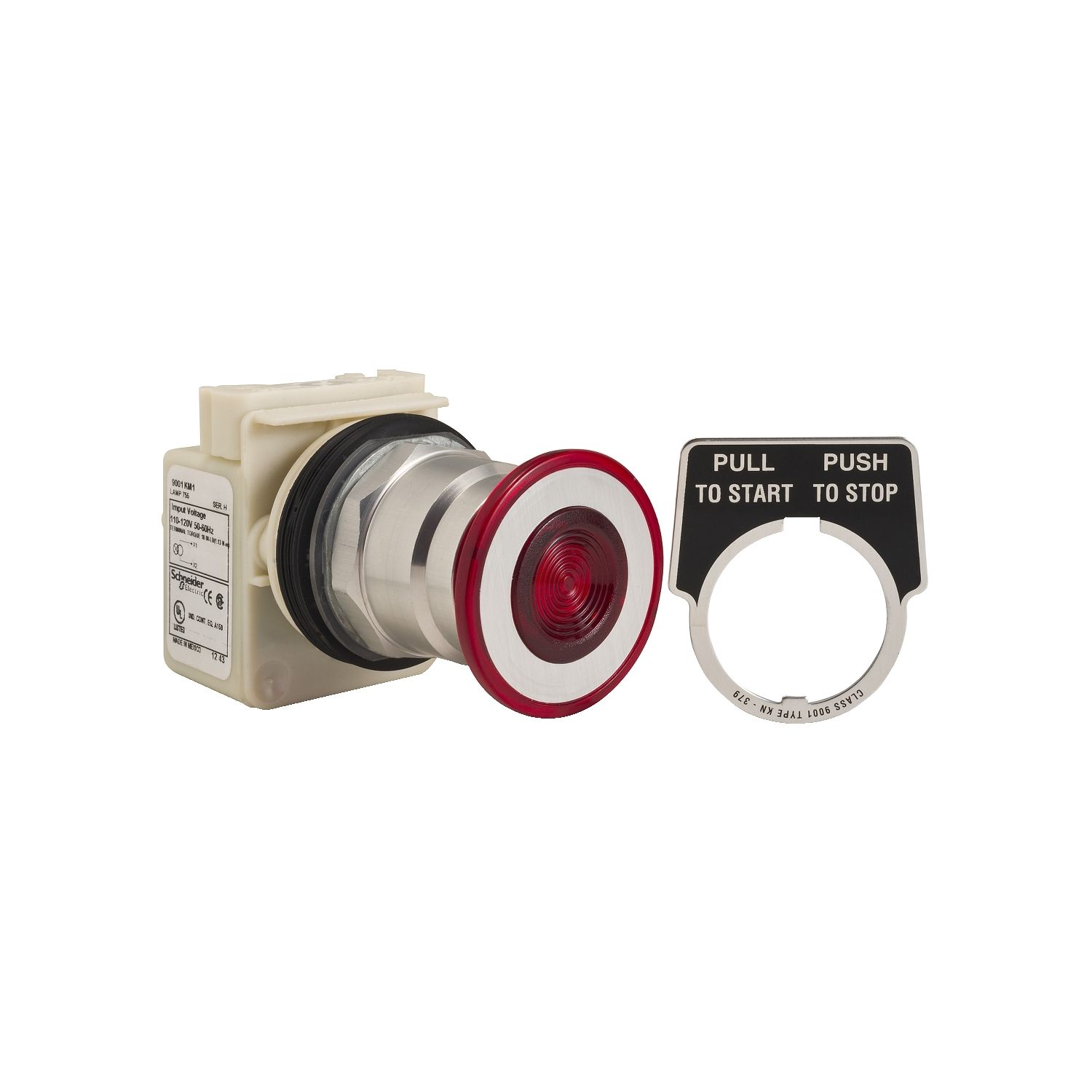

| Product or component type | head for illuminated push-button |
| Range of product | Harmony 9001K |
| Operator additional information | screw-on plastic |
| Complementary | |
| Type of operator | pull : spring return, center : stay put, push : spring return, spring return |
| Compatibility code | 9001K |
| Operator position information | 3 positions |
| Bezel material | metal |
| Contacts type and composition | without contact block |
| Cap/operator or lens colour | red |
| Shape of signaling unit head | round |
| Operator profile | mushroom Ø 41 mm |
| Light block supply | via integral transformer |
| Mounting diameter | 30 mm |
| [Us] rated supply voltage | 110...120 V |
