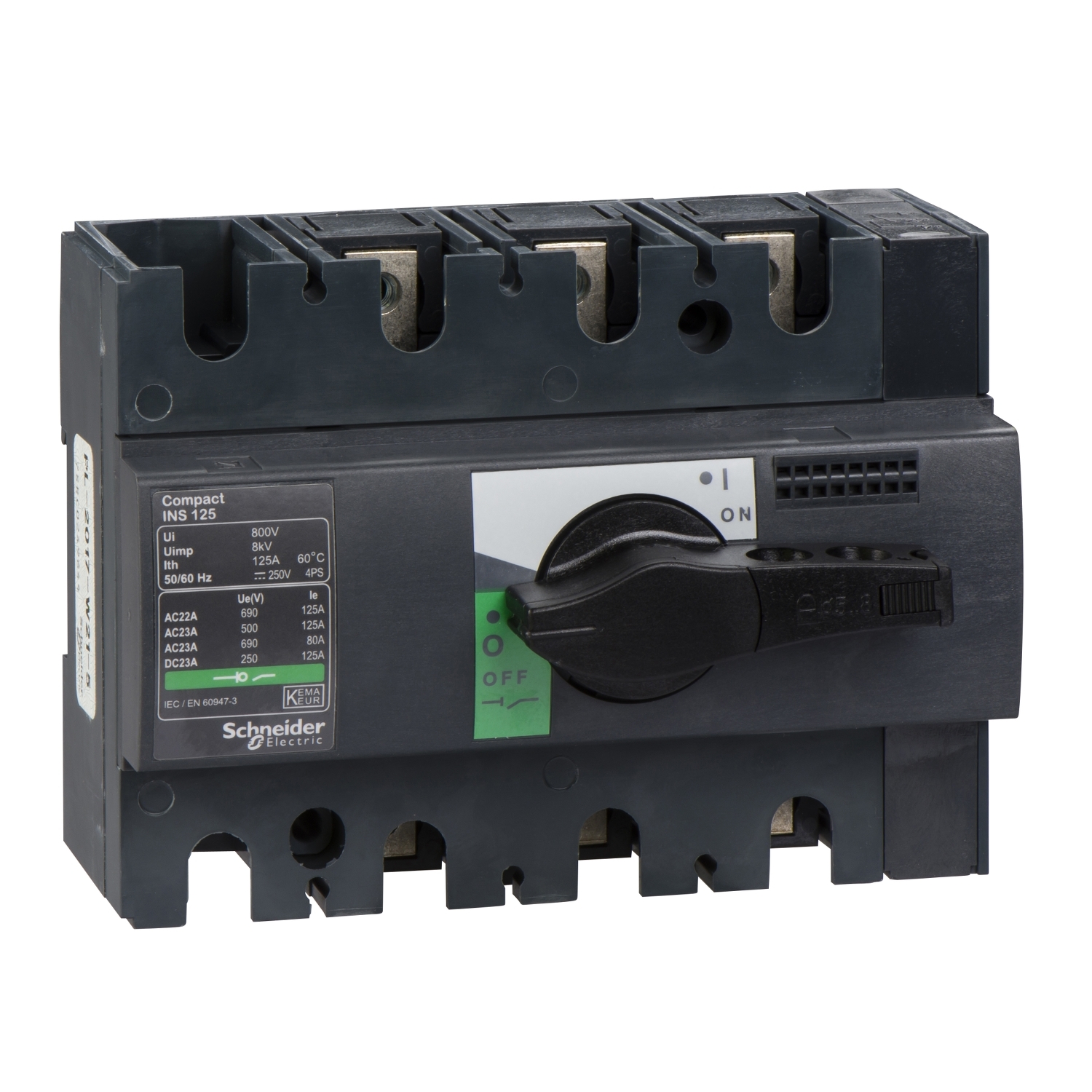

This Compact INS125 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Compact INS125 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | DC-23A: 125 A DC 50/60 Hz 125 V 2 poles in series, DC-22A: 125 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 80 A AC 50/60 Hz 660/690 V, AC-23A: 125 A AC 50/60 Hz 500 V, AC-23A: 125 A AC 50/60 Hz 440/480 V, AC-23A: 125 A AC 50/60 Hz 380/415 V, AC-23A: 125 A AC 50/60 Hz 220/240 V, AC-22A: 125 A AC 50/60 Hz 660/690 V, AC-22A: 125 A AC 50/60 Hz 500 V 2 poles in series, AC-22A: 125 A AC 50/60 Hz 440/480 V 2 poles in series, AC-22A: 125 A AC 50/60 Hz 380/415 V, AC-22A: 125 A AC 50/60 Hz 220/240 V |
| Suitability for isolation | yes |
| Pollution degree | 3 |
| Switch-disconnector name | Compact INS125 |
| Range | ComPacT |
| [Ith] conventional free air thermal current | 125 A at 60 °C |
| Range of product | INS40...160 |
| Poles description | 3P |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 20 kA switch-disconnector alone 690 V AC at 50/60 Hz, 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
| Product name | ComPacT INS |
| Product or component type | switch disconnector |
| Visible break | no |
| Network type | DC, AC |
| Contact position indicator | yes |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 125 V DC |
| Network frequency | 50/60 Hz |
| Complementary | |
| Rated duty | uninterrupted |
| [Icw] rated short-time withstand current | 5.5 kA during 1 s conforming to IEC 60947-3, 3.175 kA during 3 s conforming to IEC 60947-3, 1.23 kA during 20 s conforming to IEC 60947-3, 0.01 kA during 30 s conforming to IEC 60947-3 |
| Compatibility code | INS125 |
| Electrical durability | AC-23A: 1500 cycles 690 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 690 V AC 50/60 Hz, DC-23A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, DC-22A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz |
| Mounting mode | fixed |
| Upside connection | front |
| Control type | rotary handle |
| Downside connection | front |
| Connection pitch | 30 mm |
| Intermittent duty class | class 120 - 60 % |
| Height | 100 mm |
| Maximum power | AC-23: 75 kW at 660/690 V AC 50/60 Hz, AC-23: 75 kW at 500/525 V AC 50/60 Hz, AC-23: 55 kW at 380/415 V AC 50/60 Hz, AC-23: 37 kW at 220/240 V AC 50/60 Hz, AC-23: 55 kW at 440 V AC 50/60 Hz |
| Depth | 62.5 mm |
| Width | 135 mm |
| Enclosure dimensions for Ithe | 260 mm x 160 mm x 55 mm |
| Mechanical durability | 15000 cycles |
| Net weight | 0.8 kg |
| Handle colour | black |
| Mounting support | plate, DIN rail |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to EN 50102 |
| Standards | IEC 60947-3, IEC 60947-1 |
| Product certifications | KEMA-KEUR, CCC |
Only registered users can write reviews
Related products
extended rotary handle, Compact INS40 to INS60, IP55, IK08, black handle, front control
LV428941
extended rotary handle, Compact INS40 to INS60, IP55, IK08, black handle, front control
$170.06 inc GST
$114.35 inc GST
Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type
29452
Low level auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type
$173.80 inc GST
$116.86 inc GST

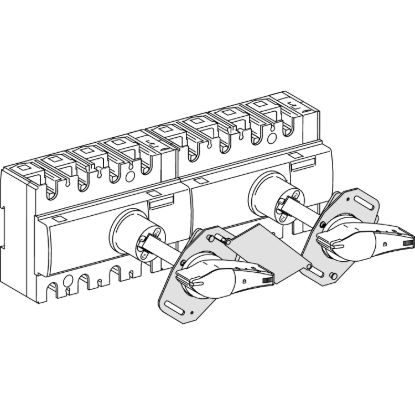

mechanical interlocking for devices with extended rotary handle, 40 to 160A
28953
mechanical interlocking for devices with extended rotary handle, 40 to 160A
$685.30 inc GST
$458.55 inc GST

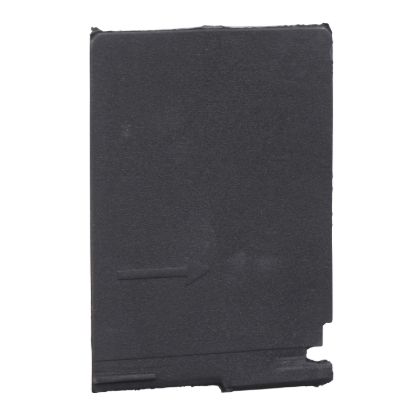

phase separators, Compact INS100 to 160, fixed mounting
28959
phase separators, Compact INS100 to 160, fixed mounting
$61.16 inc GST
$40.92 inc GST

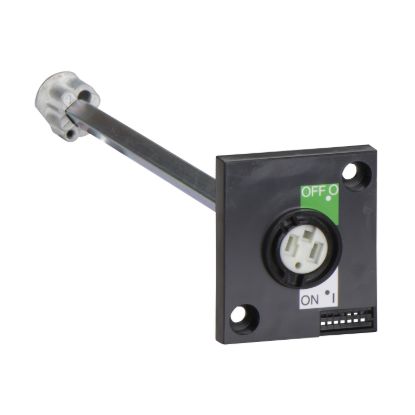

rotary handle, Compact INS40 to 160, black handle, right side
28943
rotary handle, Compact INS40 to 160, black handle, right side
$259.60 inc GST
$173.70 inc GST
Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals
29450
Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals
$159.06 inc GST
$106.95 inc GST

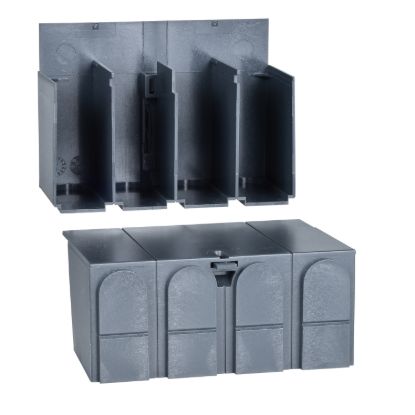

terminal shields, Compact INS100 to 160, insulation accessories, 3 and 4 poles, set of 2 parts
