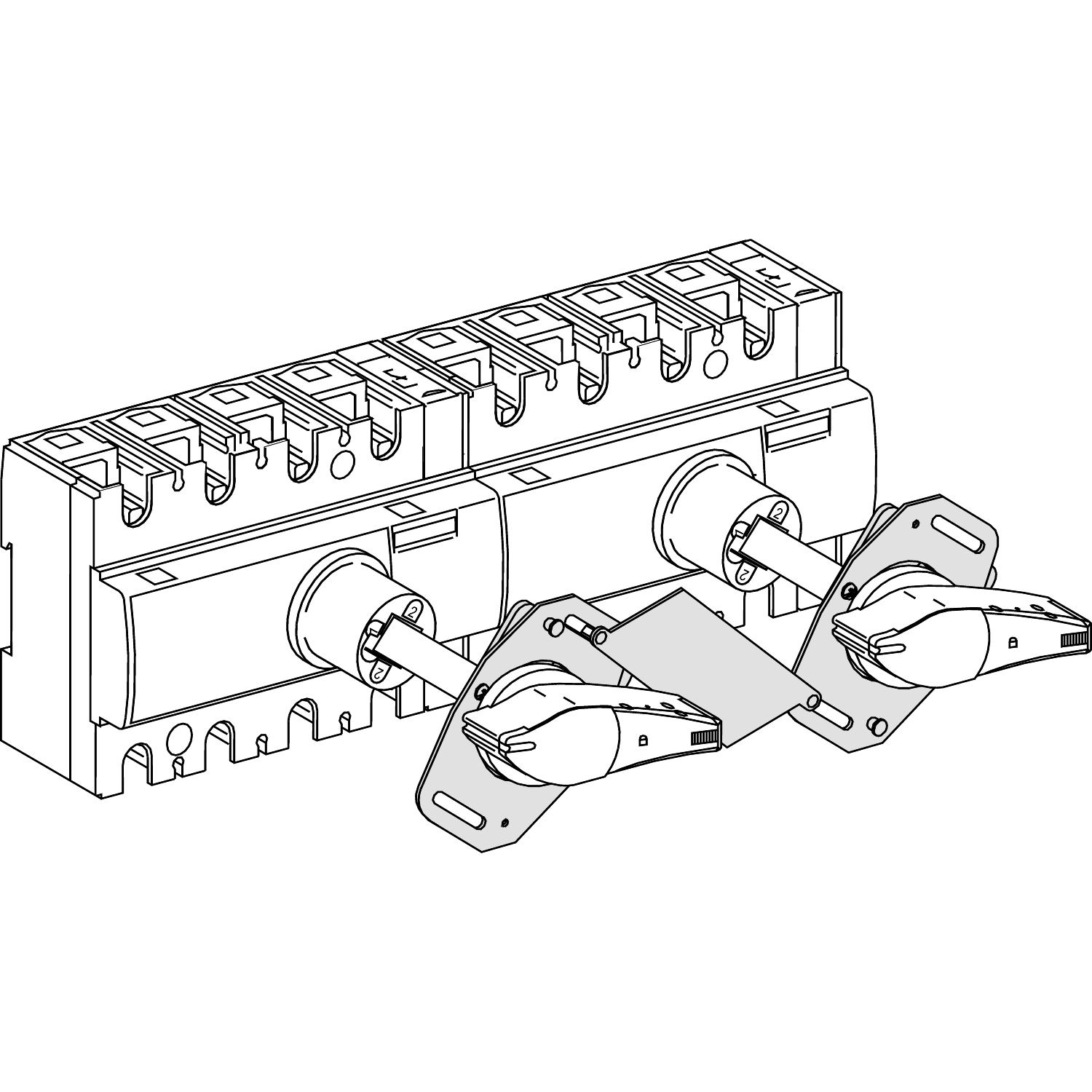

It is an extended rotary handle for Compact INS40 to 160 switch disconnectors. It is suitable for isolation and it is used for emergency-off applications. This rotary handle is a front control accessory. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The degrees of protection are IP55 and IK08.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 3P, 4P |
| Range | ComPacT |
| Product or component type | interlock |
| Accessory / separate part category | interlocking accessory |
| Range compatibility | ComPact ComPacT INS switch disconnector |
| Range of product | INSE80, INS40...160 |
| Complementary | |
| Product compatibility | Compact INS40...160 |
| Mounting mode | fixed |
| Control type | extended rotary handle |
| Source-changeover interlock | manual |
| Interlocked device | INS40...160 |
