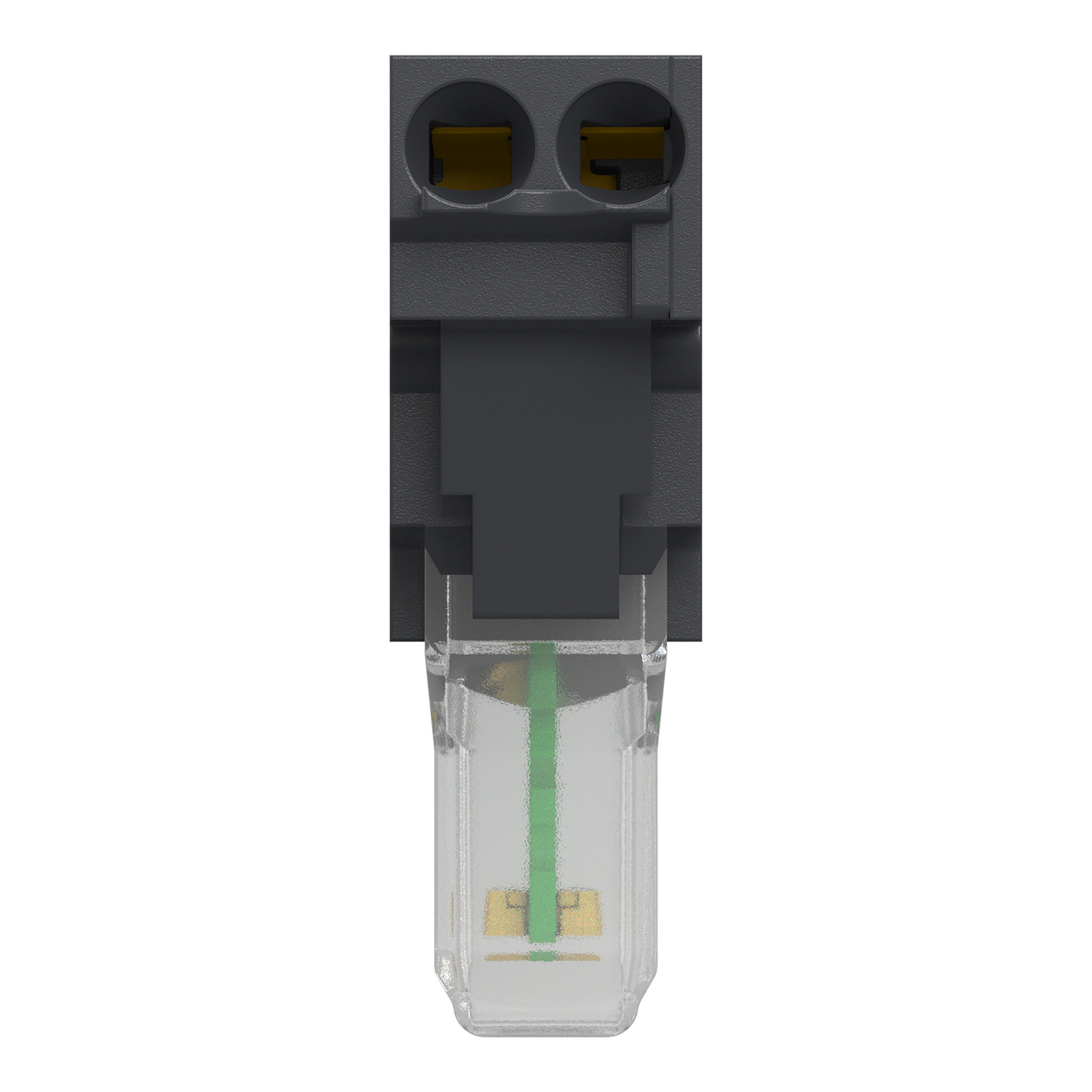

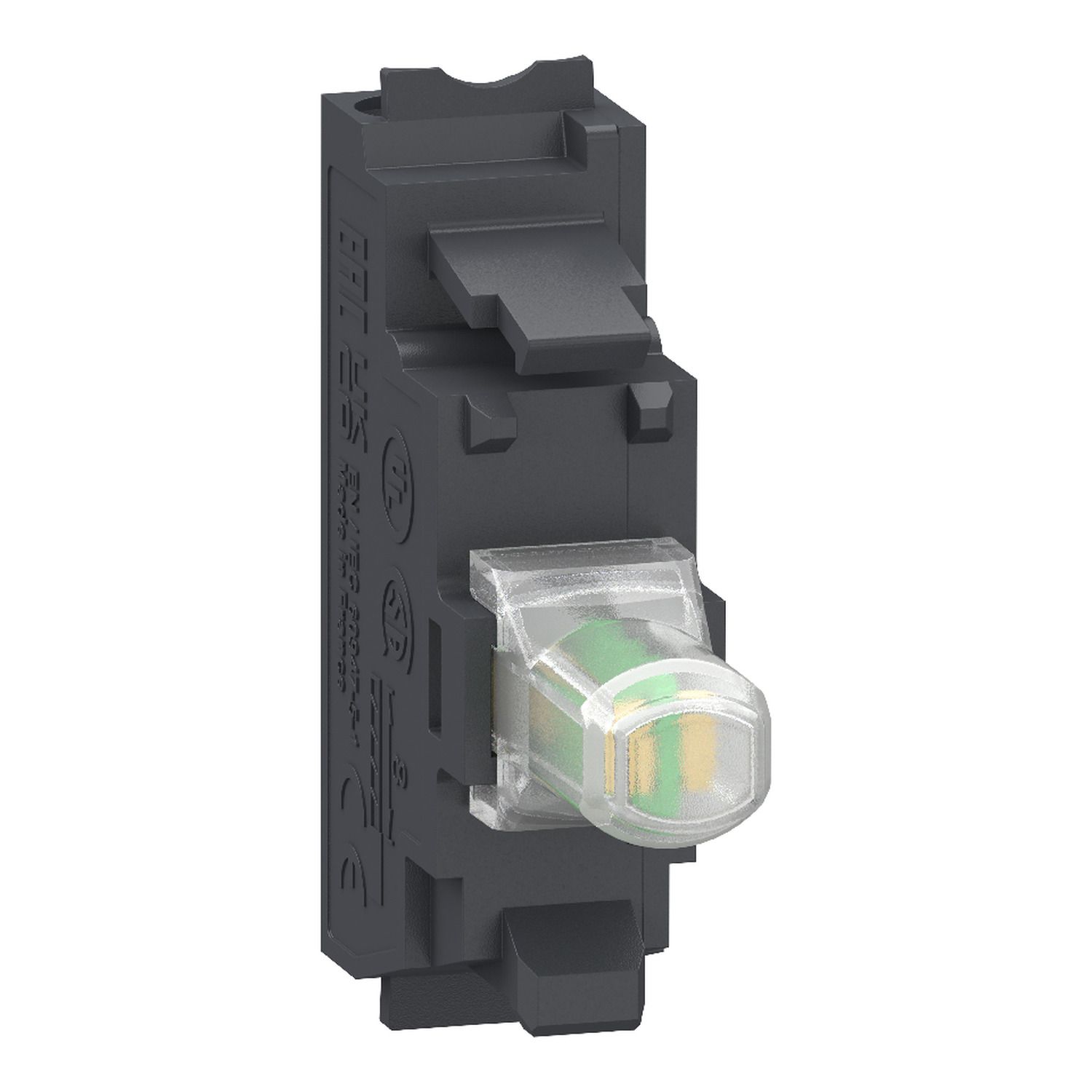

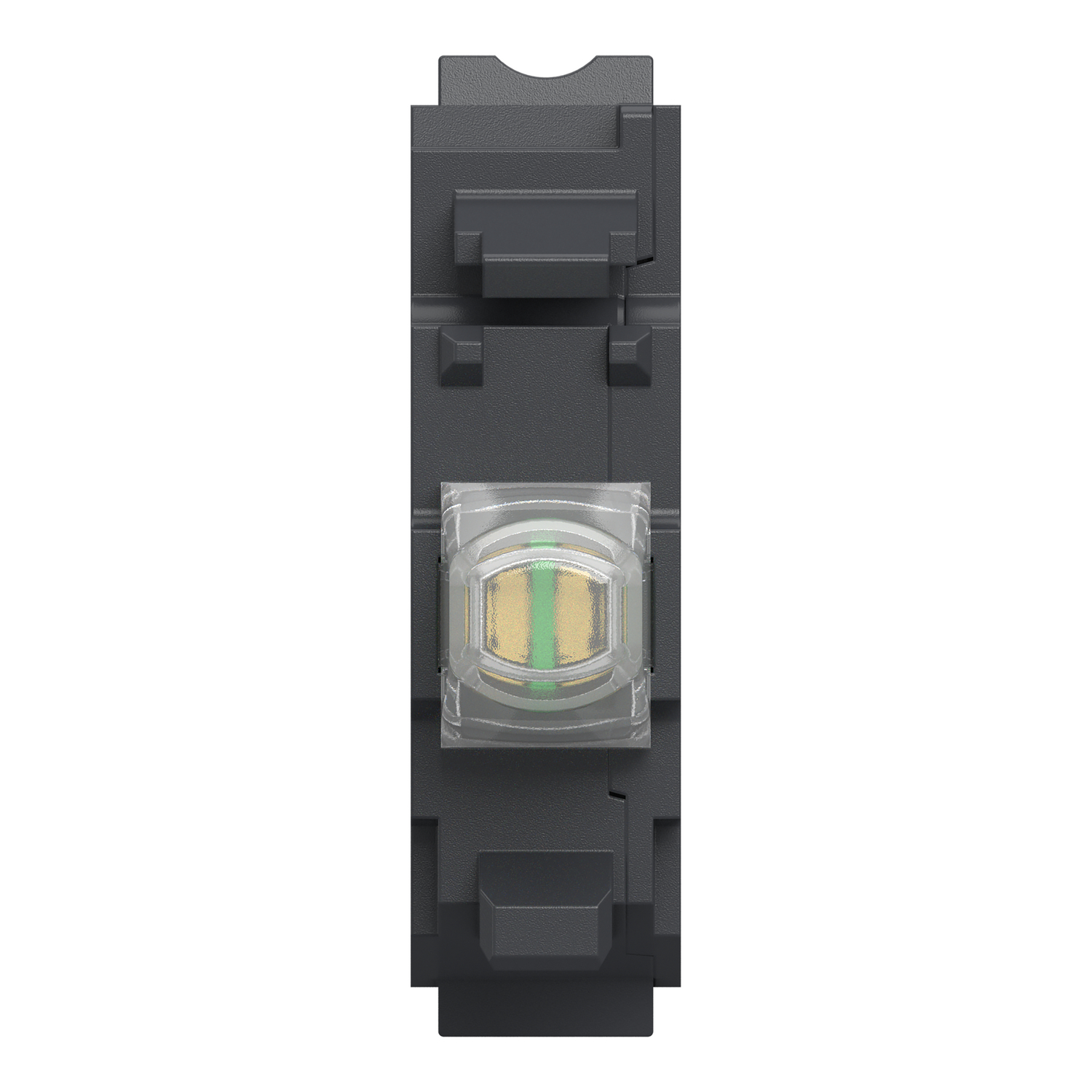

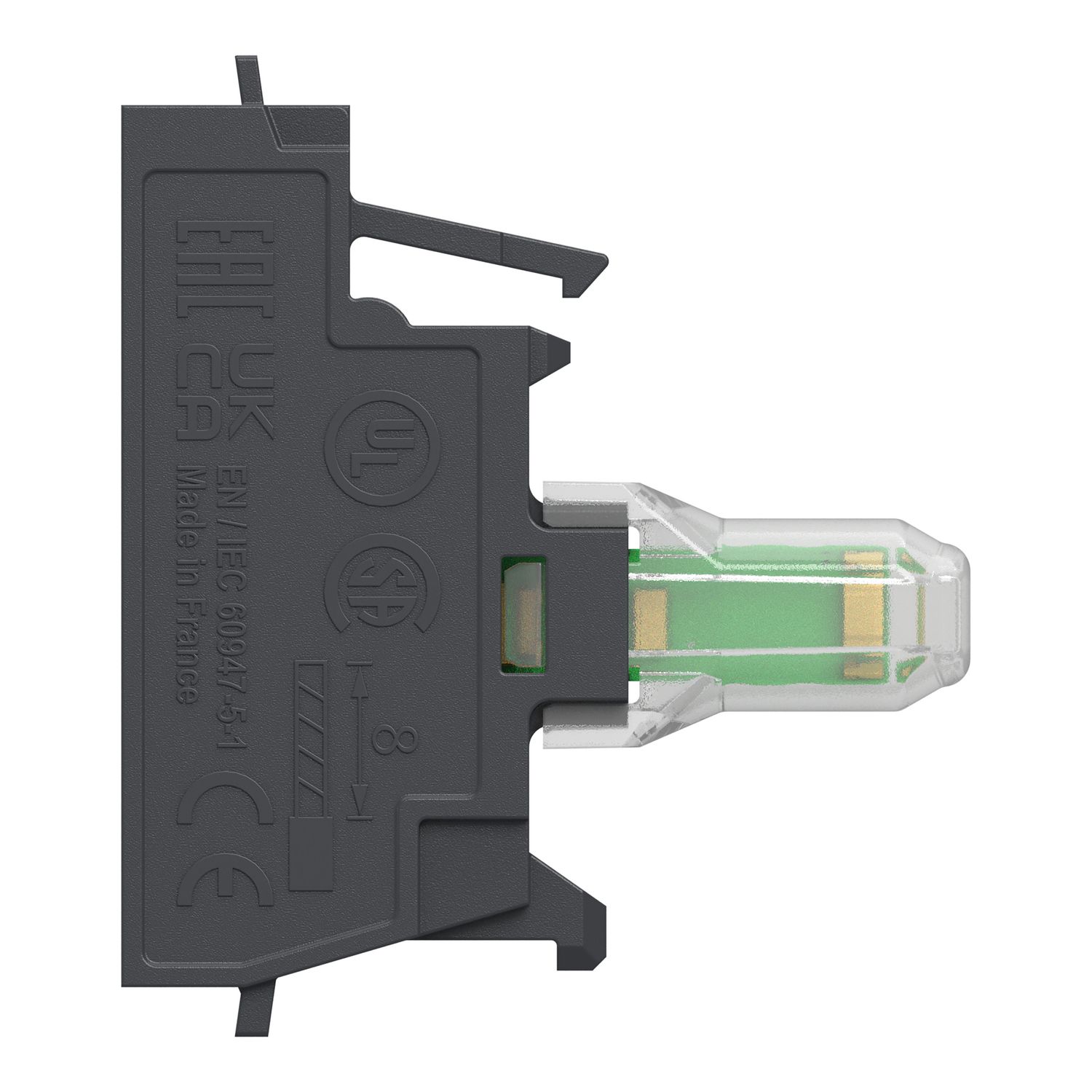

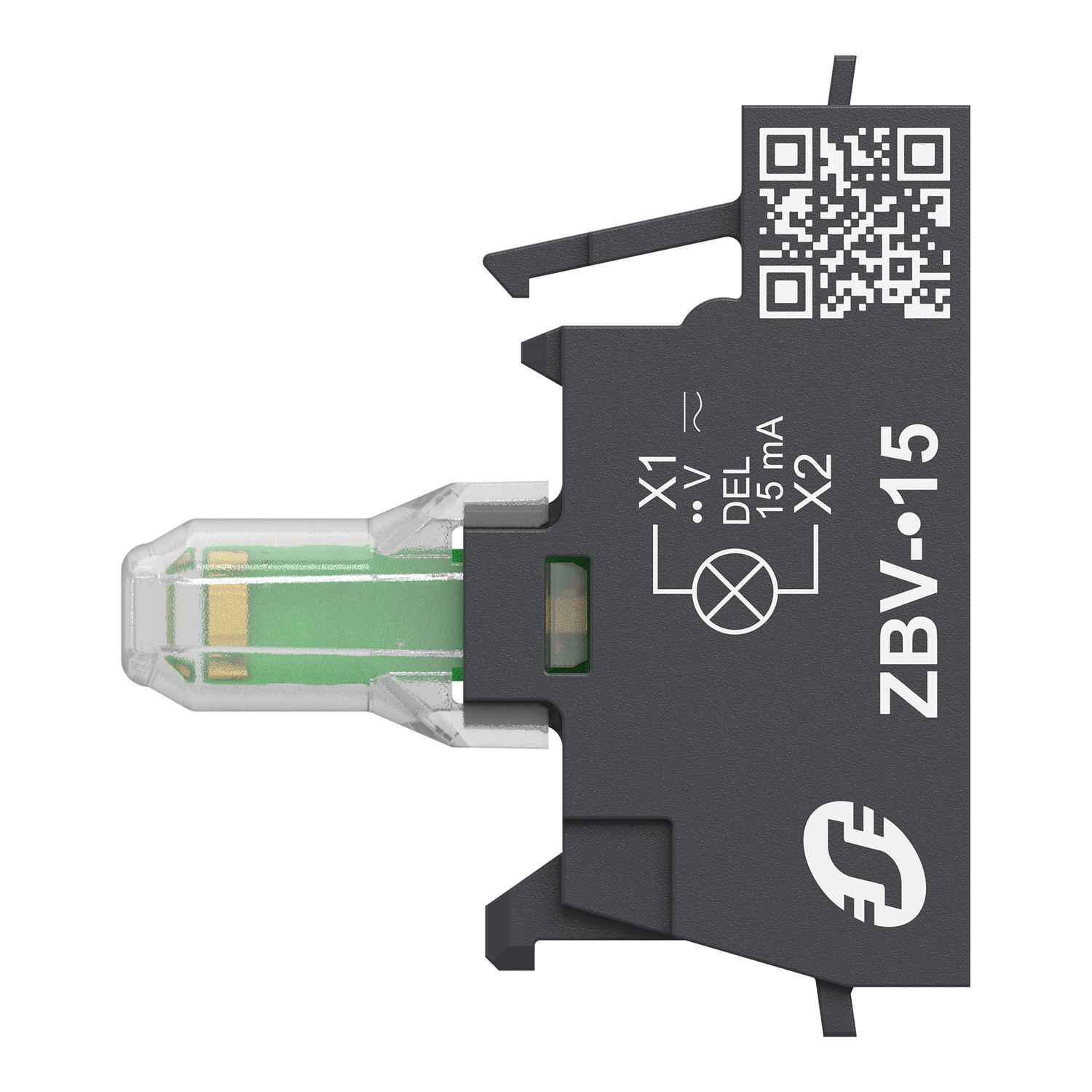

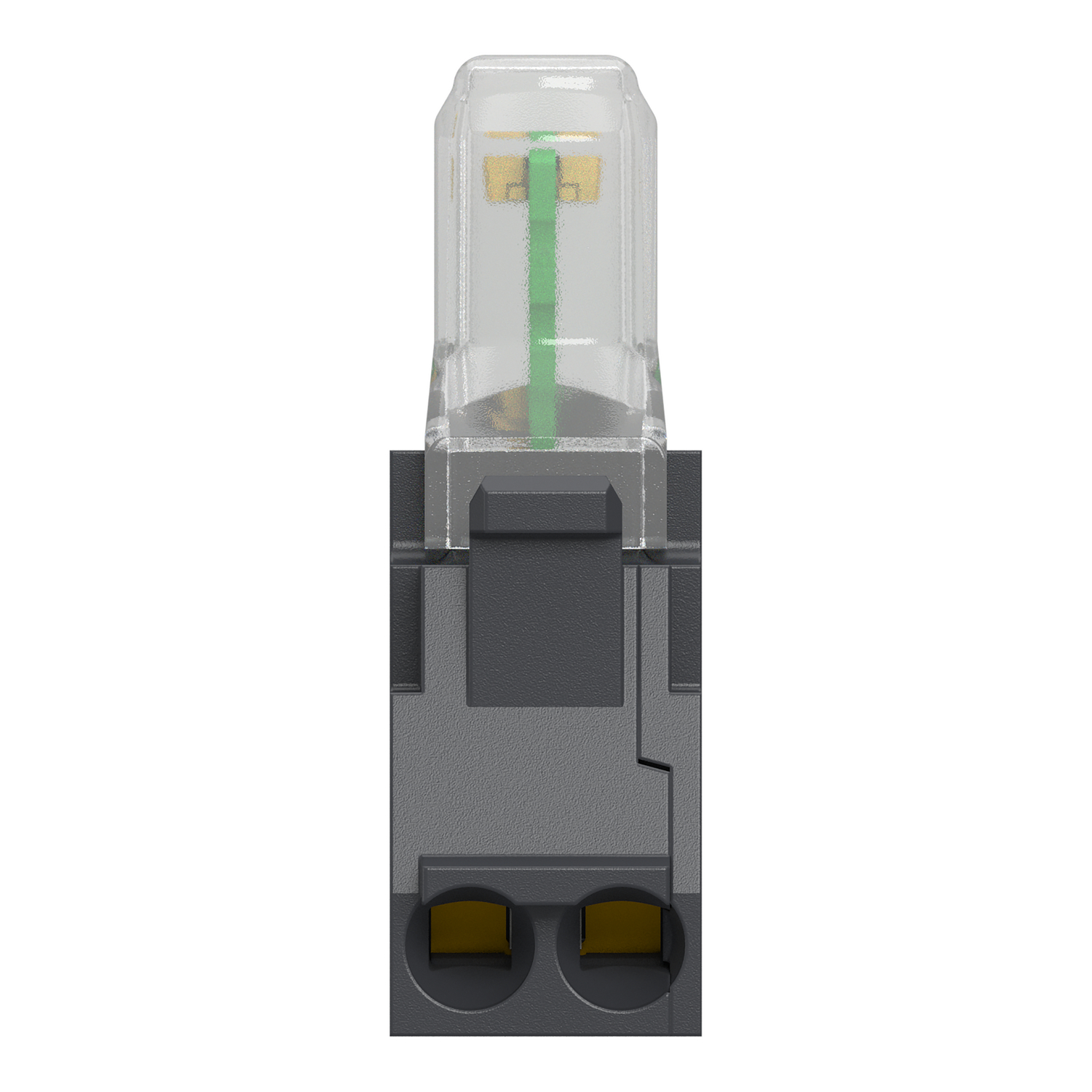

Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 12V AC DC, compact push in terminals
Manufacturer: Schneider Electric
SKU: ZBVJ15
GTIN: 3389119037440
Old price: $56.98 inc GST
$34.67 inc GST
Supported cards
Supported cards

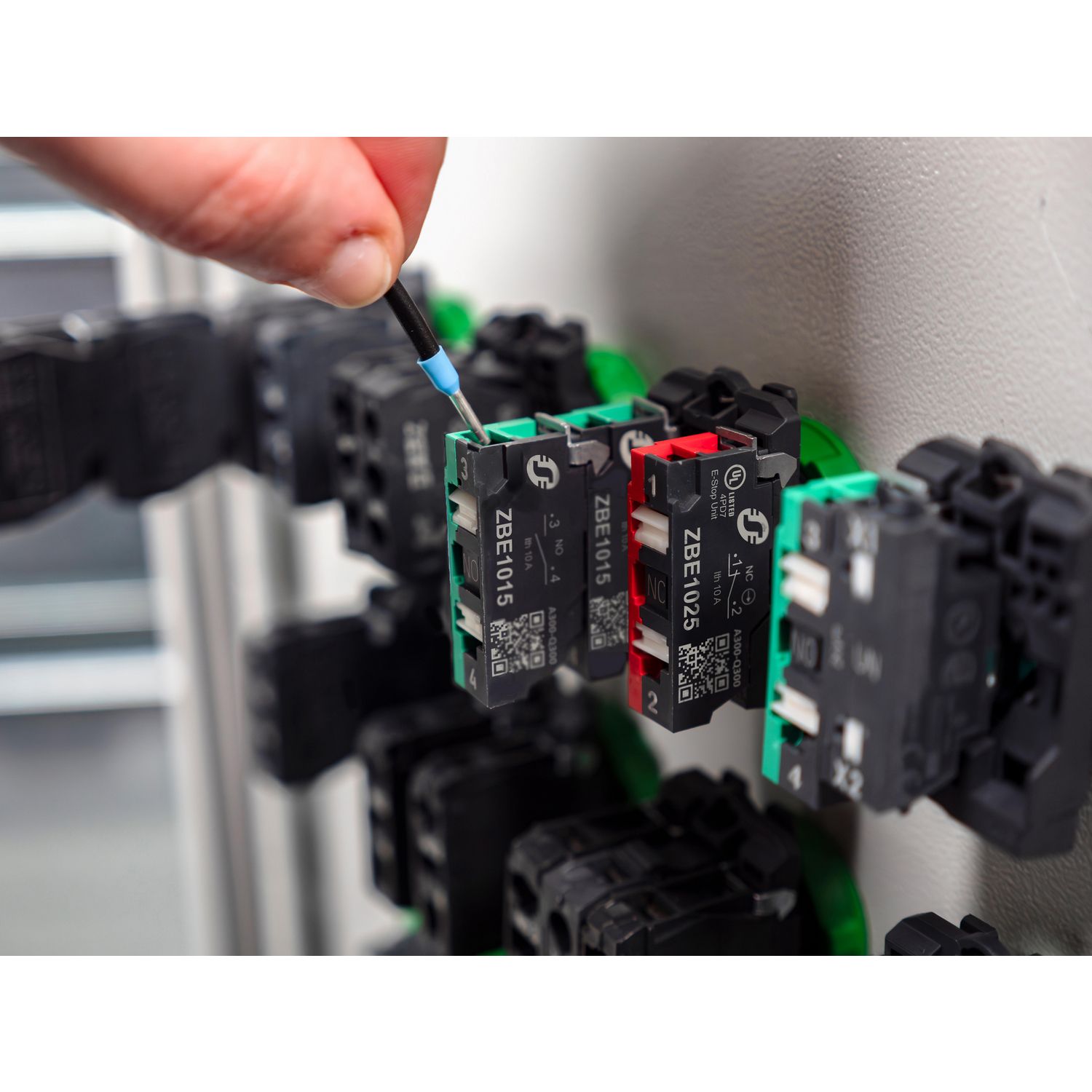

This Harmony white compact light block operates with a universal LED. It is supplied with 12V AC/DC and uses push-in terminal connections. It has a plastic body. It is compatible with Harmony XB4 and Harmony XB5 units. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip-together assembly and connected with simple push-in terminal connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This light block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Products specifications

Attribute name Attribute value
Main
Device short name ZBV
Light source colour white
Sale per indivisible quantity 5
Light block supply direct
Range of product Harmony XB4, Harmony XB5
Bulb base integral LED
[Us] rated supply voltage 12 V AC/DC at 50/60 Hz
Signalling type steady

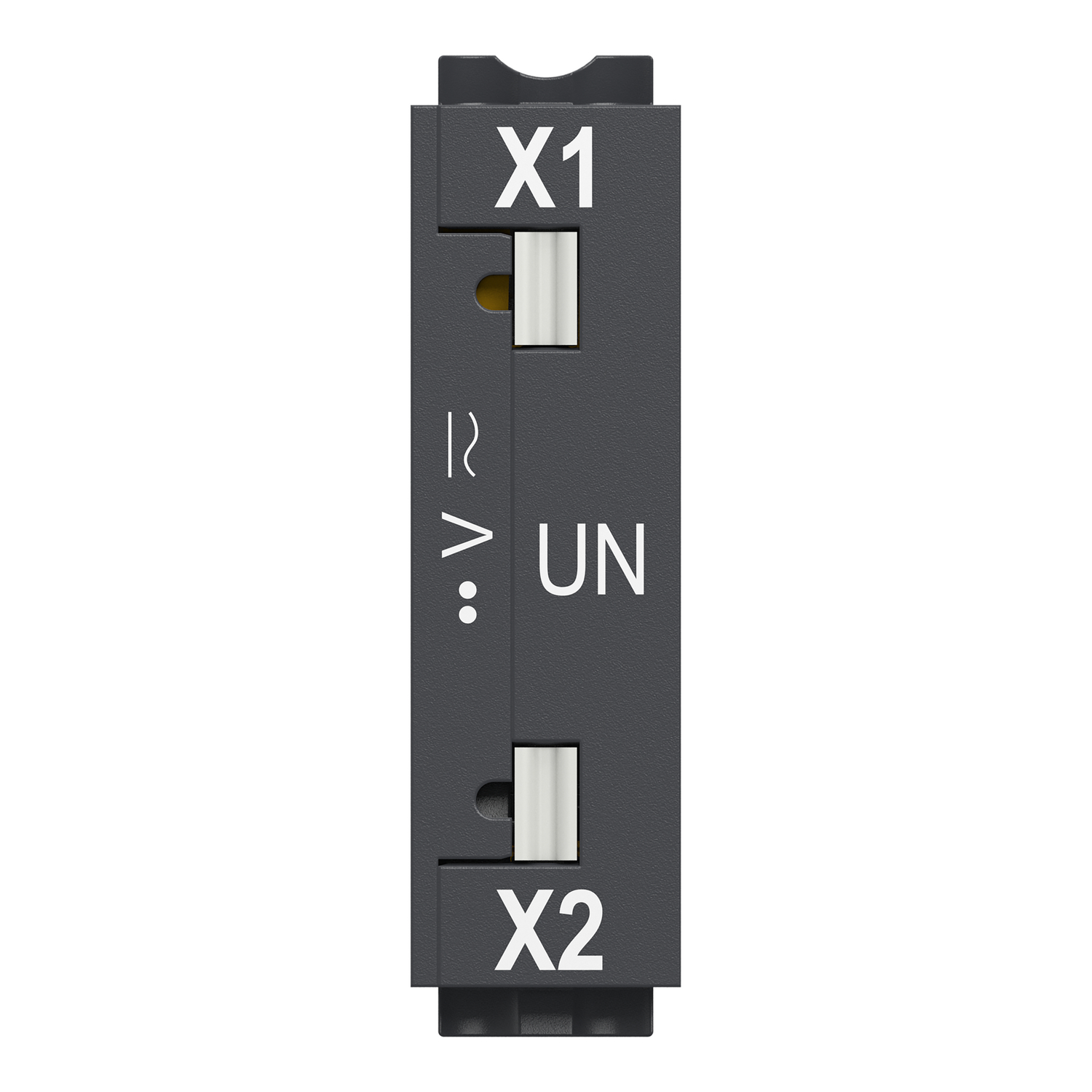

Connections - terminals push-in, >= 1 x 0.34 mm² without wire end ferrule conforming to EN 60947-1, push-in, <= 2 x 1.5 mm² with wire end ferrule conforming to EN 60947-1
Product or component type light block
Light source universal LED
Complementary
Shape of screw head compatible with flat Ø 4 mm screwdriver
Compatibility code ZBV
Supply voltage limits 10.2-13.8 V AC, 10-15 V DC
Surge withstand 2 kV common mode, 1 kV differential mode conforming to IEC 61000-4-5
Device presentation basic element
CAD overall height 14.8 mm
Electrical composition code PF1, P2, P1, MF1, M10, M6, M5, M4, M3, M2, M1
CAD overall depth 9.8 mm
CAD overall width 35.6 mm
Service life 100000 h at rated voltage and 25 °C
Current consumption 18 mA
Net weight 0.012 kg
Mounting of block front mounting
Environment
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
[Us] rated supply voltage 12 V
Electromagnetic emission class B conforming to IEC 55011
Standards JIS C8201-1, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508
Product certifications UL listed, CSA
