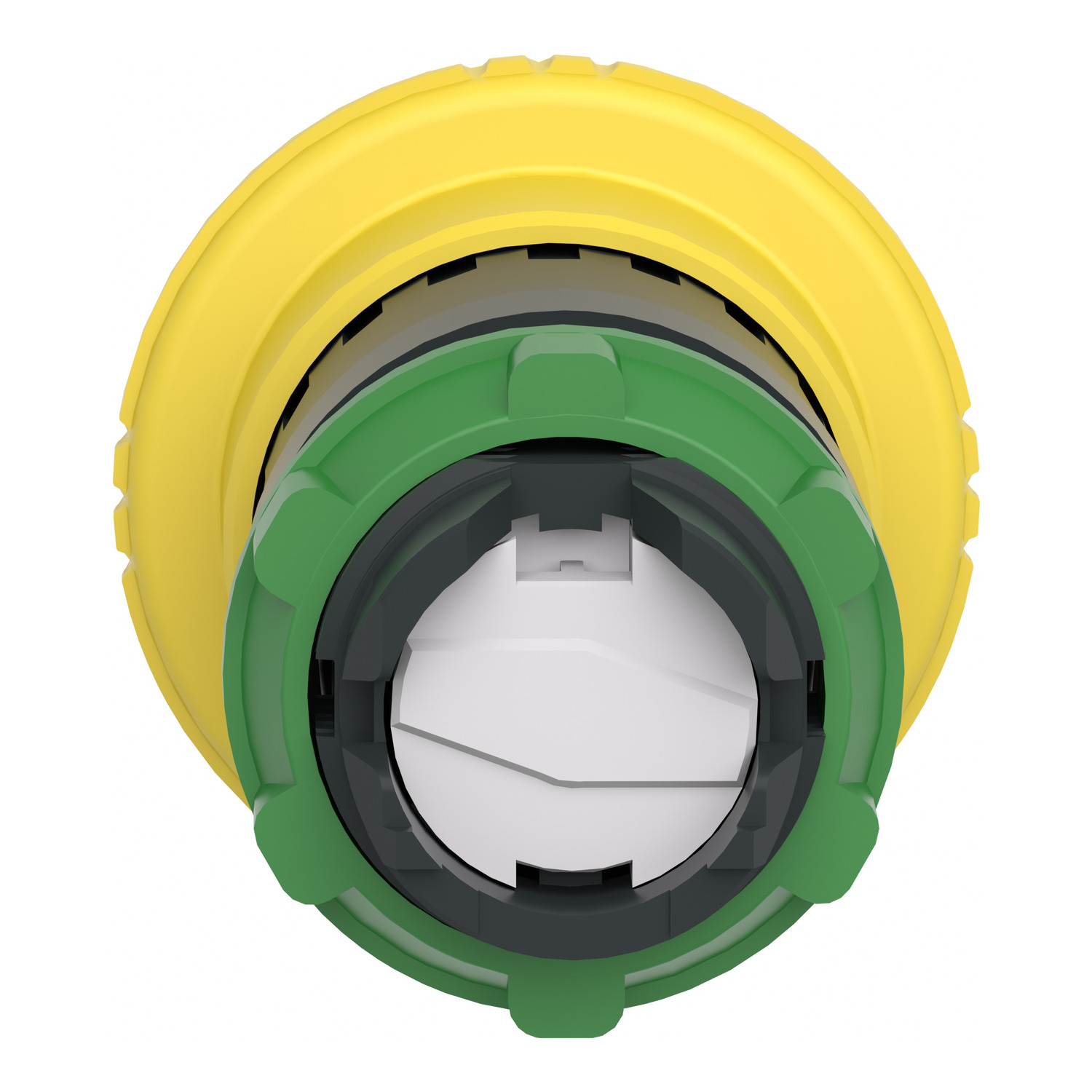

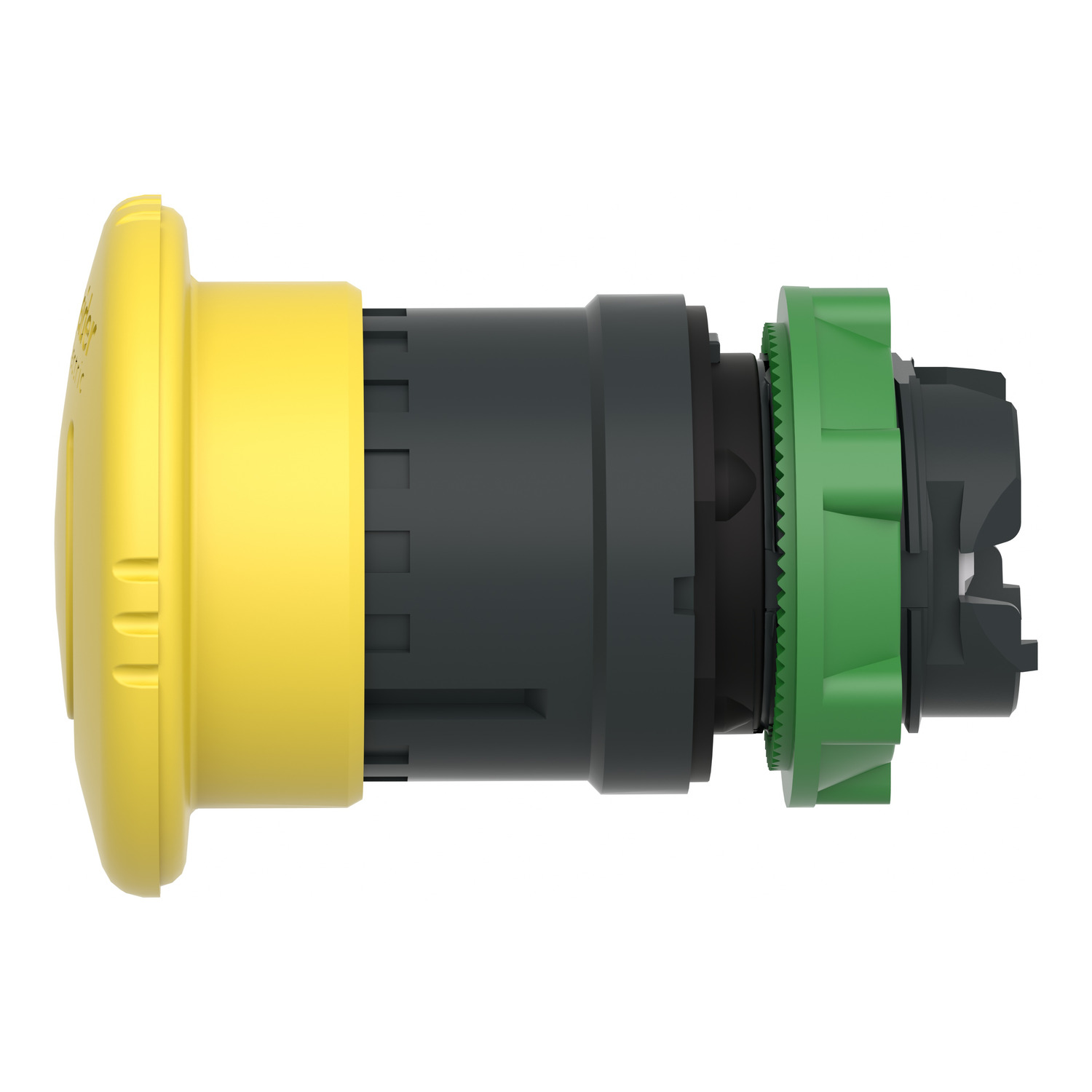

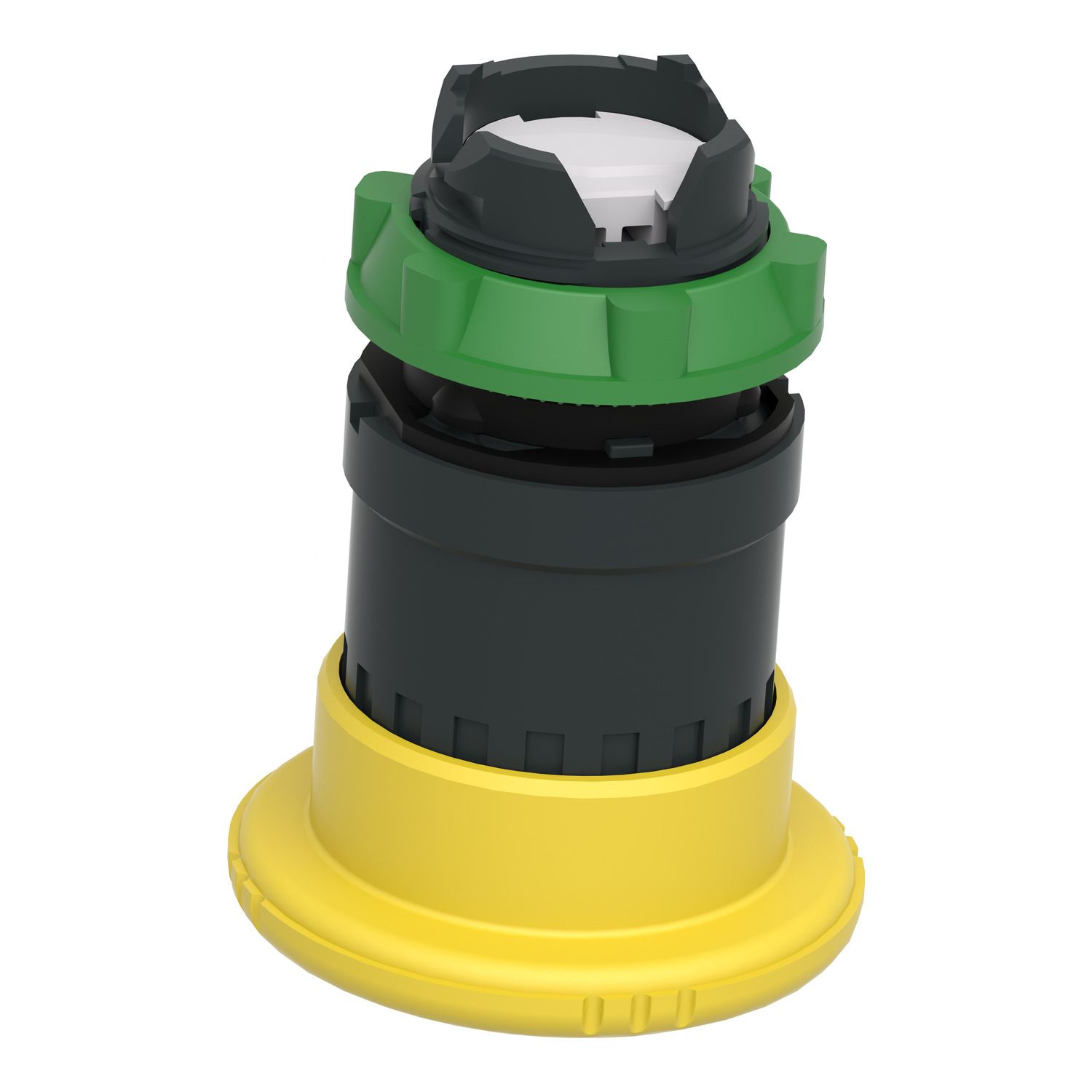

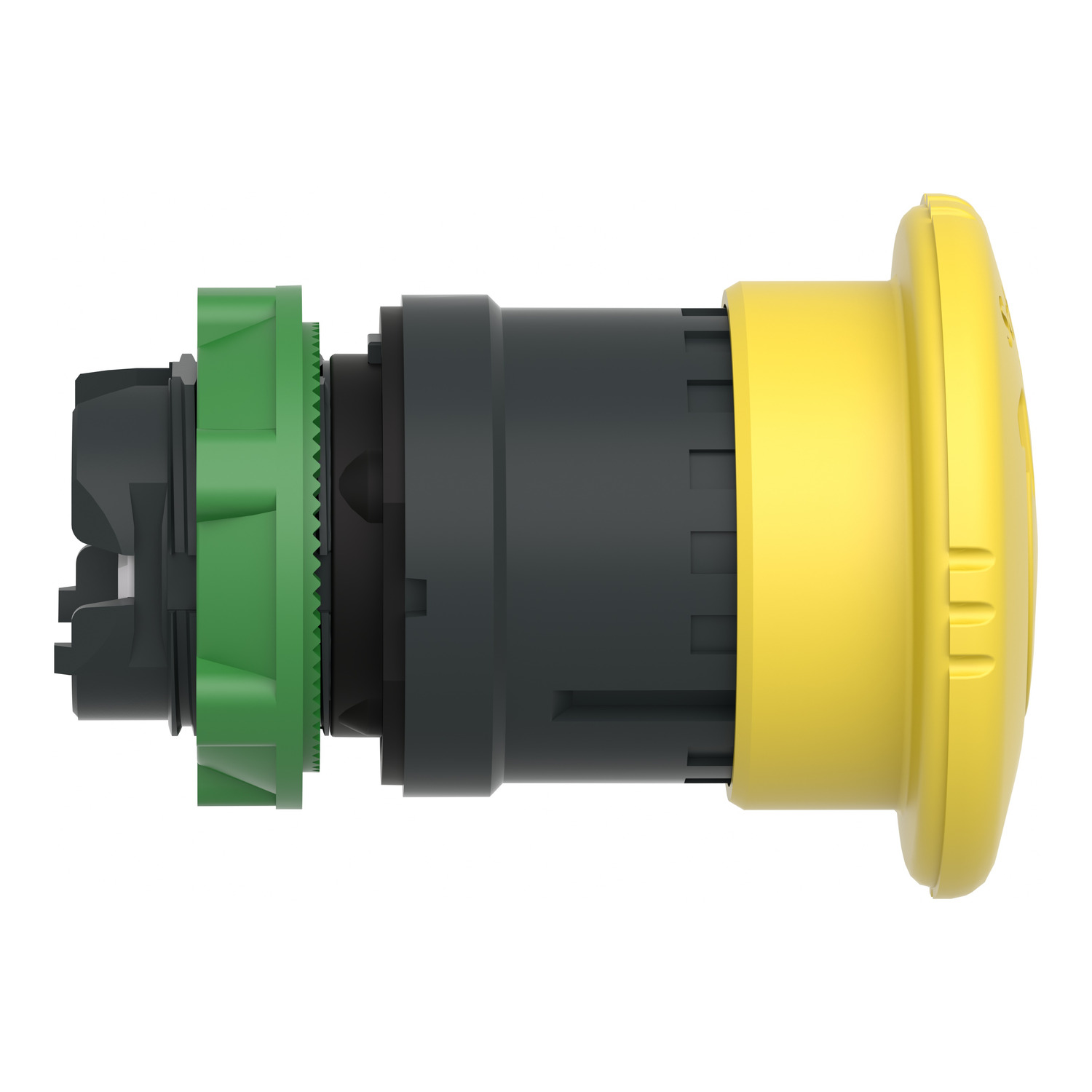

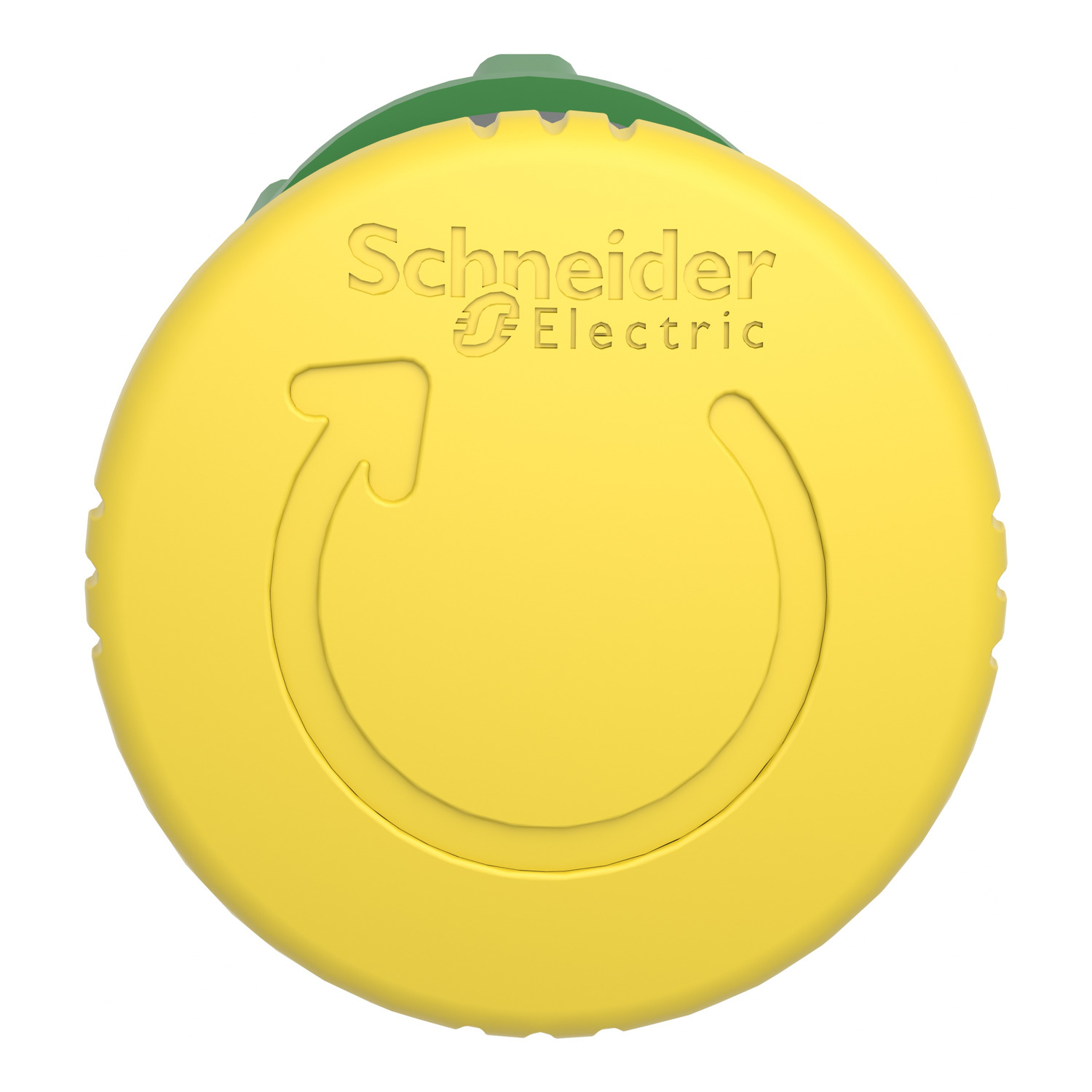

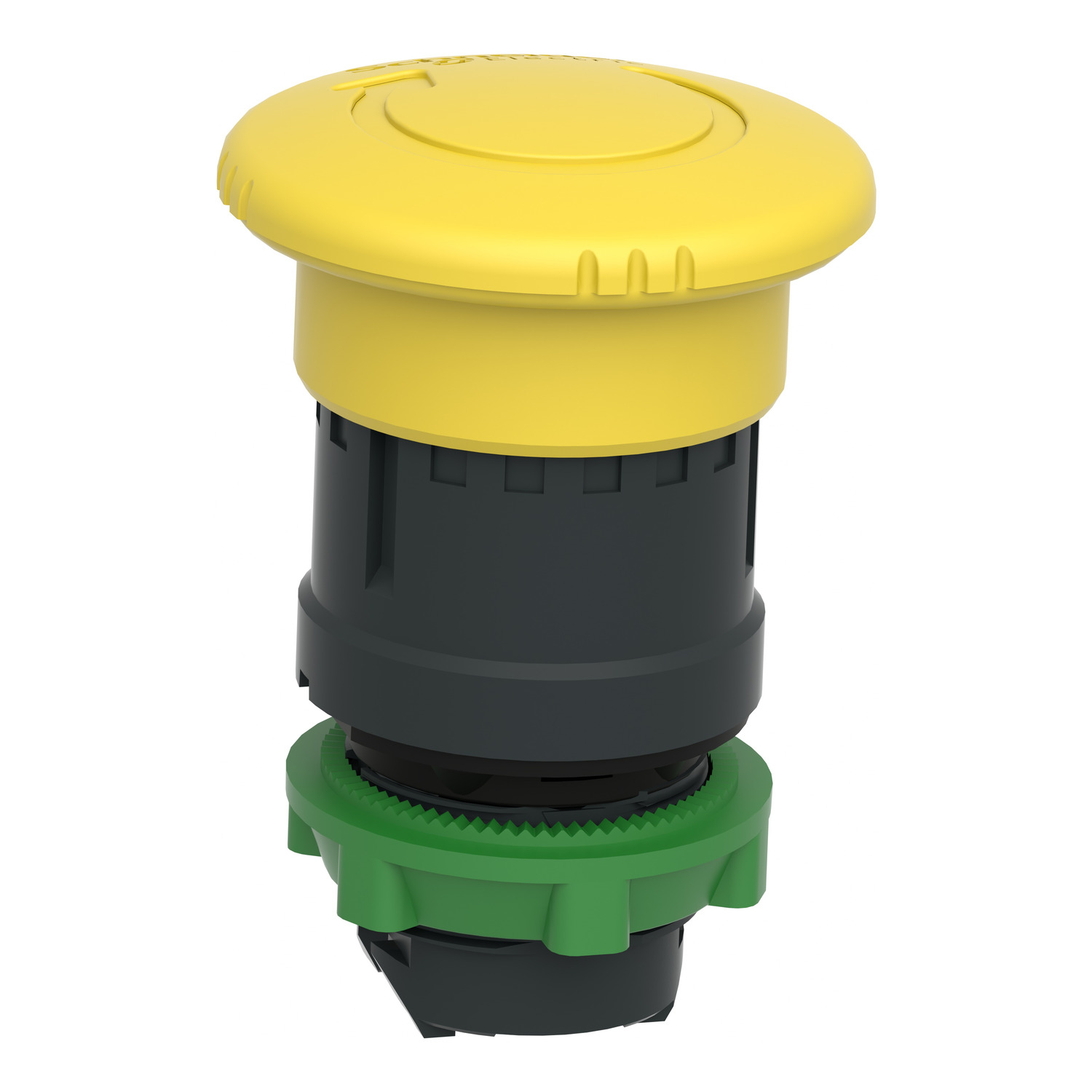

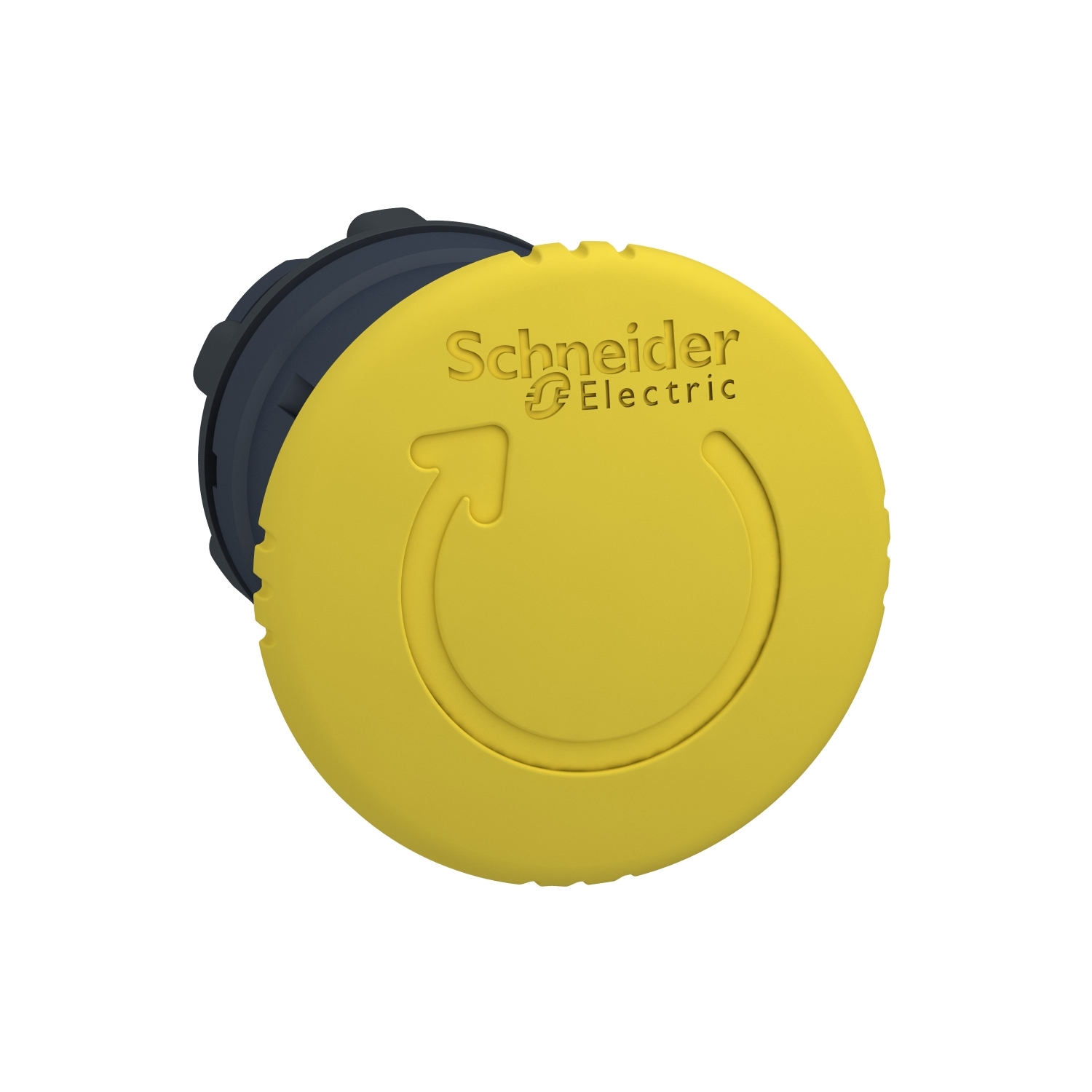

This yellow 40mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Sale per indivisible quantity | 1 |
| Device presentation | basic element |
| Head type | standard |
| Type of operator | latching |
| Range of product | Harmony XB5 |
| Reset | turn to release |
| Operator profile | yellow mushroom Ø 40 mm, unmarked |
| Bezel material | dark grey plastic |
| Shape of signaling unit head | round |
| Product or component type | head for non-illuminated push-button |
| Mounting diameter | 22 mm |
| Complementary | |
| Group of product | mushroom turn to release |
| Station name | XALK 1 cut-out, XALD 1 cut-out |
| Compatibility code | ZB5 |
| Mechanical durability | 500000 cycles |
| CAD overall height | 40 mm |
| Customizable | 0, no |
| Electrical composition code | C10 for <4 contacts using single and double blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting |
| Main group | mushroom head |
| CAD overall depth | 57 mm |
| CAD overall width | 40 mm |
| Marking | unmarked |
| Cap/operator or lens colour | yellow |
| Net weight | 0.044 kg |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Standards | JIS C8201-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, UL 508 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Product certifications | BV, UL listed, CSA, GL, LROS (Lloyds register of shipping), DNV |
