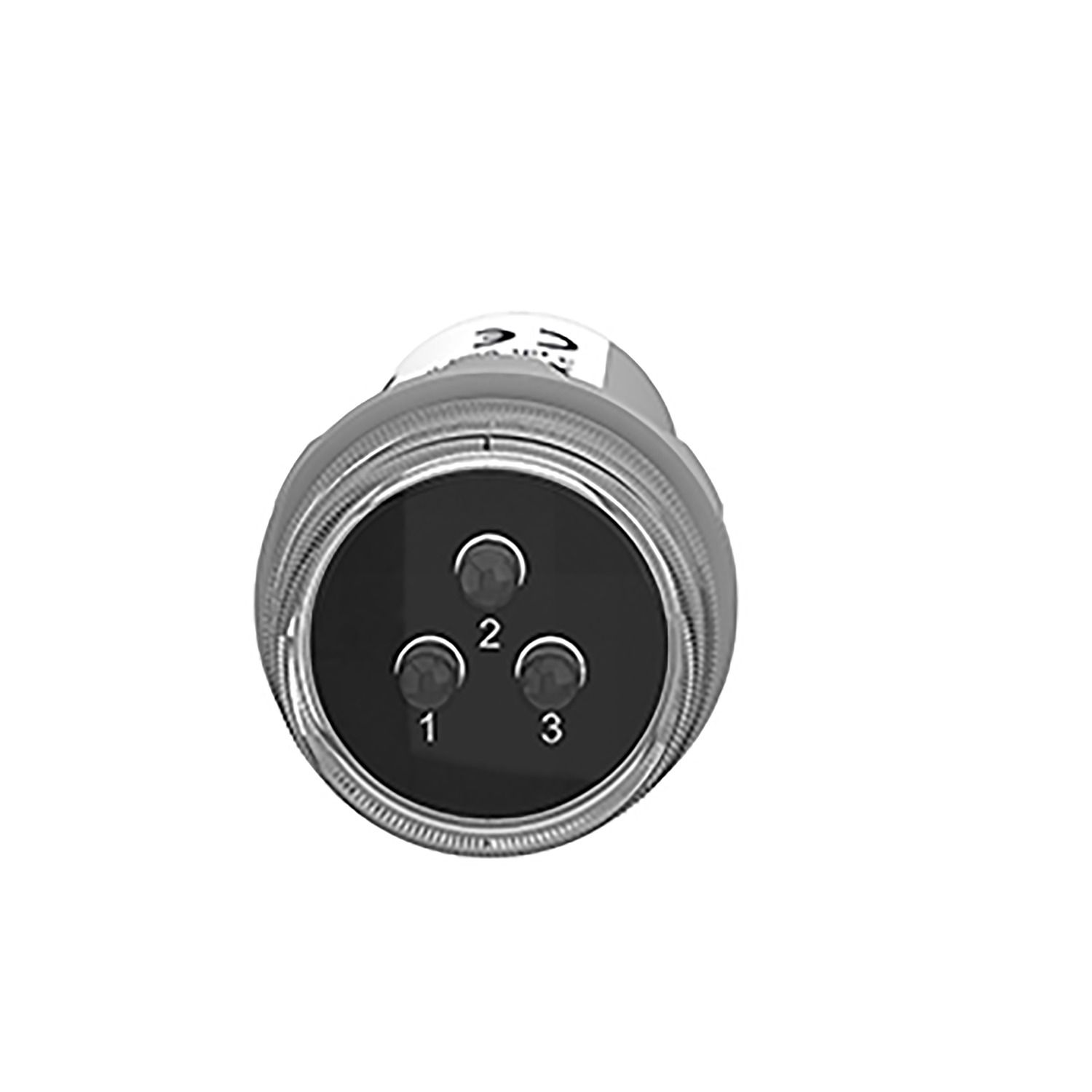

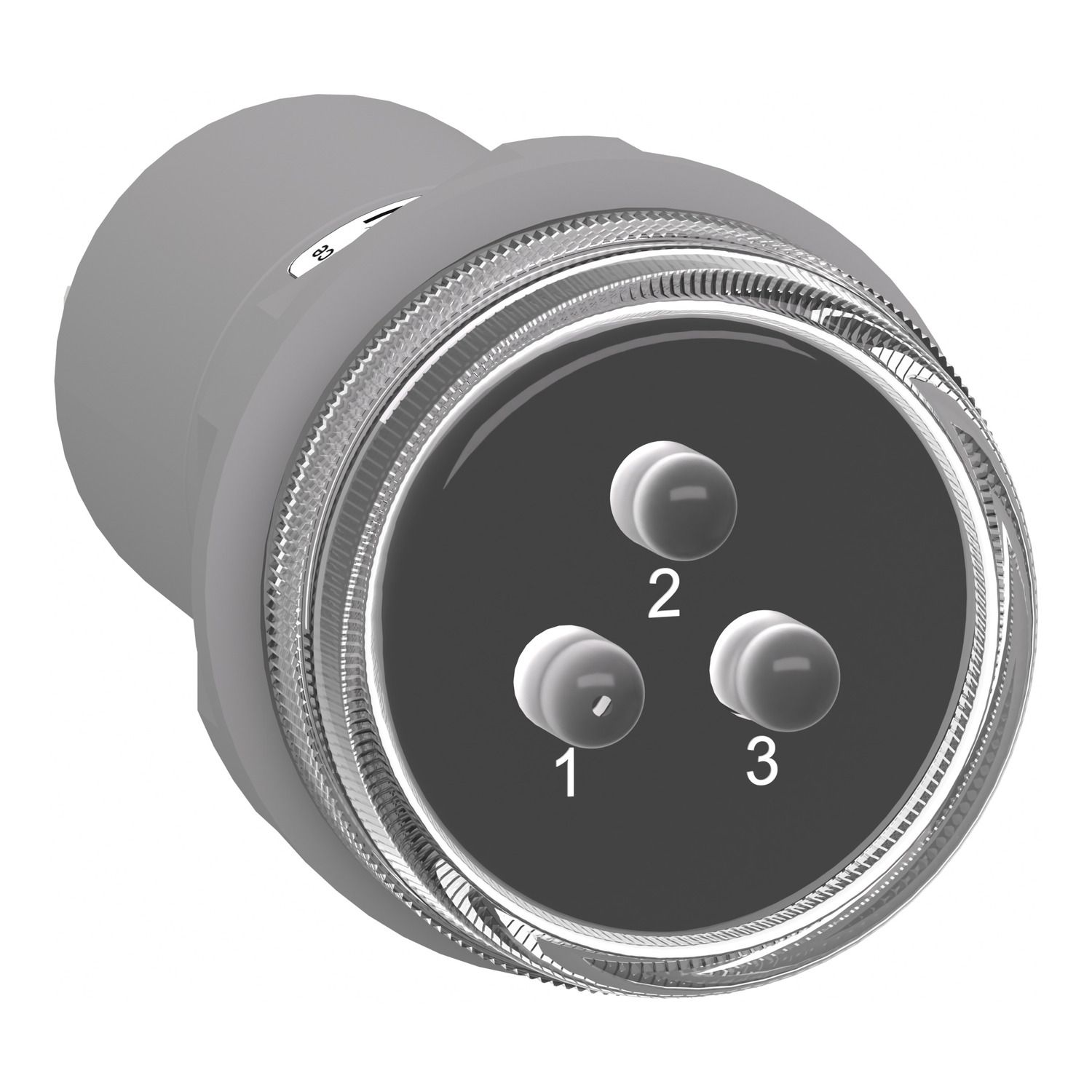

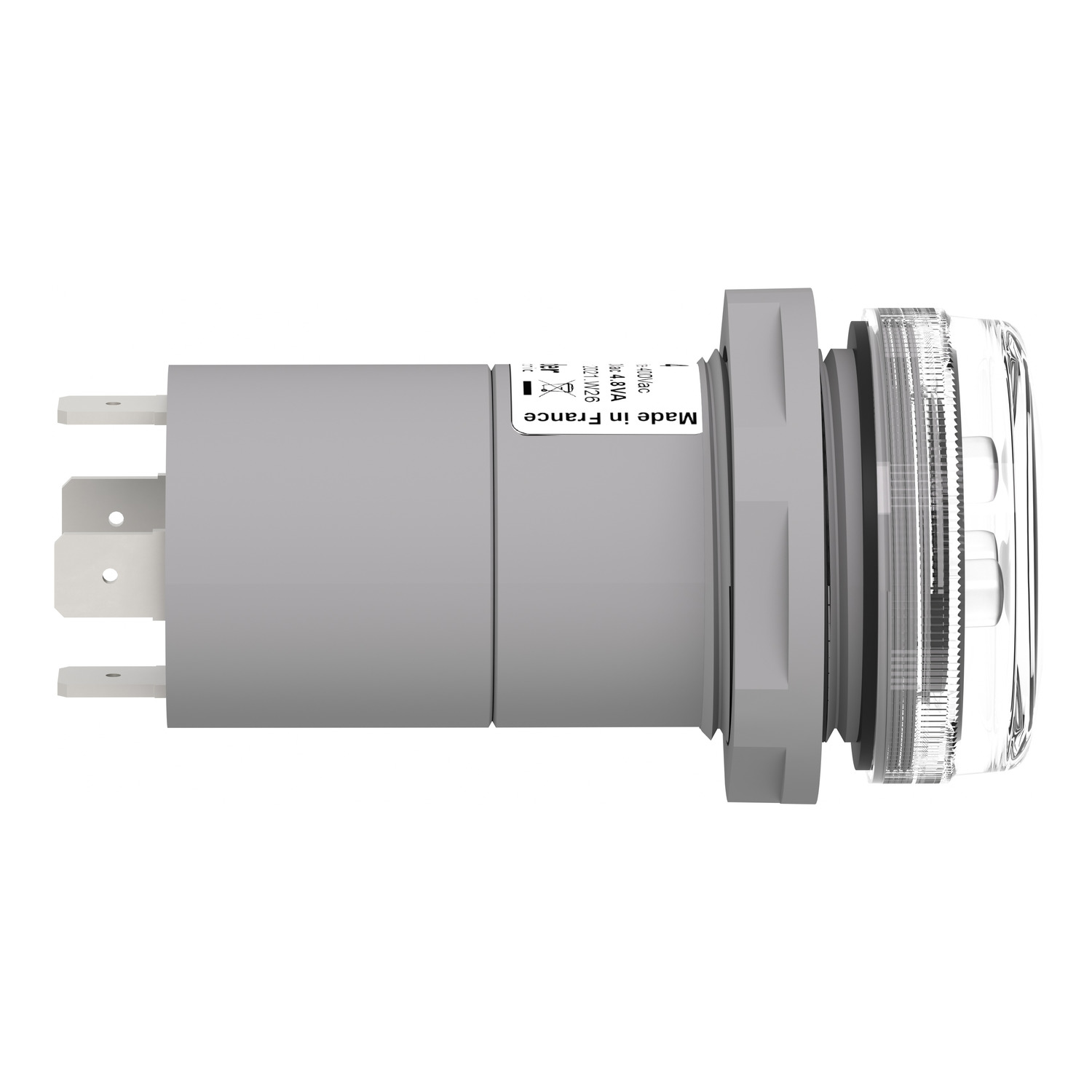

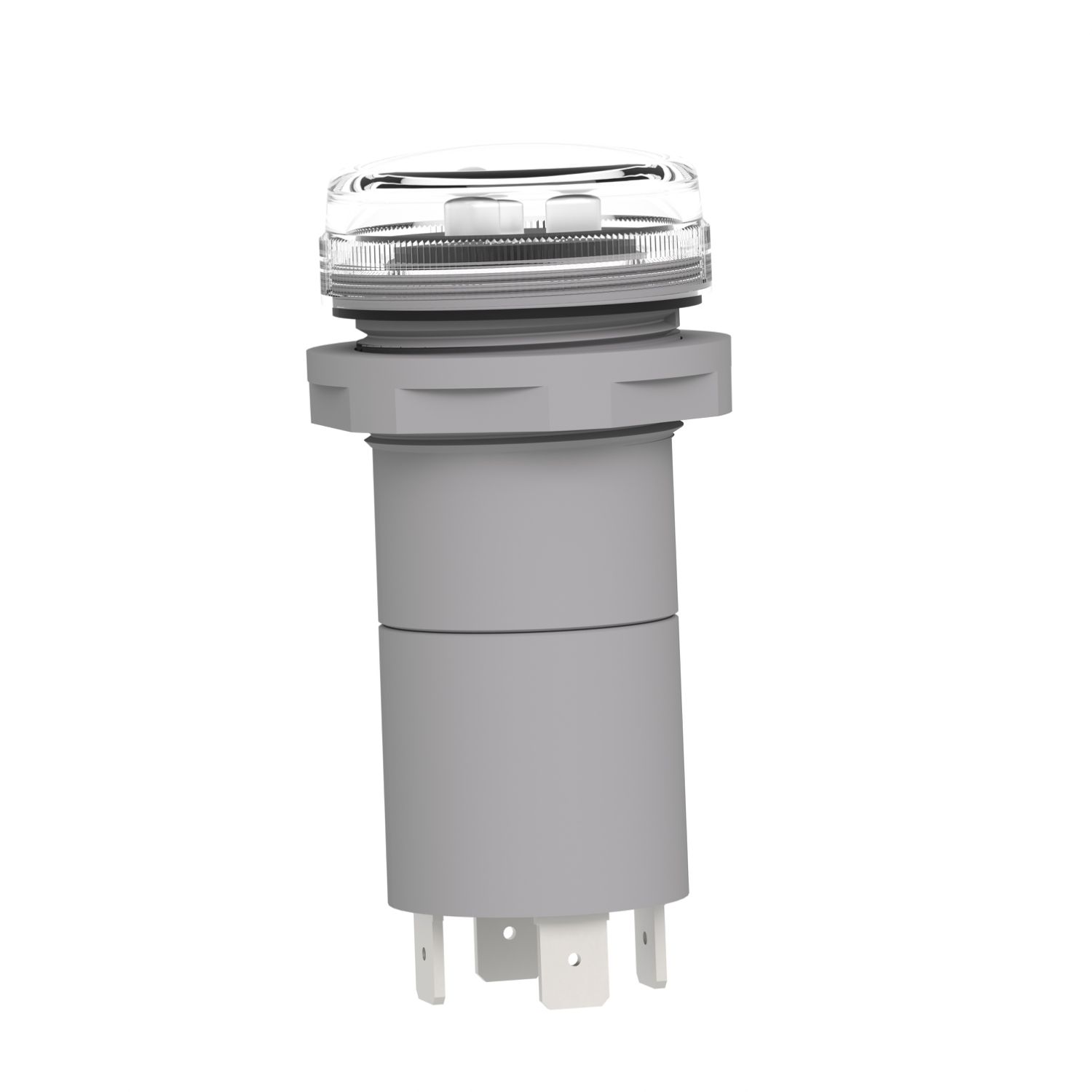

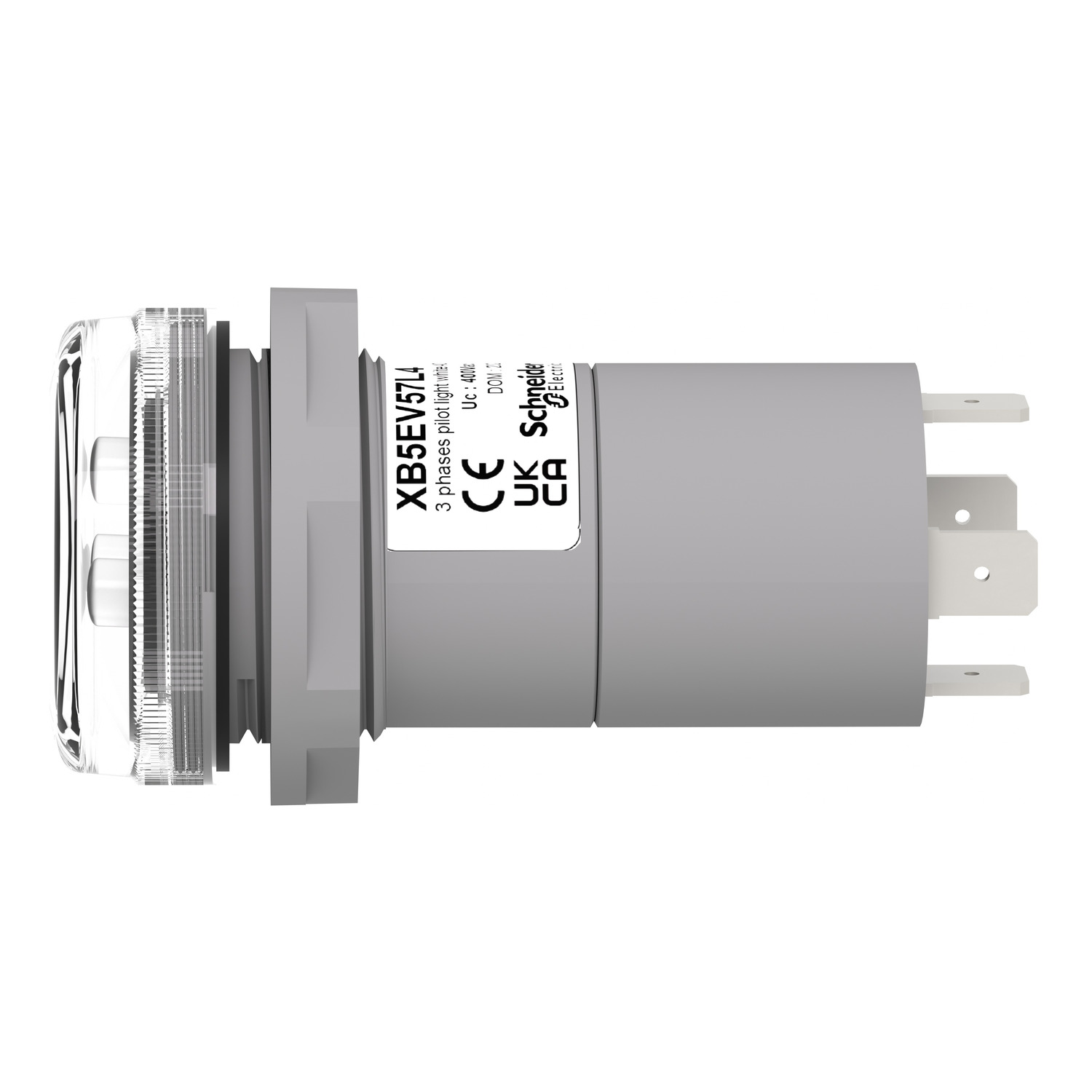

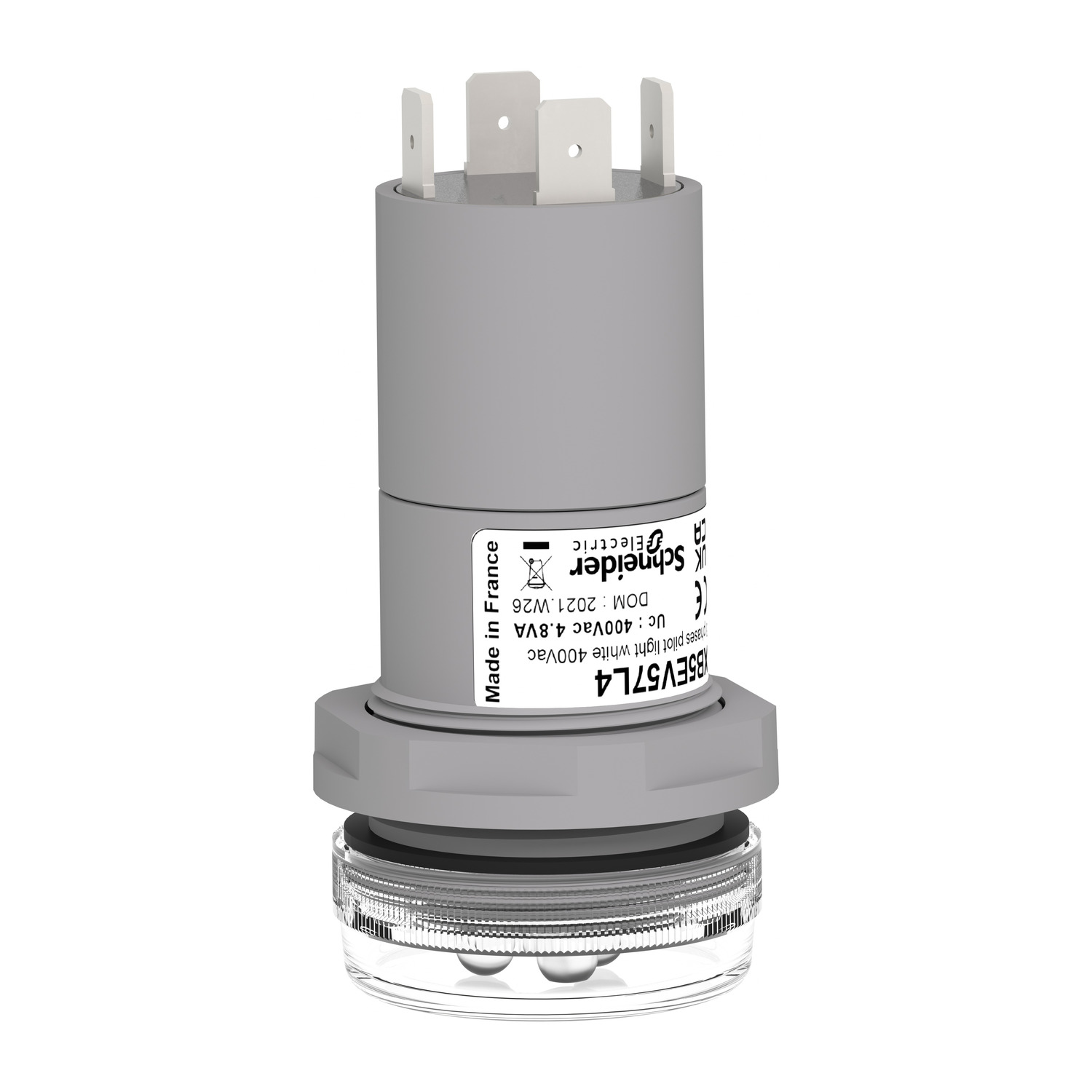

This Harmony XB5, plain lens monolithic white 3-phase voltage presence indicator pilot light, is supplied with a 3-phase 400V AC voltage, uses an integral LED and uses screw clamp terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67. It is ideal for incoming section in main and secondary low voltage switchboards. It is designed to fit in a standard 22mm cutout.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5 |
| Light source colour | white |
| Sale per indivisible quantity | 1 |
| Device presentation | monolithic product |
| Fixing collar material | plastic |
| Cap/operator or lens colour | clear |
| Range of product | Harmony XB5 |
| Bulb base | integral LED |
| Bezel material | plastic |
| Network number of phases | 3 phases |
| Shape of signaling unit head | round |
| Product or component type | monolithic pilot light |
| Mounting diameter | 30 mm |
| Light source | protected LED |
| Complementary | |
| Compatibility code | XB5 |
| Supply voltage limits | 450-450 V AC |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Height | 65.5 mm |
| [Us] rated supply voltage | 400 V |
| Depth | 77 mm |
| Width | 36 mm |
| Service life | 100000 h at rated voltage and 25 °C |

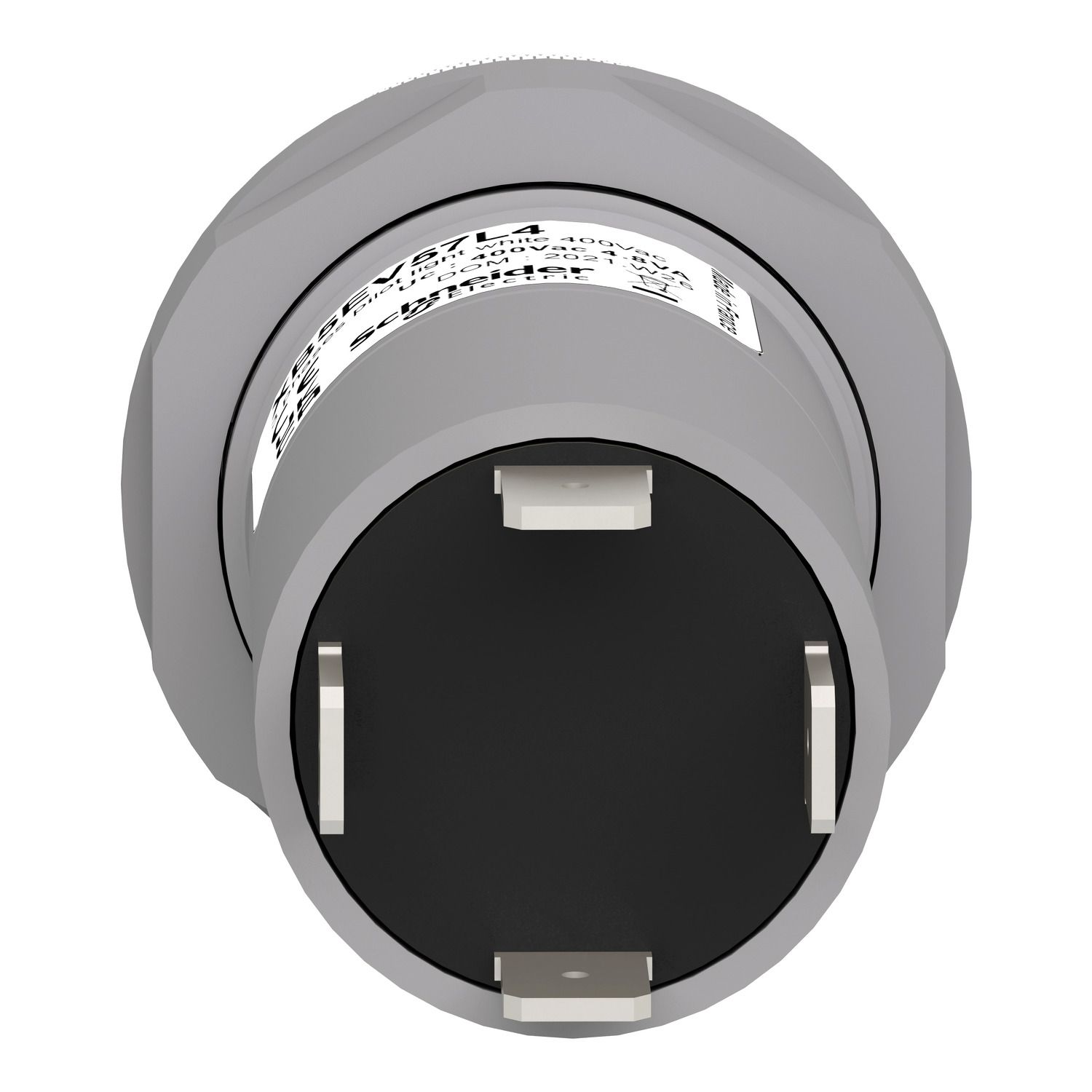

| Connections - terminals | Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
| Current consumption | 2.6 mA |
| [Uimp] rated impulse withstand voltage | 1 kV conforming to IEC 61000-4-5 |
| Net weight | 0.065 kg |
| Environment | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 (back face), IP67 (front face) |
| Electromagnetic compatibility | electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 |
| Standards | IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -30-70 °C |
| IK degree of protection | IK10 conforming to IEC 50102 |
