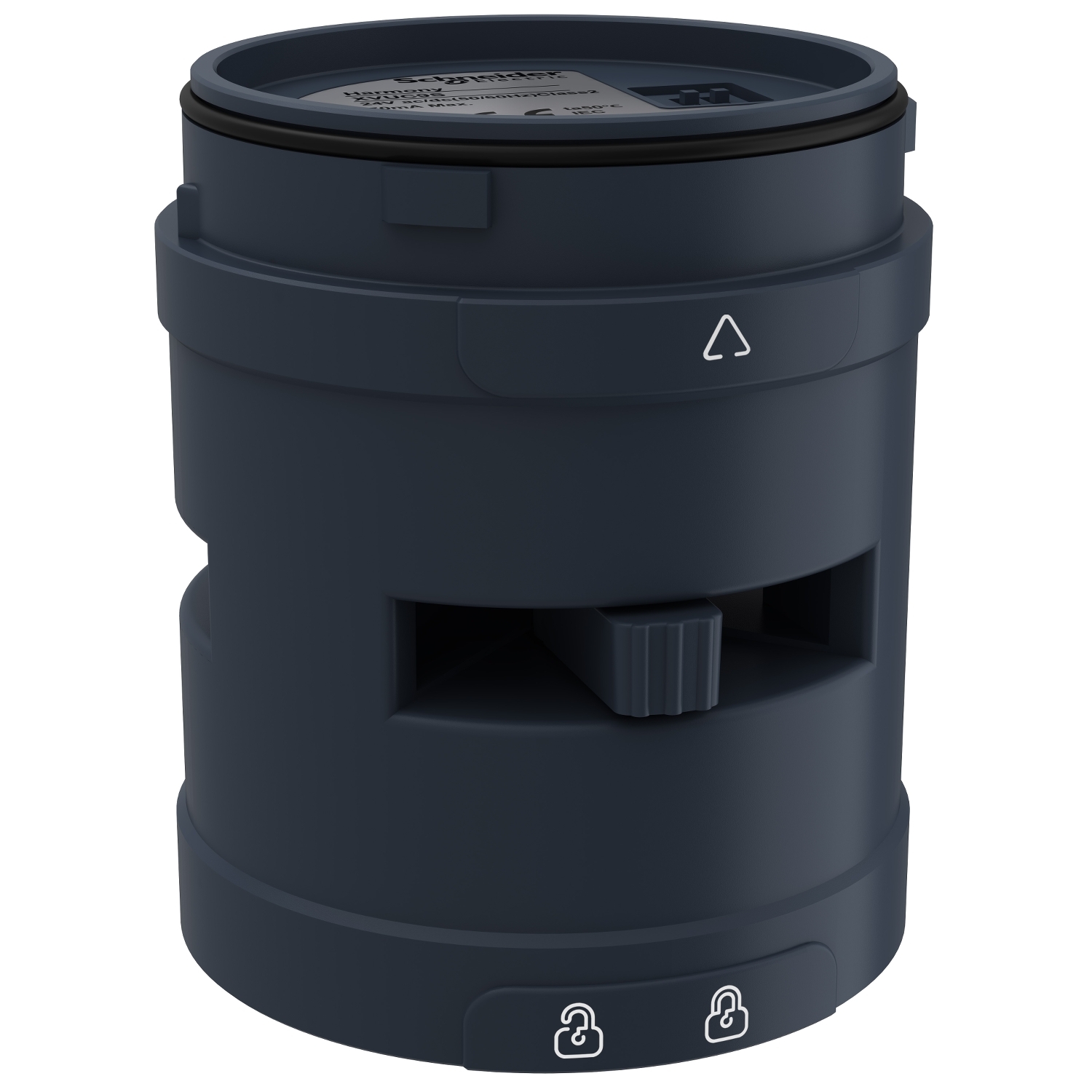

This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Beacon or indicator bank unit type | buzzer unit |
| Range of product | Harmony XVU |
| Housing colour | black |
| Component name | XVU |
| Product or component type | modular tower light |
| Mounting diameter | 60 mm |
| Complementary | |
| Assembly style | customer assembly |
| Sound frequency | 2635 Hz |
| Maximum power dissipation in W | 1.7 W |
| [Us] rated supply voltage | 24 V AC/DC |
| Acoustic level | 85 dB at 1 m |
| Localisation on device | top |
| Signalling type | continuous or intermittent buzzer |
| Current consumption | <= 70 mA |
| Net weight | 0.077 kg |
| Length | 58 mm |
| Material | PC (polycarbonate) V-0 conforming to UL 94, ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94, PBT (polybutylene terephthalate) V-0 conforming to UL 94 |
| Environment | |
| IP degree of protection | IP54 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -25-50 °C |
| Product certifications | CSA, CE, UL |
