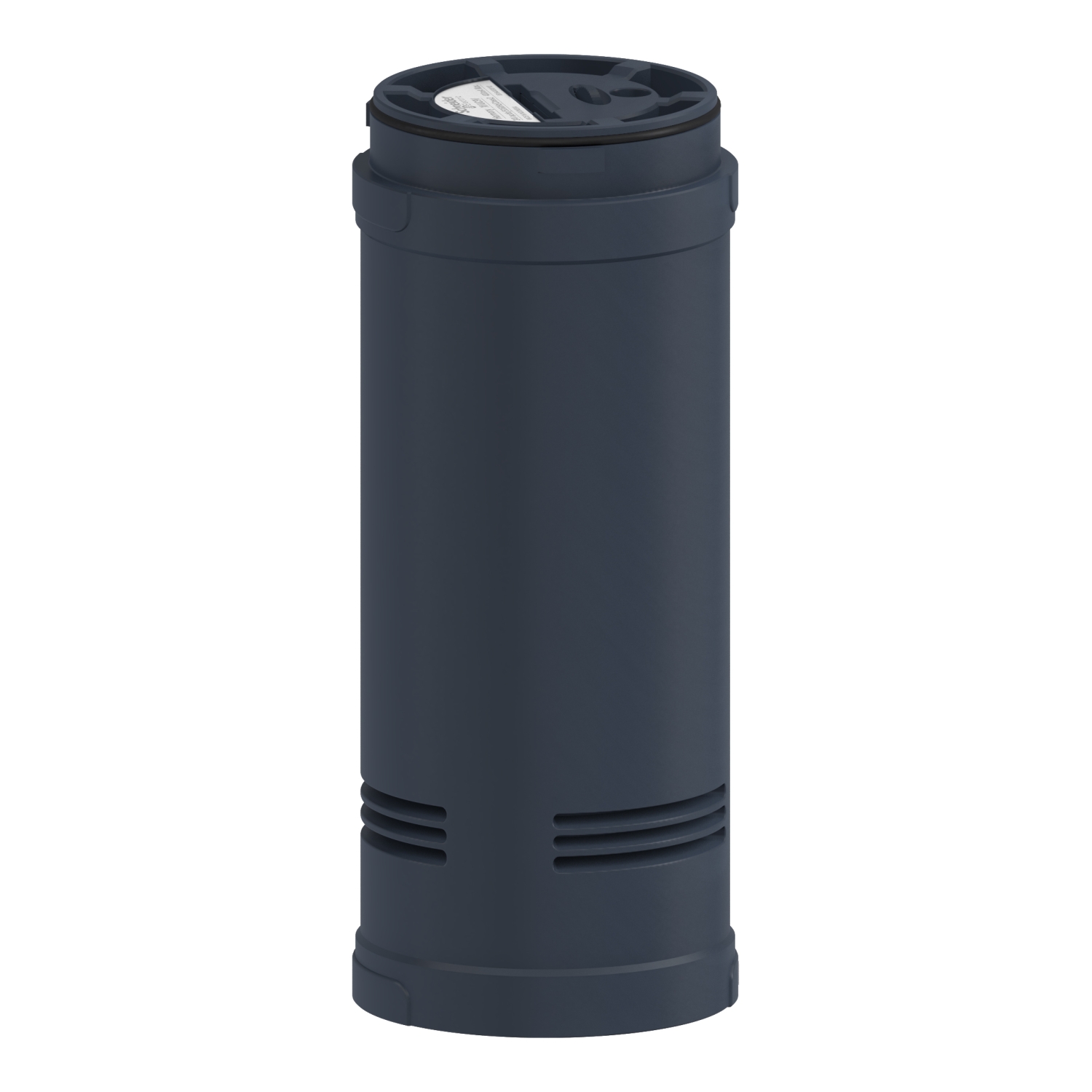

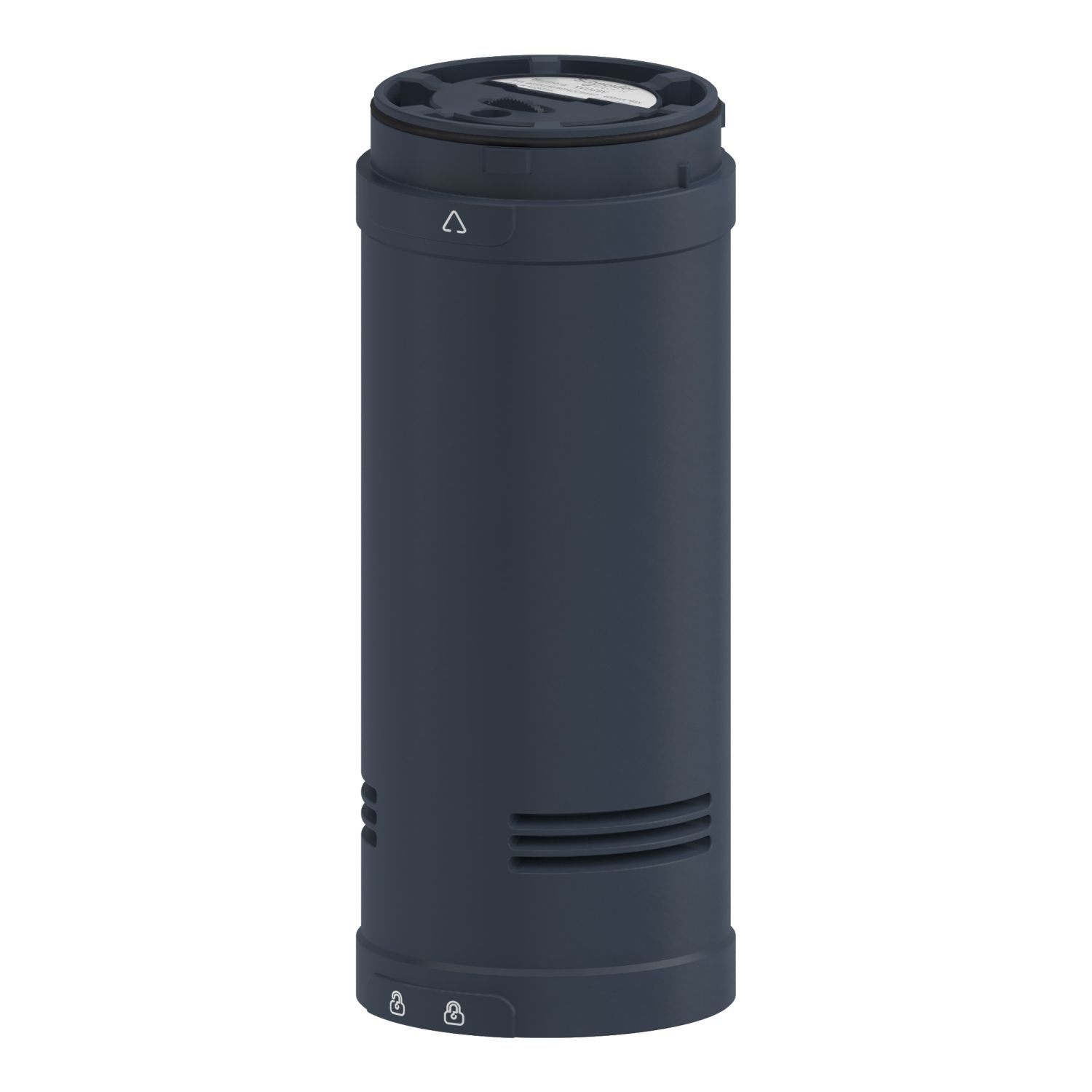

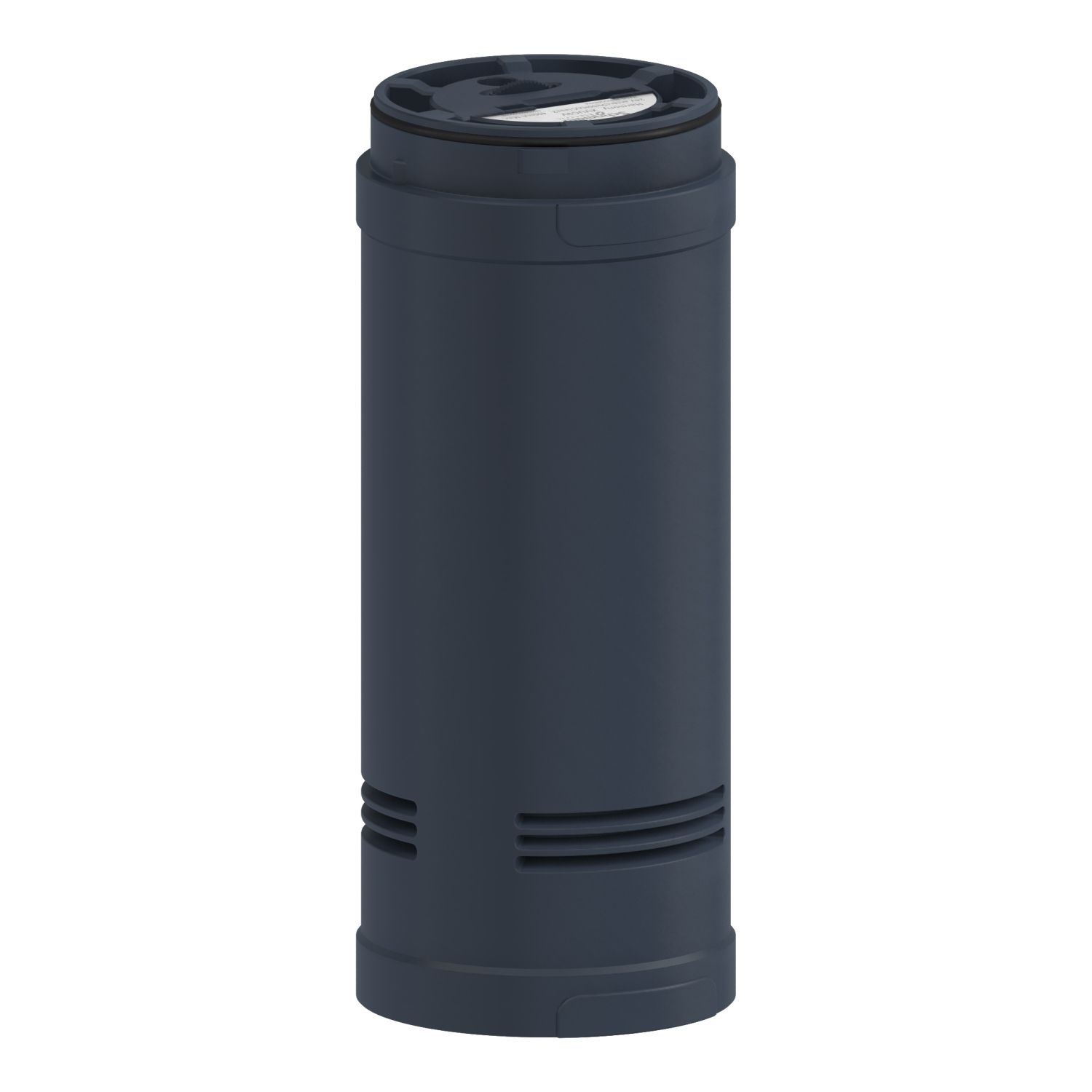

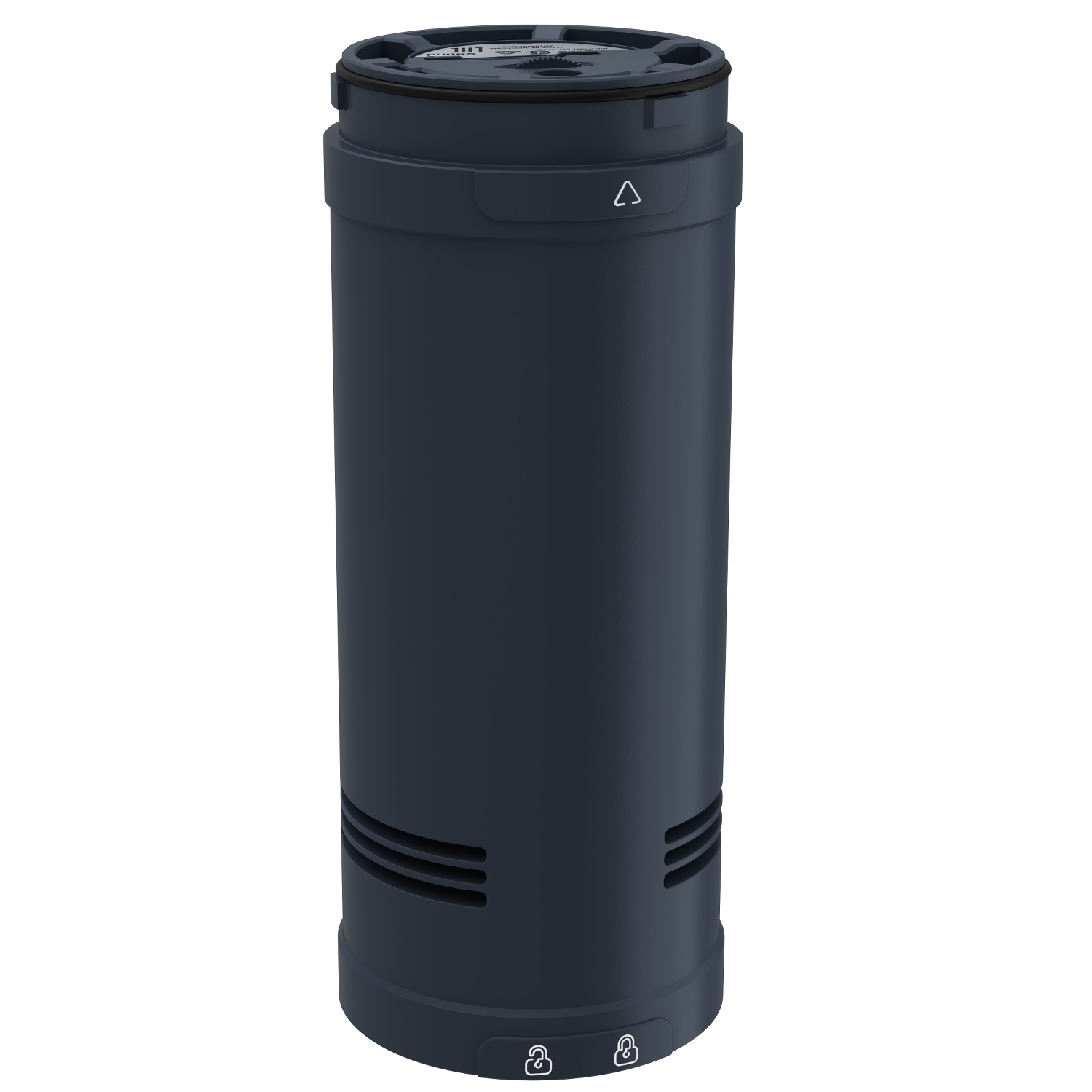

This Harmony XVU audible buzzer unit is supplied with 24V AC/DC. It has a diameter of 60mm. This indicating bank buzzer is an accessory designed as an audible and signalling unit for modular tower light for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection. 86 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Beacon or indicator bank unit type | sound unit |
| Range of product | Harmony XVU |
| Housing colour | black |
| Component name | XVU |
| Product or component type | modular tower light |
| Mounting diameter | 60 mm |
| Complementary | |
| Assembly style | customer assembly |
| Sound frequency | 20 Hz...20 KHz |
| Maximum power dissipation in W | 5.55 W |
| [Us] rated supply voltage | 24 V AC/DC |
| Acoustic level | 86 dB at 1 m |
| Localisation on device | AC/DC adapter |
| Signalling type | adjustable vocal sound |
| Current consumption | <= 135 mA at 100...240 V AC, <= 400 mA at 24 V AC/DC |
| Net weight | 0.219 kg |
| Length | 155 mm |
| Material | ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94, PBT (polybutylene terephthalate) V-0 conforming to UL 94 |
| Environment | |
| IP degree of protection | IP54 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -20-50 °C |
| Product certifications | CE, CSA, UL |
