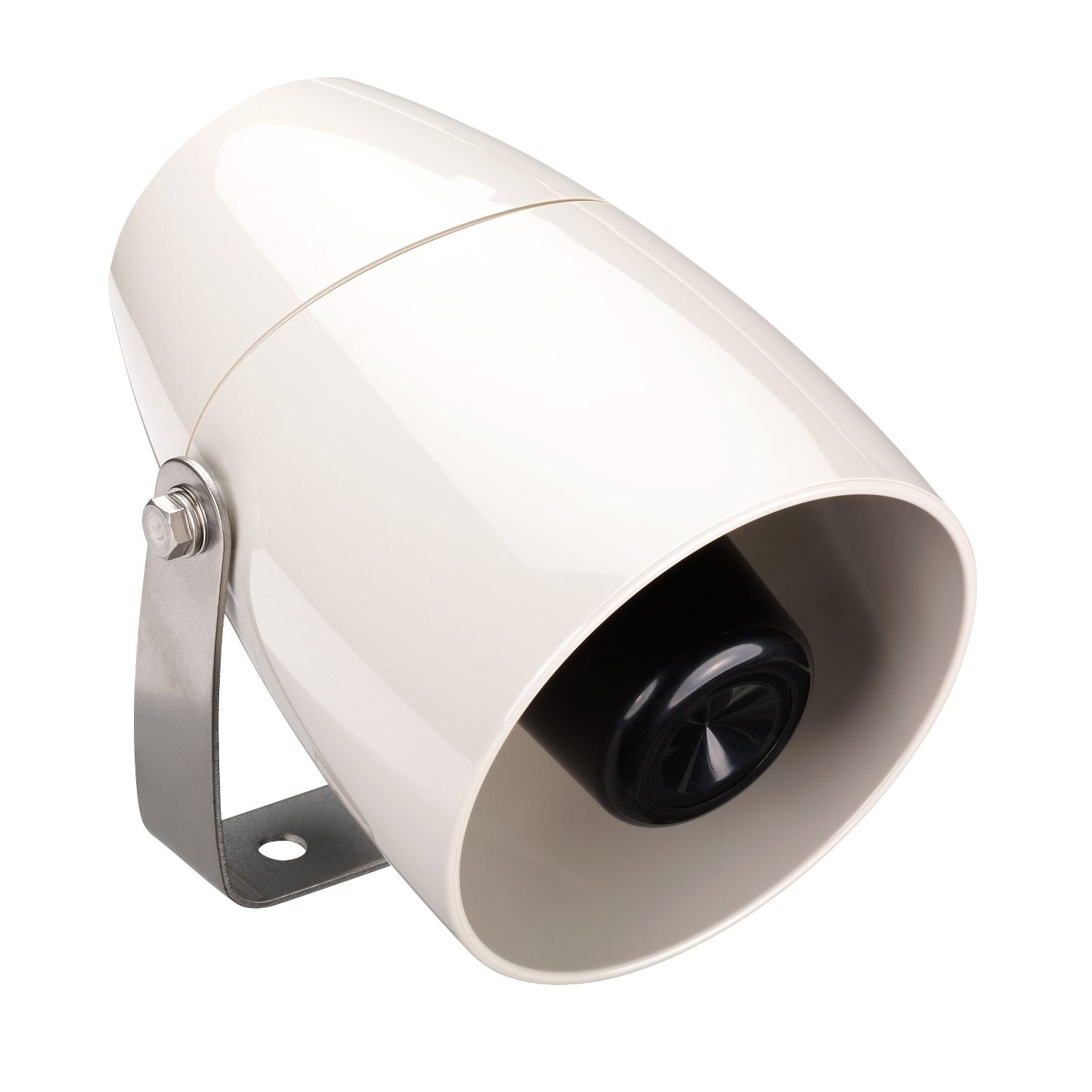

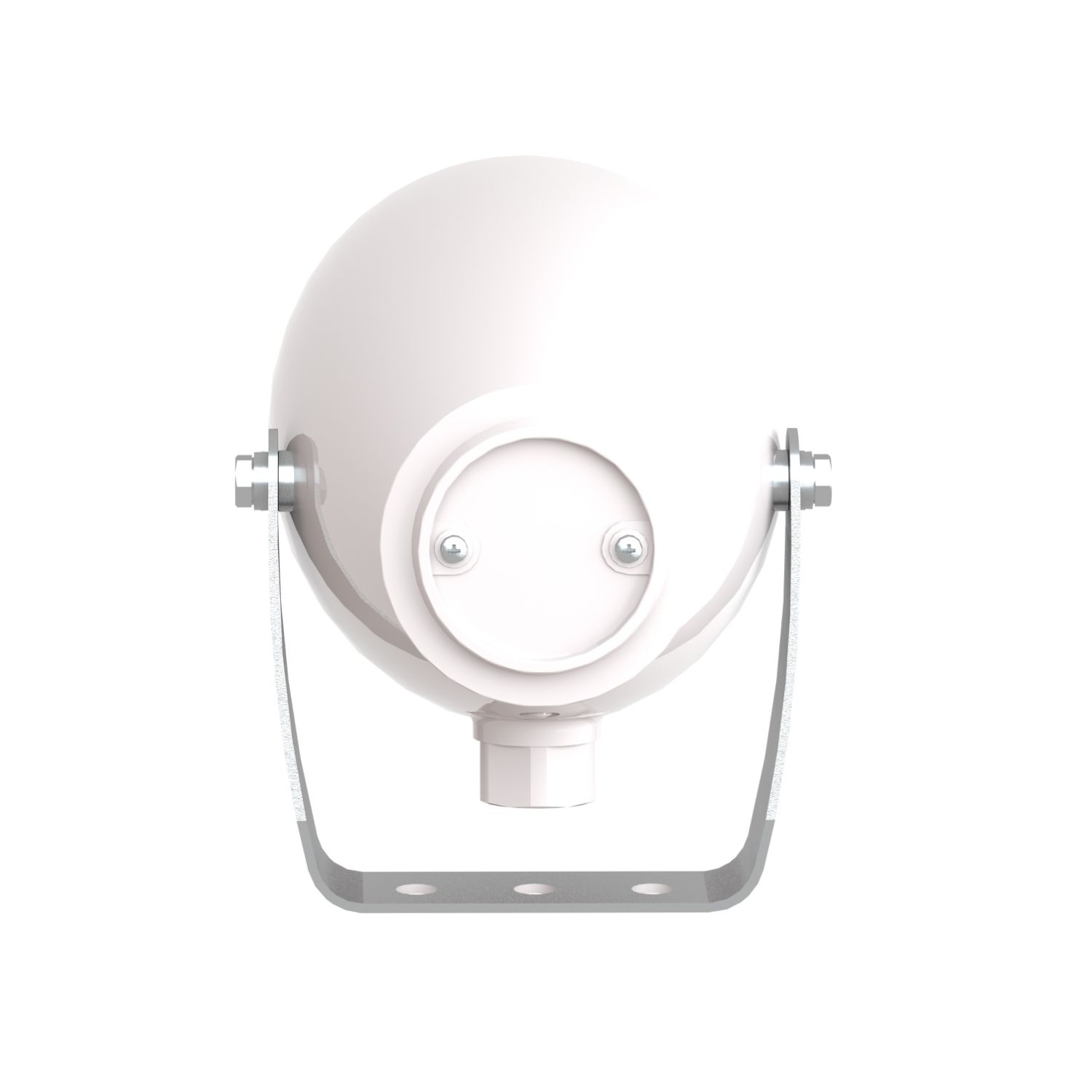

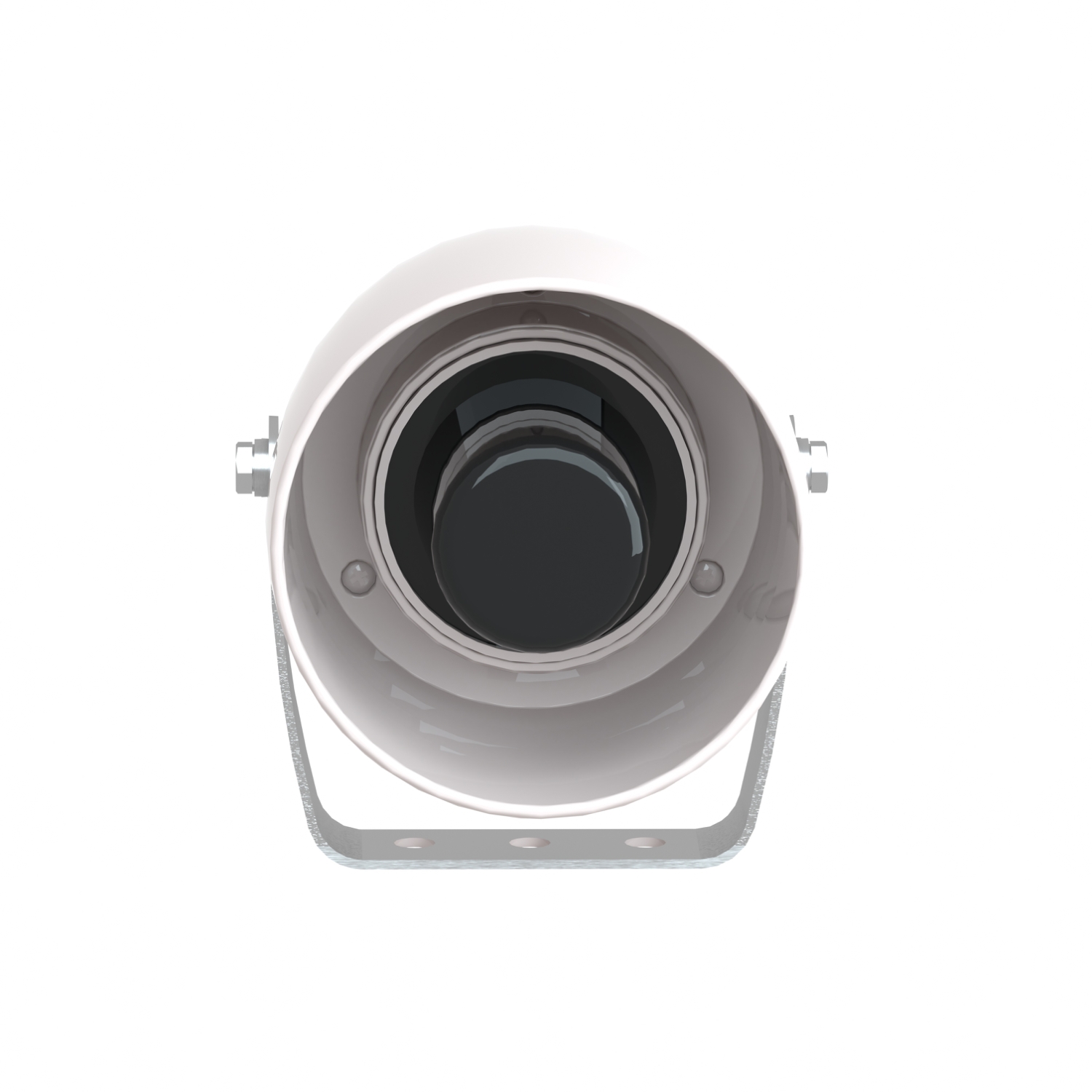

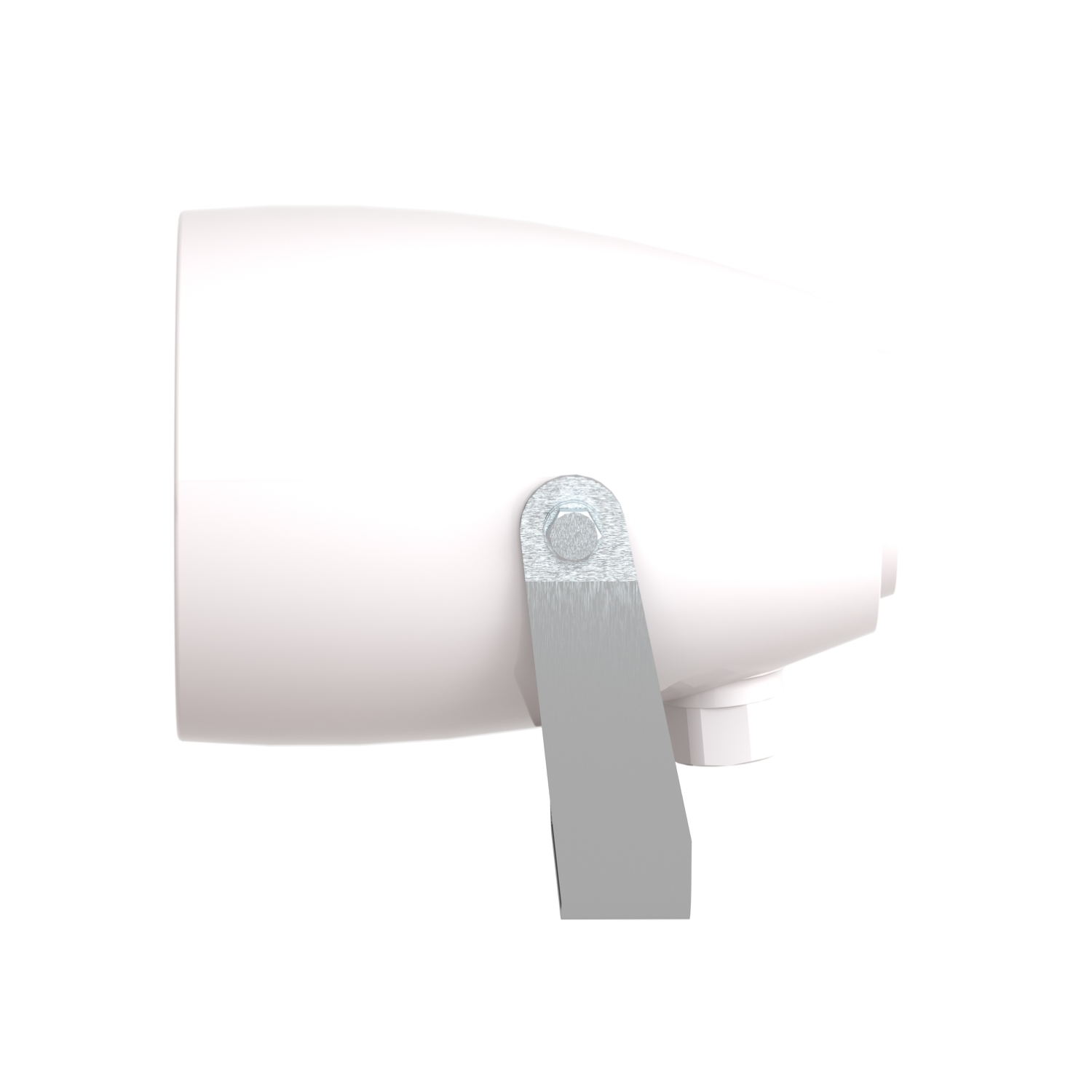

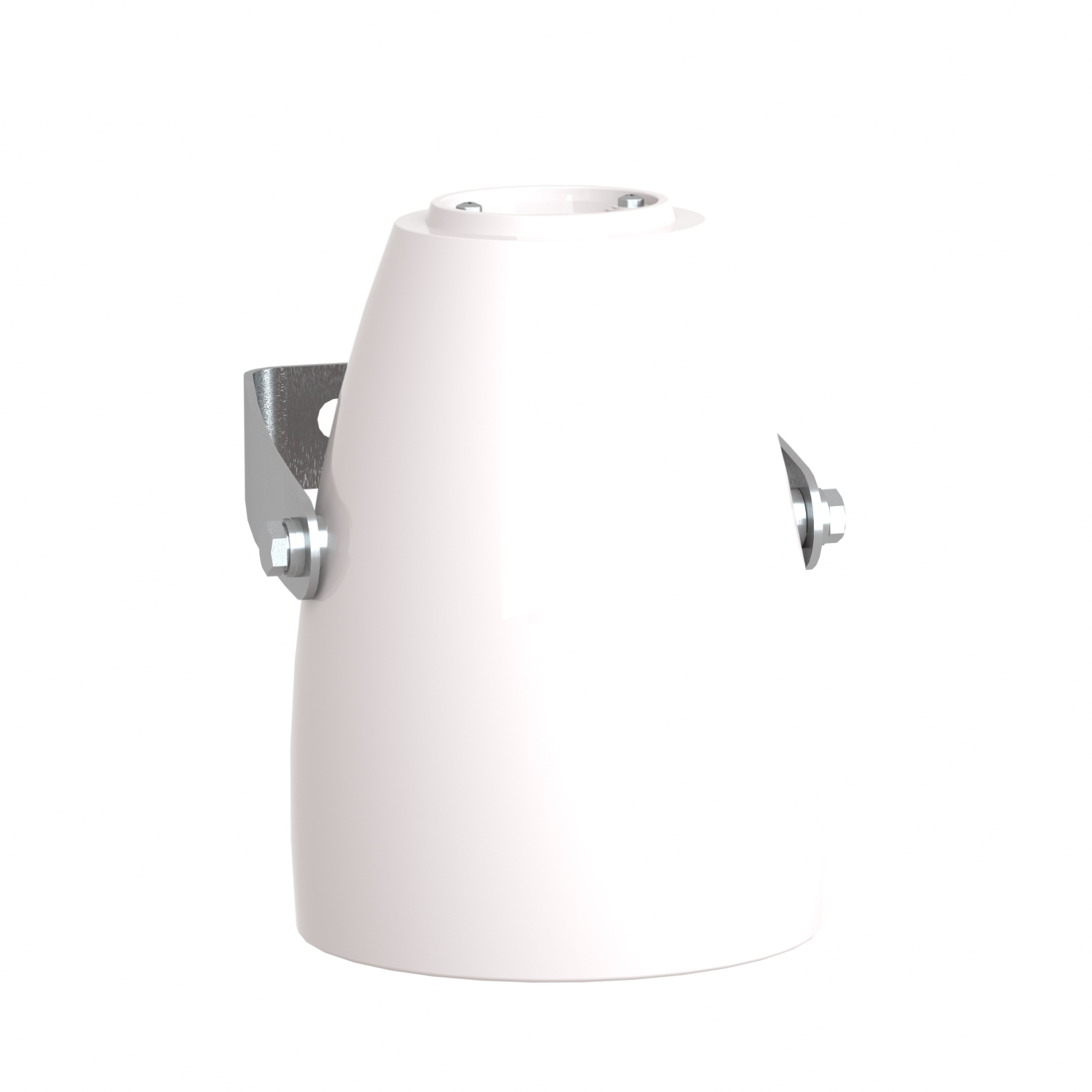

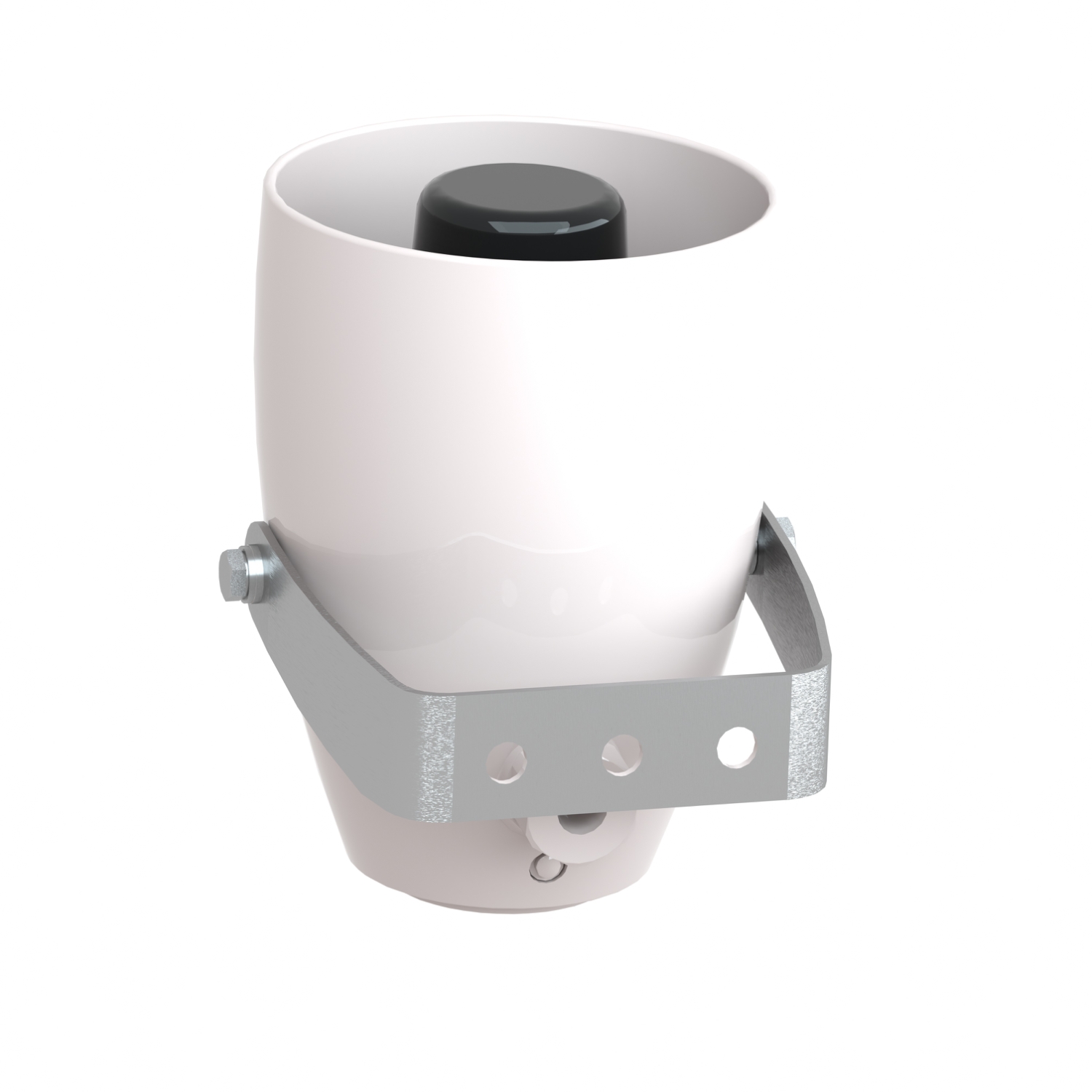

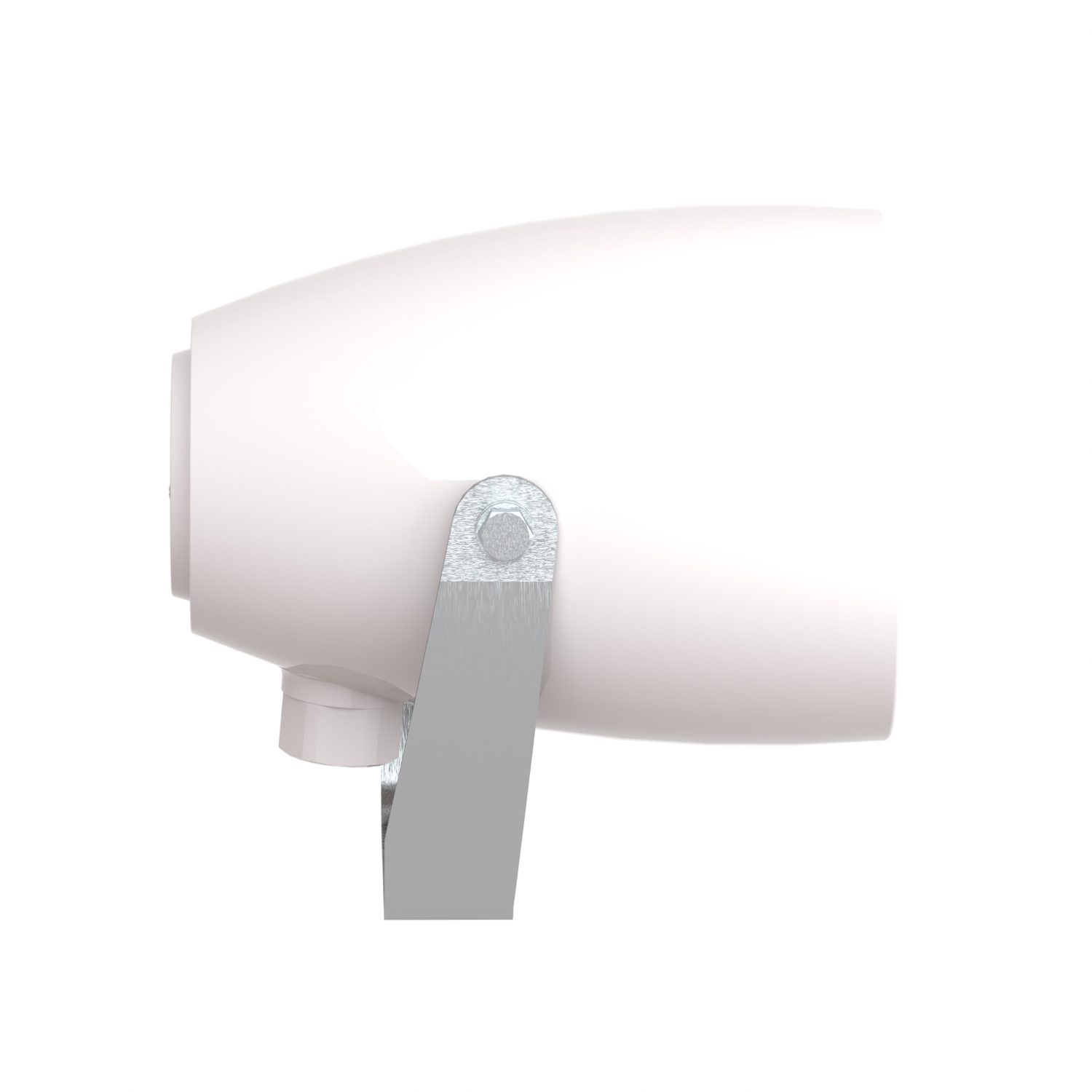

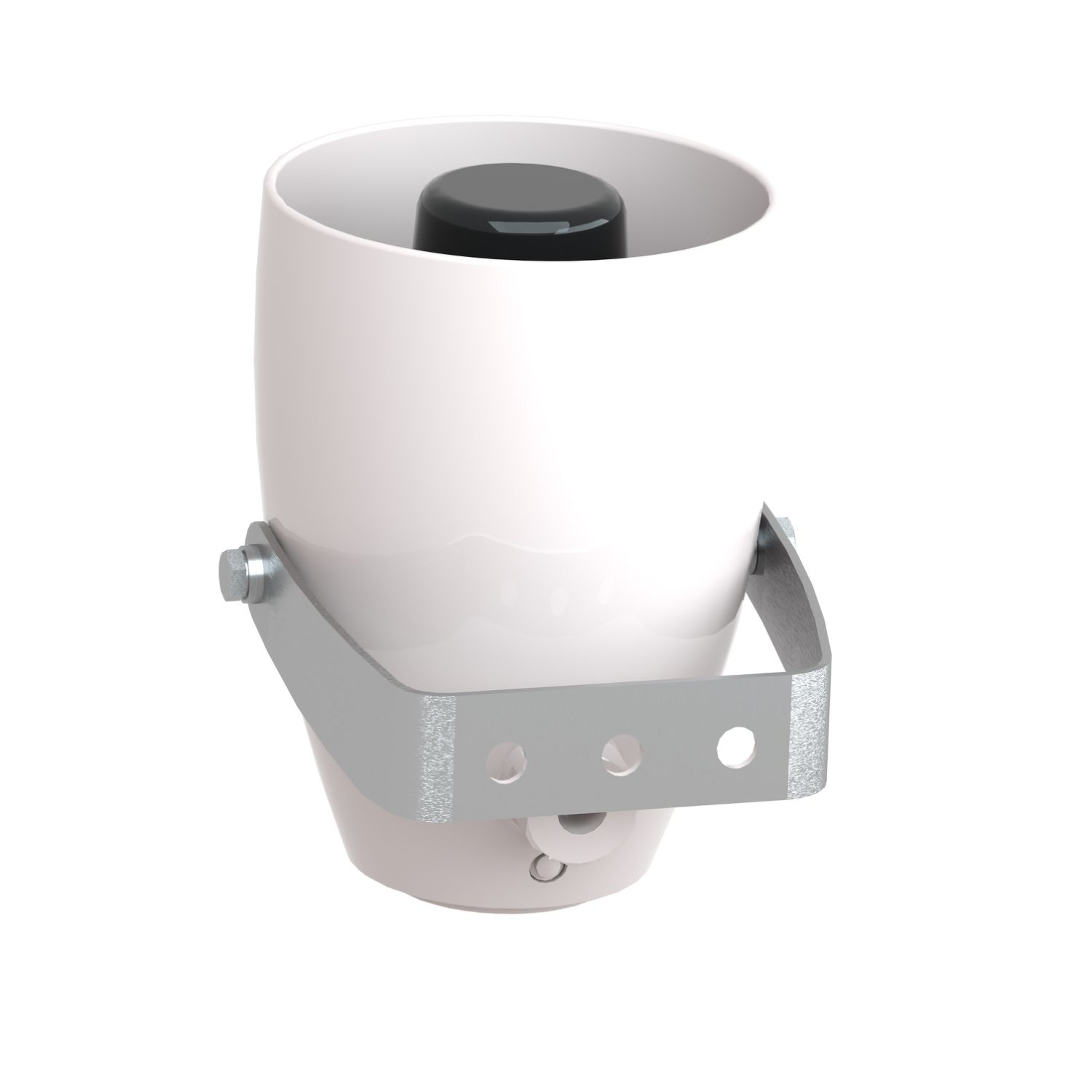

This Schneider Electric Harmony XVS Multi-sound Siren is white and has PC body material It is dust resistant and water resistant thanks to its IP53 protection, making it ideal for operation in harsh environments High performance International standards & certifications (IP53)
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVS |
| [Us] rated supply voltage | 120 V AC |
| Noise level | 106-106 dB (continuous or intermittent tone) at 1 m |
| Signalling type | 2 tones siren |
| Colour | white |
| Product or component type | siren |
| Range of product | Harmony XVS |
| Complementary | |
| Depth | 153.2 mm |
| Width | 114 mm |
| Compatibility code | XVS |
| Material | PC: body |
| Electrical connection | cable: 6.5-8.5 mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Net weight | 1 kg |
| Marking | CE |
| Current consumption | 80 mA at 120 V |
| Clamping connection capacity | <= 1 x 1.5 mm² |
| Height | 114 mm |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to EN/IEC 61140 |
| Ambient air temperature for storage | -35-70 °C |
| IP degree of protection | IP53 |
| Standards | EN/IEC 60947-5-1, EN/IEC 60947-1 |
| Ambient air temperature for operation | -30-50 °C |
