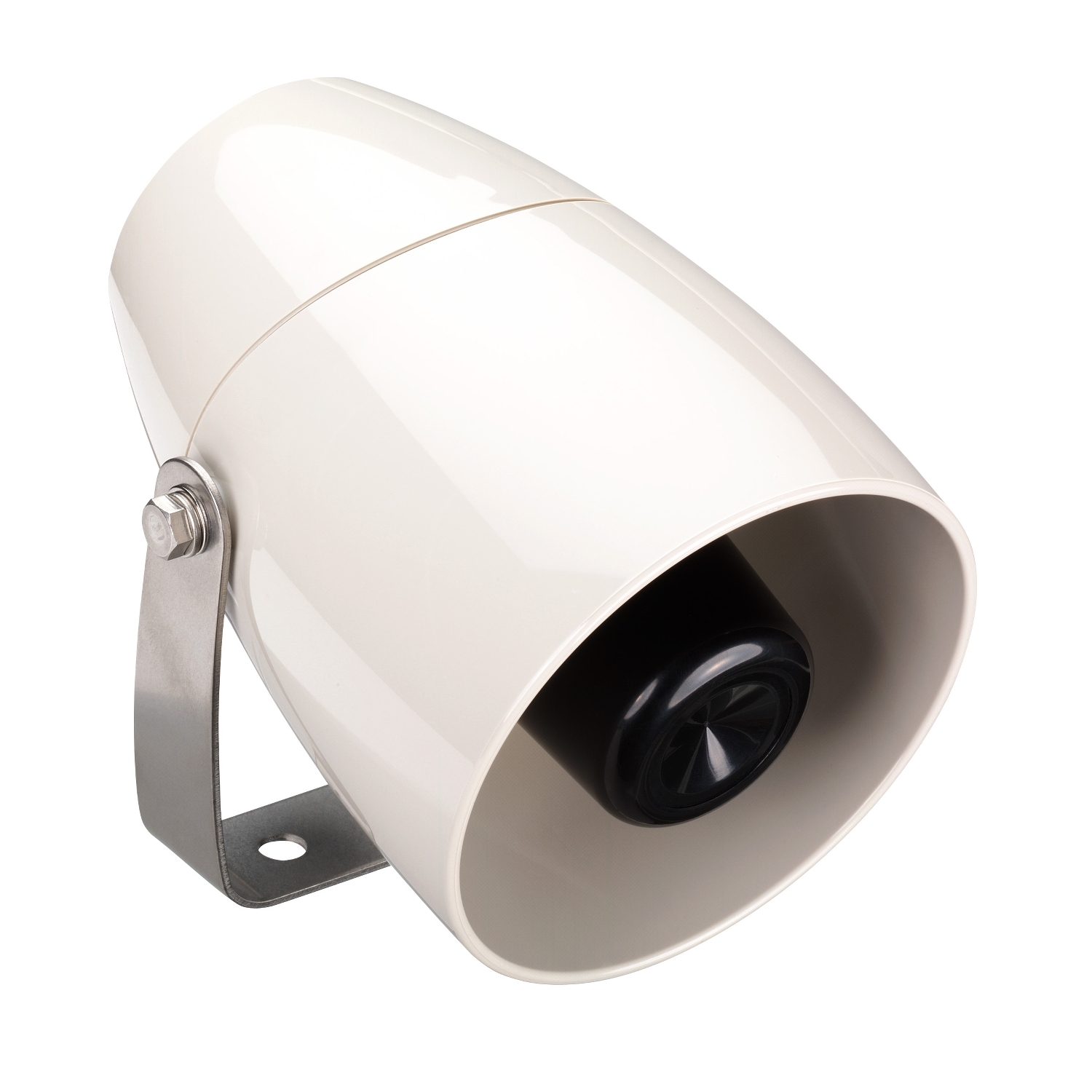

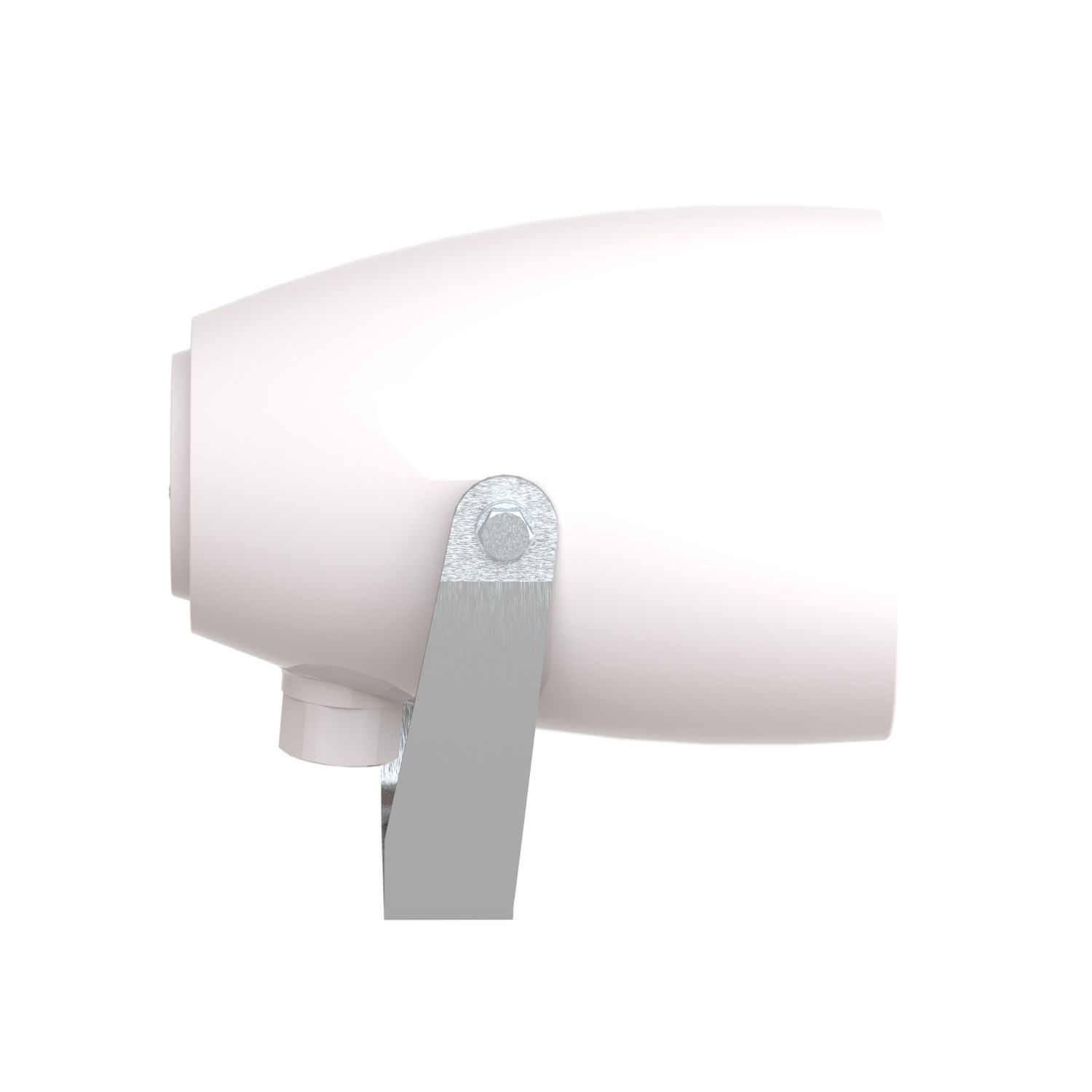

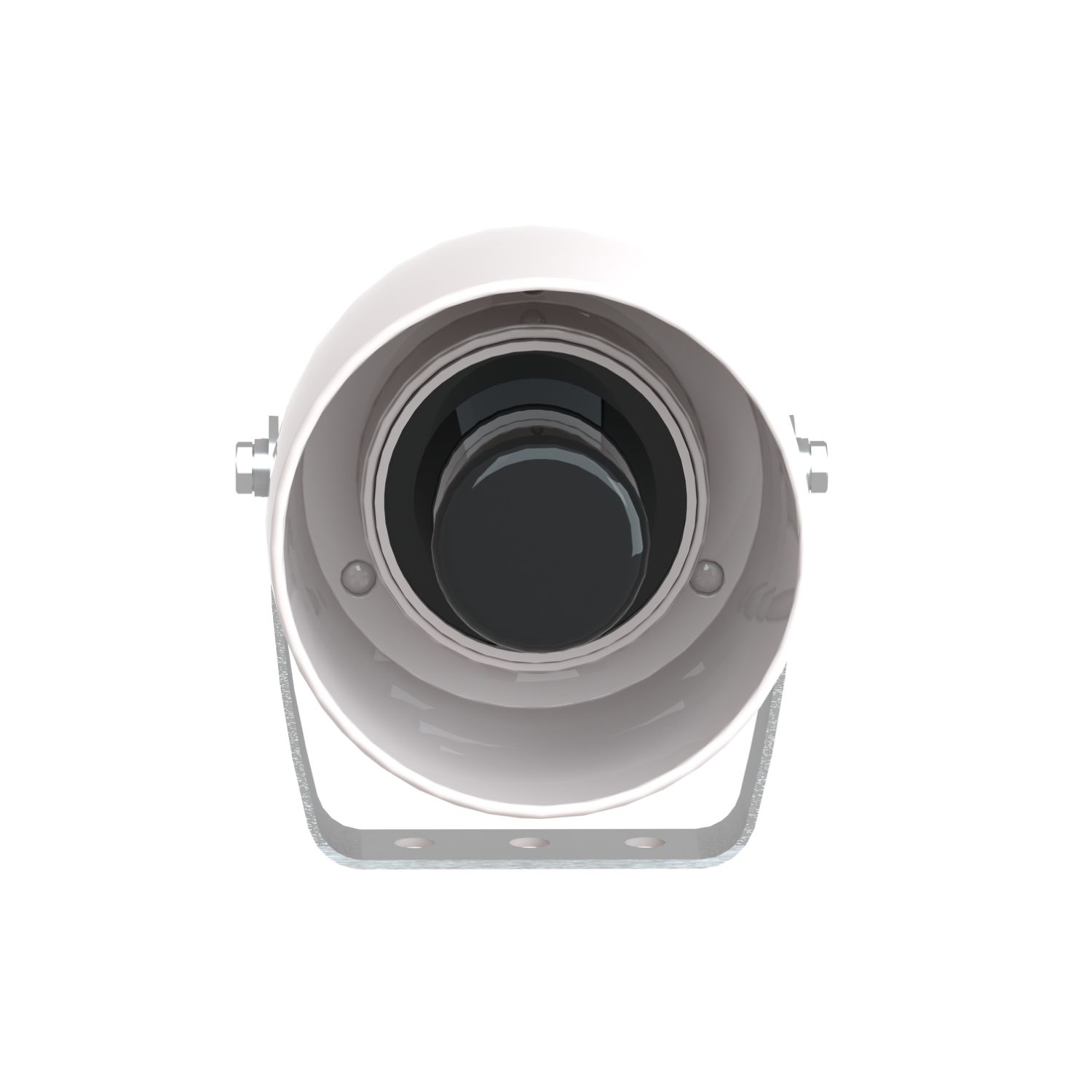

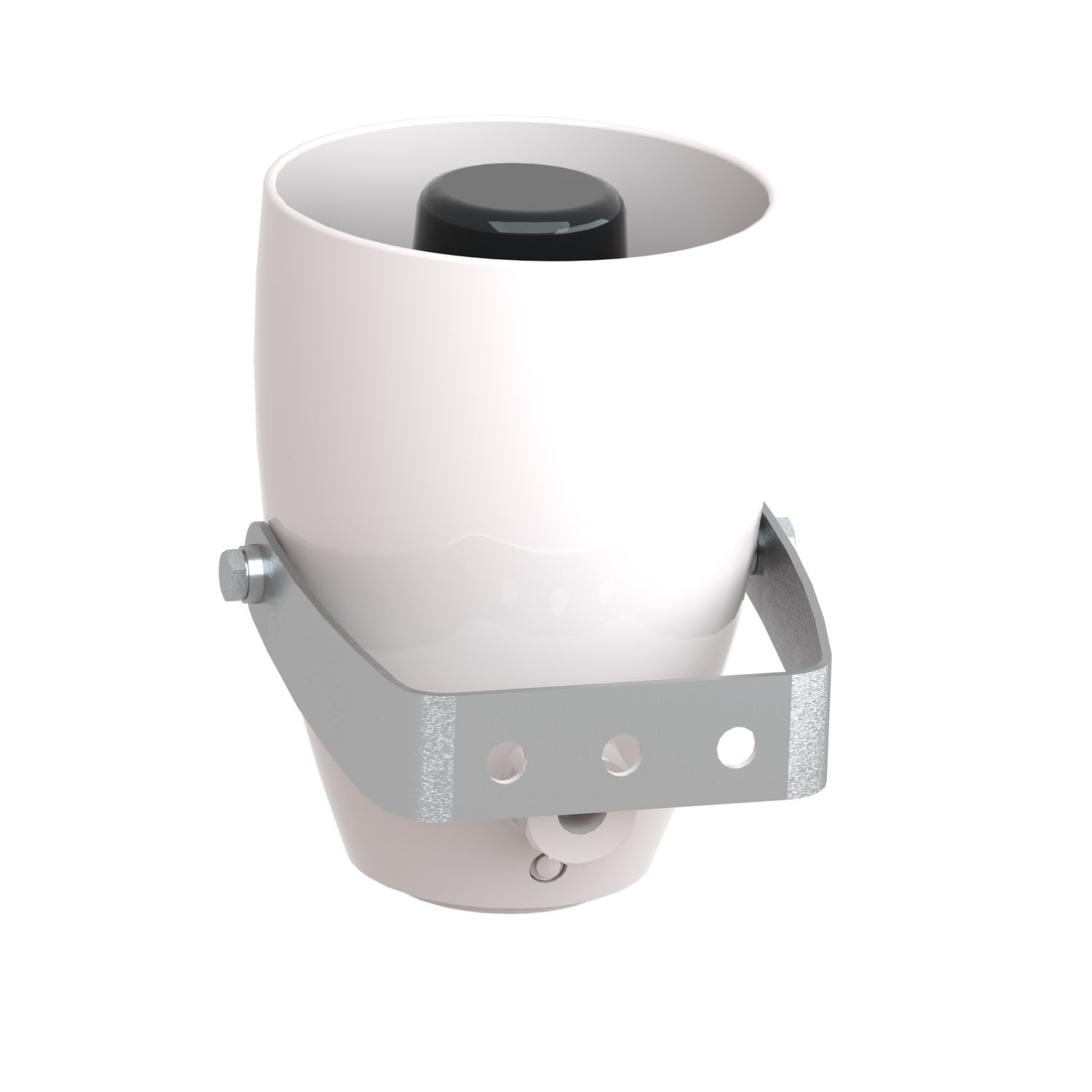

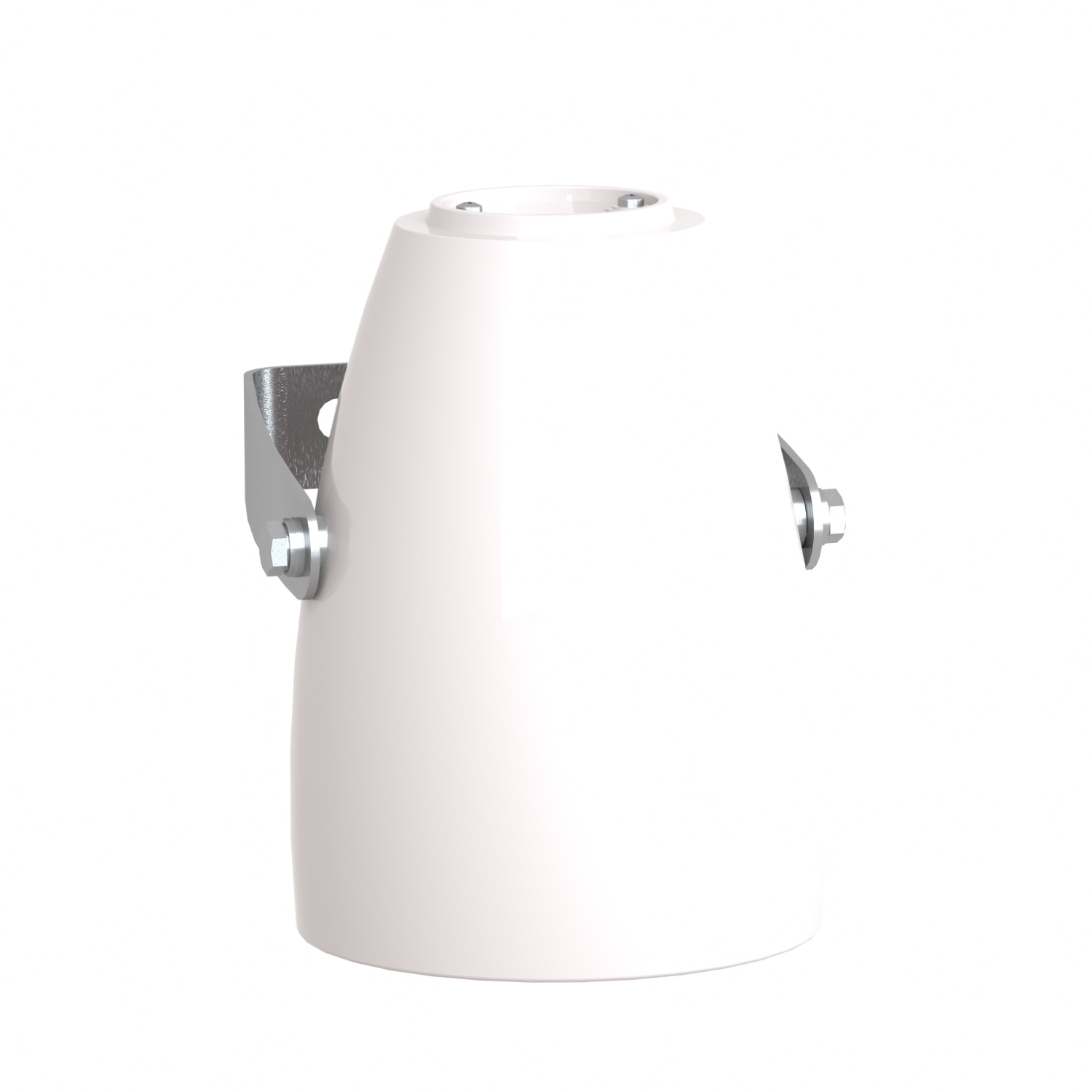

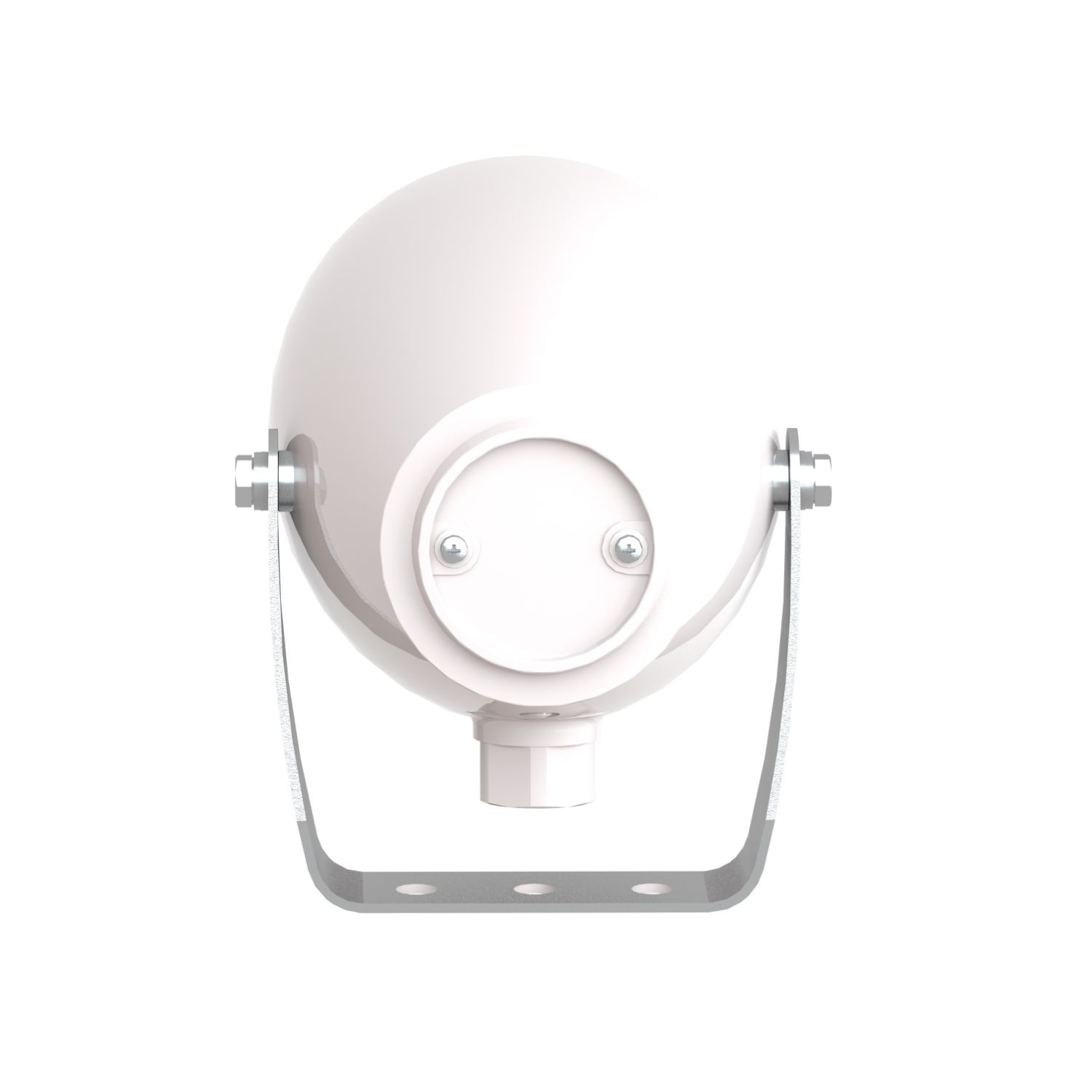

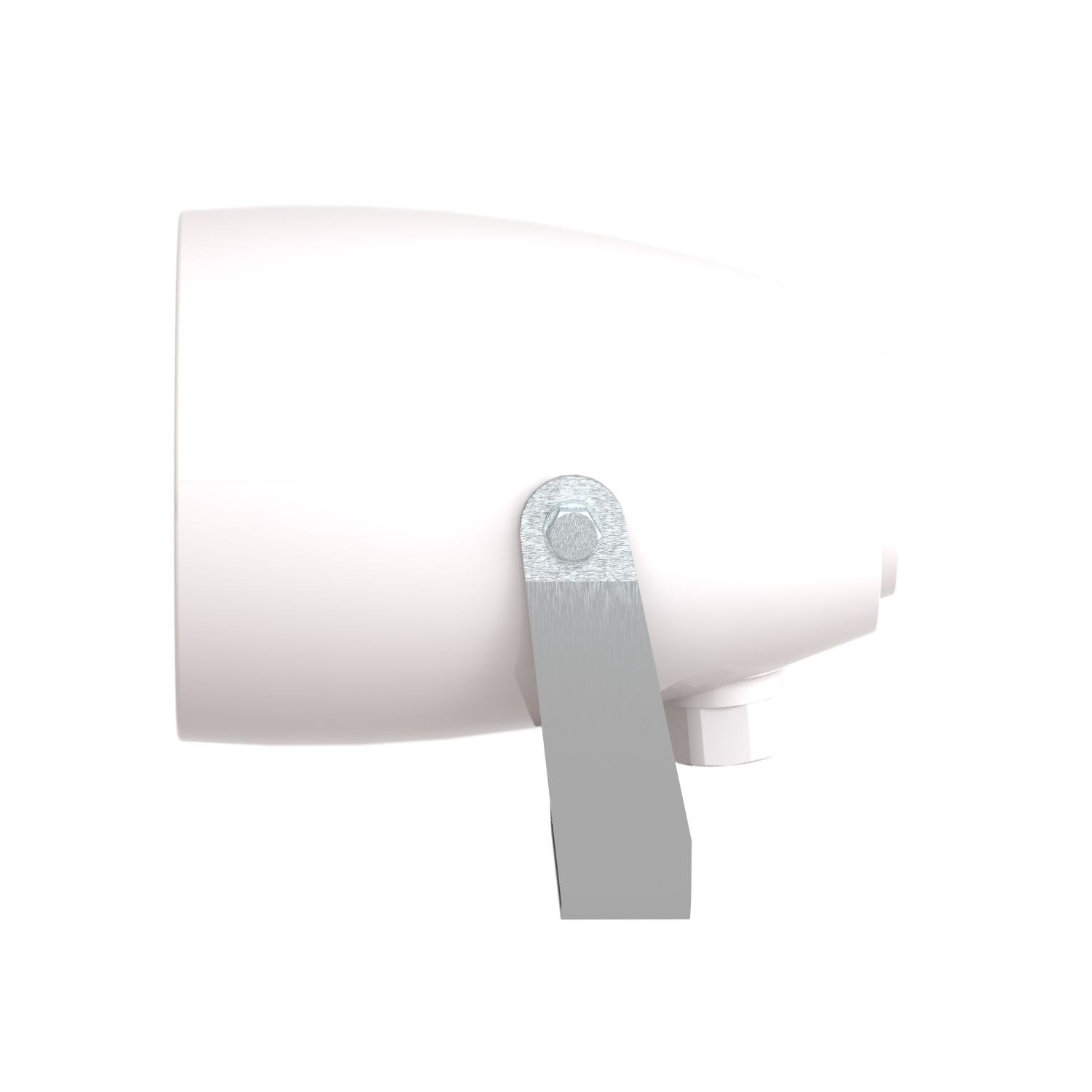

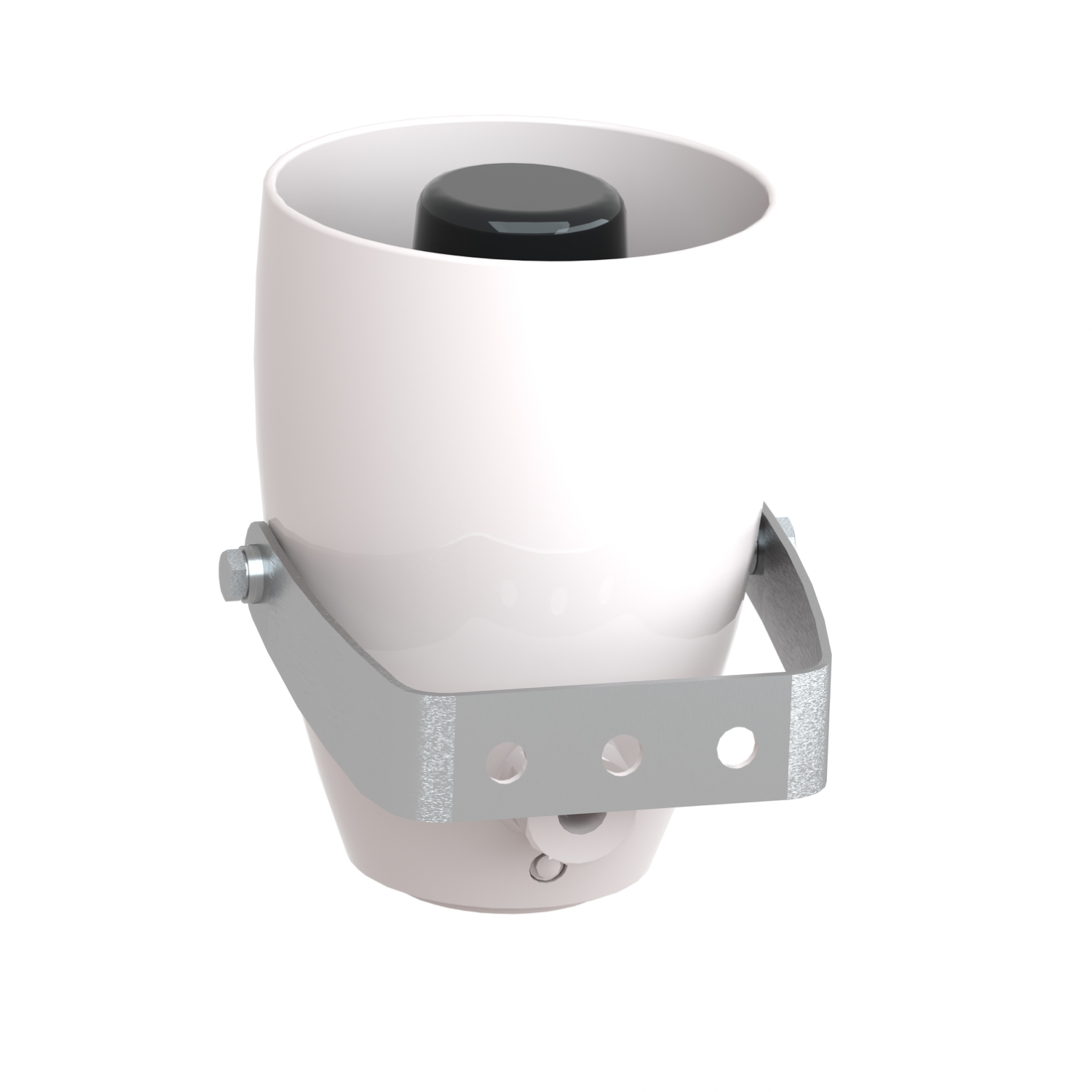

This Harmony XVS10BMW is a multi-sound siren 12/24V DC 2 tones. It is part of the range Harmony XVS sirens and electronics alarms range .
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVS |
| Noise level | 106-106 dB (continuous or intermittent tone) at 1 m |
| Colour | white |
| Range of product | Harmony XVS |
| [Us] rated supply voltage | 24 V AC/DC, 12 V AC/DC |
| Signalling type | 2 tones siren |
| Product or component type | siren |
| Complementary | |
| Compatibility code | XVS |
| Electrical connection | cable: 6.5-8.5 mm |
| Marking | CE |
| Clamping connection capacity | <= 1 x 1.5 mm² |
| Height | 114 mm |
| Depth | 153.2 mm |
| Width | 114 mm |
| Material | PC: body |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Net weight | 0.8 kg |
| Current consumption | 500 mA, 300 mA at 24 V |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -35-70 °C |
| IP degree of protection | IP53 |
| Ambient air temperature for operation | -30-50 °C |
| Electrical shock protection class | class II conforming to EN/IEC 61140 |
| Standards | EN/IEC 60947-5-1, EN/IEC 60947-1 |
