| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety level | can reach SIL 3 for normally open relay contact conforming to IEC 61508, can reach SILCL 3 for normally open relay contact conforming to IEC 62061, can reach PL e/category 3 for normally open relay contact conforming to ISO 13849-1 |
| Function of module | controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST, monitoring 3-phase motor supplied by servo drive, monitoring 3-phase motor supplied by variable speed drive, monitoring servo motor, monitoring dc motor, monitoring 3-phase motor with variable number of poles and star-delta starting, monitoring 3-phase motor with variable number of poles, monitoring 3-phase motor with star-delta starting, monitoring 3-phase motor |
| Safety reliability data | type = B conforming to IEC 61508-1, SFF > 99% conforming to IEC 61508-1, PFHd = 2.44E-9 1/h conforming to IEC 61508-1, HFT = 1 conforming to IEC 61508-1, SFF > 99% conforming to IEC 62061, PFHd = 2.44E-9 1/h conforming to IEC 62061, HFT = 1 conforming to IEC 62061, PFHd = 2.44E-9 1/h conforming to ISO 13849-1, Dcavg = 98.9 % conforming to ISO 13849-1, MTTFd > 30 years conforming to ISO 13849-1 |
| Safety module application | for zero speed detection |
| Output type | relay, 1 NO circuit(s), volt-free |
| Number of additional circuits | 2 solid state outputs |

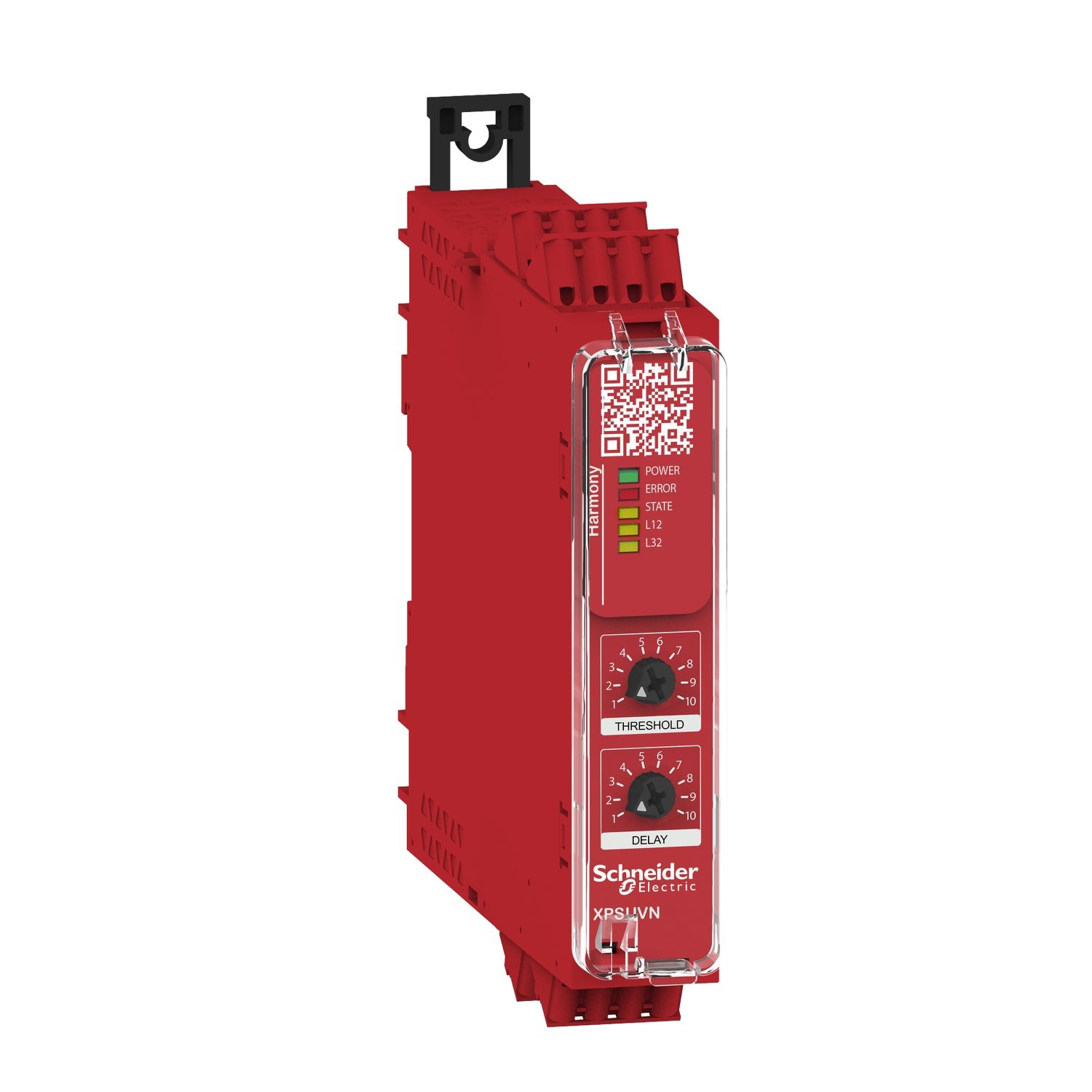

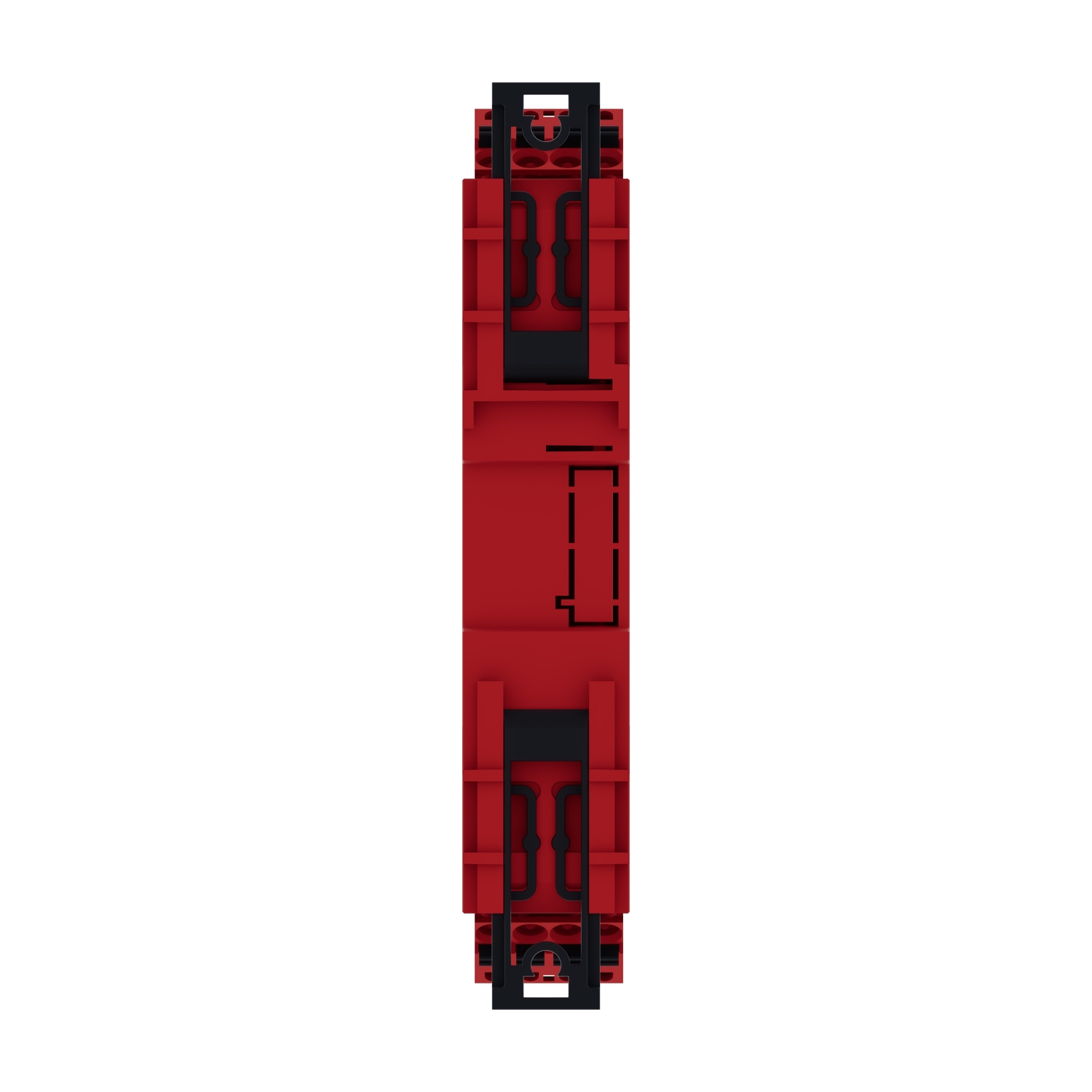

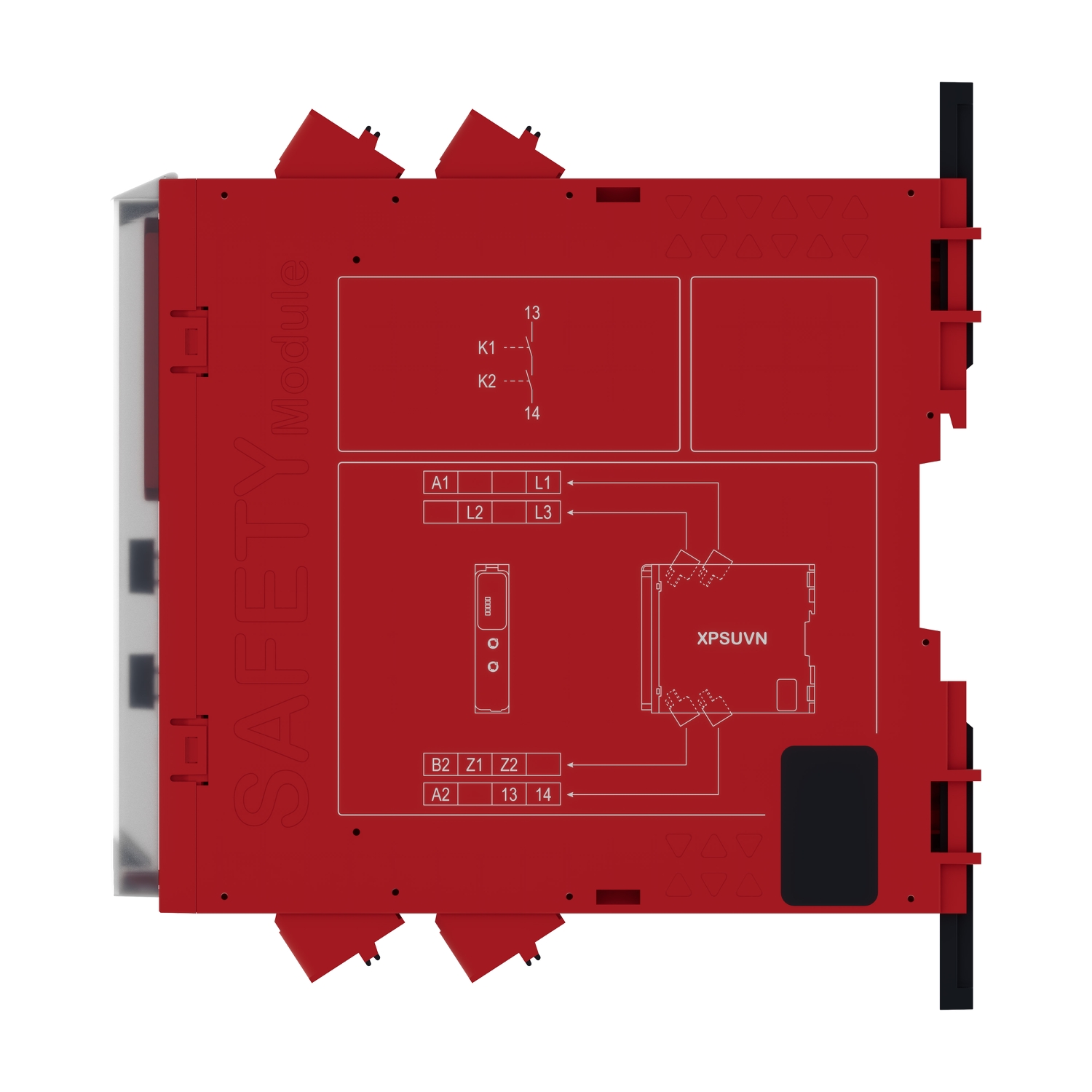

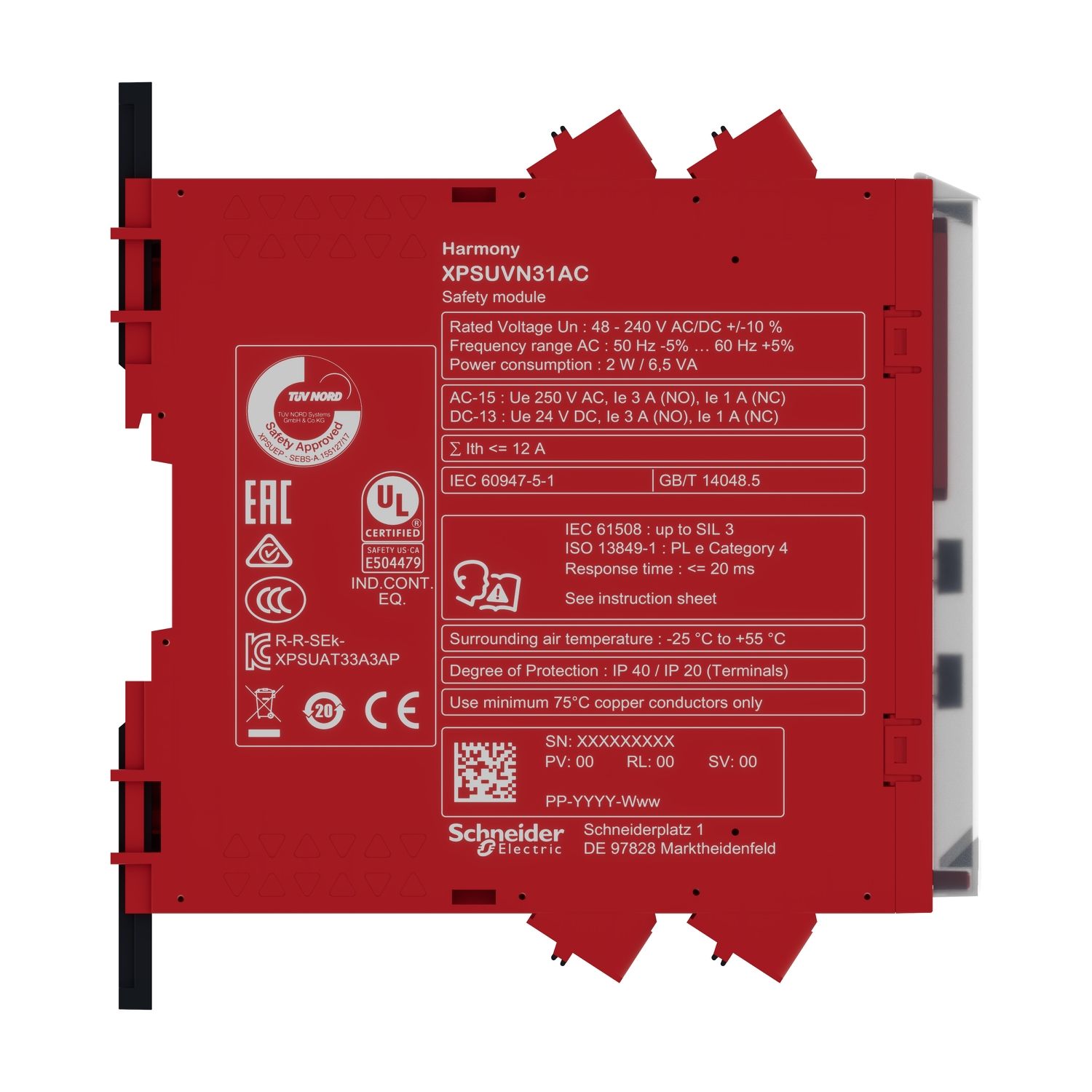

| Safety module name | XPSUVN |
| Product or component type | safety module |
| Range of product | Harmony Safety Automation |
| [Us] rated supply voltage | 48...240 V AC/DC - 10...10 % |
| Product certifications | cULus, TÜV |
| Complementary | |
| Input detection threshold | 500 mV, 400 mV, 300 mV, 230 mV, 180 mV, 140 mV, 110 mV, 85 mV, 65 mV, 50 mV |
| Depth | 120 mm |
| Width | 22.5 mm |

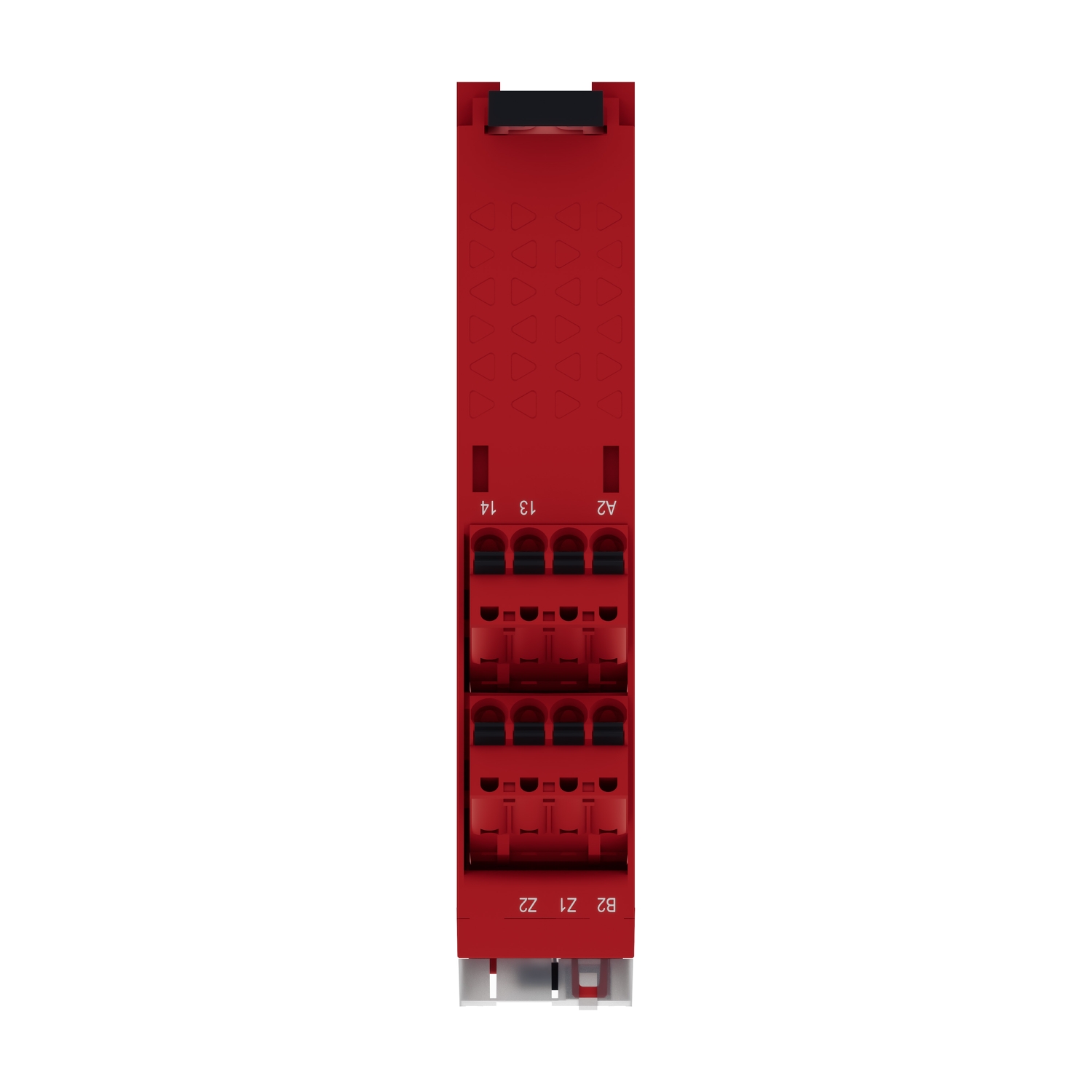

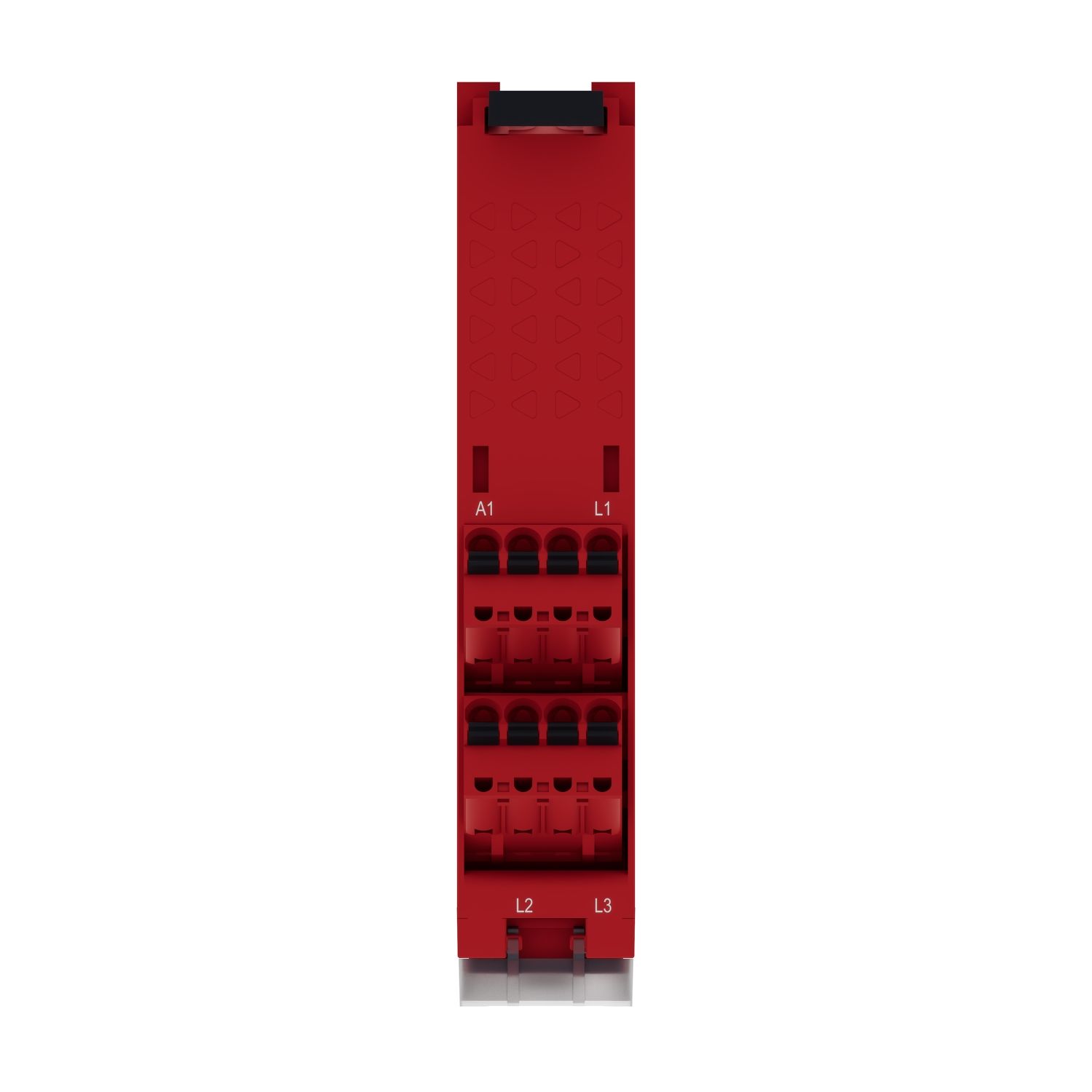

| Connections - terminals | removable spring terminal block flexible with ferrule cable: 2 x 0.5...1.5 mm² with cable end, with bezel, removable spring terminal block flexible with ferrule cable: 2 x 0.25...1 mm² without cable end, with bezel, removable spring terminal block solid or flexible cable: 0.2...1.5 mm² twin conductor, removable spring terminal block flexible with ferrule cable: 0.25...2.5 mm² single conductor, removable spring terminal block solid or flexible cable: 0.2...2.5 mm² |
| Input voltage | 690 V |
| Power consumption in VA | 5.5 VA |
| [Ie] rated operational current | 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact |
| [Ui] rated insulation voltage | 400 V phase to earth (pollution degree 2) conforming to IEC 60947-1, 690 V phase to phase (pollution degree 2) conforming to IEC 60947-1 |
| Standards | IEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1 |
| Net weight | 0.2 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category II conforming to IEC 60947-1 |

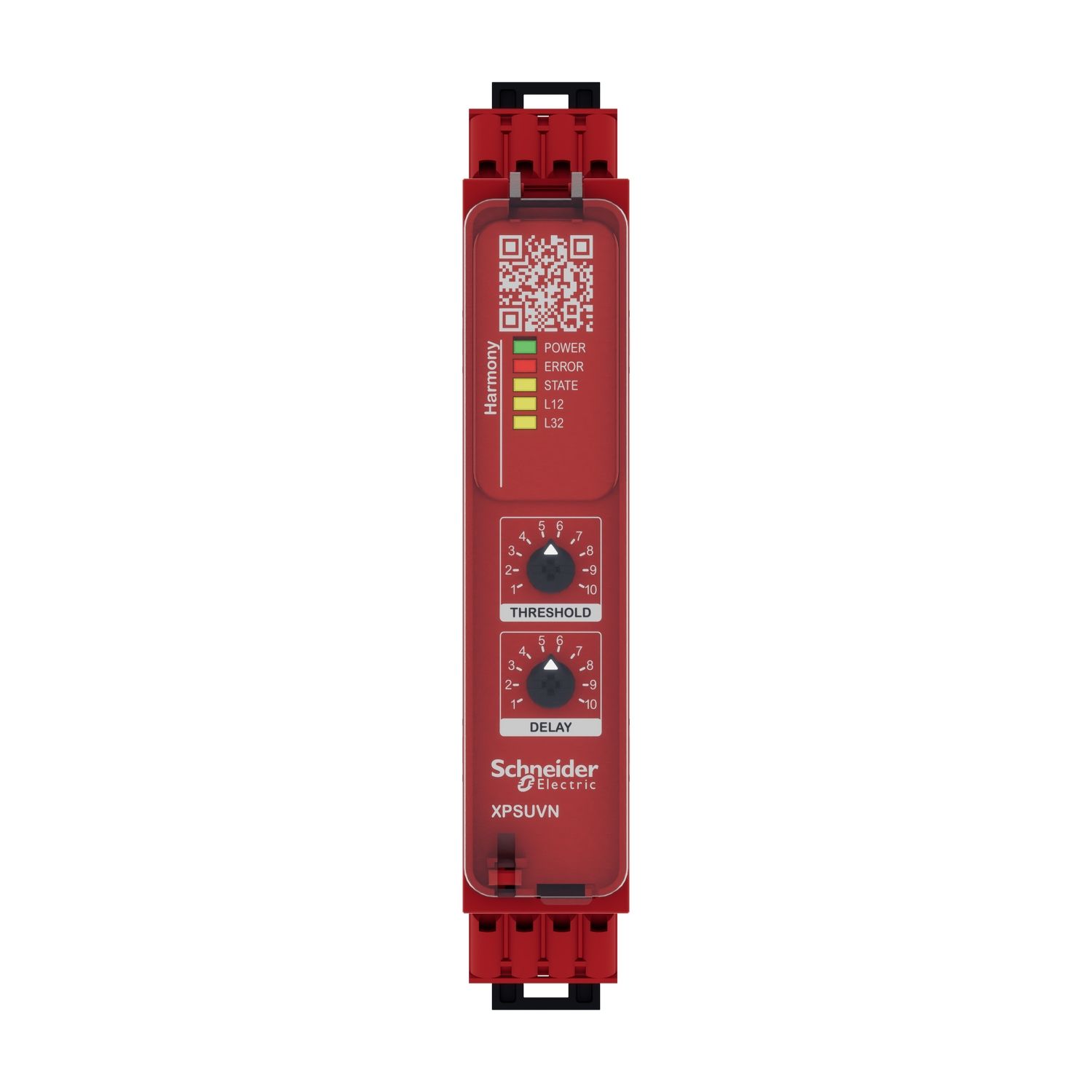

| Local signalling | LED yellow with L32 marking for input line comparison, LED yellow with L12 marking for input line comparison, LED yellow with state marking for status, LED red with error marking for error, LED green with power marking for power ON |
| Associated fuse rating | 6 A gG for relay output conforming to IEC 60947-1 |
| Time delay | 60 s, 35 s, 20 s, 12 s, 8 s, 5 s, 3 s, 2 s, 1 s, 0.5 s |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 5 V for relay output |
| Power consumption in W | 2.5 W |
| Mounting support | 35 mm symmetrical DIN rail |
| [Ith] conventional free air thermal current | 6 A for NO relay output circuit |
| Height | 100 mm |
| Environment | |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Ambient air temperature for operation | -25-55 °C |
