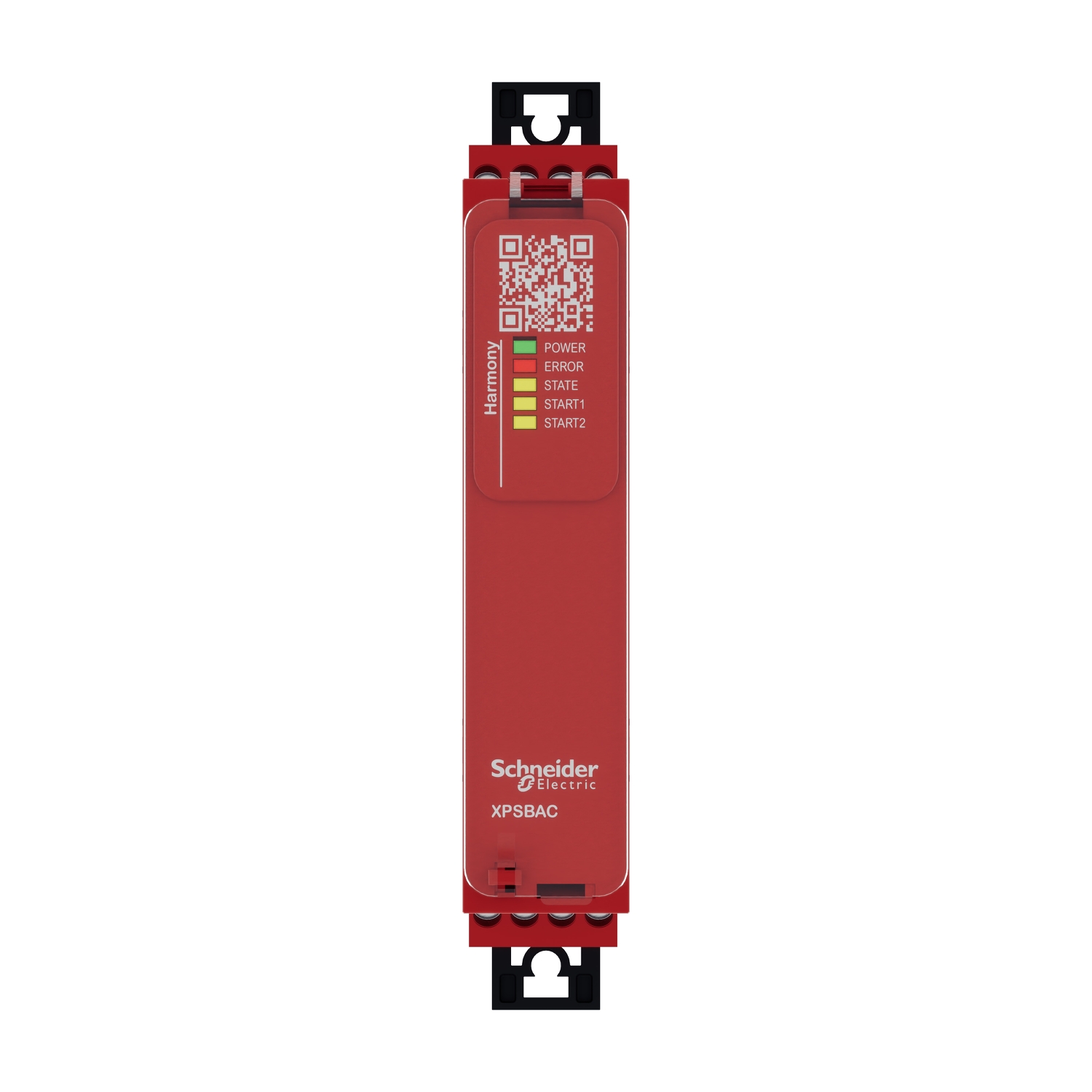

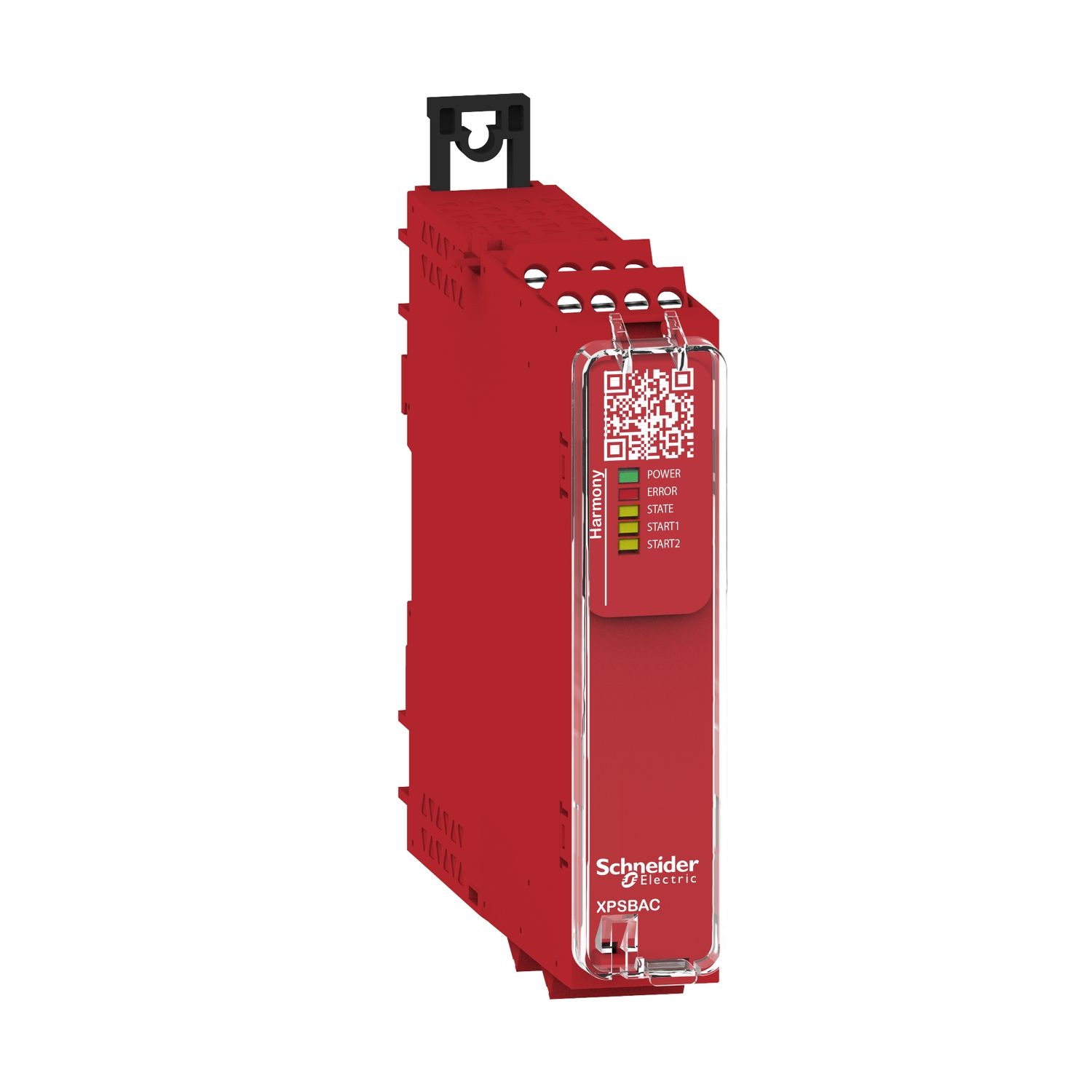

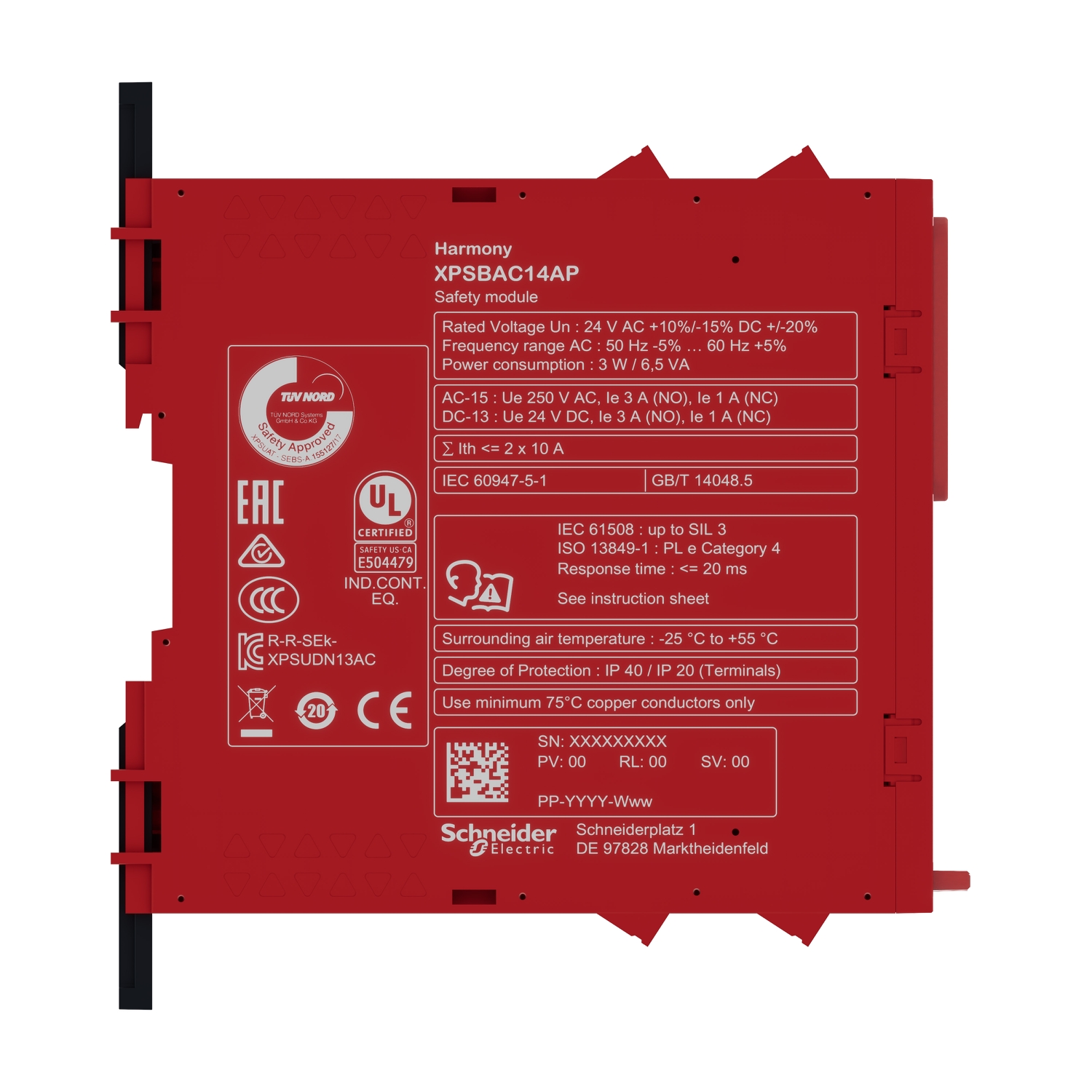

This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO13849-1, SILCL 3 conforming to IEC62061, SIL 3 conforming to IEC61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Electrical circuit type | NC pair |
| Safety reliability data | type = B conforming to IEC 61508-1 for normally closed relay contact, SFF > 60% conforming to IEC 61508-1 for normally closed relay contact, PFHd = 0.95E-09 conforming to IEC 61508-1 for normally closed relay contact, HFT=0 conforming to IEC 61508-1 for normally closed relay contact, SFF > 60% conforming to IEC 62061 for normally closed relay contact, PFHd = 0.95E-09 conforming to IEC 62061 for normally closed relay contact, HFT=0 conforming to IEC 62061 for normally closed relay contact, PFHd = 0.95E-09 conforming to ISO 13849-1 for normally closed relay contact, DC > 60 % conforming to ISO 13849-1 for normally closed relay contact, MTTFd > 30 years conforming to ISO 13849-1 for normally closed relay contact, type = B conforming to IEC 61508-1 for normally open relay contact, SFF > 99% conforming to IEC 61508-1 for normally open relay contact, PFHd = 0.95E-09 conforming to IEC 61508-1 for normally open relay contact, HFT = 1 conforming to IEC 61508-1 for normally open relay contact, SFF > 99% conforming to IEC 62061 for normally open relay contact, PFHd = 0.95E-09 conforming to IEC 62061 for normally open relay contact, HFT = 1 conforming to IEC 62061 for normally open relay contact, PFHd = 0.95E-09 conforming to ISO 13849-1 for normally open relay contact, Dcavg >= 99 % conforming to ISO 13849-1 for normally open relay contact, MTTFd > 30 years conforming to ISO 13849-1 for normally open relay contact |
| Safety module application | for emergency stop and protective guard applications |
| Safety module name | XPSBAC |
| Range of product | Harmony Safety Automation |
| [Us] rated supply voltage | 24 V DC - 20...20 %, 24 V AC - 15...10 % |
| Safety level | can reach SIL 1 for normally closed relay contact conforming to IEC 61508, can reach SILCL 1 for normally closed relay contact conforming to IEC 62061, can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1, can reach SIL 3 for normally open relay contact conforming to IEC 61508, can reach SILCL 3 for normally open relay contact conforming to IEC 62061, can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1 |
| Function of module | guard monitoring with 1 or 2 limit switches, emergency stop button with 2 NC contacts |

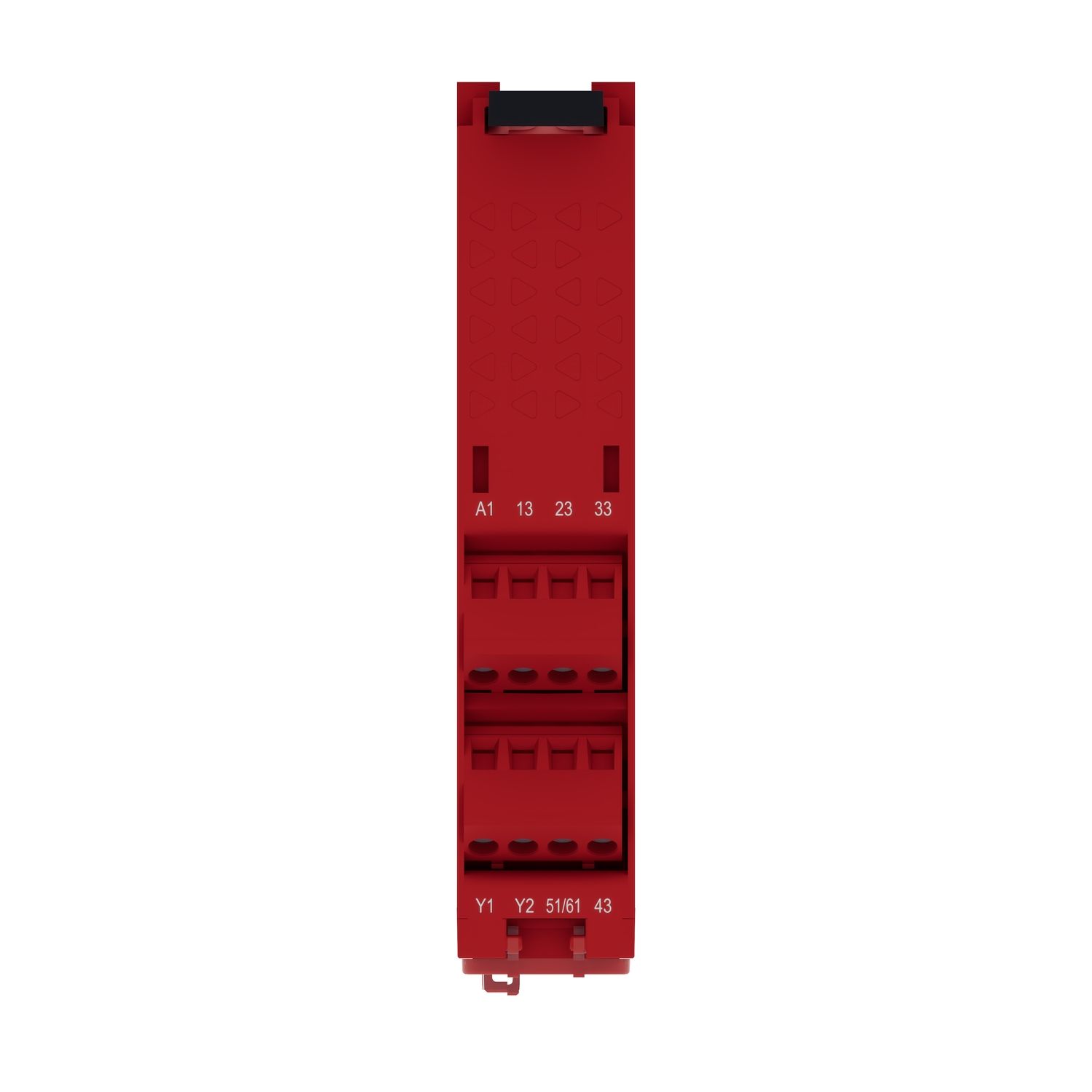

| Connections - terminals | removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel, removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable screw terminal block, 0.2...2.5 mm² solid or flexible |
| Product or component type | safety module |
| Complementary | |
| Synchronisation time between inputs | unlimited |
| Input protection type | internal, electronic |
| Power consumption in W | 1.5 W 24 V DC |

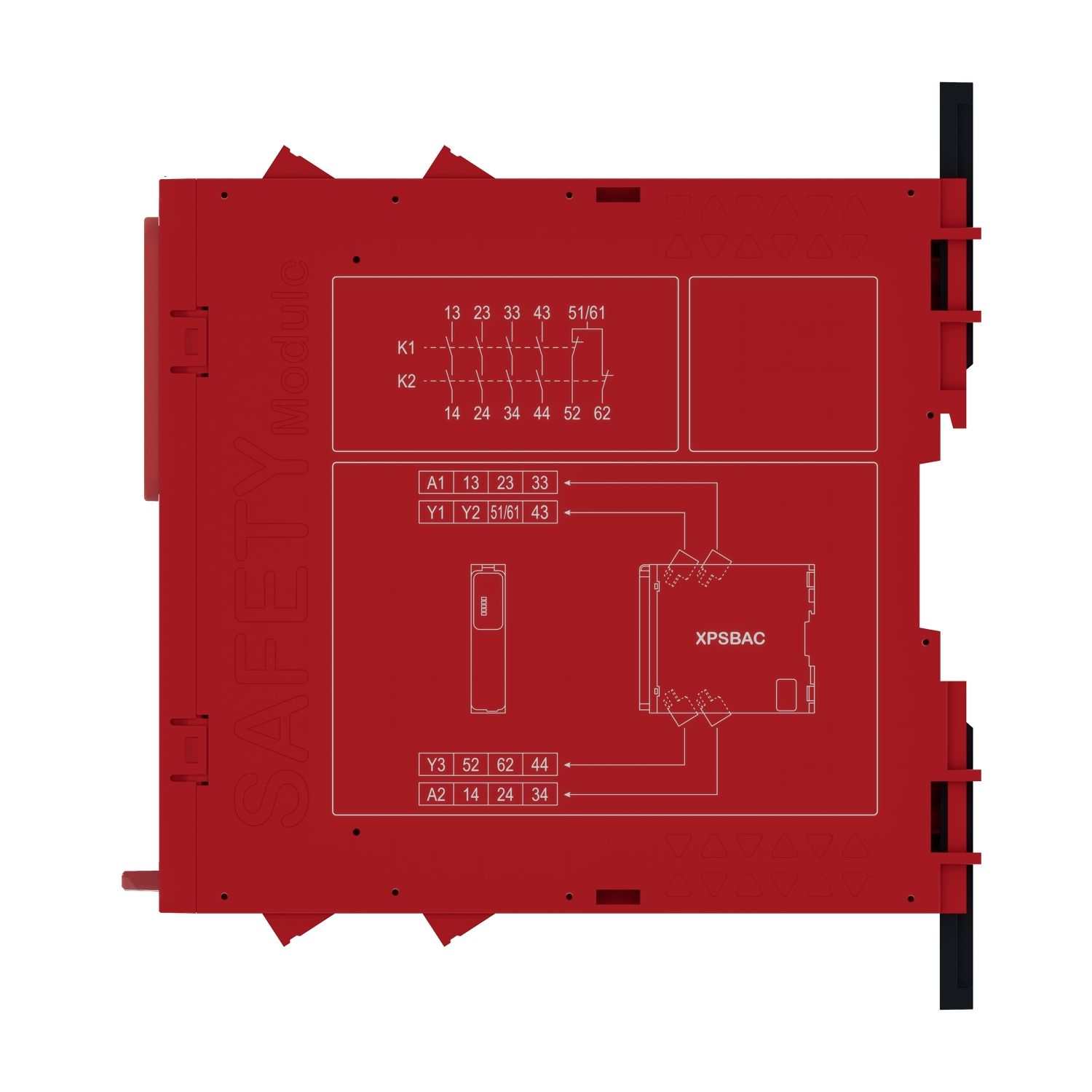

| Auxiliary contact composition | 4 NO + 1 NC |
| [Ie] rated operational current | 1 A DC-13 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A AC-1 for normally closed relay contact, 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact |
| Power consumption in VA | 3.5 VA 24 V AC 50/60 Hz |
| Input compatibility | normally closed circuit conforming to ISO 13850, mechanical contact conforming to ISO 14119, XC limit switch conforming to ISO 14119, normally closed circuit conforming to ISO 14119 |
| Number of inputs | 0 |
| Associated fuse rating | 10 A gG for NO relay output circuit conforming to IEC 60947-1 |
| Response time | 80 ms at 24 V DC, 150 ms at 24 V AC |
| Minimum output voltage | 5 V for relay output |
| Height | 100 mm |
| Number of outputs | 0 |
| Depth | 120 mm |
| Width | 22.5 mm |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-1 |
| Type of start | automatic/manual/monitored |
| Net weight | 0.200 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category II conforming to IEC 60947-1 |

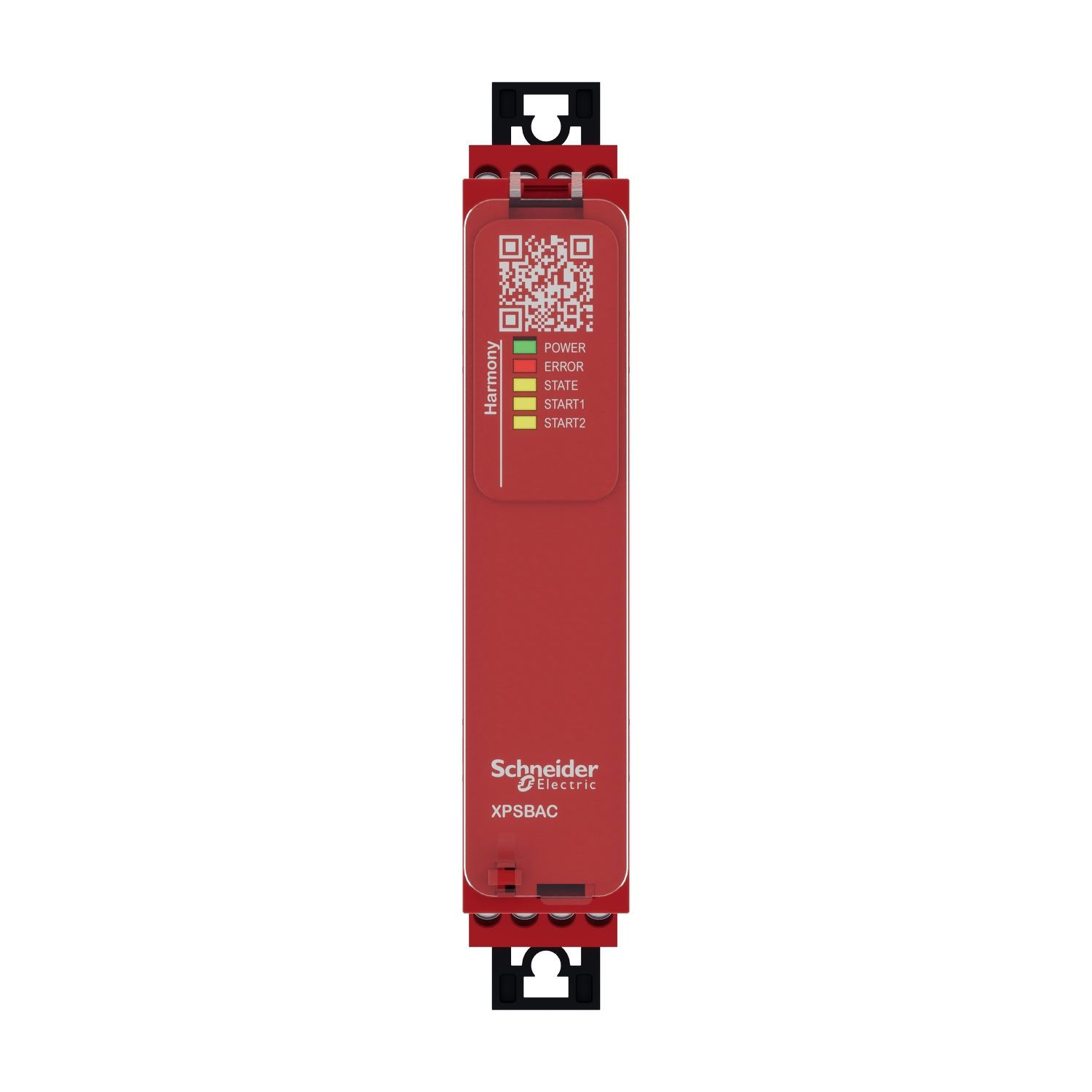

| Local signalling | LED yellow with start2 marking for start input, LED yellow with start1 marking for start input, LED yellow with state marking for status, LED red with error marking for error, LED green with power marking for power ON |
| [Ith] conventional free air thermal current | 6 A |
| Minimum output current | 10 mA for relay output |

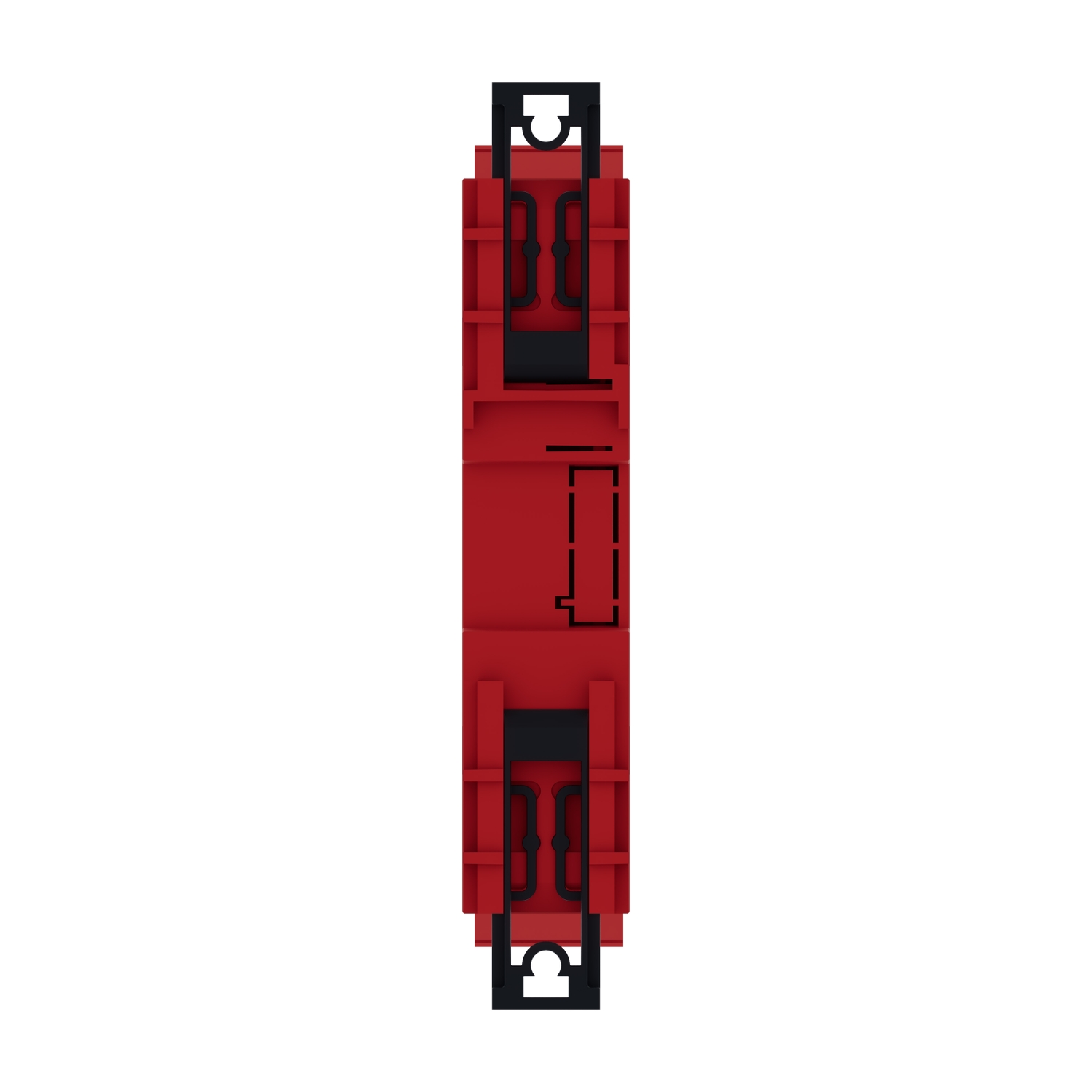

| Mounting support | 35 mm symmetrical DIN rail |
| Terminal identifier | power supply |
| Environment | |
| Relative humidity | 5-95 % non-condensing |
| IP degree of protection | IP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Ambient air temperature for operation | -25-55 °C |
| Standards | IEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1 |
| Product certifications | cULus, TÜV |
