Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety reliability data | PFHd = 2.24E-8 1/h conforming to IEC 62061, DC = 0...99 % conforming to ISO 13849-1, MTTFd = 50.9 years conforming to ISO 13849-1 |
| Safety module application | for dynamic monitoring of hydraulic valves on linear presses |

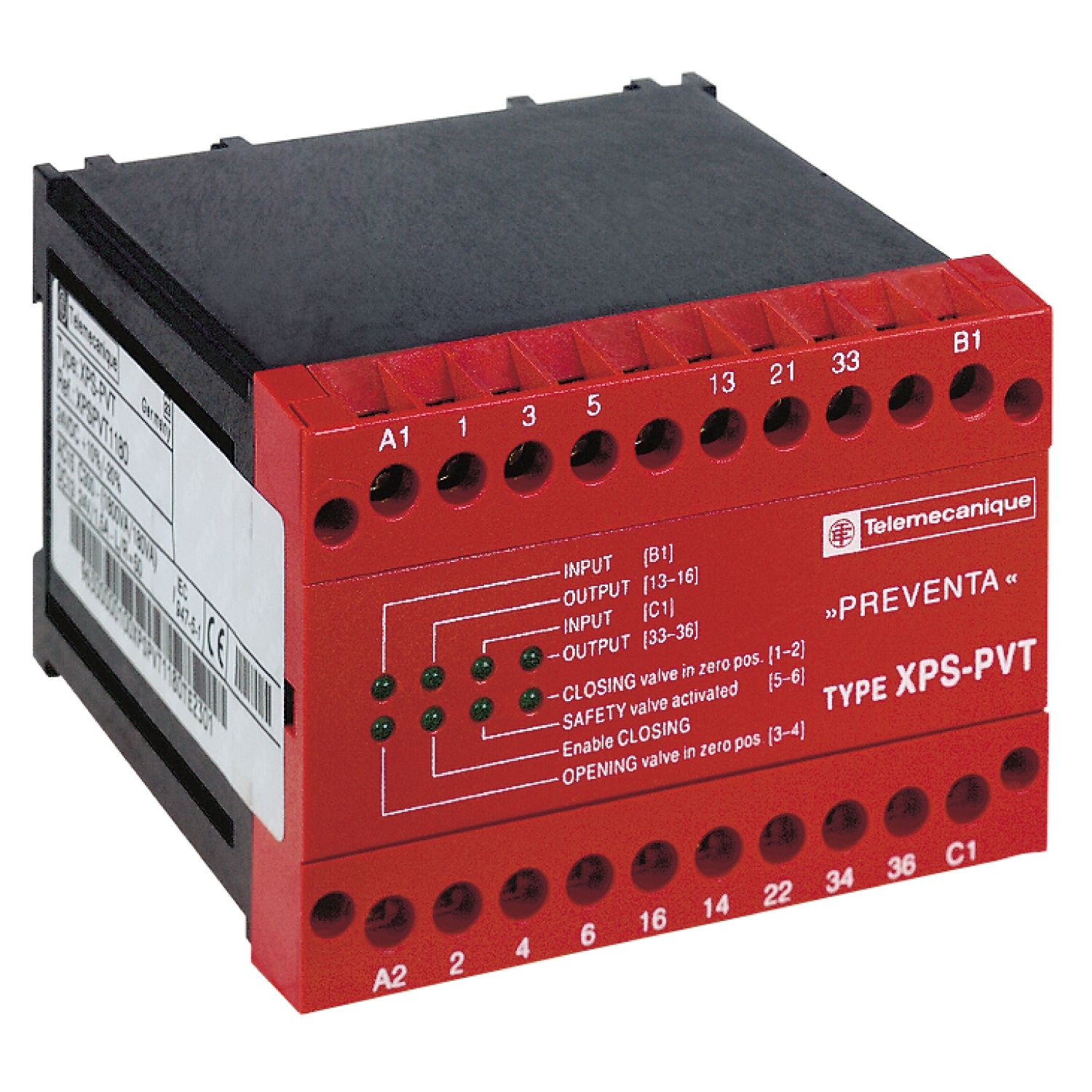

| Safety module name | XPSPVT |
| Enclosure type | removable |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V DC - 10...10 % |
| Safety level | can reach SILCL 3 conforming to IEC 62061, can reach PL e/category 4 conforming to ISO 13849-1 |
| Function of module | monitoring hydraulic valves |
| Output type | relay, 2 NO + 1 NC circuit(s), volt-free |
| Product or component type | Preventa safety module |
| Complementary | |
| Maximum response time on input open | 15 ms |
| Number of terminal blocks | 20 |
| Minimum output wiping time | 100 ms |
| Associated fuse rating | 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output voltage | 17 V for relay output |
| Height | 73 mm |
| Breaking capacity | 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
| Depth | 118 mm |
| Width | 100 mm |
| Enclosure material | polycarbonate |
| Local signalling | 8 LEDs |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| Connections - terminals | captive screw clamp terminals, 2 x 2.5 mm² without cable end, captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end |
| Net weight | 0.54 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Ith] conventional free air thermal current | 2.5 A |
| Minimum output current | 10 mA for relay output |
| Power consumption in W | 6 W |
| Mounting support | 35 mm symmetrical DIN rail |
| Environment | |
| Ambient air temperature for storage | -25-85 °C |
| IP degree of protection | IP40 (enclosure) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Ambient air temperature for operation | -10-55 °C |
| Standards | IEC 60947-5-1, IEC 60204-1, IEC 693 |
| Product certifications | TÜV, UL, CSA |
