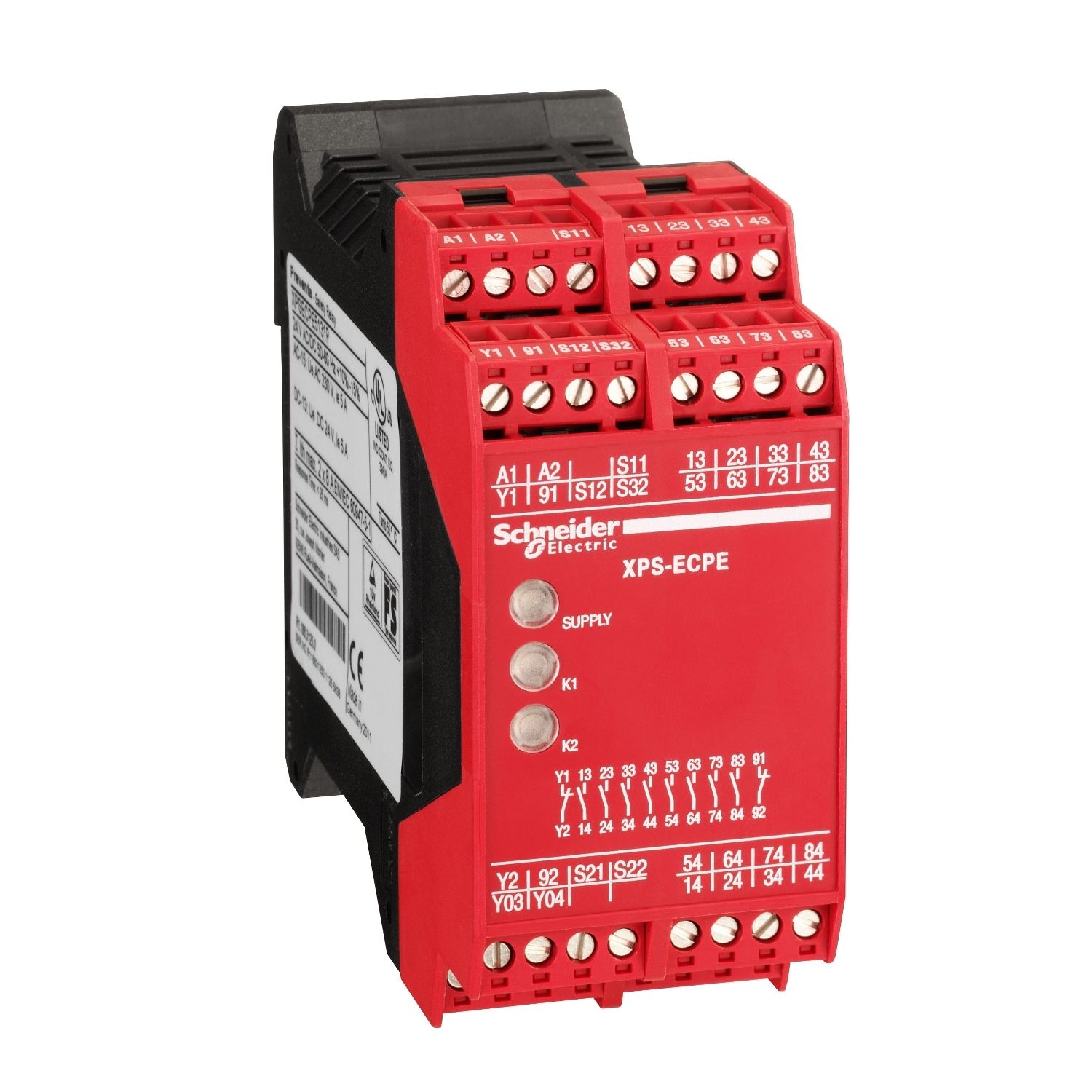

This XPSECPE safety module allows to expand the number of safety contacts available on XPS base modules. It is supplied with 24V AC/DC, has 4 safety circuits, 2 additional outputs and removable spring terminals. This safety module meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061 (when connected to the appropriate module). It allows extension of the number of safety contacts, are available as additions to Preventa XPS base modules (Emergency stop, limit switch, two-hand control, etc.). 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety reliability data | PFHd = 2.47E-8 1/h conforming to EN/IEC 62061, DC = 0...99 % conforming to EN/ISO 13849-1, MTTFd > 100 years conforming to EN/ISO 13849-1 |
| Safety module application | increasing the number of safety contacts |
| Number of additional circuits | 2 NC + 1 solid state output |
| Safety module name | XPSECPE |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V DC - 15...10 %, 24 V AC - 15...10 % |
| Safety level | can reach SILCL 3 can reach the maximum safety level of module base conforming to EN/IEC 62061, can reach PL e/category 4 can reach the maximum safety level of module base conforming to EN/ISO 13849-1 |
| Function of module | increasing the number of safety contacts |
| Output type | relay, 8 NO circuit(s), volt-free |
| Product or component type | Preventa safety module |
| Complementary | |
| Maximum response time on input open | 10 ms |
| Supply frequency | 50/60 Hz |
| Input protection type | internal, electronic |
| Associated fuse rating | 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output voltage | 5 V for relay output |
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 24 A for relay output |
| Breaking capacity | 3600 VA inrush AC-15 B300 relay output, 360 VA holding AC-15 B300 relay output, 20 mA at 24 V for solid state output circuit, 3 A at 24 V (DC-13) time constant: 50 ms for relay output |
| Local signalling | 3 LEDs |
| Power consumption in VA | 4 VA |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Connections - terminals | spring terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, spring terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel, spring terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end, spring terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end, spring terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel, spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end |
| Net weight | 0.65 kg |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Minimum output current | 10 mA for relay output |
| Mounting support | 35 mm symmetrical DIN rail |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| IP degree of protection | IP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -25-55 °C |
| Standards | EN/IEC 60204-1, EN/IEC 60947-5-1 |
| Product certifications | UL, CSA, TÜV |
