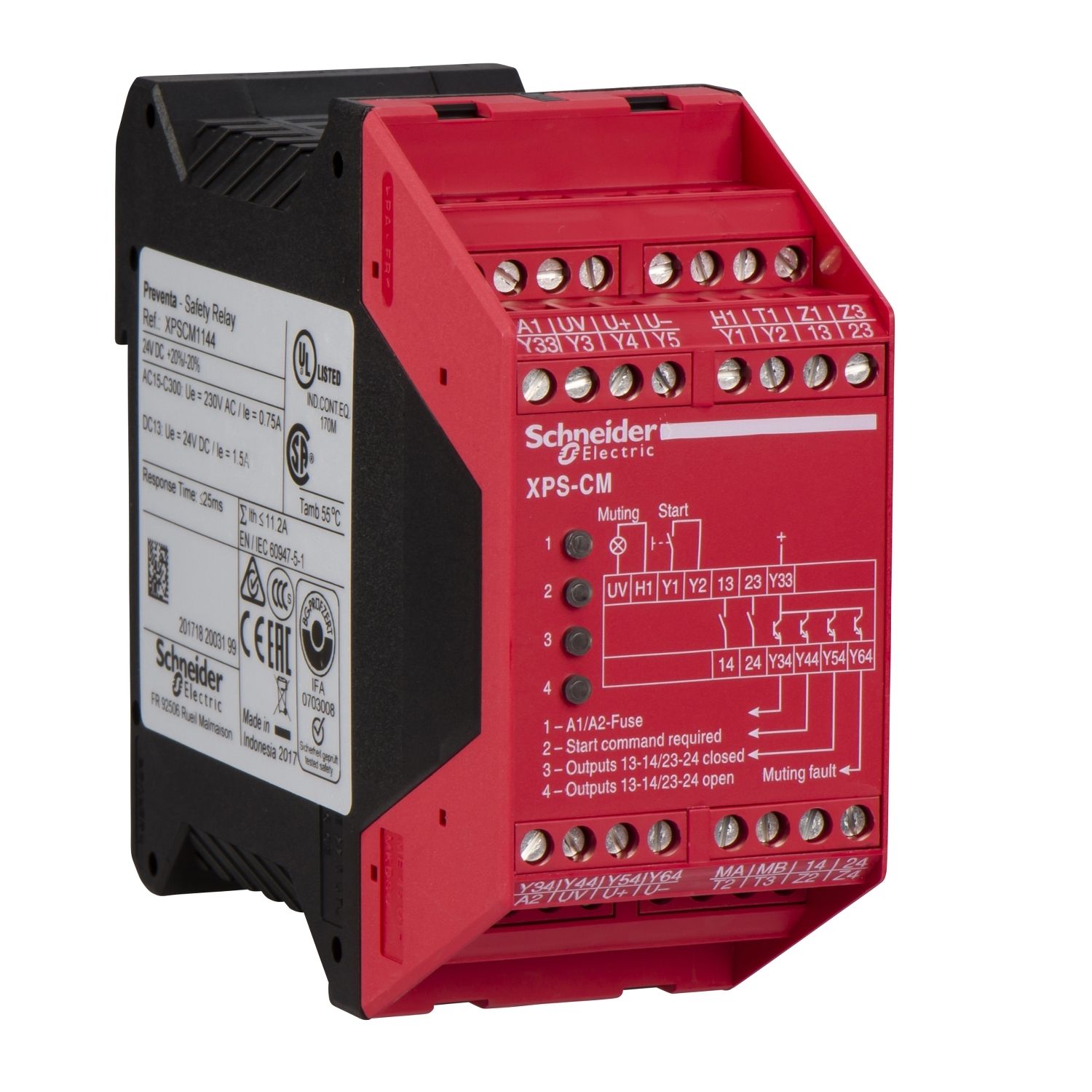

This XPSCM safety module is for monitoring of single-beam photo-electric sensors and has a built-in "muting" function. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety reliability data | PFHd = 3.12E-7 1/h conforming to EN/IEC 62061, PFH = 3.12E-7 1/h conforming to EN/IEC 61508, DC = 95.5 % conforming to EN/ISO 13849-1, MTTFd = 16.6 years conforming to EN/ISO 13849-1 |
| Safety module application | for monitoring of single beam photo-electric sensor |
| Input voltage | 24 V DC (terminal(s) U+, U-) for muting function, 24 V DC for sensor |
| Input compatibility | XU9M18PP340... for muting function, XU2S18PP340... (infrared) for sensor, XU2M18PP340... for muting function, XC limit switch for muting function |
| Safety module name | XPSCM |
| Range of product | Telemecanique Safety light curtains XUSL |
| [Us] rated supply voltage | 24 V DC - 20...20 % |
| Safety level | can reach PL = c with the appropriate control system and correctly wired conforming to EN/ISO 13849-1, can reach SILCL 1 with the appropriate control system and correctly wired conforming to EN/IEC 62061, can reach category 2 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1 |
| Function of module | built-in muting |
| Number of additional circuits | 0 |
| Connections - terminals | captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel, captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid or flexible without cable end, captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel, captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid or flexible without cable end |
| Output type | relay 2 NO (13-14, 23-24), volt-free |
| Number of inputs | 4 (terminal(s) Z1, Z2, Z3, Z4) for sensor, 2 (terminal(s) MA, MB) for muting function |
| Product or component type | safety module |
| Complementary | |
| Maximum response time on input open | 25 ms |
| Protection type | electronic internal fuse |
| Maximum supply current for sensors | 200 mA |
| Maximum line resistance | 10 Ohm for sensor power supply |
| Associated fuse rating | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, 6 A fast blow for relay output conforming to DIN VDE 0660 part 200, 4 A gG for relay output conforming to EN/IEC 60947-5-1, 4 A gG for relay output conforming to DIN VDE 0660 part 200 |
| Input current | 200 mA for muting function |
| Minimum output voltage | 17 V for relay output |
| Output thermal current | 11 A maximum, 5.6 A per relay |
| Muting maximum duration | 60 s (- 10...30 %) |
| Breaking capacity | 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 20 mA at 24 V for solid state output |
| Synchronisation time between inputs | 3 s (+/- 20 %) for the activation of the MA/MB muting signal |
| Sensor power supply | U+, U-: 24-24 V DC |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, 300 V (pollution degree 2) conforming to DIN VDE 0110 parts 1 and 2 |
| Local signalling | 1 incandescent lamp, function muting power consumption: 4-6.5 W, 1 LED, function safety outputs open, 1 LED, function safety outputs closed, 1 LED, function restarting, 1 LED, function electronic internal fuse status |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, 4 kV overvoltage category III conforming to DIN VDE 0110 parts 1 and 2 |
| Minimum output current | 10 mA for relay output |
| Power consumption in W | 15 W |
| Environment | |
| Ambient air temperature for storage | -25-85 °C |
| IP degree of protection | IP40 (enclosure) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529 |
| Ambient air temperature for operation | -10-55 °C |
